GMG10X7R472M10NT-4 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GMG10X7R472M10NT-4

GMG10X7R472M10NT-4: DescriptionCeramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 0603, CHIP; CategoryPassive components capacitor; File Size880KB，13 Pages; ManufacturerCal-Chip Electronics; Environmental Compliance

Download Datasheet Parametric View All

GMG10X7R472M10NT-4 Overview

Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 0603, CHIP

GMG10X7R472M10NT-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145074554764
package instruction	, 0603
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.15
capacitance	0.0047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.87 mm
JESD-609 code	e2
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Paper, 7 Inch
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Nickel (Sn/Ni)
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

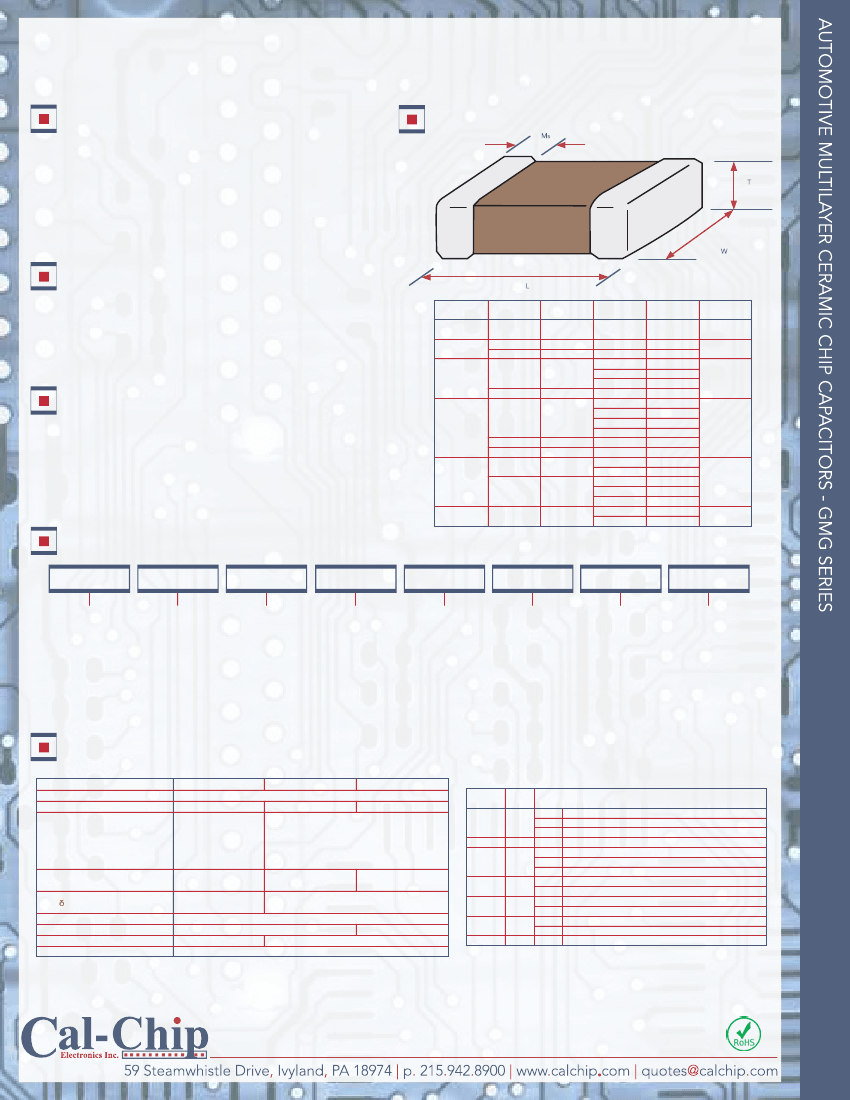

AUTOMOTIVE MULTILAYER CERAMIC CHIP CAPACITORS

GMG SERIES

SCOPE

Consists of conducting material and electrodes - to

achieve chip-type SMT and small size, high denisty and

high efficience ceramic condensers are used.

NPO, X7R, & X5R dielectrics provide product with high

electrical precision, stability and reliability

Assured quality performance in automotive applications

CONSTRUCTION AND DIMENSIONS

FEATURES

Wide selection of sizes available

High capacitance in given case size

Lead free termination (pure Tin)

Meets AEC-Q200 requirement

SIZE

INCH

(MM)

0402 (1005)

0603 (1608)

(MM)

REMARK

(MM)

1.00±0.05

1.60±0.10

1.60±0.15/-0.10

2.00±0.15

2.00±0.20

0.50±0.05

0.80±0.10

0.80±0.15/-0.10

1.25±0.10

1.25±0.20

0.50±0.05

0.80±0.07

0.80±0.15/-0.10

0.60±0.10

0.80±0.10

1.25±0.10

1.25±0.20

0.80±0.10

0.95±0.10

1.15±0.15

1.25±0.10

1.60±0.20

1.60±0.30/-0.10

0.95±0.10

1.25±0.10

1.60±0.20

2.00±0.20

2.50±0.30

1.25±0.10

1.60±0.20

0.25+0.05/-0.10

0.40±0.15

0805 (2012)

0.50±0.20

APPLICATIONS

For navigation and information equipment

For entertainment equipment

For comfortable equipment

1206 (3216)

3.20±0.15

1.60±0.15

0.60±0.20

3.20±0.20

3.20+0.3/-0.1

3.20±0.30

1210 (3225)

2.00±0.20

1.60±0.20

1.60±0.3/0.1

2.50+0.20

0.75±0.25

2.50+0.30

3.20+0.30

1812 (4532)

4.50±0.40

0.75±0.25

ORDERING INFORMATION

GMG

PRODUCT TYPE

Without AEC-Q200

qualification

SIZE

04 - 0402

10 - 0603

21 - 0805

31 - 1206

32 - 1210

43 - 1812

DIELECTRIC

CG - NPO (C0G)

X7R - X7R

102

CAPACITANCE

0R5 - 0.5pF

5R0 - 5pF

100 - 10pF

101 - 100pF

102 - 1000pF

103 - 0.01uF

104 - .1uF

105 - 1.0uF

106 - 10uF

TOLERANCE

B: ± 0.1pF

C: ± 0 25pF

D: ± 0 5pF

F: ± 1%

G: ± 2%

J: ± 5%

K: ± 10%

M: ± 20%

VOLTAGE

6R3 - 6.3 VDC

10 - 10 VDC

16 - 16 VDC

25 - 25 VDC

50 - 50 VDC

100 - 100 VDC

200 - 200 VDC

250 - 250 VDC

PACKAGING CODE

NT: Tape Reel

REEL SIZE

1: 1K

2: 2K

3: 3K

4: 4K

5: 5K

6: 6K

9: 9K

10: 10K

15: 15K

50: 50K

STANDARD ELECTRICAL DATA SPECIFICATIONS

DIALECTRIC

SIZE

CAPACITANCE RANGE*

NP0

0.5pF to 0.033μF

X7R

0402, 0603, 0805, 1206, 1210, 1812

100pF to 2.2μF

X5R

0.056μF to 10μF

RATED

VOL

≥50V

D.F. ≤

≤2.5%

≤3.5%

≤3%

≤5%

≤10%

≤5%

≤7%

≤10%

≤5%

≤10%

≤15%

≤20%

---

EXCEPTION OF D.F. ≤

0603≥0.047uF; 0805≥0.18uF; 1206≥0.47uF

1210≥4.7uF

0603≥1uF; 0805≥1uF; 1206≥4.7uF; 1210≥10uF

0805≥2uF; 1210≥10uF

0805≥1uF; 1210≥10uF

0603≥0.33uF; 1206≥4.7uF

0402≥0.10uF; 0603≥0.47uF; 0805≥2.2uF; 1206≥6.8uF; 1210≥22uF

0402≥0.033uF; 0603≥0.15uF; 0805≥0.68uF; 1206≥2.2uF; 1210≥4.7uF

0402≥0.22uF; 0603≥0.68uF; 0805≥2.2uF; 1206≥4.7uF; 1210≥22uF

0402≥0.33uF; 0603≥0.33uF; 0805≥2.2uF; 1206≥2.2uF; 1210≥4.7uF

0402≥1uF

0402≥1uF; 0603≥10uF; 0805≥4.7uF; 1206≥47uF; 1210≥100uF

0402≥2.2uF

---

CAPACITANCE TOLERANCE**

Cap≤5pF:

B (±0.1pF), C (±0.25pF)

5pF<Cap<10pF:

C (±0.25pF), D (±0.5pF)

Cap≥10pF:

F (±1%), G (±2%), J (±5%)

16V, 25V, 50V, 100V

Cap<30pF: Q≥400+20C

Cap:≥30pF: Q≥1000

-55° to +125°C

±30ppm/°C

J (±5%), K (±10%), M (±20%)

35V

25V

RATED VOLTAGE (WVDC)

TAN

16V, 25V, 50V, 100V,

200V, 250 V

Note 1

6.3V, 10V, 16V, 25V

16V

10V

6.3V

≤3.5%

≤5%

≤10%

≤15%

INSULATION RESISTANCE AT UR

OPERATING TEMPERATURE

CAPACITANCE CHARACTERISTIC

TERMINATION

≥10GΩ or RxC≥500Ω - F whichever is less

-55° to +85°C

±15%

Ni/Si (lead-free termination)

*Measured at the condition of 30~70% related humidity.

NP0: Apply 1.0±0.2Vrms, 1.0MHz±10% for Cap≤1000pF and 1.0±0.2Vrms, 1.0kHz±10% for Cap>1000pF, 25°C at ambient temperature

Measured at 1.0±0.2Vrms, 1.0kHz±10% for C≤10uF; 0.5±0.2Vrms, 120Hz±20% for C> 10uF, 30-~70% related humidity, 25°C ambient temperature for X7R, X5R

** Preconditioning for Class II MLCC: Perform a heat treatment at 150±10°C for 1 hour, then leave in ambient condition for 24±2 hours before measurement.

Note 1: X7R, X5R
