EQTD34 Series Oscillator
Temperature Compensated Quartz Crystal Clock Oscillators TCXO Clipped Sinewave 2.8Vdc 4 Pad 2.5mm x 3.2mm Ceramic
Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision A 06/23/2015
Electrical Specifications
Nominal Frequency
10.000MHz to 32.000MHz
Some frequencies within this range may not be available.
Frequency Stability
Inclusive of Operating Temperature Range, at Vdd=2.8Vdc
±3.0ppm Maximum
±2.5ppm Maximum
±2.0ppm Maximum
±1.5ppm Maximum
±1.0ppm Maximum
±0.5ppm Maximum
±1.0ppm Maximum (at 25°C ±2°C, at Vdd=2.8Vdc, Pre-Reflow)
Frequency Stability vs. Frequency
Tolerance
Frequency Stability vs. Input Voltage
Frequency Stability vs. Load
Frequency Stability vs. Reflow
Frequency Stability vs. Aging
Operating Temperature Range
±0.2ppm Maximum (±5%)
±0.2ppm Maximum (±1kOhm//±1pF)
±1ppm Maximum (at 25°C, 24 hours after reflow, 1 time)
±1ppm/Year Maximum (at 25°C)
0°C to +50°C
-10°C to +60°C
0°C to +70°C
-20°C to +70°C
-30°C to +60°C
-30°C to +75°C
-30°C to +85°C
-40°C to +85°C
2.8Vdc ±5%
2.0mA Maximum over Nominal Frequency of 10MHz to 26MHz
2.5mA Maximum over Nominal Frequency of 26.000001MHz to 32MHz
External DC-Cut capacitor required, 1000pF recommended
0.8Vp-p Clipped Sinewave Minimum
10kOhms//10pF
Clipped Sinewave
Click to Open Phase Noise Table
Fj=12kHz to 20MHz (Random)
0.7pSec Typical, 1pSec Maximum
2mSec Maximum
-40°C to +85°C
Supply Voltage
Input Current
Output Voltage
Load Drive Capability
Output Logic Type
Phase Noise
RMS Phase Jitter
Start Up Time
Storage Temperature Range
1 of 10
28-Jan-2016 2:32 PM
Ecliptek | EQTD34 Series Oscillator
http://www.ecliptek.com/oscillators/EQTD34/
Phase Noise
All Values are Typical
Offset
10Hz
100Hz
1kHz
10kHz
Phase Noise
-89dBc/Hz
-115dBc/Hz
-138dBc/Hz
-150dBc/Hz
2 of 10
28-Jan-2016 2:32 PM
Ecliptek | EQTD34 Series Oscillator
http://www.ecliptek.com/oscillators/EQTD34/

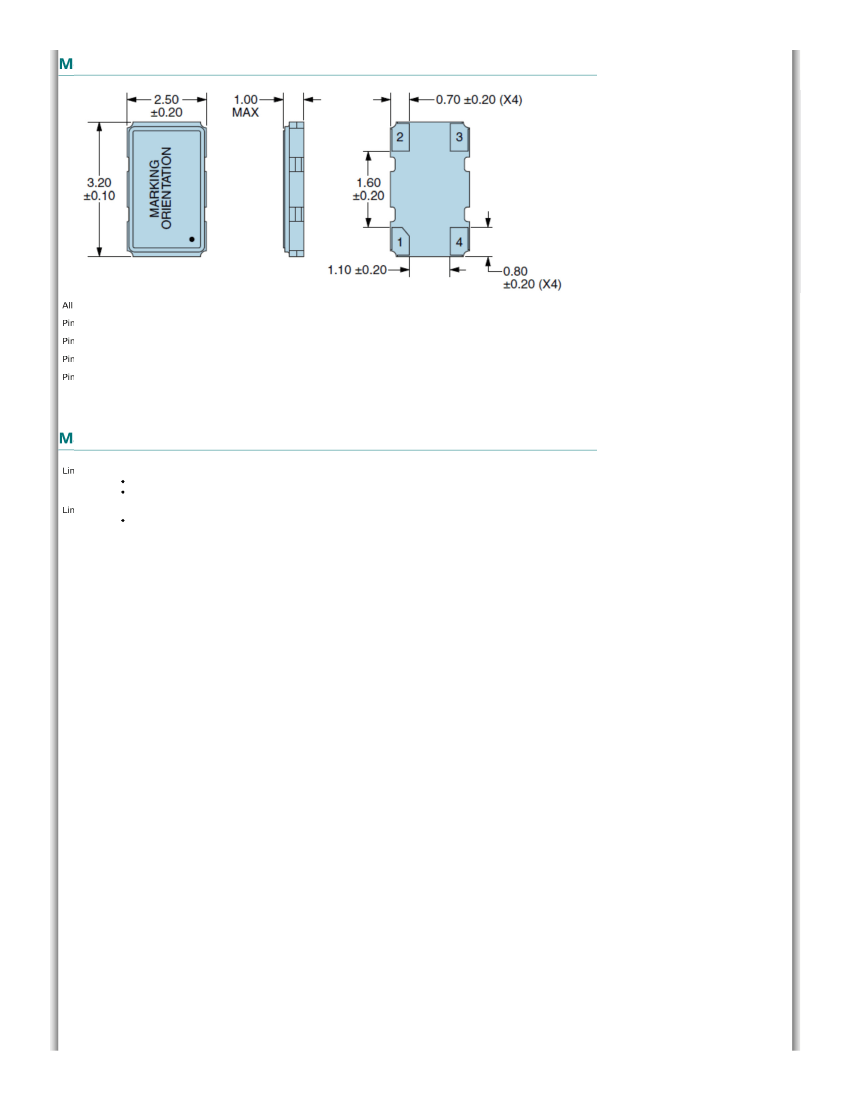

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: Ground
Pin 2: Case/Ground
Pin 3: Output
Pin 4: Supply Voltage
Marking Specifications
Line 1:
E XXXXXX
E = Ecliptek Designator
XXXXXX = Nominal Frequency in MHz (5 digits + Decimal)
XXXXX
XXXXX = Ecliptek Manufacturing Identifier
Line 2:
3 of 10
28-Jan-2016 2:32 PM
Ecliptek | EQTD34 Series Oscillator
http://www.ecliptek.com/oscillators/EQTD34/
Environmental and Mechanical Specifications
ESD Susceptibility
Fine Leak Test
Flammability
Gross Leak Test
Mechanical Shock
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Thermal Resistance (θ
JA
)
Thermal Resistance (θ
JC
)
MIL-STD-883, Method 3015, Class 1, HBM: 1500V
MIL-STD-883, Method 1014, Condition A
UL94-V0
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 2007, Condition A
40°C/W (degrees Celsius per Watt)
14°C/W (degrees Celsius per Watt)
4 of 10
28-Jan-2016 2:32 PM
Ecliptek | EQTD34 Series Oscillator
http://www.ecliptek.com/oscillators/EQTD34/

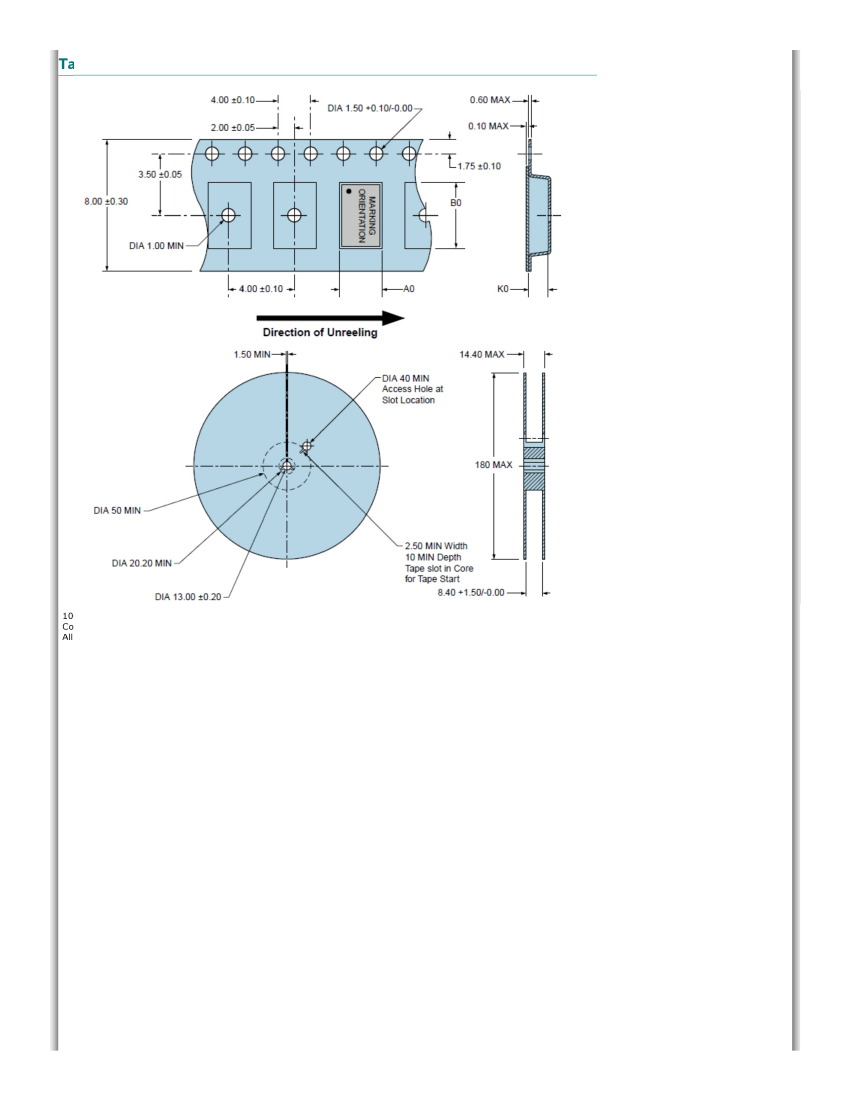

Tape & Reel Dimensions
1000 pieces per reel
Compliant to EIA-481
All Dimensions in Millimeters
5 of 10
28-Jan-2016 2:32 PM
