Specifications

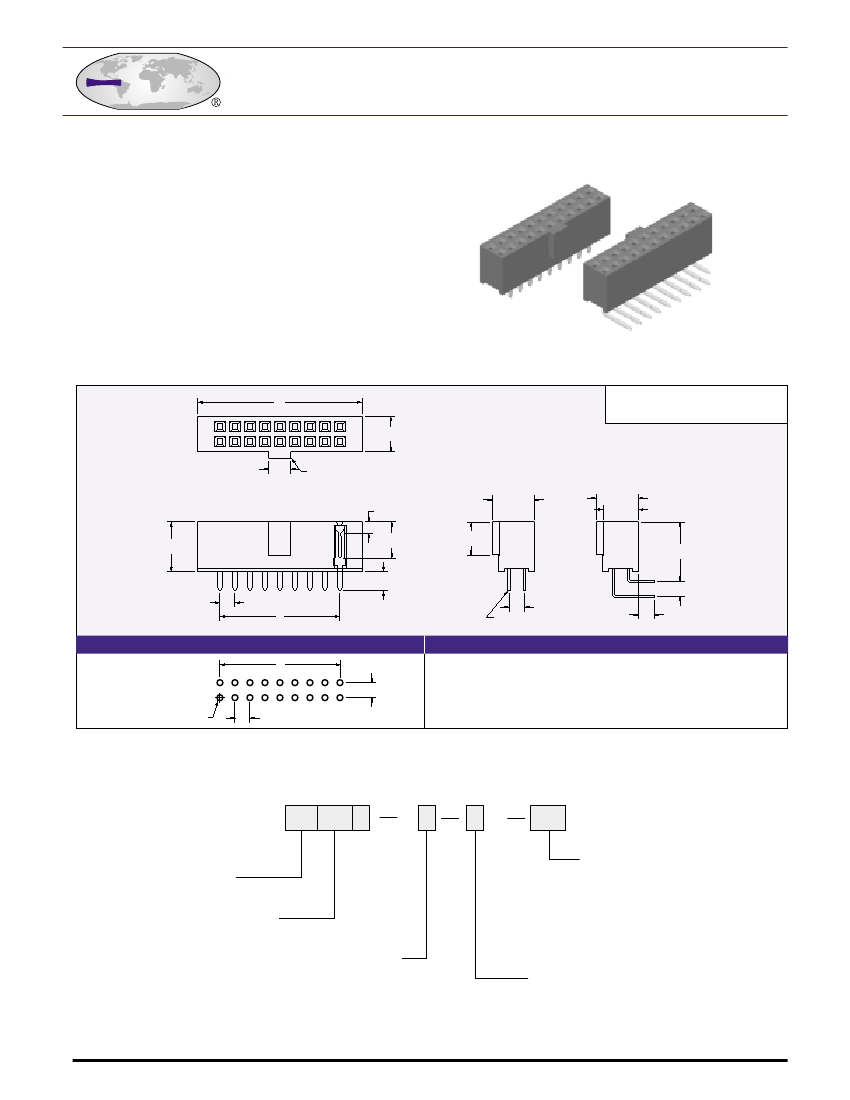

.100 x .100 Socket with Polarizing
9300S Series Sockets
Insulator Material: Glass filled polyester, Type PBT
94V-O, UL Recognized.
Contact Material: Phosphor Bronze
Contact Plating: Gold and/or Tin over .000050” Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Contact Resistance:
20 m ohms max.
Dielectric Withstand Voltage: 1000 VAC
Current Rating:
3 AMPS
Operating Temperature:
-40°C To +105°C
UL File Numbers:
E146967 & E176234
A
.236 [6.0]
A
= .197 + .100 x No. of Pos.
B
= .100 x (No. of Cont./2 -1)
.146 [3.7]
POLARIZATION GIUDE (OPTIONAL)
.280 [7.1]
.077 [1.95]
.244 [6.2]
.220 [5.6]
.398 [10.1]
.280 [7.1]
.236 [6.0]
.335 [8.5]
.126 [3.2]
.100 [2.54]
B
.100 [2.54]
.030 x.016 [.76 x.40]
.100 [2.54]
.126 [3.2]
PCB LAYOUT
B
.100 [2.54]
Ø .040±.003 [1.02±.05]
.100 [2.54]
SUGGESTED MATING CONNECTORS
(PAGE F-42)
93XXS-BX-XX-XX
(PAGE F-43)
93XXS-B3-XX-XX
93XXS-B5-XX-XX-XXX (PAGE F-44)
DIMENSIONS ARE IN INCHES &[MM]
PART NUMBERING
93 XX S
SERIES CODE
.100 SOCKETS
G X
X1
XX
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
01
= Au Flash
100µ”Sn
03
= Au Flash
Au Flash
10
= 10µ”Au
100µ”Sn
30
= 30µ”Au
100µ”Sn
NO. OF CONTACTS
06, 08, 10, 14, 16, 20
24, 26, 30, 34, 40, 44,
48, 50, 60
TERMINATION TYPE
1
= STRAIGHT
2
= RIGHT ANGLE
POLARIZING GIUDE
1
= WITH POLARIZING GUIDE
2
= WITHOUT POLARIZING GUIDE
CONSULT FACTORY FOR CUSTOM CONNECTORS BUILT TO YOUR SPECIFICATION
