C1825X152MCRACAUTO7210 Overview

Ceramic Capacitor, Ceramic,

C1825X152MCRACAUTO7210 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8058337959
package instruction	, 1825
Reach Compliance Code	compliant
YTEOL	7.73
capacitance	0.0015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.6 mm
JESD-609 code	e3
length	6.4 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	500 V
Guideline	AEC-Q200
size code	1825
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	4.6 mm

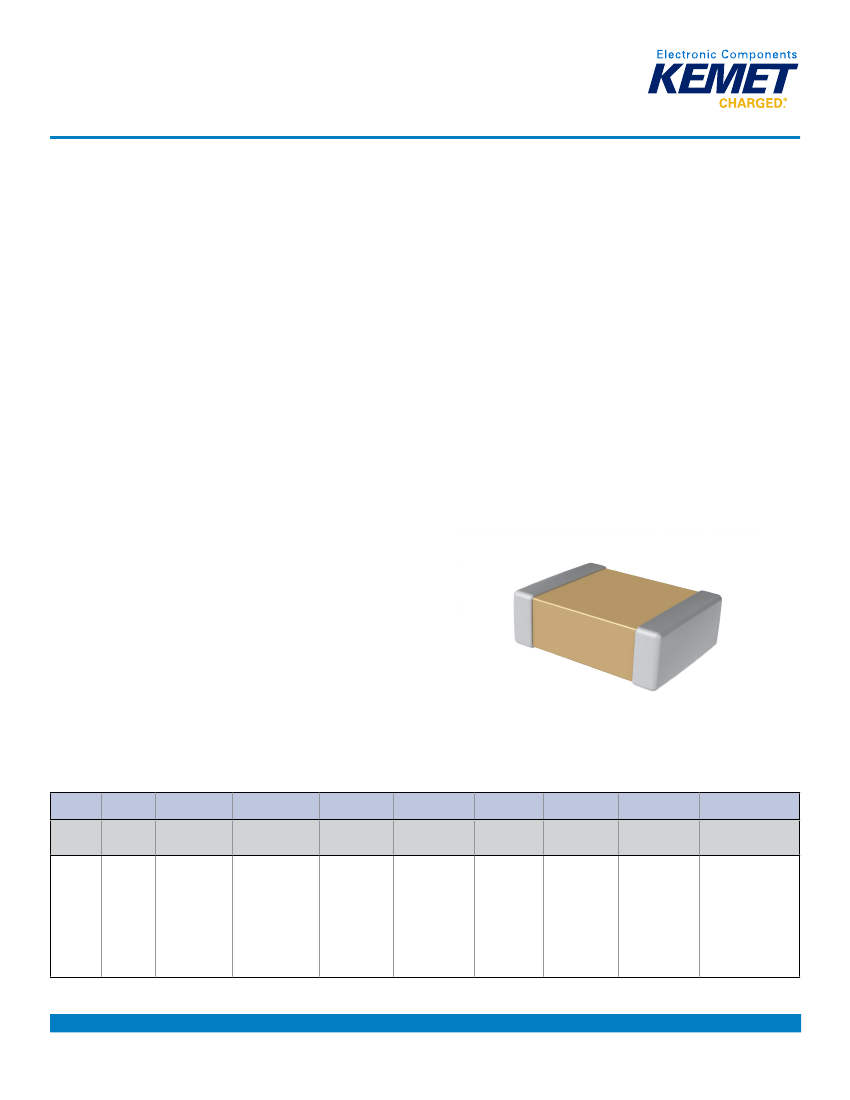

C1825X152MCRACAUTO7210 Preview

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System (HV FT-CAP)

X7R Dielectric, 500 – 3,000 VDC (Automotive Grade)

Overview

KEMET’s Automotive Grade High Voltage Surface Mount

MLCCs with Flexible Termination (HV FT-CAP) address the

primary failure mode of MLCCs — flex cracks, which are

typically the result of excessive tensile and shear stresses

produced during board flexure and thermal cycling. Featuring

several of the highest CV (capacitance/voltage) values

available in the industry, these devices utilize a pliable and

conductive silver epoxy between the base metal and nickel

barrier layers of the termination system. The addition of

this epoxy layer inhibits the transfer of board stress to the

rigid ceramic body, therefore mitigating flex cracks which

can result in low IR or short circuit failures. Although flexible

termination technology does not eliminate the potential for

mechanical damage that may propagate during extreme

environmental and handling conditions, it does provide

superior flex performance over standard termination

systems.

The HV FT-CAP offers low leakage current, exhibits low ESR

at high frequencies and finds conventional use as snubbers

or filters in applications such as switching power supplies

and lighting ballasts. Their exceptional performance at high

frequencies has made them a preferred choice of design

engineers worldwide. In addition to their use in power

supplies, these capacitors are widely used in industries

related to automotive(hybrid), telecommunications, medical,

military, aerospace, semiconductors and test/diagnostic

equipment.

Combined with the stability of an X7R dielectric and designed

to accommodate all capacitance requirements, these flex-

robust devices are RoHS-compliant, offer up to 5 mm of

flex-bend capability and exhibits a predictable change in

capacitance with respect to time and voltage. Capacitance

change with reference to ambient temperature is limited to

±15% from −55°C to +125°C.

Whether under-hood or in-cabin, these capacitors are designed

to provide relaible performance in mission and safety

critical automotive circuits. Stricter testing protocol and

inspection criteria have been established for automotive grade

products in recognition of potentially harsh environmental

conditions. KEMET automotive grade series capacitors meet

the demanding Automotive Electronics Council's AEC-Q200

qualification requirements.

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

Ceramic

1210

154

Capacitance

Code (pF)

Two

significant

digits and

number of

zeros.

Dielectric

R = X7R

Failure Rate/

Design

A = N/A

Termination

Finish

C = 100%

Matte Sn

AUTO

Packaging/Grade

(C-Spec)

See "Packaging

C-Spec Ordering

Options Table"

Case Size

Specification/

(L" x W")

Series

0603

0805

1206

1210

1808

1812

1825

2220

2225

X = Flexible

termination

Capacitance Rated Voltage

Tolerance

(VDC)

J = ±5%

K = ±10%

M = ±20%

C = 500

B = 630

D = 1,000

F = 1,500

G = 2,000

Z = 2,500

H = 3,000

Additional termination finish options may be available. Contact KEMET for details.

One world. One KEMET

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1077_X7R_HV_FT_AUTO_SMD • 9/10/2019

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System, X7R Dielectric, 500 – 3,000 VDC (Automotive Grade)

Packaging C-Spec Ordering Options Table

Packaging Type

7" Reel

13" Reel/Unmarked

7" Reel/Unmarked/2 mm pitch

13" Reel/Unmarked/2 mm pitch

Packaging/Grade

Ordering Code (C-Spec)

AUTO

AUTO7411 (EIA 0603 and smaller case sizes)

AUTO7210 (EIA 0805 and larger case sizes)

3190

3191

Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L" x W") and thickness dimension. See "Chip Thickness/Tape & Reel

Packaging Quantities" and "Tape & Reel Packaging Information".

The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case

size devices. For more information regarding 2 mm pitch option see "Tape & Reel Packaging Information".

All Automotive packaging C-Specs listed exclude the option to laser mark components. Please contact KEMET if you require a laser marked option. For

more information see "Capacitor Marking".

For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information".

Benefits

•

AEC-Q200 automotive qualified

−55°C to +125°C operating temperature range

Industry-leading CV values

Superior flex performance (up to 5 mm)

Exceptional performance at high frequencies

Lead (Pb)-free, RoHS and REACH compliant

EIA 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220,

and 2225 case sizes

• DC voltage ratings of 500 V, 630 V, 1 KV, 1.5 KV, 2 KV,

2.5 KV, and 3 KV

• Capacitance offerings ranging from 10 pF to 560 nF

• Available capacitance tolerances of ±5%, ±10% or ±20%

• Low ESR and ESL

• Non-polar device, minimizing installation concerns

• 100% pure matte tin-plated termination finish allowing for

excellent solderability

Applications

Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubber circuits, output

filters), high voltage coupling and DC blocking, lighting ballasts, voltage multiplier circuits, DC/DC converters and coupling

capacitors in Ćuk converters. Markets include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom

equipment, industrial and medical equipment/control, LAN/WAN interface, analog and digital modems, and automotive

(electric and hybrid vehicles, charging stations and lighting applications).

Application Note

X7R dielectric is not recommended for AC line filtering or pulse applications. These capacitors and/or the assembled circuit

board containing these capacitors may require a protective surface coating to prevent external surface arcing.

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1077_X7R_HV_FT_AUTO_SMD • 9/10/2019

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System, X7R Dielectric, 500 – 3,000 VDC (Automotive Grade)

Automotive C-Spec Information

KEMET automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council.

Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive

Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process

warrant (PPAP).

Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “AUTO.”

This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade

component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a

KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET OEM automotive customers and are

not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited

(see details below.)

Product Change Notification (PCN)

The KEMET product change notification system is used to communicate primarily the following types of changes:

• Product/process changes that affect product form, fit, function, and/or reliability

• Changes in manufacturing site

• Product obsolescence

KEMET Automotive

C-Spec

KEMET assigned

AUTO

Customer Notification Due To:

Process/Product change

Yes (with approval and sign off)

Yes (without approval)

Obsolescence*

Yes

Days Prior To

Implementation

180 days minimum

90 days minimum

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

Production Part Approval Process (PPAP)

The purpose of the Production Part Approval Process is:

• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.

• To provide the evidence that all customer engineering design records and specification requirements are properly

understood and fulfilled by the manufacturing organization.

• To demonstrate that the established manufacturing process has the potential to produce the part.

KEMET Automotive

C-Spec

KEMET assigned

AUTO

PPAP (Product Part Approval Process) Level

●

○

●

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

●

Part number specific PPAP available

○

Product family PPAP only

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1077_X7R_HV_FT_AUTO_SMD • 9/10/2019

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System, X7R Dielectric, 500 – 3,000 VDC (Automotive Grade)

Dimensions – Millimeters (Inches)

EIA Size

Code

0603

0805

1206

1210

1808

1812

1825

2220

2225

Metric Size

Code

1608

2012

3216

3225

4520

4532

4564

5650

5664

Length

1.60 (0.063)

±0.17 (0.007)

2.00 (0.079)

±0.30 (0.012)

3.30 (0.130)

±0.40 (0.016)

3.30 (0.130)

±0.40 (0.016)

4.70 (0.185)

±0.50 (0.020)

4.50 (0.178)

±0.40 (0.016)

4.60 (0.181)

±0.40 (0.016)

5.90 (0.232)

±0.75 (0.030)

5.90 (0.232)

±0.75 (0.030)

Width

0.80 (0.032)

±0.15 (0.006)

1.25 (0.049)

±0.30 (0.012)

1.60 (0.063)

±0.35 (0.013)

2.60 (0.102)

±0.30 (0.012)

2.00 (0.079)

±0.20 (0.008)

3.20 (0.126)

±0.30 (0.012)

6.40 (0.252)

±0.40 (0.016)

5.00 (0.197)

±0.40 (0.016)

6.40 (0.248)

±0.40 (0.016)

Thickness

Bandwidth

0.45 (0.018)

±0.15 (0.006)

0.50 (0.02)

±0.25 (0.010)

0.60 (0.024)

±0.25 (0.010)

0.60 (0.024)

±0.25 (0.010)

0.70 (0.028)

±0.35 (0.014)

0.70 (0.028)

±0.35 (0.014)

0.70 (0.028)

±0.35 (0.014)

0.70 (0.028)

±0.35 (0.014)

0.70 (0.028)

±0.35 (0.014)

Separation

Minimum

0.58 (0.023)

0.75 (0.030)

Mounting

Technique

Solder Wave or

Solder Reflow

See Table 2 for

Thickness

N/A

Solder Reflow

Only

Qualification/Certification

Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details

regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive

Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their

website at www.aecouncil.com.

Environmental Compliance

Lead (Pb)-free, RoHS, and REACH compliant without exemptions.

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1077_X7R_HV_FT_AUTO_SMD • 9/10/2019

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System, X7R Dielectric, 500 – 3,000 VDC (Automotive Grade)

Electrical Parameters/Characteristics

Item

Operating Temperature Range

Capacitance Change with Reference to

+25°C and 0 Vdc Applied (TCC)

Parameters/Characteristics

−55°C to +125°C

±15%

3.0%

150% of rated voltage for voltage rating of < 1,000V

120% of rated voltage for voltage rating of ≥ 1,000V

(5±1 seconds and charge/discharge not exceeding 50 mA)

2.5%

See Insulation Resistance Limit Table

(500 VDC applied for 120 ±5 seconds at 25°C)

Aging Rate (Maximum % Capacitance Loss/Decade Hour)

Dielectric Withstanding Voltage (DWV)

Dissipation Factor (DF) Maximum Limit at 25°C

Insulation Resistance (IR) Minimum Limit at 25°C

Regarding Aging Rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.

DWV is the voltage a capacitor can withstand (survive) for a short period of time. It exceeds the nominal and continuous working voltage of the

capacitor.

Capacitance and dissipation factor (DF) measured under the following conditions:

1kHz ±50Hz and 1.0 ±0.2 V

rms

if capacitance ≤10 µF

120Hz ±10Hz and 0.5 ±0.1 V

rms

if capacitance >10 µF

To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.

Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 & Agilent E4980 have a feature known as

Automatic Level Control (ALC). The ALC feature should be switched to "ON."

Post Environmental Limits

High Temperature Life, Biased Humidity, Moisture Resistance

Dielectric

Rated DC

Voltage

> 25

X7R

16/25

< 16

All

Capacitance

Value

Dissipation

Factor (%)

3.0

5.0

7.5

±20%

10% of Initial

Limit

Capacitance

Shift

Insulation

Resistance

Insulation Resistance Limit Table (X7R Dielectric)

EIA Case Size

0603

0805

1206

1210

1808

1812

1825

2220

2225

1,000 Megohm

Microfarads or 100 GΩ

N/A

< .0039 µF

< 0.012 µF

< 0.033 µF

< 0.018 µF

< 0.027 µF

< 0.120 µF

< 0.150 µF

< 0.180 µF

100 Megohm

Microfarads or 10 GΩ

All

≥ .0039 µF

≥ 0.012 µF

≥ 0.033 µF

≥ 0.018 µF

≥ 0.027 µF

≥ 0.120 µF

≥ 0.150 µF

≥ 0.180 µF

C1077_X7R_HV_FT_AUTO_SMD • 9/10/2019

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

High frequency signal input switch circuit b

hum filter circuit

7.2V, 1.2A battery charging circuit diagram using ATC105

MC2831A FM transmitter circuit

Tape head and tail detector circuit

LA4225A audio power amplifier circuit

Newcomer reporting!: Ask for cover...; xvbin DIY/Open Source Hardware

Distribute benefits, students distribute a small routine: [size=5] Classmates, have you ever encountered a situation when you were doing a project, for the sake of cost :Sad:, space :Sad:, and choosing a low-end processor. Then there are not enough ports {:1...; 739669351 stm32/stm8

[NXP Rapid IoT Review] + Mobile Synchronizer 5: [i=s] This post was last edited by Beifang on 2019-1-11 20:01 [/i] 1. The debugging process after designing the first example program is also very simple. Continuing the project development of the pre...; 北方 RF/Wirelessly

Verilog(R) Golden Reference Guide: Verilog(R) Golden Reference Guide...; ty_gdl Embedded System

Lenovo wireless network unavailable: 1. Lenovo laptop, downloaded the designated wireless adapter Broadcom802.11_Wlan_Vista.exe according to the machine model on the official website 2. The installation was successful, and the Broadcom80...; AVR_AFA Embedded System

I would like to ask what the symbols on the LCD screen of the State Grid electricity meter mean. I have never understood what they mean. Please give me some advice. Thank you.: I'd like to ask what the symbols on the State Grid electricity meter LCD screen mean, but I can't understand what they mean. Please give me some advice. Thank you. As shown in the figure below, what d...; 一沙一世 stm32/stm8

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components
