PTS645TL43 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> PTS645TL43

PTS645TL43: Descriptionswitch tactile spst-NO 0.05a 12v; CategoryTopical application Mechanical and electrical/engineering/automation; File Size521KB，7 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

PTS645TL43 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTS645TL43	-	-	View	Buy Now

PTS645TL43 Overview

switch tactile spst-NO 0.05a 12v

PTS645TL43 Parametric

Parameter Name	Attribute value
Datasheets
PTS Series
Product Photos
PTS645TL43 (LFS)
Standard Package	1,000
Category	Switches
Family	Tactile Switches
Packaging	Bulk
Circui	SPST-NO
Switch Functi	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, from Pins	4.30mm
Actuator Orientati	Top Actuated
Termination Style	PC Pi
Outline	6.00mm x 6.00mm
Illuminati	Non-Illuminated
Illumination Voltage (Nominal)	-
Illumination Type, Col	-
Operating Force	130gf
Ingress Protecti	-
Features	Grounding Pi
Actuator Material	Polyamide (PA66), Nylon 6/6
Switch Travel	-
Mechanical Life	100,000 Cycles
Operating Temperature	-10°C ~ 60°C
Other Names	*PTS645TL43CKN9011

Preview

Download Datasheet

View All

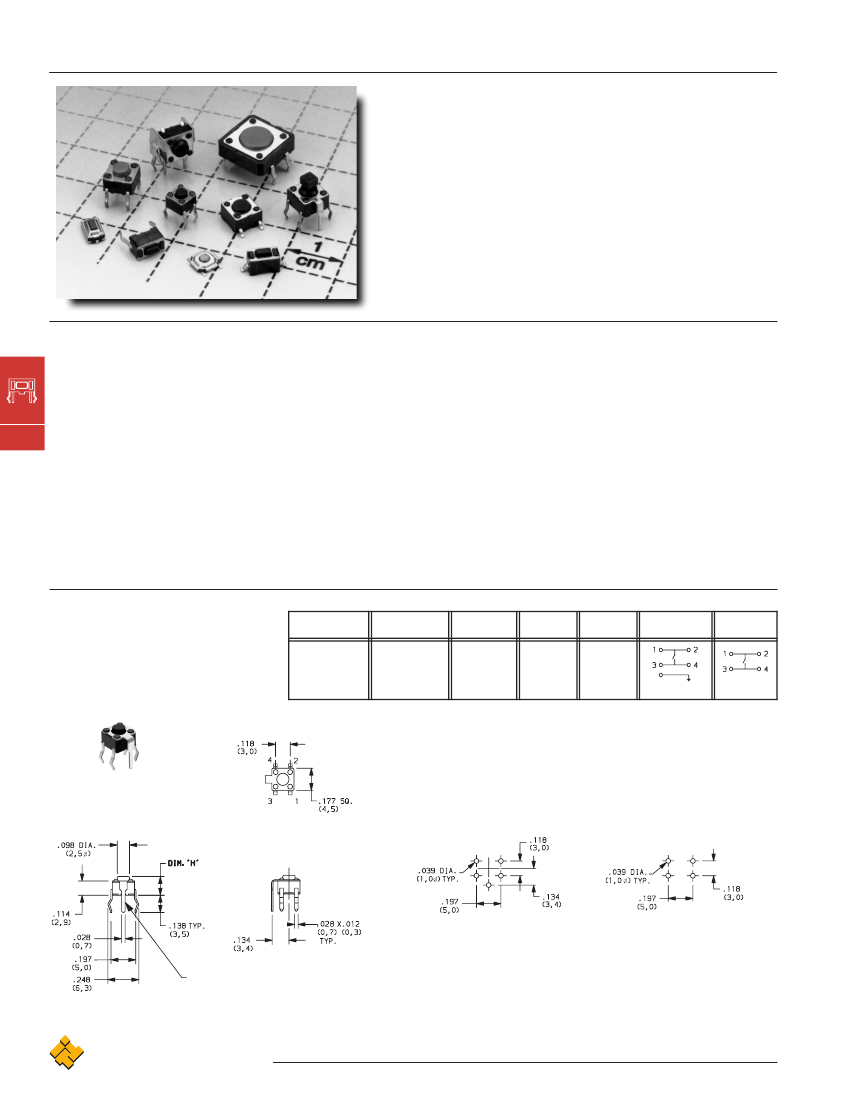

C&K PTS Series

Subminiature Tactile Switches

Features/Benefits

Specifications

Cost-effective solution

Long life contact design

Variety of actuator styles and package sizes

Multiple actuation forces

Typical Applications

Consumer products

Instrumentation

Computer Products

Hand-held devices

Materials

BASE: 6/6 nylon or glass filled polyester (PBT) (UL 94HB).

ACTUATOR: 6/6 nylon or polyacetal (UL 94HB).

COVER PLATE: PTS453S, PTS635S, PTS635V models:

Tin-plated brass; PTS453T, PTS125, PTS645T, PTS645V,

PTS645TJ, PTS645VJ models: Tin alloy; PTS645S models

(Including TR): Polyester.

DOME CONTACTS: PTS635 models-stainless steel,

silver clad; all other models-phosphor bronze, silver clad.

STATIONARY CONTACTS: Brass, silver plated.

TERMINALS: Brass, silver plated. All terminals insert molded.

PACKAGING: Bulk packaging standard for PTS453, PTS635

and PTS645 models. Tube packaging standard for all PTS125 models.

Radial tape packaging available on PTS645S models; when ordering,

add suffix ‘TR’ to part number. Switches supplied 1,000 pieces per box.

Tactile

CONTACT RATING: 50 mA @ 12 V DC.

MECHANICAL & ELECTRICAL LIFE: 20,000 operations for

PTS635S/V models; 25,000 operations for PTS453S/T

models;100,000 operations for PTS645S/T, PTS645V, PTS645SJ/TJ

and PTS645VJ models; 200,000 operations for PTS125S models.

300,000 for PTS525 models.

CONTACT RESISTANCE: 100 milliohms max. initial.

INSULATION RESISTANCE: 10

Ω

min.

DIELECTRIC STRENGTH: 250 V AC min.

OPERATING TEMPERATURE: –10°C to 60°C.

SOLDERABILITY: Preheating to 100°C for 45 sec. max. Keep flux

flush with top surface of PCB; do not apply to component side of

PCB and area where terminals are located. Soldering to 255°C for

5 sec. max. Clean by brushing on soldering surface. Do not clean

switch with solvents. SMT capable of IR solder process, no

cleaning process.

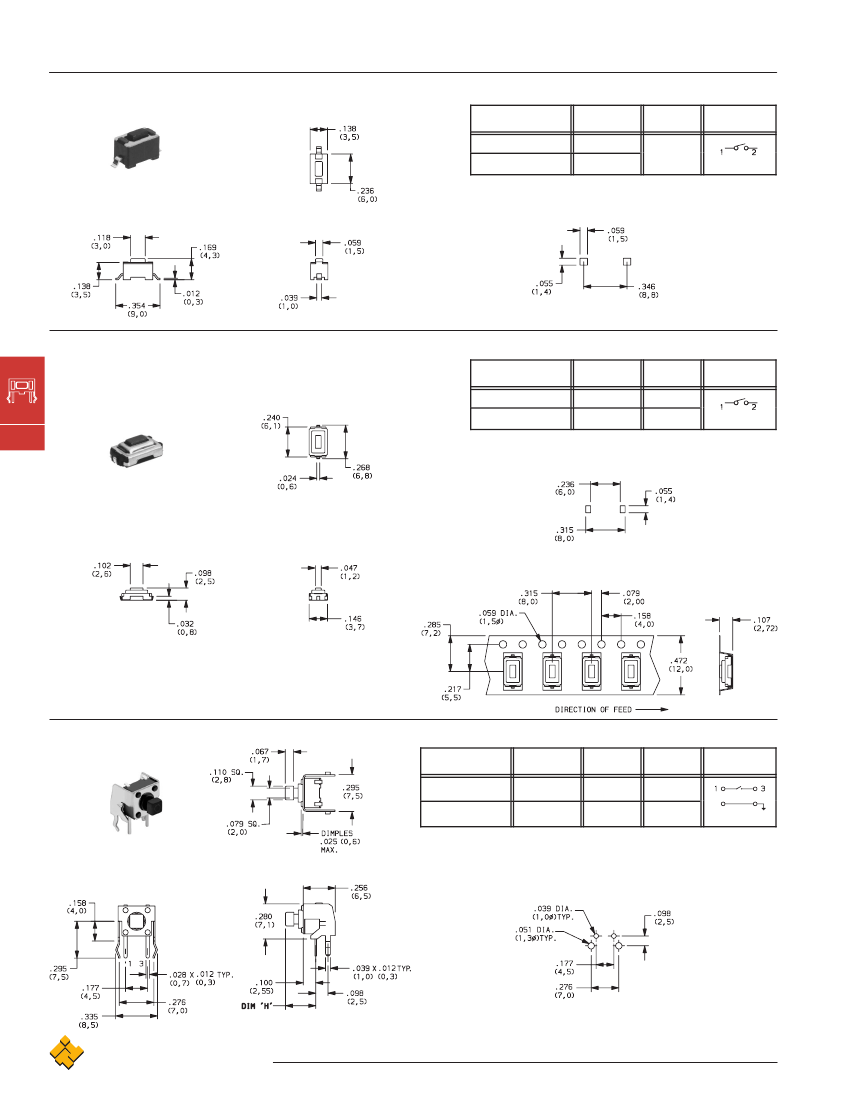

4.5 x 4.5mm Models

PART NUMBER

(With ESD Pin)

OPERATING

FORCE (TYP.)

DIM. ‘H’

ACTUATOR

COLOR

SCHEMATIC

(With ESD Pin)

SCHEMATIC

PTS453SL38

PTS453TL38

130 g

0.150 (3,8)

Black

SPST

PTS453TL38

SPST

PC MOUNTING

(With ESD Pin)

PC MOUNTING

ESD PIN WITH

PTS453TL38

MODEL ONLY

ITT Industries

Cannon

C-6

www.ittcannon.com
