1N5246B_T50R

Description
diode zener 16v 500mw do35
Categorysemiconductor    Discrete semiconductor
File Size130KB,6 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

1N5246B_T50R Online Shopping

Suppliers Part Number Price MOQ In stock
1N5246B_T50R - - View Buy Now

1N5246B_T50R Overview

diode zener 16v 500mw do35

1N5246B_T50R Parametric

Parameter NameAttribute value
Datasheets
1N5221B - 63B
Product Photos
DO-35
Standard Package10,000
CategoryDiscrete Semiconductor Products
FamilyDiodes - Zener - Single
PackagingTape & Reel (TR)
Voltage - Zener (Nom) (Vz)16V
Tolerance±5%
Power - Max500mW
Impedance (Max) (Zzt)17 Ohm
Current - Reverse Leakage @ V100nA @ 12V
Voltage - Forward (Vf) (Max) @ If1.2V @ 200mA
Operating Temperature-65°C ~ 200°C
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-35

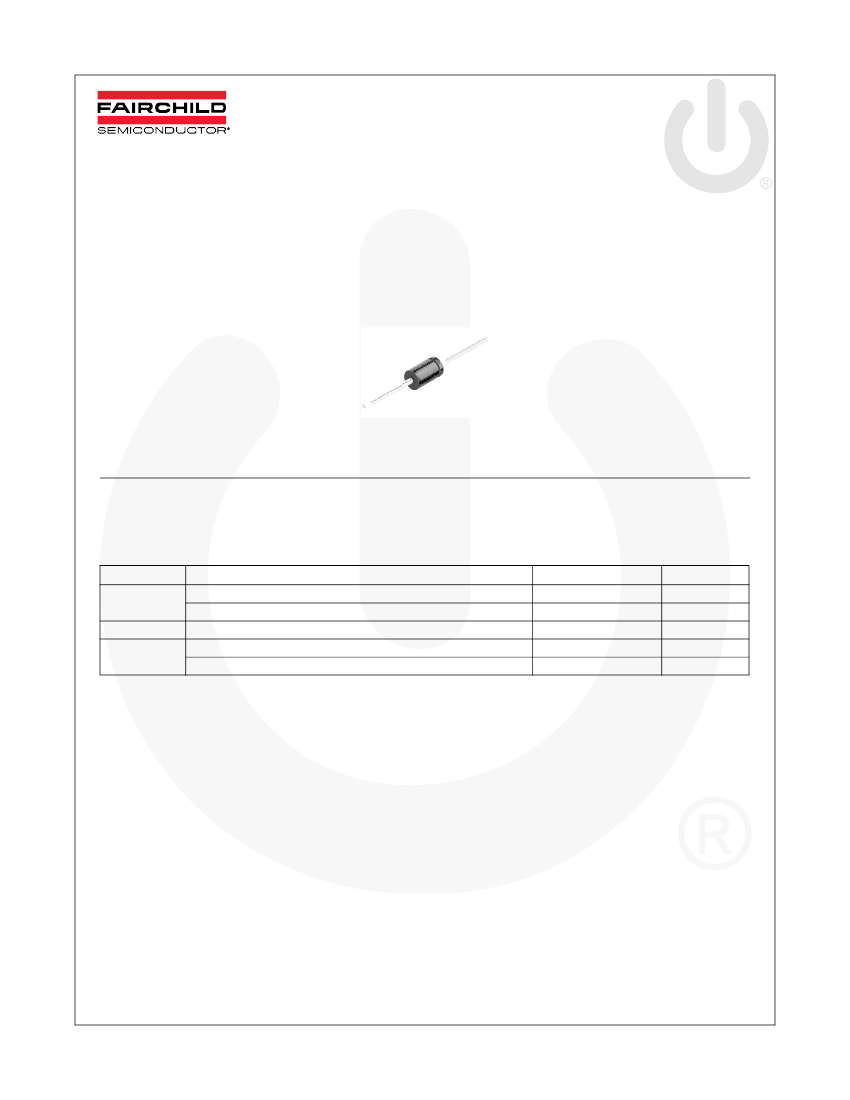

1N5221B - 1N5263B — Zener Diodes
July 2013
1N5221B - 1N5263B
Zener Diodes
Tolerance = 5%
DO-35 Glass case
COLOR BAND DENOTES CATHODE
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
P
D
T
STG
T
J
Note:
Parameter
Power Dissipation
Derate above 50°C
Storage Temperature Range
Operating Junction Temperature Range
Lead Temperature (1/16 inch from case for 10 s)
Value
500
4.0
-65 to +200
-65 to +200
+230
Units
mW
mW°C
°C
°C
°C
1. These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Non-recurrent square wave Pulse Width = 8.3 ms, T
A
= 50°C
© 2007 Fairchild Semiconductor Corporation
1N5221B - 1N5263B Rev. 1.2.0
1
www.fairchildsemi.com
