CF-CA-1CB4-P412T datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> CF-CA-1CB4-P412T

CF-CA-1CB4-P412T: Descriptionswitch tactile spst-NO 0.05a 32v; CategoryTopical application Mechanical and electrical/engineering/automation; File Size442KB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

CF-CA-1CB4-P412T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CF-CA-1CB4-P412T	-	-	View	Buy Now

CF-CA-1CB4-P412T Overview

switch tactile spst-NO 0.05a 32v

CF-CA-1CB4-P412T Parametric

Parameter Name	Attribute value
Datasheets
CF-CA Series
Standard Package	500
Category	Switches
Family	Tactile Switches
Packaging	Tape & Reel (TR)
Circui	SPST-NO
Switch Functi	Off-Mom
Contact Rating @ Voltage	0.05A @ 32VDC
Actuator Type	Round Bu
Mounting Type	Surface Mount, Right Angle
Actuator Height off PCB, from Pins	4.00mm
Actuator Orientati	Side Actuated
Termination Style	SMD (SMT) Tab
Outline	7.00mm x 6.70mm
Illuminati	Non-Illuminated
Illumination Voltage (Nominal)	-
Illumination Type, Col	-
Operating Force	305gf
Ingress Protecti	-
Features	Support Terminal
Actuator Material	Resi
Switch Travel	0.25mm
Mechanical Life	-
Operating Temperature	-40°C ~ 90°C

Preview

Download Datasheet

View All

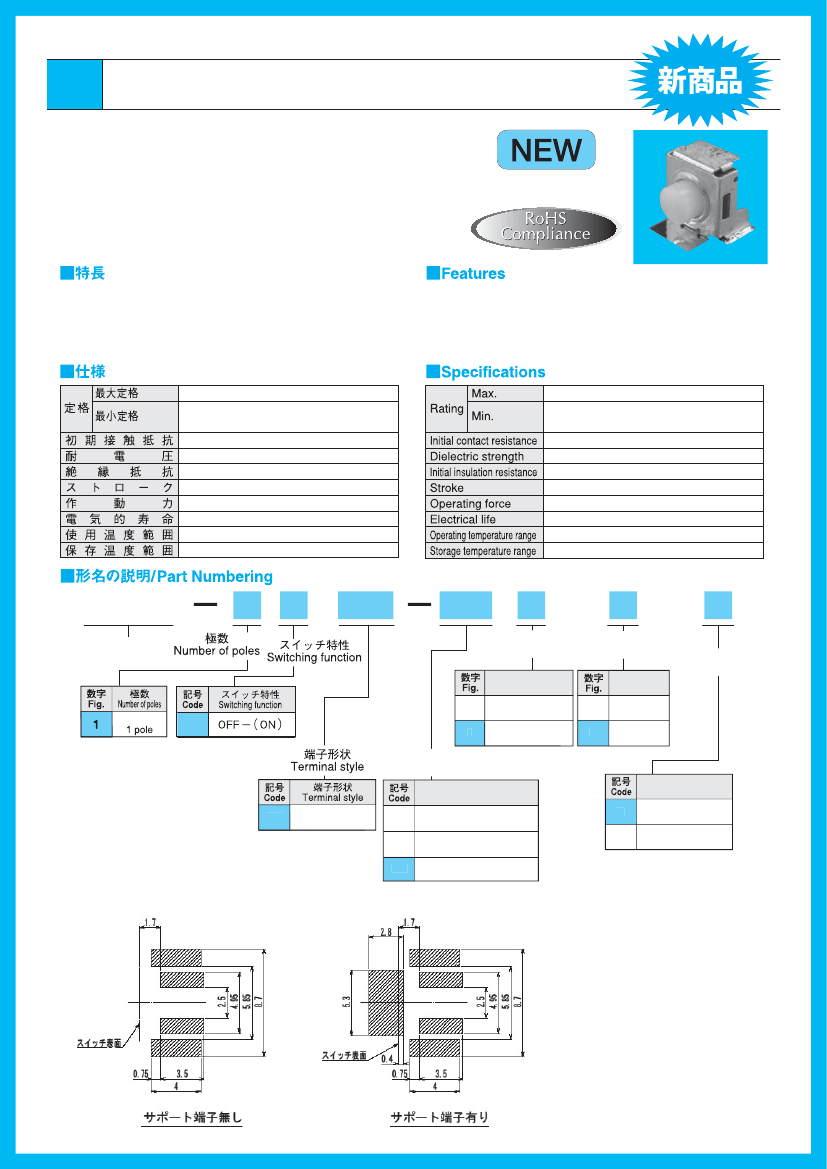

ライトアングル面実装タクトスイッチ

Right Angle Tact Switches

CF-CAシリ−ズ

1. ライアングルタク

ト

トSW

2. 豊富なバリエーション

（ツマミ長さ、

サポー

ト端子）

3. 銀メ

ッキ、ッキ仕様

金メ

4. 樹脂ボタンタイプ

1VA MAX（DC32V MAX50mA MAX）

（銀接点）DC5V 1mA

（金接点）DC5V 10μA

100mΩ以下

AC250V（50∼60Hz）1分間

100MΩ以上

（DC100V）

0.25mm

3±1.5N½305±153g½

最大定格にて100,000回

ー40∼＋90℃

RoHS

対応品

1. Right angle baton switches

2. An abundant variation

3. Silver plating and gold-plated specifications

4. Resin button type

1VA MAX（DC32V MAX50mA MAX）

（Silver）DC5V 1mA

（Gold） DC5V 10μA

100mΩ max.

AC250V（50∼60Hz）１minute

100MΩ min.

（DC100V）

0.25mm

3±1.5N½305±153g½

MAX Rating 100,000 cycles.

ー40∼＋90℃

CF-CA

シーズ記号

リ

Series code

1 C

接点材質

Contact material

銀メッキ

Silver plated

金メッキ

Gold plated

包装½態

Packaging spec

サポー

ト端子

接点材質

Support terminal Contact material

サポート端子

Support terminal

なし

Without

有り

With

１極

操½部½状

Actuator shape

操½部½状

Actuator shape

・ィ

ガルウング R/A

Gull wing R/A

樹脂ボタン 1.1mm

Resin button

樹脂ボタン 2.4mm

Resin button

樹脂ボタン 4.0mm

Resin button

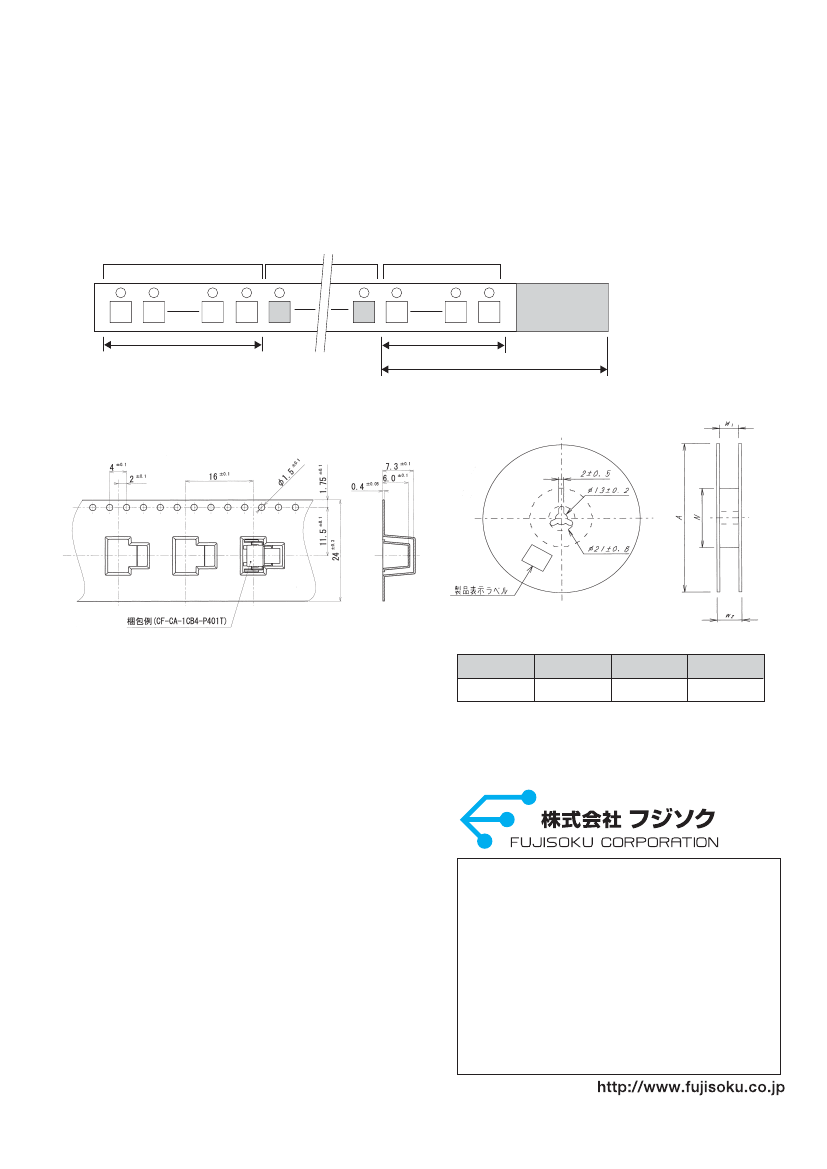

包装½態

Packaging spec

テーピング

Taping

ポリ袋

空欄

Plastic bags

Blank

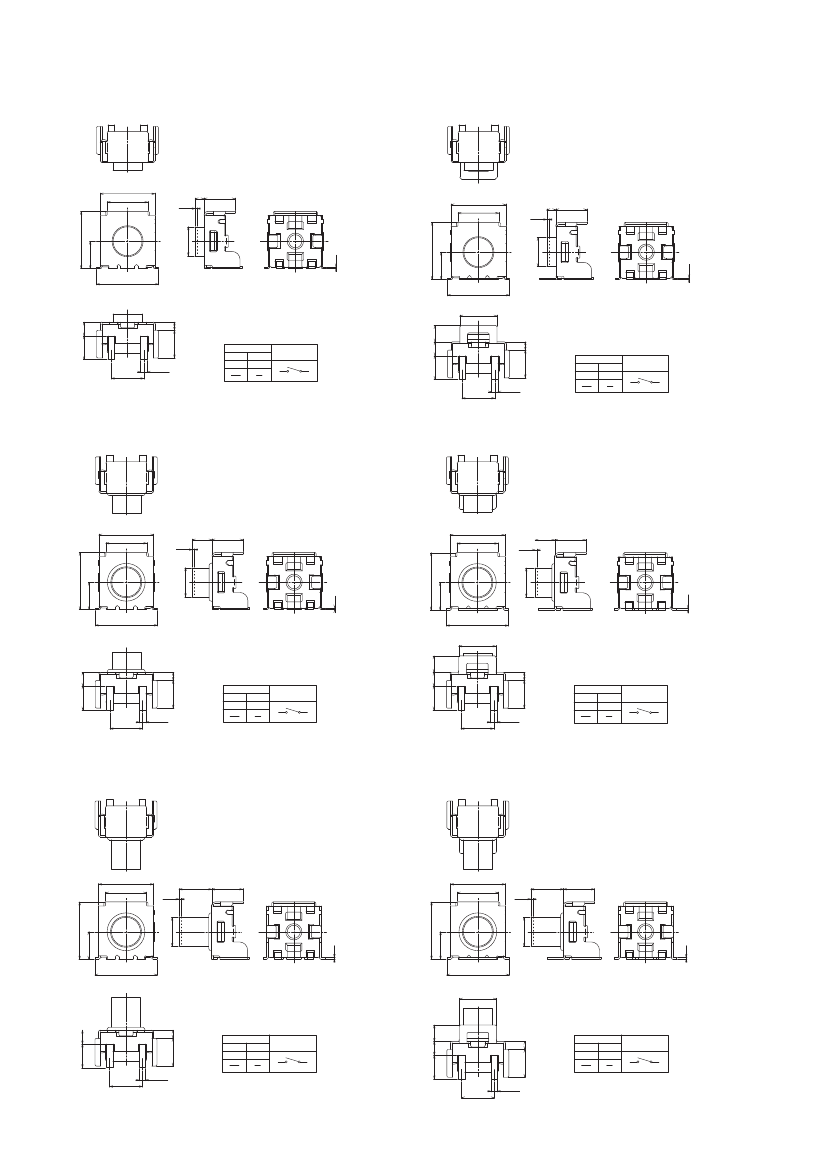

■プリント基板孔あけ寸法図/PC Hole Layouts

Without support terminal

With support terminal

Recommended Resources

RTS707/RTS708 circuit-b

CAT (X-ray detection) circuit

Asynchronous counter using reset method using 74290 asynchronous decimal counter

Electric fan light control speed switch

24 Mbit data path

How can VC# smart device application use smart device ocx developed in vc2005? Expert advice: How can VC# smart device application use smart device ocx developed in vc2005? Expert advice...; 叶志红 Embedded System

msp430g2553 adc sampling accuracy problem: Question: When using the official routine to perform AD sampling, it is found that the DC sampling value is very jittery, and only the value on the hundredth place does not jitter. Solution: 1. The AD...; Aguilera Microcontroller MCU

Four steps to help you master analog circuit learning: As we all know, analog circuits are difficult to learn. For the most common transistor, when we analyze it, we must first analyze the DC bias and then the AC output voltage. It can be said that determ...; lixiaohai8211 Analog electronics

The network port of the newly painted board does not work well: rt, the chip used is KSZ9031, the voltage on the chip is correct, but the pin is not connected. The green light of the network port is not on, and the yellow light is always on....; ggg_daisi PCB Design

Help me see, the left side is the signal source, the right side is AD: From EEWORLD cooperation group: arm linux fpga embedded 0 (49900581) group owner: wangkj...; IC_10000 Power technology

RF PCB Design Tips: RF PCB Design Tips...; 43381557 PCB Design
