50960085121D: DescriptionStrip Terminal Block; CategoryThe connector; File Size215KB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

50960085121D Overview

Strip Terminal Block

50960085121D Parametric

Parameter Name	Attribute value
Objectid	1480521069
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	50960
Terminal and terminal strip types	STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

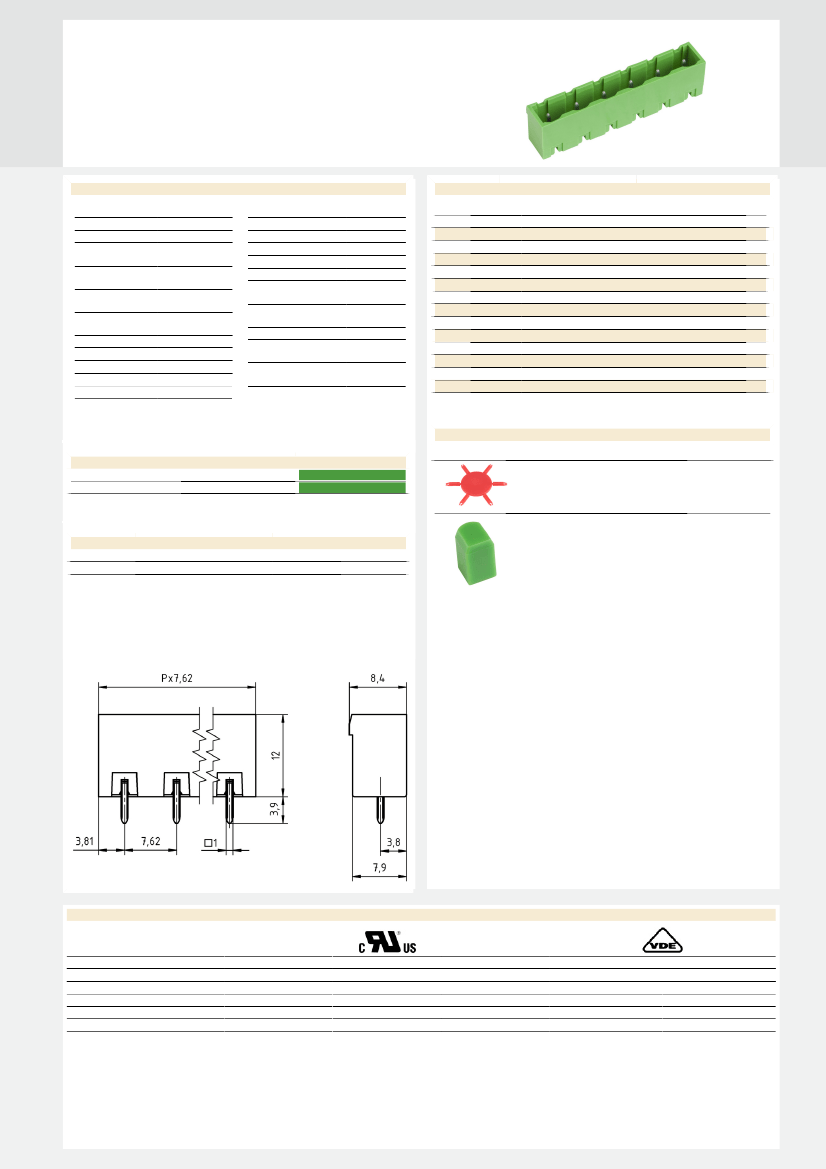

Pin strip |

Spacing 7.62 mm

STLZ960/..G-7.62-V-GREEN

Technical Data

Wire Sizes

Solid min

solid max

Stranded (flexible)

min

Stranded (flexible)

max

Insulating Material

Material

Flammability Class

Temperatures

Operating Temperature

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Reflow Process

Soldering Temperature,

recommended

1.4 mm

Copper Alloy

Peak Soldering Time,

recommended

Leere Zeile

265 °C

3-4 s

-30 °C - 105 °C

PA 6.6

UL 94 V-0

Order Data (Spacing mm)

Poles

Width (mm)

15.24

22.86

30.48

38.10

45.72

53.34

60.96

68.58

76.20

83.82

91.44

99.06

106.68

114.30

121.92

Article Designation

STLZ960/2G-7.62-V-GREEN

STLZ960/3G-7.62-V-GREEN

STLZ960/4G-7.62-V-GREEN

STLZ960/5G-7.62-V-GREEN

STLZ960/6G-7.62-V-GREEN

STLZ960/7G-7.62-V-GREEN

STLZ960/8G-7.62-V-GREEN

STLZ960/9G-7.62-V-GREEN

STLZ960/10G-7.62-V-GREEN

STLZ960/11G-7.62-V-GREEN

STLZ960/12G-7.62-V-GREEN

STLZ960/13G-7.62-V-GREEN

STLZ960/14G-7.62-V-GREEN

STLZ960/15G-7.62-V-GREEN

STLZ960/16G-7.62-V-GREEN

Article Number

50960025121E

50960035121E

50960045121E

50960055121E

50960065121D

50960075121D

50960085121D

50960095121D

50960105121D

50960115121D

50960125121D

50960135121D

50960145121D

50960155121D

50960165121D

100

Stranded with Ferrule -

min

Stranded with Ferrule -

max

Dimensions

Stripped Length

PCB Hole Diameter

Materials

Contact Pin

Accessories

Colours

GREEN

LIGHT GREEN

Figure

RAL6018

similar RAL 6018

RAL6018

Designation

Coding star CS2-5.0/5.08-RED

Article Number

50000000024

similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions.

Special colours on request.

Dividing element SE-STL950-GREEN

Counterparts (Spacing 7.62 mm)

Pin Strip/Terminal Blocks

AKZ960

50950000002

Ratings

Usegroup

Rated Voltage

Rated Current

Overvoltage Category

Test Voltage

Pollution Degree

300 V

15 A

1.6 kV

150 V

15 A

1.6 kV

300 V

10 A

1.6 kV

400 V

12 A

III

6.0 kV
