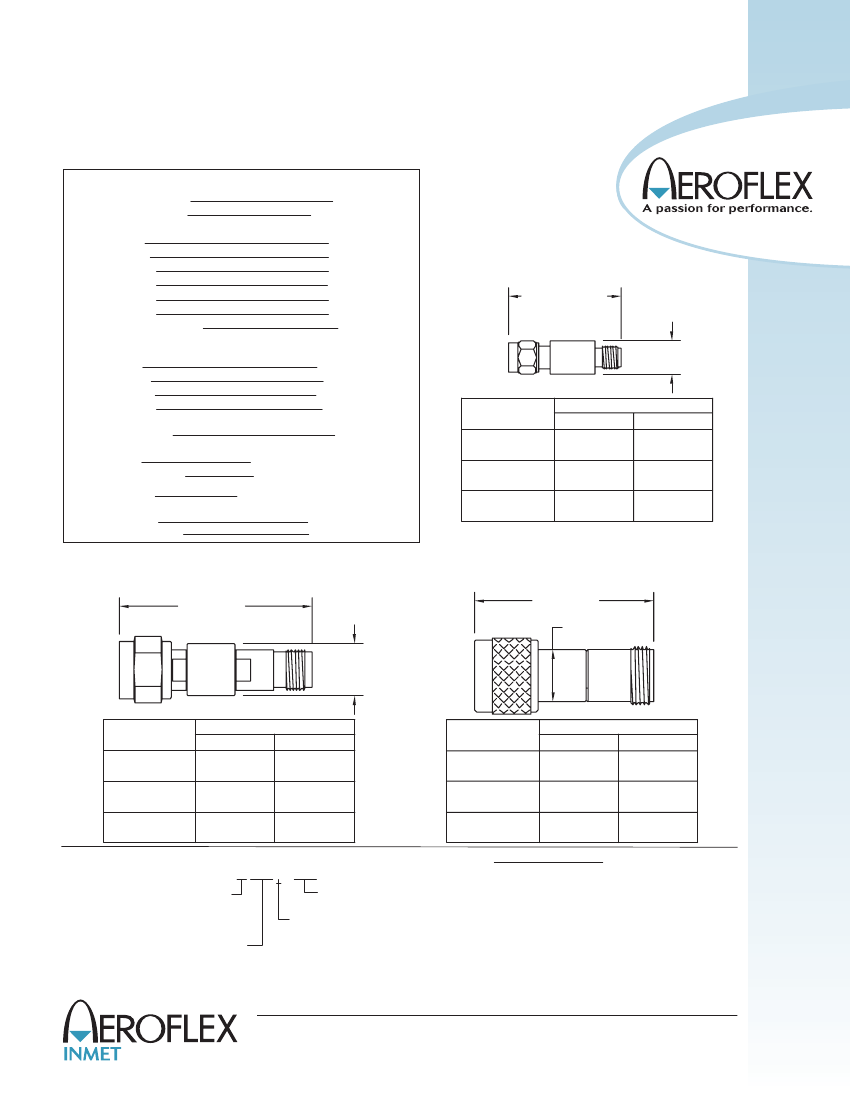

EQUALIZER
Negative Slope, 0.5 - 18.0 GHz, Fixed
SPECIFICATIONS:
Models: EQ2301-XX, EQ2301T-XX, EQ2301N-XX
Electrical:
Frequency Range
Response Shape
Insertion Loss at 18 GHz:
3 - 6 dB
7 - 10 dB
11 - 15 dB
16 - 20 dB
21 - 25 dB
26 - 35 dB
Amplitude at .5 GHz
Linearity:
3 - 6 dB
7 - 10 dB
11 - 25 dB
26 - 35 dB
VSWR:
Input/Output
.5 - 18 GHz
Negative Slope
1.5 dB Max.
2.0 dB Max.
2.5 dB Max.
4.0 dB Max.
5.0 dB Max.
6.0 dB Max.
3 to 35 dB
(Relative to loss at 18 GHz)
±0.75 dB Max.
±1.0 dB Max.
±10% dB Max.
±4.0 dB Max.
1.80:1 Max.
Male/Female
Passivated Stainless Steel
Passivated Stainless Steel
Gold Plated Beryllium Copper
Female/Female
-54°C to +125°C
-65°C to +125°C
Male/Male
Model Number:
EQ2301-XX
SMA CONNECTORS
LENGTH
SEE TABLE
Ø.360 [9.14]
Connector
Configuration
OVERALL LENGTH
3 - 17 dB
18 - 35 dB
1.205 ±.025 1.575 ±.025
[30.61 ±0.64] [40.01 ±0.64]
1.330 ±.030 1.705 ±.030
[33.78 ±0.76] [43.31 ±0.76]
1.060 ±.015 1.445 ±.015
[26.92 ±0.38] [36.70 ±0.38]
Mechanical:
Housing
SMA Connectors
Mates with MIL-STD-348
Conductors
Temperature Range:
Operating
Non-Operating
For Epoxy sealed Connector add -440 to Model Number
Model Number:
EQ2301T-XX
TNC CONNECTORS
See Website for Typical Performance Graphs and
Application Notes
Model Number:
EQ2301N-XX
TYPE N CONNECTORS
LENGTH
LENGTH
Ø.56 [14.22]
Ø.56
[14.22]
Connector
Configuration
Male/Female
Male/Male
Female/Female
OVERALL LENGTH
3 - 17 dB
18 - 35 dB
2.07 ±.03
2.44 ±.03
[52.58 ±0.76] [61.98 ±0.76]
1.96 ±.03
2.34 ±.03
[49.78 ±0.76] [59.44 ±0.76]
2.16 ±.03
2.54 ±.03
[54.86 ±0.76] [64.52 ±0.76]
Connector
Configuration
Male/Female
Male/Male
Female/Female
OVERALL LENGTH
3 - 17 dB
18 - 35 dB
1.90 ±.03
2.28±.03
[48.26 ±0.76] [57.91 ±0.76]
1.82 ±.03
2.20 ±.03
[46.23 ±0.76] [55.88 ±0.76]
1.99 ±.03
2.37 ±.03
[50.55 ±0.76] [52.58 ±0.76]
HOW TO ORDER:
Model Number:
EQ2301Z-XXY-ZZZ
Connector Type
= SMA
N = Type N
T = TNC
dB Value
Ordering Examples:
Model Number:
EQ2301-03
3 dB; SMA - Male/Fem
440 = Epoxy Sealed
Connectors.
Model Number:
EQ2301N-18F
Connector Configuration
18 dB; Type N - Fem/Fem
= Male/Female
F = Fem/Fem
Model Number:
EQ2301-06-440
M = Male/Male
6dB; SMA - Male/Fem; Epoxy Sealed S/A
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
EQ2301-xx: REV B
specifications before purchasing or use.
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com • inmetsales@aeroflex.com
