ACP-22-01-G-00.50-T-BC-P-3 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ACP-22-01-G-00.50-T-BC-P-3

ACP-22-01-G-00.50-T-BC-P-3: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ACP-22-01-G-00.50-T-BC-P-3 Overview

Interconnection Device, ROHS COMPLIANT

ACP-22-01-G-00.50-T-BC-P-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1052556548
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Back shell type	SOLID
subject depth	2.998 inch
Body diameter	1.28 inch
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
empty shell	NO
Filter function	NO
insulator material	POLYETHYLENE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Maximum operating temperature	105 °C
Minimum operating temperature	-10 °C
Options	WITH CABLE ASSEMBLY
Termination type	WIRE
Total number of contacts	30

Preview

Download Datasheet

View All

F-213

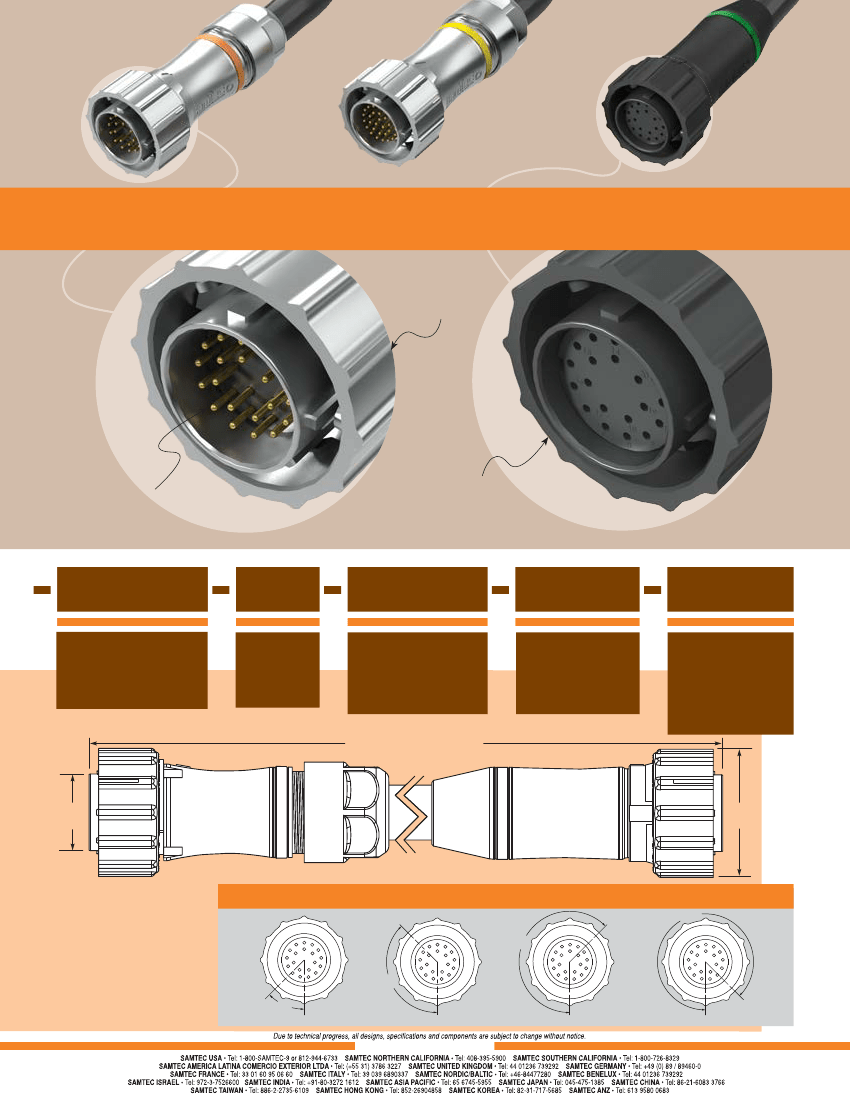

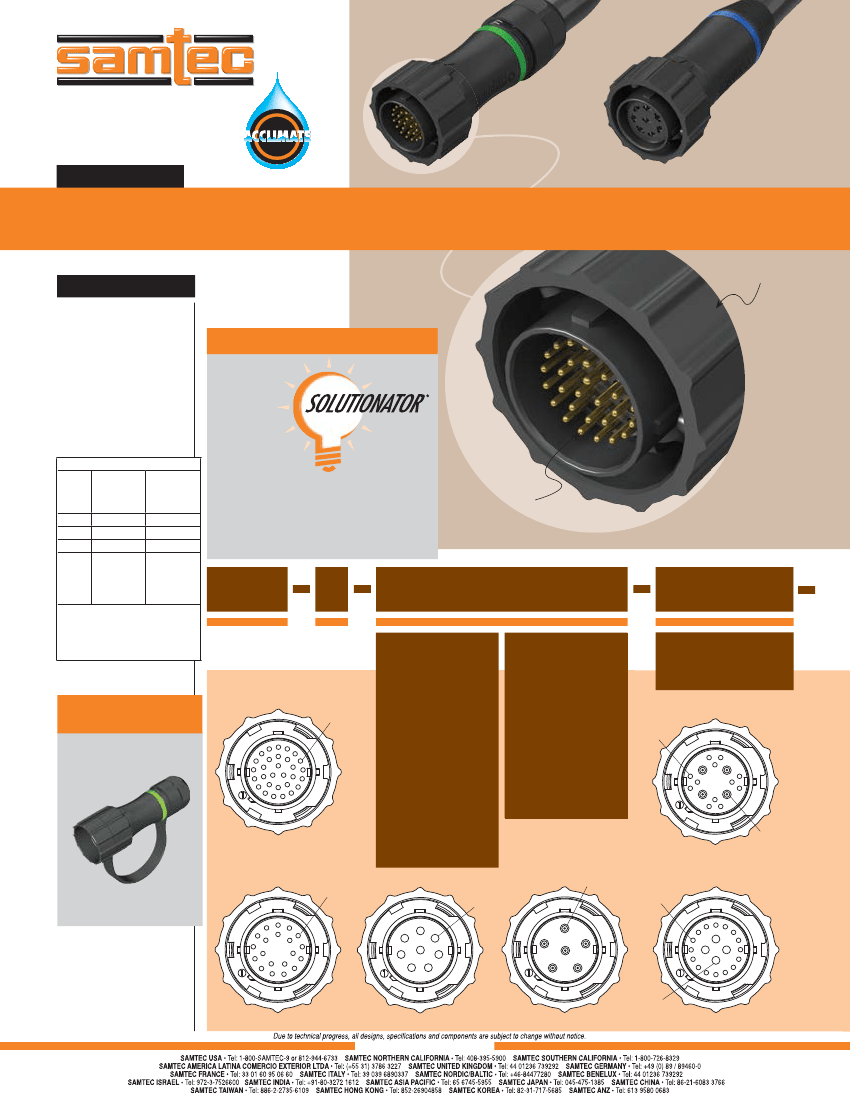

ACP-22 SERIES

ACP–22–01–G–00.25–T–S–P–2

ACP–22–03–G–00.25–S–S–P–3

IP68 SEALED 22 mm CABLE ASSEMBLY

SPECIFICATIONS

For complete speciﬁcations see

www.samtec.com?ACP-22

Insulator Material:

Thermoplastic

Terminal Material:

Brass

Contact Material:

Brass/BeCu

Housing:

–P & –O: Thermoplastic

–M: Zinc Alloy

Cable Jacket:

TPU

RoHS Compliant:

Yes

CURRENT RATING

CCC per

LEAD

PINS

STYLE POWERED

(70°C

ambient)

–01

2.0A

–02

2.3A

–03

8.3A

(plus 16

–05

signal pins

2.8A

powered

@ 1.4A)

For general reference only.

See www.samtec.com?ACP-22

for complete test data or contact

AccliMate@samtec.com for

AccliMate

applications requiring higher

current carrying capacity.

Mates with:

ACR-22, ACRK-22

Tested to IP68

for dust & water

THINK OUTSIDE THE CATALOG

• Easy sealed

cable

solutions

• Build a

standard

sealedio.samtec.com

or ﬂexible

custom

online

• Calculate

performance,

current rating, voltage drop

• Live chat with AccliMate

™

engineers for

custom options

• Variety of shells, pin sizes, signal, power,

I/O interfaces

• Assembly and ﬁeld kits available

Signal, power, RF

or combination

signal/power, signal/RF

ACP

–01

LEAD

STYLE

PLATING

–05

= 1,5 mm DIA (4)

terminals or sockets

(16 AWG)

+ 1,0 mm DIA (16)

terminals or sockets

(24 AWG)

= 1,0 mm DIA (30)

terminals or sockets

(24 AWG)

(1,0) .040

DIA (30)

–G

= 10µ" (0,25 µm) Gold over

50µ" (1,27 µm) Ni on contact

ALSO

AVAILABLE

• Dust Caps:

DCA-ACP-22-M-X (Metal)

DCA-ACP-22-P-X (Plastic)

–02

= 1,0 mm DIA (20)

terminals or sockets

(24 AWG)

–06

= 1,0 mm DIA (12)

terminals or sockets

(24 AWG)

+ RF (4)

terminals or sockets

(RG 316)

(1,0) .040

DIA (12)

–03

= 1,5 mm DIA (8)

terminals or sockets

(16 AWG)

–04

–01

= RF (6)

terminals or sockets

(RG 316)

(1,0) .040

DIA (20)

RF (6)

(1,5) .060

DIA (8)

(1,0) .040

DIA (16)

RF (4)

–06

• Visit sealedio.samtec.com

for a complete list of sealed

systems

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(1,5) .060

DIA (4)

–02

–03

–04

–05

WWW.SAMTEC.COM
