REVISION B
DO NOT
SCALE FROM
THIS PRINT

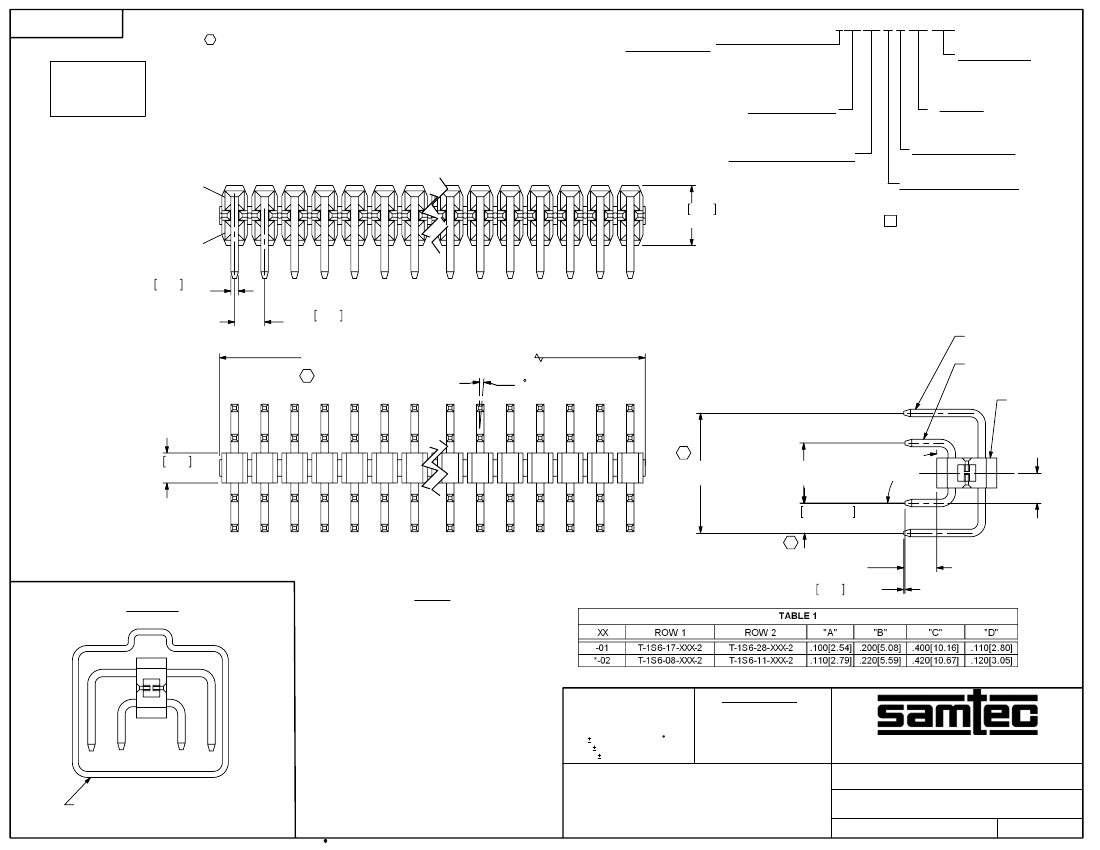

NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL DIMENSIONS TO BE ABOUT CL WITHIN ±.005[0.13].
3. MINIMUM PUSHOUT FORCE: 3 lbs.
4. MAXIMUM CUT FLASH: .020[0.50].
5. MEASURE FROM THE TIPS OF THE TERMINALS.
6. MEASURE AT BOTH ENDS OF PART.
7. PARTS TO BE PACKAGED IN TUBES FOR 4-50 POSITIONS (.100 PITCH)
OR 2-25 POSITIONS (.200 PITCH), OTHERWISE BULK PACKAGED.
BTSW-XXX-XX-X-D-XX-XXX
TERMINAL SPACE
-1: .100[2.54 (FILL EVERY POSITION)
-2: .200[5.08] (FILL EVERY OTHER POS
STARTING AT -01 AND ENDING
IN LAST POS)
NO OF POSITIONS
-1: -01 THRU -50 (PER ROW)
-2: -02 THRU -25 (PER ROW)
(SEE FIG. 3, SHEET 2)
TERMINAL SPECIFICATION
-01: .050[1.27] PROFILE
*-02: .060[1.52] PROFILE
(SEE TABLE 1)
.200 5.08
REF
* = NOT RELEASED
POLARIZATION
XXX INDICATES POSITION
TO BE OMITTED; LEAVE
BLANK FOR NO OPTION
OPTIONS
-LL: LOCKING LEAD
(SEE FIG. 2, SHEET 2)
ROW SPECIFICATION
-D: DOUBLE
PLATING SPECIFICATION
-T: MATTE TIN CONTACT AND TAIL
-F: FLASH GOLD, 3 Au / 50 Ni MIN
ON ENTIRE PIN
B
(USE T-1S6-XX-GF-2)
02
01
.025 0.64 SQ
REF (TYP)
.100 2.54
REF (TYP)
+.015
+0.38
(No. OF POSITIONS x .100[2.54])
[ ]
- .010
- 0.25
C
2 MAX SWAY
(TYP)
T-1S6-XX-XXX-2
(SEE TABLE 1, ROW 2)
T-1S6-XX-XXX-2
(SEE TABLE 1, ROW 1)
RTSM-50-DVU
.100 2.54
REF
C
"C"±.005
(SEE NOTE 5 & 6)
"B" REF
(SEE NOTE 5 & 6)
.100±.005 2.54±0.13
(SEE NOTE 5 & 6)
C
"D"
90° (TYP)
REF
"A" REF
(SEE NOTE 5 & 6)
TUBE VIEW
BTSW-1XX-XX-X-D SHOWN
FIG. 1
.010 0.25 MAX
* = NOT RELEASED
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
PT-1-24-01-70 (USE TP-29)
(SEE NOTE 7)
MATERIAL:
BODIES:
DUPONT CRASTIN SK652 FR, COLOR: BLACK
TERMINALS:
PHOSPHOR BRONZE
F:\DWG\MISC\MKTG\BTSW-XXX-XX-X-D-XX-XXX-MKT.SLDDRW
.025 [.64] SQ. DOUBLE ROW, DOUBLE -RA POST ASM
BTSW-XXX-XX-X-D-XX-XXX
BY:
J. BROWNING 04/27/2010
SHEET
1
OF
2
REVISION B
02
C
L
01
ODD POSITION PART
.0080 0.203
(TYP)
02
C
L
01
.017 0.43 MIN
(TYP)
.040 1.02
EVEN POSITION PART
LOCKING LEAD OPTION
BTSW-1XX-XX-X-D-LL SHOWN
(SAME AS FIG. 1 EXCEPT AS SHOWN)
FIG. 2

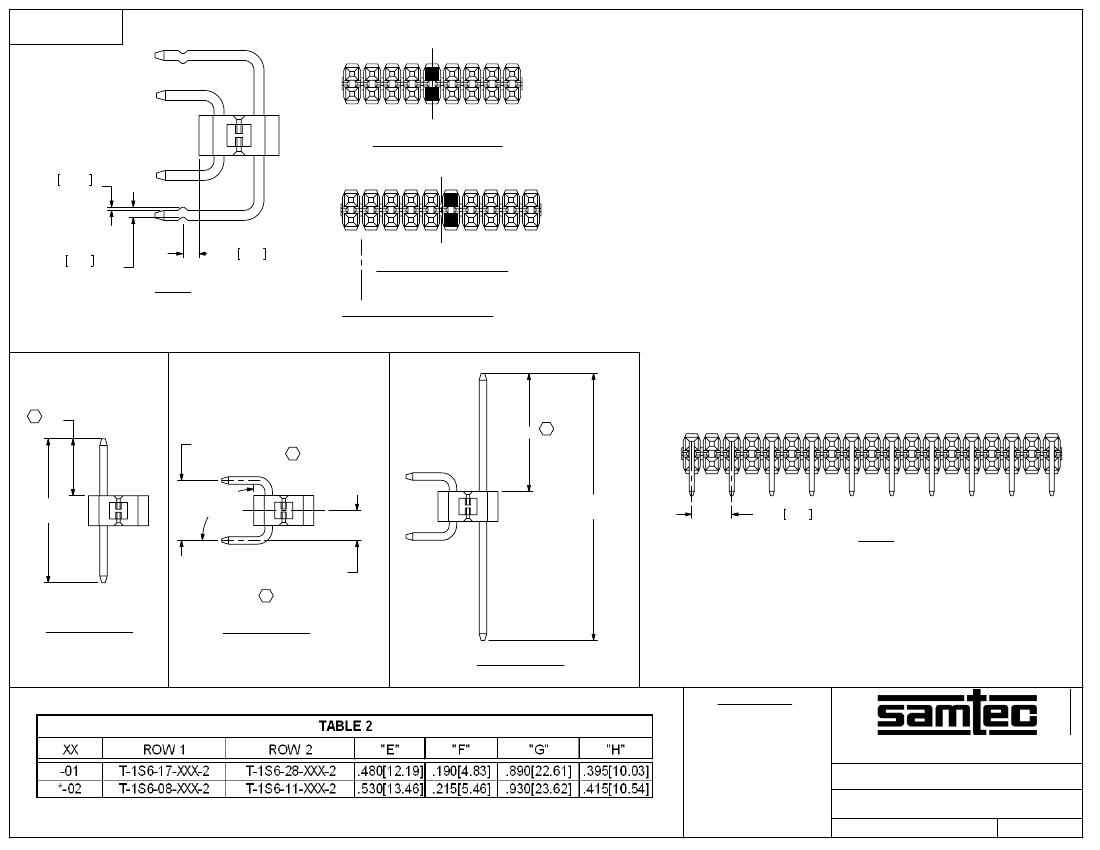

■ = CRIMP LOCATION
IF CRIMP POSITION IS POLARIZED, MOVE ONE POSITION TOWARD PIN 1
C "F"
"B"±.005
(SEE NOTE 5 & 6) C
"H" C
"E"
REF
90° (TYP)
(2 PLCS)
"G"
REF
.200 5.08
BTSW-210-XX-X-D SHOWN
(SAME AS FIG. 1 EXCEPT AS SHOWN)
FIG. 3
"A"±.005
(SEE NOTE 5 & 6)
C
IN-PROCESS 1
FILL ROW 1
IN-PROCESS 2
FORM ROW 1
IN-PROCESS 3
FILL ROW 3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.025 [.64] SQ. DOUBLE ROW, DOUBLE -RA POST ASM
* = NOT RELEASED
F:\DWG\MISC\MKTG\BTSW-XXX-XX-X-D-XX-XXX-MKT.SLDDRW
BTSW-XXX-XX-X-D-XX-XXX
BY:
J. BROWNING 04/27/2010
SHEET
2
OF
2
