408-9657

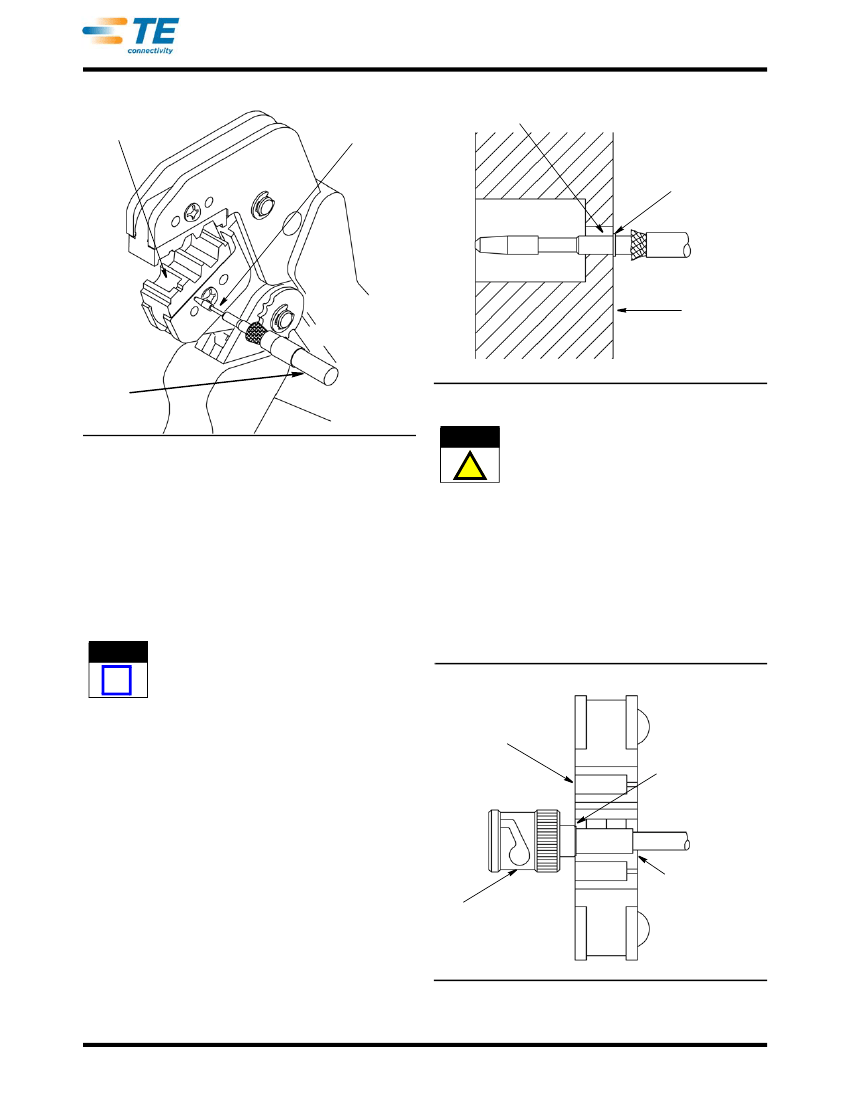

Insert Center Contact
into Partially Closed
Crimping Dies
Center Contact
Slipped Over
Center Conductor
Flange on End of Center
Contact Butts Against Die
Flange on End
of Contact
Crimping Die
Ferrule
(Ref)
Figure 3
Figure 2
4. CRIMPING PROCEDURE
4.1. Center Contact
1. Prepare the connector and the cable according to
the instructions packaged with the connector.
2. Slide the center contact onto the center
conductor of the cable; then insert the contact
assembly into the center contact crimp section of
the die. See Figure 2.
NOTE
Make sure that the flange on the end of the center
contact butts against the crimping die. See
Figure 3.
CAUTION
Damaged product should not be used. If a
damaged contact or ferrule is evident, it should be
cut from the wire and replaced with a new one. Do
!
NOT reterminated contact or ferrules.
5. INSPECTION
5.1. Visual Inspection
Inspection of the crimping dies should be made on a
regular basis to ensure that they have not become
worn or damaged. Inspect the crimp sections for
flattened, chipped, worn, or broken areas. If damage
or abnormal wear is evident, the dies must be
replaced. Refer to Section 6, PARTS REPLACEMENT.
Crimping Ferrule
i
3. Crimp the center contact by holding the cable in
place; then close the tool handles until the ratchet
releases.
Crimping Die
(Ref)
4.2. Ferrule
1. Insert the crimped center contact into the
connector body until the cable dielectric butts
against the dielectric inside of the connector body.
The flared braid will then fit around the support
sleeve of the connector body.
2. Slide the ferrule forward over the braid until the
ferrule butts against the shoulder on the connector
body.
3. Place the ferrule on the appropriate anvil of the
die assembly so that the shoulder on the connector
body is butted against the die. See Figure 4.
4. Holding the assembly in place, close the tool
handles until the ratchet releases.
Rev
E
Typical RF
Connector
(Ref)
Shoulder on
Connector Body
Butts Against Die
Ferrule on Anvil
of Crimping Die
Figure 4
2
of 4
408-9657
Die 58425-[ ]
DIE ASSEMBLY
PART NUMBER
58425-1
58425-2
58425-3
58436-1
58436-2
58436-3
58436-4
Die 58436-[ ]

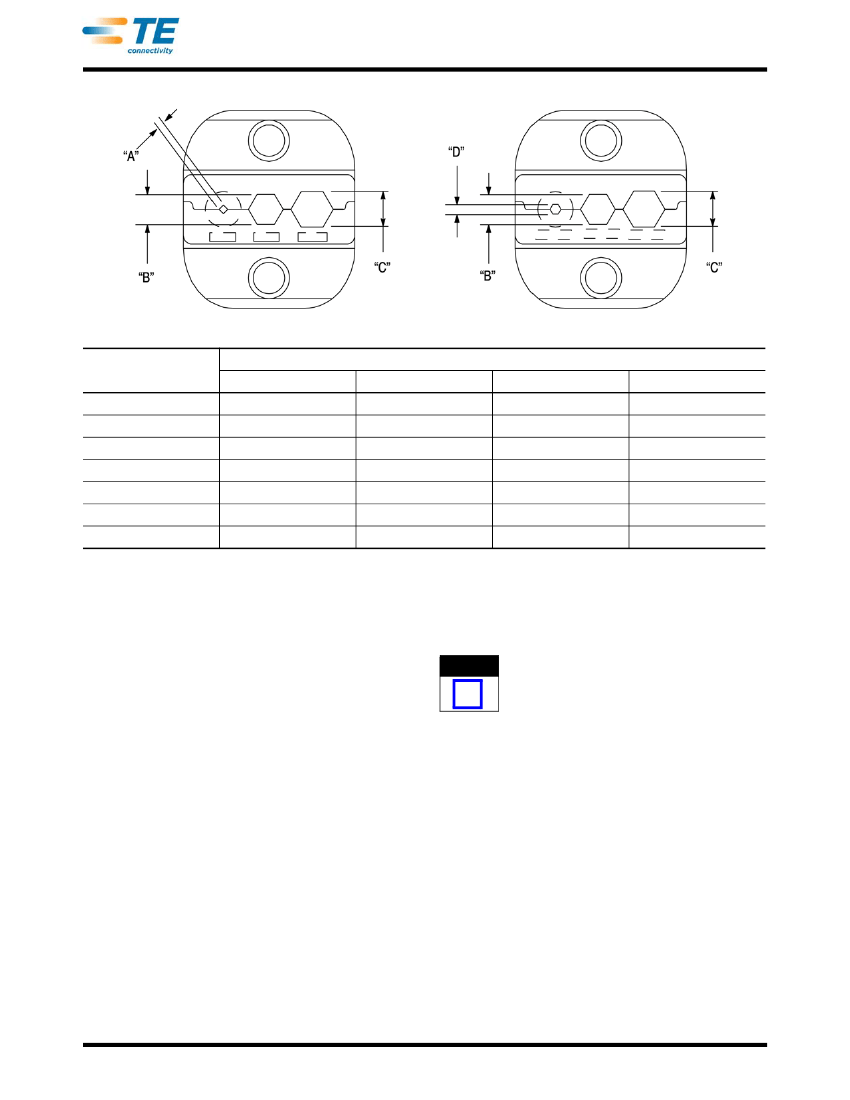

CHAMBER CRIMP DIMENSION ±0.10 [.004]
“A"
1.07 [.042] (Square)
1.07 [.042] (Square)
1.07 [.042] (Square)
---
---
---
---
“B”
5.41 [.213] (Hex)
3.25 [.128] (Hex)
3.84 [.151] (Hex)
5.41 [.213] (Hex)
2.54 [.100] (Hex)
3.84 [.151] (Hex)
3.73 [.147] (Hex)
Figure 5
“C”
6.48 [.255] (Hex)
4.52 [.178] (Hex)
8.23 [.324] (Hex)
6.48 [.255] (Hex)
8.23 [.324] (Hex)
4.52 [.178] (Hex)
4.52 [.178] (Hex)
“D”
---
---
---
1.73 [.068] (Hex)
1.73 [.068] (Hex)
1.73 [.068] (Hex)
1.73 [.068] (Hex)
5.2. Measuring Die Opening
The die assembly will perform correctly as long as:
(1) the product specified is correct for the application,
(2) the specific die assembly is used, (3) the die
assembly has been measured to ensure that the
openings are correct, and (4) the tool has been
adjusted correctly.
Figure 5 provides information on die opening sizes.
If the crimp cannot be made to conform to the
dimensions provided in the appropriate product
application specification, the tool and/or dies are
defective and must be replaced.
NOTE
Other dies of the PRO-CRIMPER hand tool series
may be used in this tool; however, the ratchet
adjustment wheel may require adjustment to
achieve acceptable crimp height.
i
5.3. Ratchet Adjustment
The tool frame assembly ratchet mechanism features
an adjustment wheel with eight settings. The
adjustment wheel controls the amount of handle
pressure exerted on the tool jaws and crimping dies
during crimping. If the crimp is not acceptable, adjust
the ratchet as follows:
1. Sufficiently loosen the screw at the ratchet
adjustment wheel so that the wheel can be rotated
above the post that engages the teeth in the wheel.
2. If the crimp is too loose, turn the wheel to a
higher notch (for example, if the wheel is set at
notch no. 5, move the wheel to notch no. 6). If the
crimp is too tight, move the wheel to a lower notch.
3. Tighten the screw at the ratchet adjustment
wheel.
6. PARTS REPLACEMENT

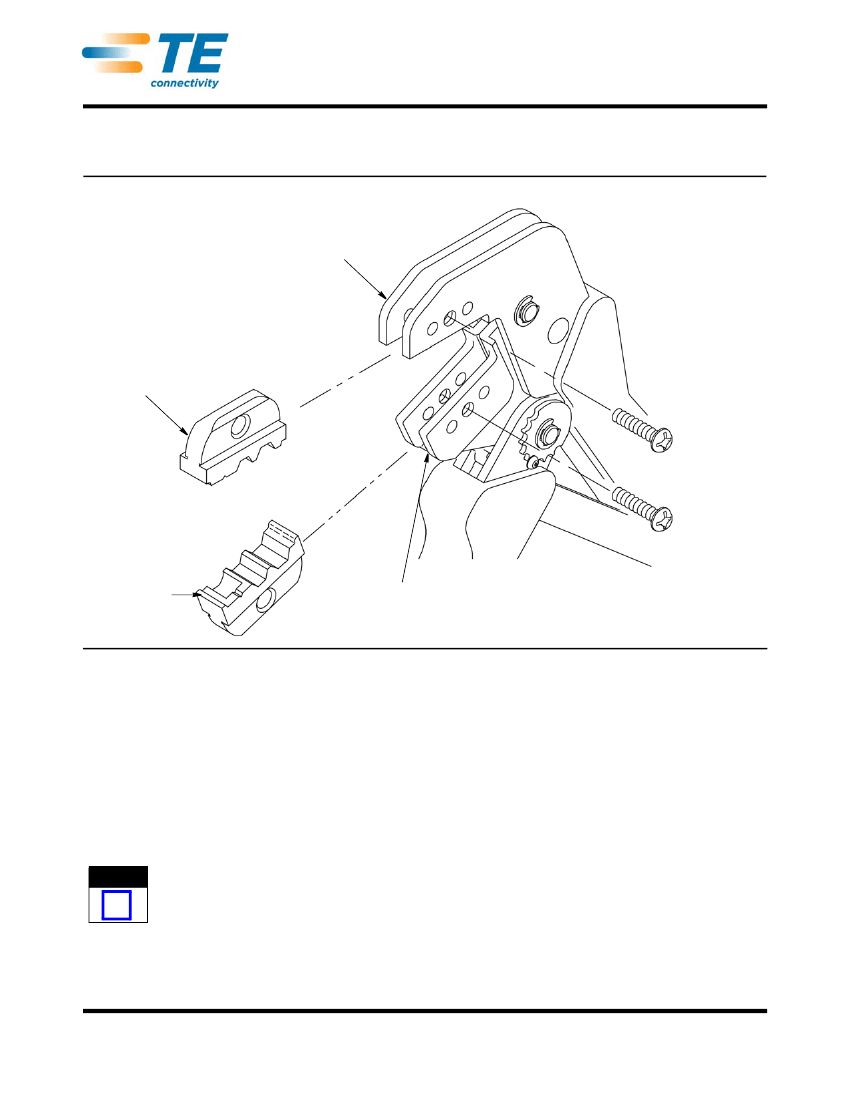

Customer-replaceable parts are shown in Figure 1.
Available separately, epair Kit 679221-1 includes a
variety of pins, rings, screws, and springs. If the dies
are damaged or worn excessively, they must be
replaced. Order the repair kit and replaceable parts
through your TE Representative, or call 1-800-526-
5142, or send a facsimile of your purchase order to 1-
717-986-7605, or write to:
CUSTOMER SERVICE (038-035)
TYCO ELECTRONICS CORPORATION
PO BOX 3608
HARRISBURG PA 17105-3608
7. REVISION SUMMARY
Revisions to this instruction sheet include:
•
Changed company name and logo
3
of 4
Rev
E
408-9657

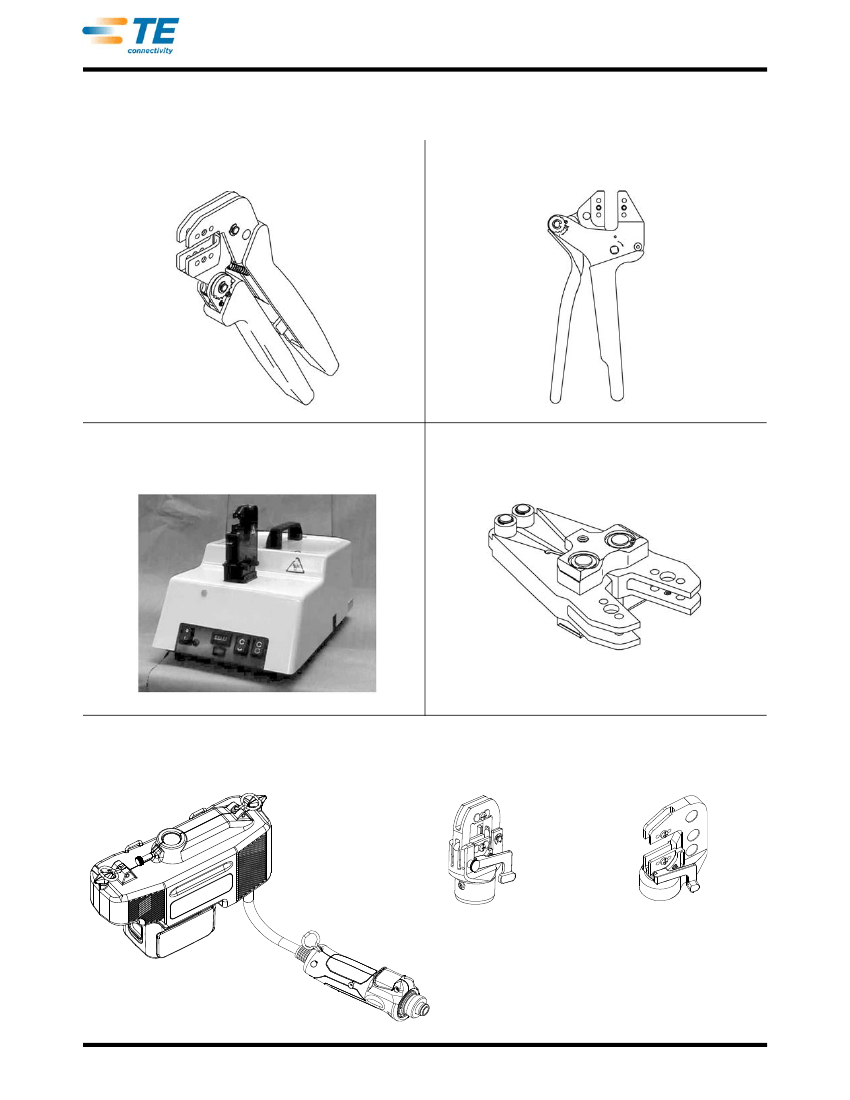

This Tooling is also Compatible with Die Assemblies 58425-[ ] and 58436-[ ]
