B32328A1206J017 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B32328A1206J017

B32328A1206J017: DescriptionFilm Capacitor, Polypropylene, 5% +Tol, 5% -Tol, 20uF, Chassis Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size125KB，8 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

B32328A1206J017 Overview

Film Capacitor, Polypropylene, 5% +Tol, 5% -Tol, 20uF, Chassis Mount, CAN, ROHS COMPLIANT

B32328A1206J017 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1729885520
package instruction	,
Reach Compliance Code	compliant
Samacsys Description	AC Film Capacitors incl. Motor Run, 20uF, 250V AC, 35mm(D) x 62mm(L)
Samacsys Manufacturer	TDK
Samacsys Modified On	2023-03-07 07:05:40
YTEOL	6.65
Other features	RATED AC VOLTAGE (V): 250
capacitance	20 µF
Capacitor type	FILM CAPACITOR
diameter	35 mm
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
length	62 mm
Installation features	CHASSIS MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
positive tolerance	5%
Rated (AC) voltage (URac)	250 V
Guideline	IEC60252-1
surface mount	NO
Terminal surface	MATTE TIN
Terminal shape	FLEXIBLE WIRE

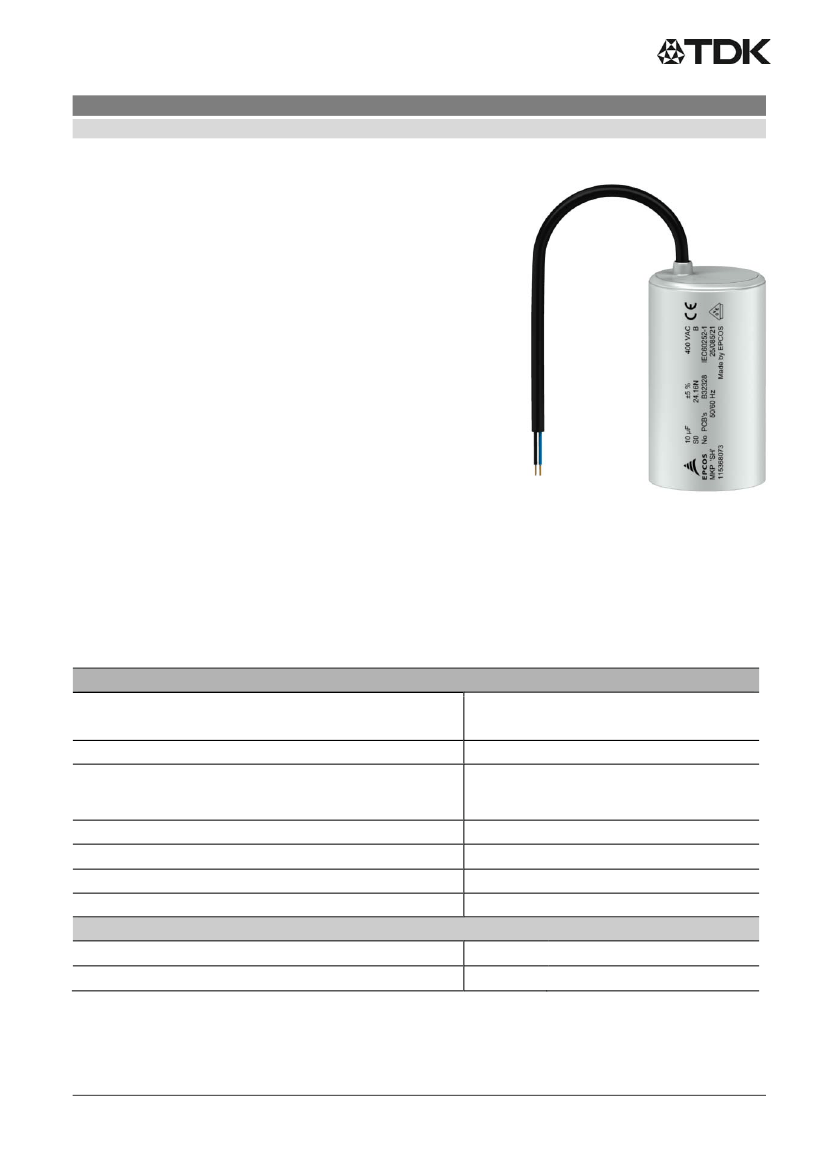

B32328A1206J017 Preview

Film Capacitors – AC Capacitors

Motor run capacitors

Series/Type:

Ordering code:

Date:

Version:

B32328 – MotorCap

B32328

September 2016

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then

change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

Film Capacitors – AC Capacitors

(header 1 + top left bar):

Identification/Classification 2

Motor run capacitors

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

B32328

Series/Type: (bottom right header bar)

B32328 – MotorCap

Preliminary data (optional):

Department:

CAP RD FILM PD AC

Date:

September 2016

Version:



EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Film Capacitors – AC Capacitors

Motor run capacitors

B32328

B32328 – MotorCap

Construction



Metallized polypropylene film

Plastic can and top UL 94 V2 material minimum

Dry type

Features



Self-healing properties

Low dissipation factor

S0 safety class to IEC60252-1 (ed.2) am1:

High insulation resistance

Case IP 53 protected

Typical applications



For general sine wave applications,

Mainly as motor run capacitor

Terminals



Twin core cable, double insulated,(H05V2V2F),0.5mm

,600V, 90°C

Mounting parts (optional)



Threaded stud at bottom of can (M8, max. torque = 5 Nm)

Locking clip for mounting into a hole of Ø 8 mm

Technical data and specifications

Reference standards

Safety class to IEC 60252-1/ 2013

Life expectancy to IEC 60252-1 /2013

EN60252-1: 2014-07

IEC60252-1: Ed 2,2013-8,amendment 1

250 V/85 °C:

400 V/85 °C:

480 V/85 °C:

5%

250 V AC, 400 V AC, 480 V AC

50/60 Hz

1.1



1.3



= Rated voltage)

= Rated current)

10000 h (class B)

3000 h (class C)

Rated capacitance C

Tolerance Tx

Rated voltage V

rms

Rated frequency f

Maximum ratings

Maximum permissible voltage V

max

Maximum permissible current I

max

See table ordering code

CAP RD FILM PD AC

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 8

September 2016

Film Capacitors – AC Capacitors

Motor run capacitors

B32328

B32328 – MotorCap

Test data

AC test voltage terminal to terminal V

Insulation resistance R

ins

or time constant



at 20 °C, rel. humidity



65% (minimum as-delivered values)

Dissipation factor tan



at 20 °C

Maximum rate of voltage rise dV/dt

max

Climatic data

Climatic category

Lower category T

min

Upper category T

max

Damp heat test t

test

Mechanical and thermal properties

Ball pressure test to IEC 60309-1 sec. 27.3

Plastic can and top disk material

Option A:



UL 94 V2 compatible

Glow wire test to IEC 60695-2-1/0 and –2-1/1

Test temp 550 °C for I

≤

0.5 A

Test temp 850 °C for I

> 0.5 A

Self-extinguishing within 30 seconds of

withdrawing the glow wire and without igniting

wrapping tissue.

> 250 V

IP 53

20 N at 125 °C

Compliant to IEC 60252-1

25/085/21 to IEC 60068-1

–25° C

+85° C

21 days



, 2 s (routine test)



, 60 s (type test)

3000 s



7.0

10

-3

(1 kHz )

10 V/s

Tracking test to IEC 60112 solution A

Protection class to IEC 60529 2001

Compatibility to RoHS

Compliance to directive 2002/95/EC

Approvals

VDE IEC 60252-1

Approved

400 V/85 °C: 10000 h (class B) for 1.5 µF to

50 µF

480 V/85 °C: 3000h (class C)for 3 µF to 35 µF

Compliance to LV directive 2014/35/EU

Display of ordering codes for EPCOS products

The ordering code for one and the same EPCOS product can be represented differently in data sheets, data

books, other publications, on the EPCOS website, or in order-related documents such as shipping notes, order

confirmations and product labels.

The varying representations of the ordering codes are due to different

processes employed and do not affect the specifications of the respective products.

Detailed information

can be found on the Internet under www.epcos.com/orderingcodes

CAP RD FILM PD AC

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 8

September 2016

Film Capacitors – AC Capacitors

Motor run capacitors

B32328

B32328 – MotorCap

Dimensional drawings

Mounting options

s±3

# = 1: Can without mounting

b±10

h±5

# =3: Can with M8 bolt

Marking

L±3

# = 5: Locking clip

M8-sized

M-Clip

fast

fixation

Ø8.2+0.2/-0

10.2+0.1/-0

Ød ±1

8±1

2.0±0.05

Ø2.2+0.1/-0

CAP RD FILM PD AC

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 4 of 8

September 2016

Film Capacitors – AC Capacitors

Motor run capacitors

B32328

B32328 – MotorCap

Ordering codes and packing units

Rated

voltage

V AC

Rated

capacitance

F

1.5

7.5

250

25 × 58

30 × 62

35 × 62

35 × 71

40 × 71

40 × 96

B32328A1155J0#*

B32328A1205J0#*

B32328A1305J0#*

B32328A1405J0#*

B32328A1505J0#*

B32328A1605J0#*

B32328A1705J0#*

B32328A1755J0#*

B32328A1805J0#*

B32328A1905J0#*

B32328A1106J0#*

B32328A1126J0#*

B32328A1146J0#*

B32328A1156J0#*

B32328A1166J0#*

B32328A1186J0#*

B32328A1206J0#*

B32328A1226J0#*

B32328A1256J0#*

B32328A1306J0#*

B32328A1356J0#*

B32328A1406J0#*

B32328A1456J0#*

B32328A1506J0#*

B32328A1556J0#*

B32328A1606J0#*

---

pcs.

112

Dimensions

D×L

Ordering code

Approvals

Packing

unit

CAP RD FILM PD AC

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 5 of 8

September 2016

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
