HFR068PF29NS1

Description
D Type Connector, 68 Contact(s), Female, Press Fit Terminal
CategoryThe connector    The connector
File Size130KB,4 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric View All

HFR068PF29NS1 Overview

D Type Connector, 68 Contact(s), Female, Press Fit Terminal

HFR068PF29NS1 Parametric

Parameter NameAttribute value
Objectid1500593808
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLATCHED
Connector typeOTHER D TYPE CONNECTOR
Contact completed and terminatedTIN LEAD (50) OVER NICKEL
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYESTER
JESD-609 codee0
MIL complianceNO
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Termination typePRESS FIT
Total number of contacts68
UL Flammability Code94V-0

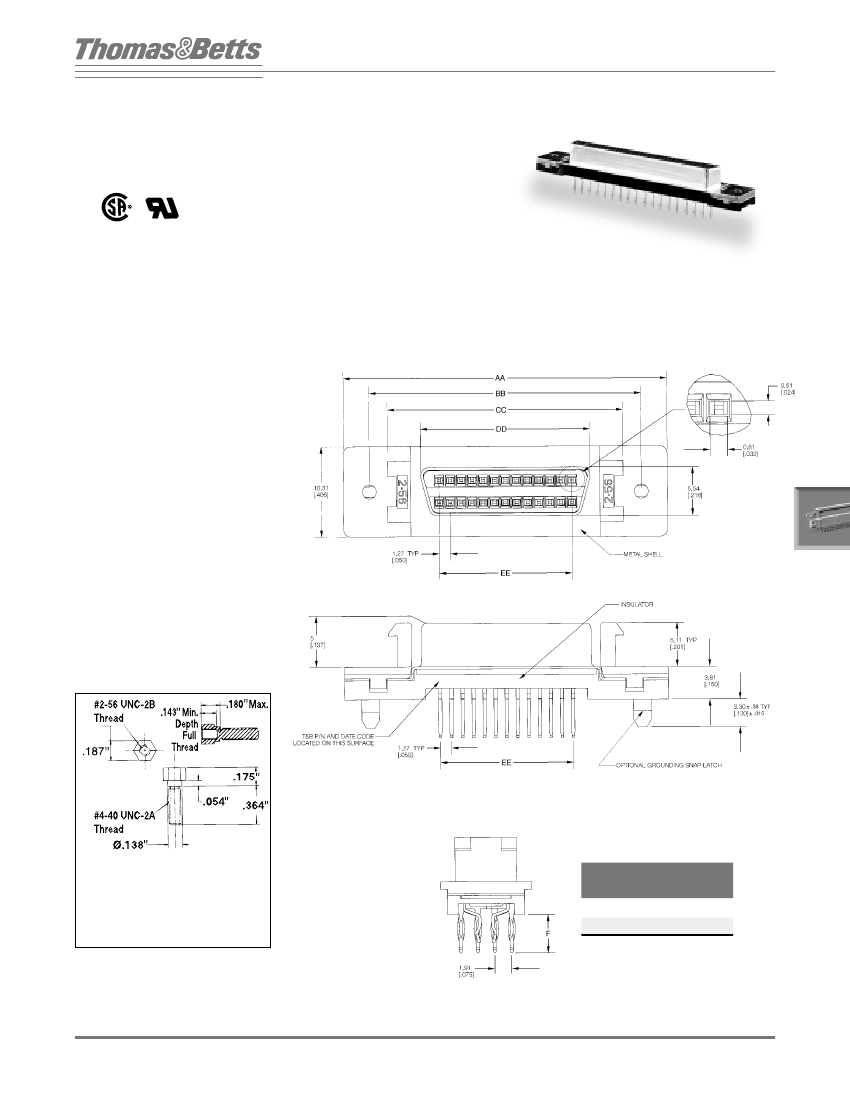

SCSI .050" Fine Pitch “D”
Press-Fit PCB Mount
METAL SHELL
.050" FINE PITCH “D”
COMPLIANT PIN PCB MOUNT
LR49571
E60980
P
HYSICAL
P
ROPERTIES
C
ONTACT
R
ETENTION TO
PCB:
6.6 Kg/contact min.
C
ONTACT
M
ATING
F
ORCE
:
5.4 Kg/contact max.
C
ONTACT
U
NMATING
F
ORCE
:
.9 Kg/contact max.
C
OMPLIANT
P
IN
I
NSERTION
F
ORCE INTO
PCB:
30.8
Kg/contact max.
C
OLOR
:
Black
D
URABILITY
:
500 mating cycles per EIA-364-09A
M
ATERIALS
A
ND
F
INISHES
I
NSULATION
H
OUSING
:
High temperature glass filled
polyester rated UL 94V-0
C
ONTACT
:
High strength copper alloy, selectively
plated 30µ" gold in contact area. 85/300µ"
tin/lead solder plate over tail area. 50µ" min.
nickel underplate overall
S
NAP
L
ATCH
:
Tin plated high strength copper
alloy
M
OUNTING
B
LOCK
:
Nickel plated zinc alloy
M
ETAL
S
HELL
:
Tin plated steel
E
LECTRICAL
P
ROPERTIES
C
URRENT
R
ATING
:
1 Ampere per isolated contact
I
NSULATION
R
ESISTANCE
:
>1000 Megohms
D
IELECTRIC
S
TRENGTH
:
>1000 VDC (Sea Level)
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
-55º C to +125º C
T
EMPERATURE
C
YCLING
:
EIA-364-32A
V
IBRATION
:
EIA-364-28A
D
RAWING
N
UMBER
: 1305116
P
RODUCT
S
PECIFICATION
: PFS-1013
M
OUNTING
H
ARDWARE
(sold separately)
Jacksocket Kit
Catalog Number: 8700040001
(for mounting style “C”)
Kit includes:
— 2 Jacksockets (shown above)
— 2 Split Lockwashers
F
1
2
TAIL LENGTH
4,39 [.173]
7,11 [.280]
P
ANEL
C
UTOUT
:
See page 447
PCB H
OLE
P
ATTERN
:
See page 448
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
445
