UPLFF220-051 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> UPLFF220-051

UPLFF220-051: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerTrompeter Electronics

Download Datasheet Parametric View All

UPLFF220-051 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug

UPLFF220-051 Parametric

Parameter Name	Attribute value
Objectid	2087589603
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	UPLFF220
Installation method	45 DEGREE
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

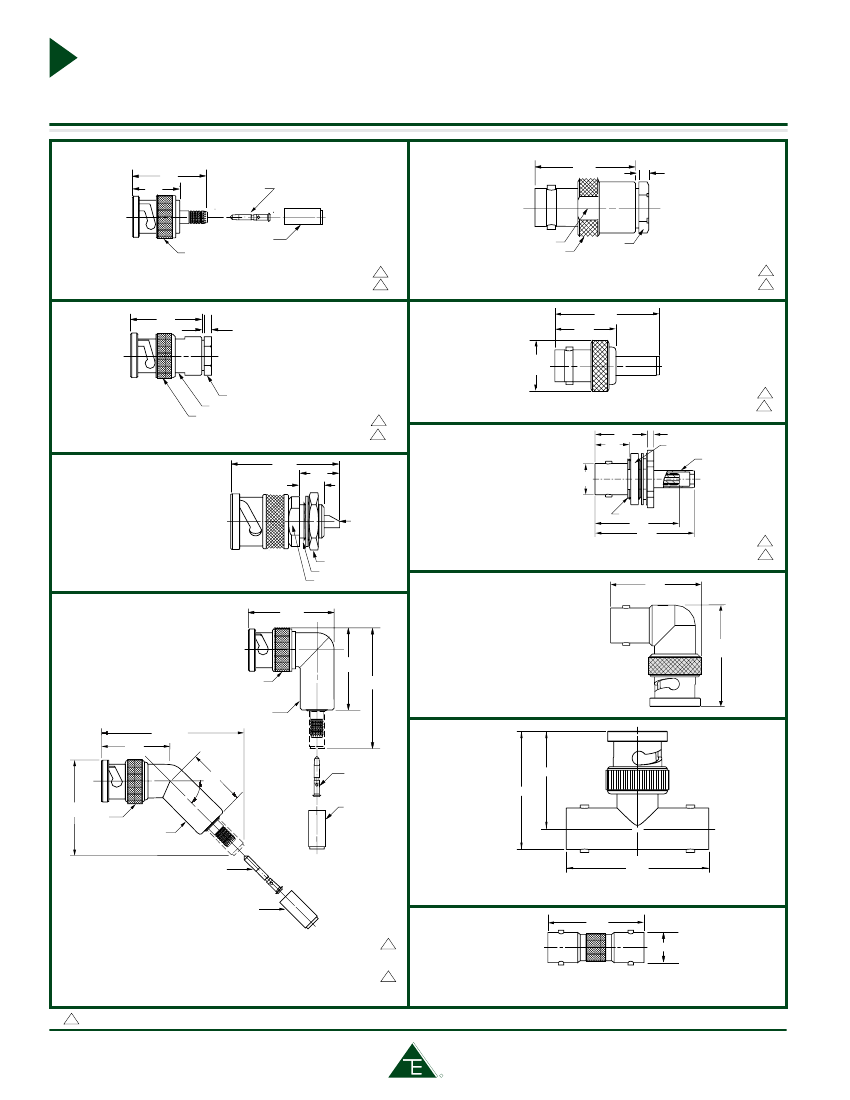

Miniature coax 20/220 series, bnc plugs & jacks

UPL220 Shown

.997

1.132

.632

.096

CONTACT PIN

;;;

CRIMP SLEEVE

.593 DIA MAX

.500 FLATS

.600 DIA MAX

.437 HEX

Cable Plug

Tool Crimp

PL20-1 Shown

50Ω

75Ω

.931

PL220-

UPL220-

Cable Jack

Wrench Crimp

CJ220-001 Shown

50Ω

75Ω

1.208

.708

CJ20-

UCJ20-

;;;

.096

.593 DIA

MAX

Cable Plug

Wrench Crimp

PL21-1 Shown

.437 HEX NUT

.437 WRENCH FLATS

.606 DIA MAX

Cable Jack

Tool Crimp

50Ω

75Ω

.642

.420

.078

CJ220-

UCJ220-

.687 HEX NUT

CRIMP

SLEEVE

50Ω

75Ω

PL20-

UPL20-

.400

.250

1.089

Bulkhead Plug

Front Mount, Solder Pot

50Ω

75Ω

50Ω

.380

DIA

PL21

UPL21

PL21SL

UPL21SL

w/ Solder Lug

75Ω

Mounting Hole:

C2.085

ACCEPTS

.064 DIA

CONDUCTOR

.500 HEX

.375-32UNEF-2A

.437 WRENCH FLAT

Bulkhead

Cable Jack

Rear Mount, Tool Crimp

Mounting Hole:

D3.100

.4375-28UNEF-2A

1.020

1.220

50Ω

75Ω

.987

BJ220-

UBJ220-

1.100

.593

MAX

;;;

1.100

1.600

BNC Adapter

Right Angle

75Ω BNC

UADRMF220

.444 DIA

1.900 MAX

BN23 Shown

1.325

MAX

;;;;

.593

MAX

.444 DIA

.848

.808

45°

CONTACT PIN

1.080

.890

CRIMP SLEEVE

CONTACT PIN

1.300

BNC "T" Adapter

CRIMP SLEEVE

50Ω

75Ω

BN23

UBN23

Cable Plug

75Ω

90º Right Angle, Full Crimp

UPLR220-

UPLFF220-

;;;;

BNC Coupling Adapter

(Barrel connector)

1.280

.380

Cable Plug

45º Angle, Full Crimp

75Ω

50Ω

75Ω

AD28

UAD28

- Refers to Cable Group Table, see pages 91-133. "D" mounting holes are on page 54

Trompeter Products Catalog - T21 Military/Aerospace

ISO 9001

Registered

(800) 982-2629

Fax: (818) 706-1040

www.trompeter.com
