AT40K20-2BQI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> AT40K20-2BQI

AT40K20-2BQI: DescriptionFPGA, 576 CLBS, 10000 GATES, PQFP208; CategoryProgrammable logic devices Programmable logic; File Size728KB，67 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

AT40K20-2BQI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AT40K20-2BQI	-	-	View	Buy Now

AT40K20-2BQI Overview

FPGA, 576 CLBS, 10000 GATES, PQFP208

AT40K20-2BQI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	QFP
package instruction	20 X 20 MM, 1.40 MM HEIGHT, PLASTIC, LQFP-144
Contacts	144
Reach Compliance Code	_compli
ECCN code	3A991.D
Other features	MAXIMUM USABLE GATES 30000
Combined latency of CLB-Max	2.2 ns
JESD-30 code	S-PQFP-G144
JESD-609 code	e0
length	20 mm
Humidity sensitivity level	3
Configurable number of logic blocks	1024
Equivalent number of gates	20000
Number of entries	256
Number of logical units	1024
Output times	256
Number of terminals	144
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1024 CLBS, 20000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP144,.87SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	20 mm

Preview

Download Datasheet

View All

Features

•

Ultra High Performance

– System Speeds to 100 MHz

– Array Multipliers > 50 MHz

– 10 ns Flexible SRAM

– Internal Tri-state Capability in Each Cell

FreeRAM

™

– Flexible, Single/Dual Port, Synchronous/Asynchronous 10 ns SRAM

– 2,048 - 18,432 Bits of Distributed SRAM Independent of Logic Cells

128 - 384 PCI Compliant I/Os

– 3V/5V Capability

– Programmable Output Drive

– Fast, Flexible Array Access Facilitates Pin Locking

– Pin-compatible with XC4000, XC5200 FPGAs

8 Global Clocks

– Fast, Low Skew Clock Distribution

– Programmable Rising/Falling Edge Transitions

– Distributed Clock Shutdown Capability for Low Power Management

– Global Reset/Asynchronous Reset Options

– 4 Additional Dedicated PCI Clocks

Cache Logic

Dynamic Full/Partial Re-configurability In-System

– Unlimited Re-programmability via Serial or Parallel Modes

– Enables Adaptive Designs

– Enables Fast Vector Multiplier Updates

– QuickChange

™

Tools for Fast, Easy Design Changes

Pin-compatible Package Options

– Plastic Leaded Chip Carriers (PLCC)

– Thin, Plastic Quad Flat Packs (LQFP, TQFP, PQFP)

– Ball Grid Arrays (BGAs)

Industry-standard Design Tools

– Seamless Integration (Libraries, Interface, Full Back-annotation) with

Concept

, Everest, Exemplar

™

, Mentor

, OrCAD

, Synario

™

, Synopsys

Verilog

, Veribest

, Viewlogic

, Synplicity

– Timing Driven Placement & Routing

– Automatic/Interactive Multi-chip Partitioning

– Fast, Efficient Synthesis

– Over 75 Automatic Component Generators Create 1000s

of Reusable, Fully Deterministic Logic and RAM Functions

Intellectual Property Cores

– Fir Filters, UARTs, PCI, FFT and Other System Level Functions

Easy Migration to Atmel Gate Arrays for High Volume Production

Supply Voltage 5V for AT40K, and 3.3V for AT40KLV

•

5K - 50K Gates

Coprocessor

FPGA with

FreeRAM

™

AT40K05

AT40K05LV

AT40K10

AT40K10LV

AT40K20

AT40K20LV

AT40K40

AT40K40LV

•

Rev. 0896C–FPGA–04/02

Table 1.

AT40K/AT40KLV Family

(1)

Device

Usable Gates

Rows x Columns

Cells

Registers

RAM Bits

I/O (Maximum)

Note:

AT40K05

AT40K05LV

5K - 10K

16 x 16

256

(1)

2,048

128

AT40K10

AT40K10LV

10K - 20K

24 x 24

576

(1)

4,608

192

AT40K20

AT40K20LV

20K - 30K

32 x 32

1,024

(1)

8,192

256

AT40K40

AT40K40LV

40K - 50K

48 x 48

2,304

(1)

18,432

384

1. Packages with FCK will have 8 less registers.

Description

The AT40K/AT40KLV is a family of fully PCI-compliant, SRAM-based FPGAs with dis-

tributed 10 ns programmable synchronous/asynchronous, dual-port/single-port SRAM,

8 global clocks, Cache Logic ability (partially or fully reconfigurable without loss of data),

automatic component generators, and range in size from 5,000 to 50,000 usable gates.

I/O counts range from 128 to 384 in industry standard packages ranging from 84-pin

PLCC to 352-ball Square BGA, and support 5V designs for AT40K and 3.3V designs for

AT40KLV.

The AT40K/AT40KLV is designed to quickly implement high-performance, large gate

count designs through the use of synthesis and schematic-based tools used on a PC or

Sun platform. Atmel’s design tools provide seamless integration with industry standard

tools such as Synplicity, ModelSim, Exemplar and Viewlogic.

The AT40K/AT40KLV can be used as a coprocessor for high-speed (DSP/processor-

based) designs by implementing a variety of computation intensive, arithmetic functions.

These include adaptive finite impulse response (FIR) filters, fast Fourier transforms

(FFT), convolvers, interpolators and discrete-cosine transforms (DCT) that are required

for video compression and decompression, encryption, convolution and other multime-

dia applications.

Fast, Flexible and

Efficient SRAM

The AT40K/AT40KLV FPGA offers a patented distributed 10 ns SRAM capability where

the RAM can be used without losing logic resources. Multiple independent, synchronous

or asynchronous, dual-port or single-port RAM functions (FIFO, scratch pad, etc.) can

be created using Atmel’s macro generator tool.

The AT40K/AT40KLV’s patented 8-sided core cell with direct horizontal, vertical and

diagonal cell-to-cell connections implements ultra fast array multipliers without using

any busing resources. The AT40K/AT40KLV’s Cache Logic capability enables a large

number of design coefficients and variables to be implemented in a very small amount

of silicon, enabling vast improvement in system speed at much lower cost than conven-

tional FPGAs.

Fast, Efficient Array and

Vector Multipliers

AT40K/AT40KLV Series FPGA

0896C–FPGA–04/02

AT40K/AT40KLV Series FPGA

Cache Logic Design

The AT40K/AT40KLV, AT6000 and FPSLIC families are capable of implementing

Cache Logic (dynamic full/partial logic reconfiguration, without loss of data, on-the-fly)

for building adaptive logic and systems. As new logic functions are required, they can be

loaded into the logic cache without losing the data already there or disrupting the opera-

tion of the rest of the chip; replacing or complementing the active logic. The

AT40K/AT40KLV can act as a reconfigurable coprocessor.

The AT40K/AT40KLV FPGA family is capable of implementing user-defined, automati-

cally generated, macros in multiple designs; speed and functionality are unaffected by

the macro orientation or density of the target device. This enables the fastest, most pre-

dictable and efficient FPGA design approach and minimizes design risk by reusing

already proven functions. The Automatic Component Generators work seamlessly with

industry standard schematic and synthesis tools to create the fastest, most efficient

designs available.

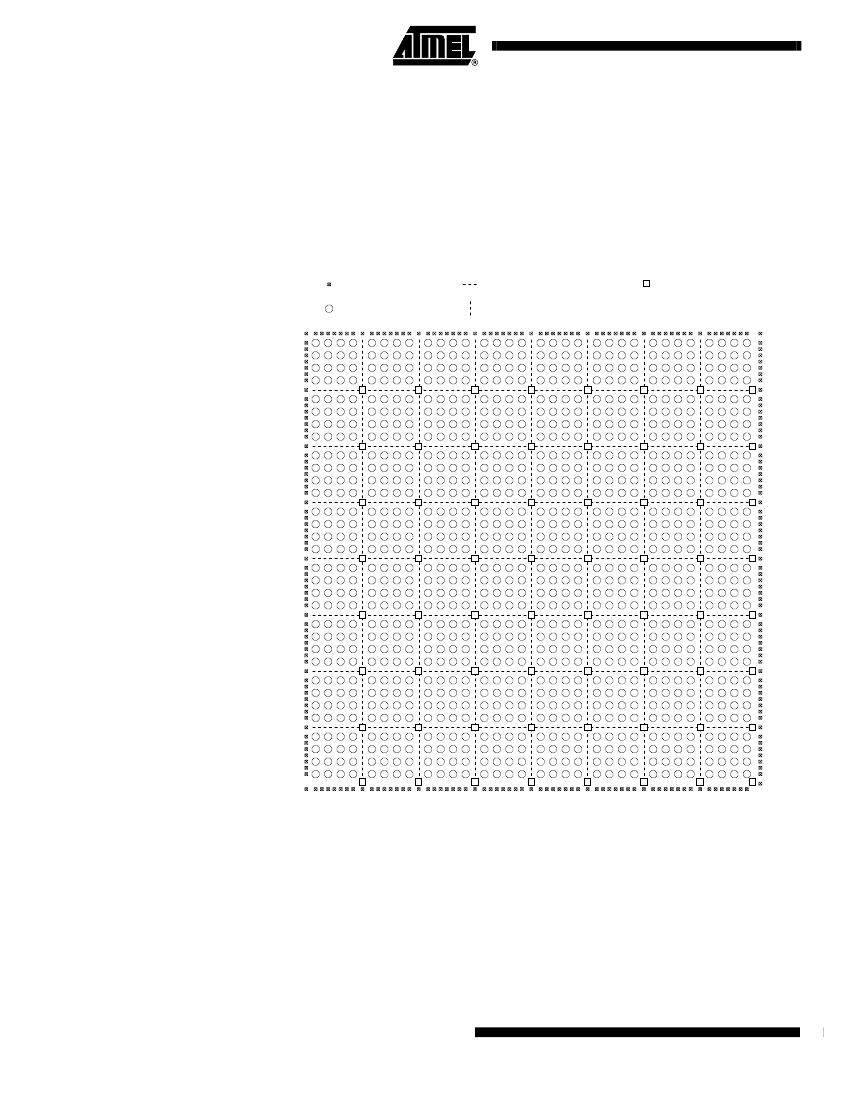

The patented AT40K/AT40KLV series architecture employs a symmetrical grid of small

yet powerful cells connected to a flexible busing network. Independently controlled

clocks and resets govern every column of cells. The array is surrounded by programma-

ble I/O.

Devices range in size from 5,000 to 50,000 usable gates in the family, and have 256 to

2,304 registers. Pin locations are consistent throughout the AT40K/AT40KLV series for

easy design migration in the same package footprint. The AT40K/AT40KLV series

FPGAs utilize a reliable 0.6µ single-poly, CMOS process and are 100% factory-tested.

Atmel’s PC- and workstation-based integrated development system (IDS) is used to cre-

ate AT40K/AT40KLV series designs. Multiple design entry methods are supported.

The Atmel architecture was developed to provide the highest levels of performance,

functional density and design flexibility in an FPGA. The cells in the Atmel array are

small, efficient and can implement any pair of Boolean functions of (the same) three

inputs or any single Boolean function of four inputs. The cell’s small size leads to arrays

with large numbers of cells, greatly multiplying the functionality in each cell. A simple,

high-speed busing network provides fast, efficient communication over medium and

long distances.

Automatic Component

Generators

0896C–FPGA–04/02
