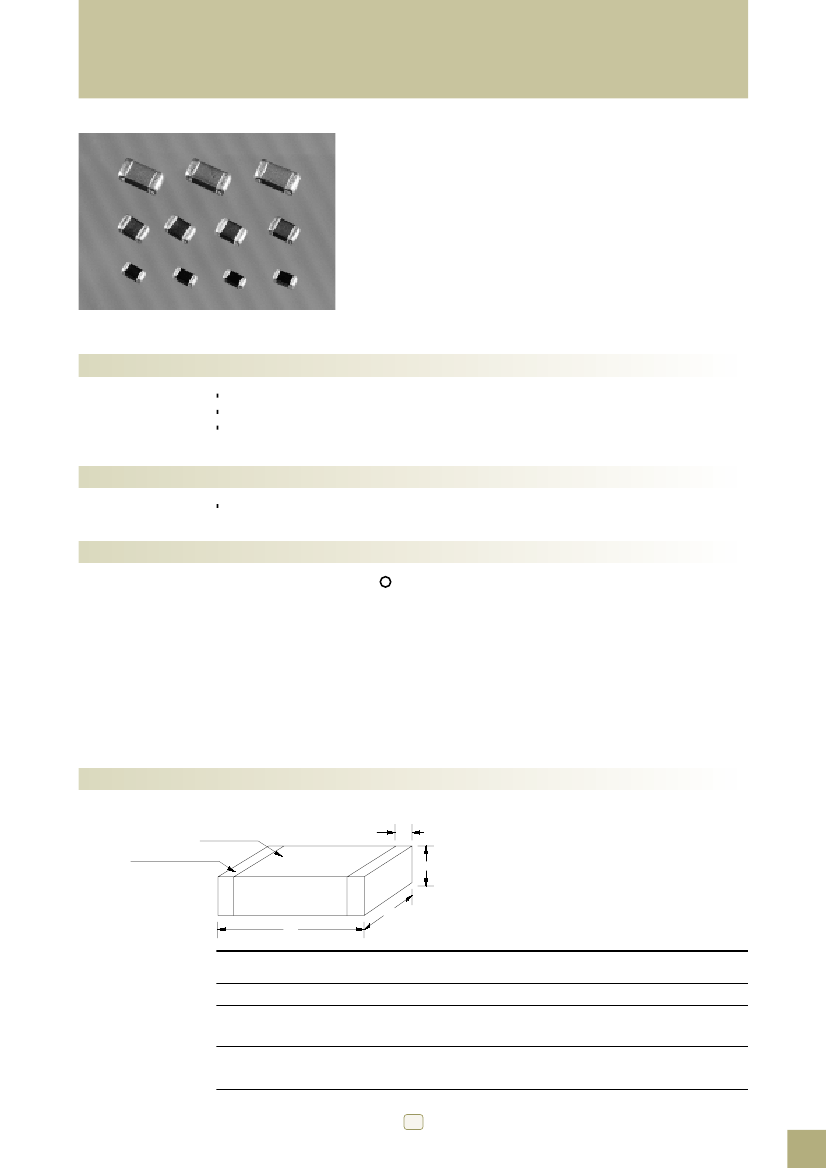

CIL Series
Ordinary Type
It has ferrite and 100% Ag as internal conductors, the CIL Series has
excellent Q characteristics and eliminate crosstalk.
FEATURES
Magnetic shielding eliminates crosstalk, thus permitting higher mounting densities.
Excellent solderability and high heat resistance for either flow or reflow soldering.
Monolithic structure for high reliability.
APPLICATIONS
Resonance circuits, PLL circuits, Noise suppression etc.
PART NUMBERING
CI
(1)
L
(2)
21
(3)
(4)
5R6
(5)
K
(6)
N
(7)
E
(8)
(1) CHIP INDUCTOR
(2) L:Ordinary type
(3) Dimensions
(4) Material code(N, J, Y, S)
(5) Inductance(R10:0.1
μ
; 5R6:5.6
μ
; 100:10
μ
H
H
H)
(6) Tolerance(K:±10% ; M:±20%)
(7) Thickness option(N:Standard ; A:Thinner than standard ; B:Thicker than standard)
(8) Packaging style(C:paper tape, 7” reel ; E:embossed tape, 7” reel)
DIMENSIONS
Ferrite body
d
t
External electrode
W
L
Unit : mm
Type
10
21
31
EIA Code
0603
0805
1206
L
1.6±0.15
2.0±0.2
3.2±0.2
W
0.8±0.15
1.25±0.2
1.6±0.2
t
0.8±0.15
0.85±0.2
1.25±0.2
0.6±0.2
1.1±0.2
d
0.3±0.2
0.5+0.2,-0.3
0.5+0.2,-0.3
14
CHIP INDUCTOR
