M83734/2-028

Description
IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,
CategoryThe connector    socket
File Size159KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

M83734/2-028 Overview

IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,

M83734/2-028 Parametric

Parameter NameAttribute value
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: MIL-S-83734, STACKABLE
body width0.4 inch
subject depth0.175 inch
body length0.45 inch
Contact to complete cooperationGOLD (30)
Contact completed and terminatedGOLD (30)
Contact styleSQ PIN-SKT
Device slot typeIC SOCKET
Type of equipment usedDIP8
Shell materialPLASTIC
JESD-609 codee4
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts8
PCB contact patternRECTANGULAR
PCB contact row spacing0.3 mm
Terminal pitch2.54 mm
Termination typeSOLDER
Base Number Matches1

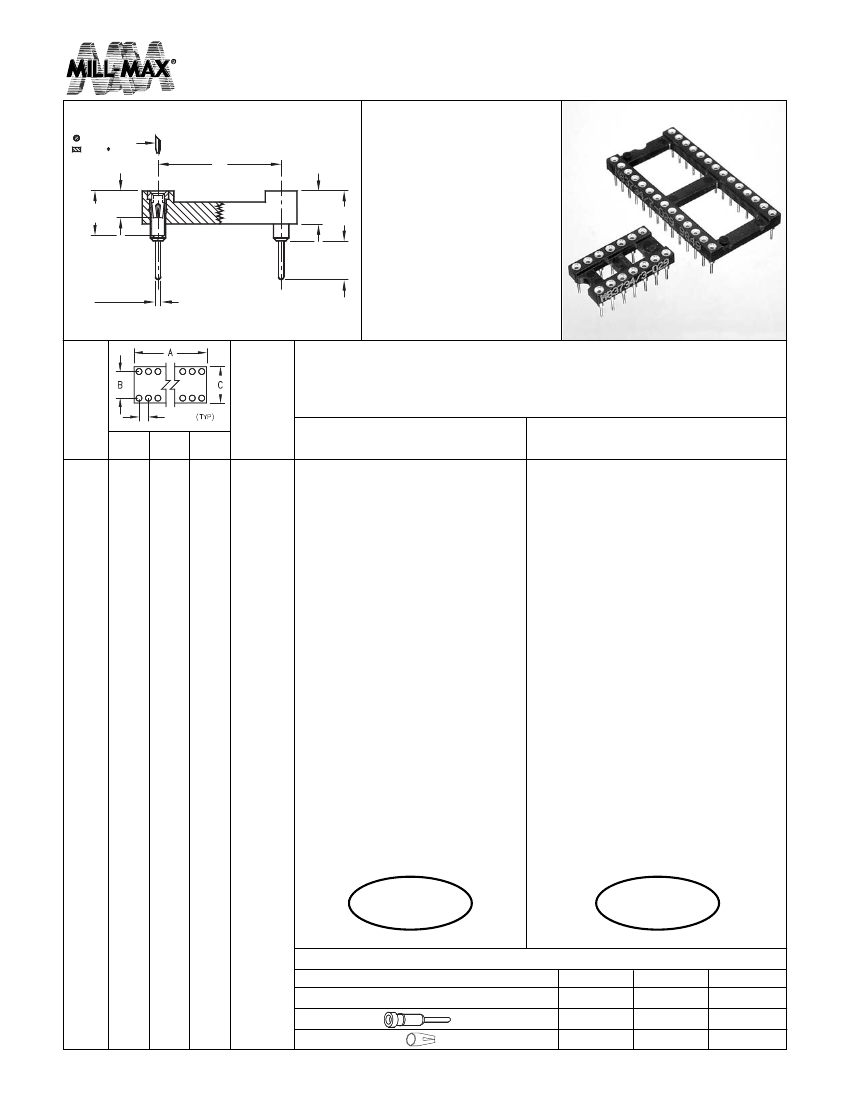

MILITARY DUAL-IN-LINE SOCKETS
MIL-S-83734 APPROVED
Solder Tail, Open Frame
Sockets are XY stackable.
0,38-.064
0,25 0,46
B
Series 110...530
Machined outer sleeve with Hi-
Rel, BeCu #30 inner contact.
Socket pins feature closed-
entry construction eliminating
any solder/flux wicking problems.
4,19
3,71
2,41
2,79
3,18
Packaged in tubes compatible
with automatic insertion equip-
ment.
Series 110 use MM #1001 pins.
See page 136 for details.
Insulators are high temperature
thermoplastic.
0,51 DIA.
Total number
of pins
2,54
Quantity
per tube
Ordering Information
Mill-Max Part Number
Military Part Number
M83734/2-YYY
M83734/3-YYY
M83734/4-YYY
M83734/5-YYY
M83734/13-YYY
M83734/6-YYY
M83734/8-YYY
M83734/7-YYY
M83734/10-YYY
M83734/14-YYY
M83734/15-YYY
A
10,1
17,7
20,3
22,8
25,3
B
7,62
7,62
7,62
7,62
7,62
C
10,1
10,1
10,1
10,1
10,1
50
28
25
22
20
18
16
14
10
8
6
8
14
16
18
20
22
24
28
40
48
64
110-XX-308-41-530000
110-XX-314-41-530000
110-XX-316-41-530000
110-XX-318-41-530000
110-XX-320-41-530000
110-XX-422-41-530000
110-XX-624-41-530000
110-XX-628-41-530000
110-XX-640-41-530000
110-XX-648-41-530000
110-XX-964-41-530000
27,8 10,16 12,7
30,4
35,5
50,8
60,9
15,24
15,24
15,24
15,24
17,7
17,7
17,7
17,7
81,2 22,86 25,3
For Electrical,
Mechanical & Enviromental
Data, See pg. 4
XX=Plating Code
See Below
SEE PAGE 35 FOR COMPLETE QPL
SPECIFY MILL-MAX PLATING CODE XX=
FOR MILITARY CODE YYY=
33
028
0,76μm Au
83
029
88
030
Sleeve (Pin)
Contact (Clip)
0,76μm Au
7,62μm Sn/Pb 7,62μm Sn/Pb
0,76μm Au
2,54μm Sn/Pb
w w w. m i l l - m a x . c o m
32
516-922-6000
