BK/MAX-70: Descriptionfuse auto 70a 32vdc blade; CategoryCircuit protection Circuit protection; File Size73KB，1 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

BK/MAX-70 Overview

fuse auto 70a 32vdc blade

BK/MAX-70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	RATED BREAKING CAPACITY AT 32 VDC: 1000 A
Fusing characteristics	FAST
body width	8.9 mm
body height	21.6 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	MAX
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	8.9mm x 21.6mm
Rated breaking capacity	1000 A
Rated current	70 A
Rated voltage (DC)	32 V
surface mount	NO
Terminal shape	TAB/BLADE

Preview

Download Datasheet

View All

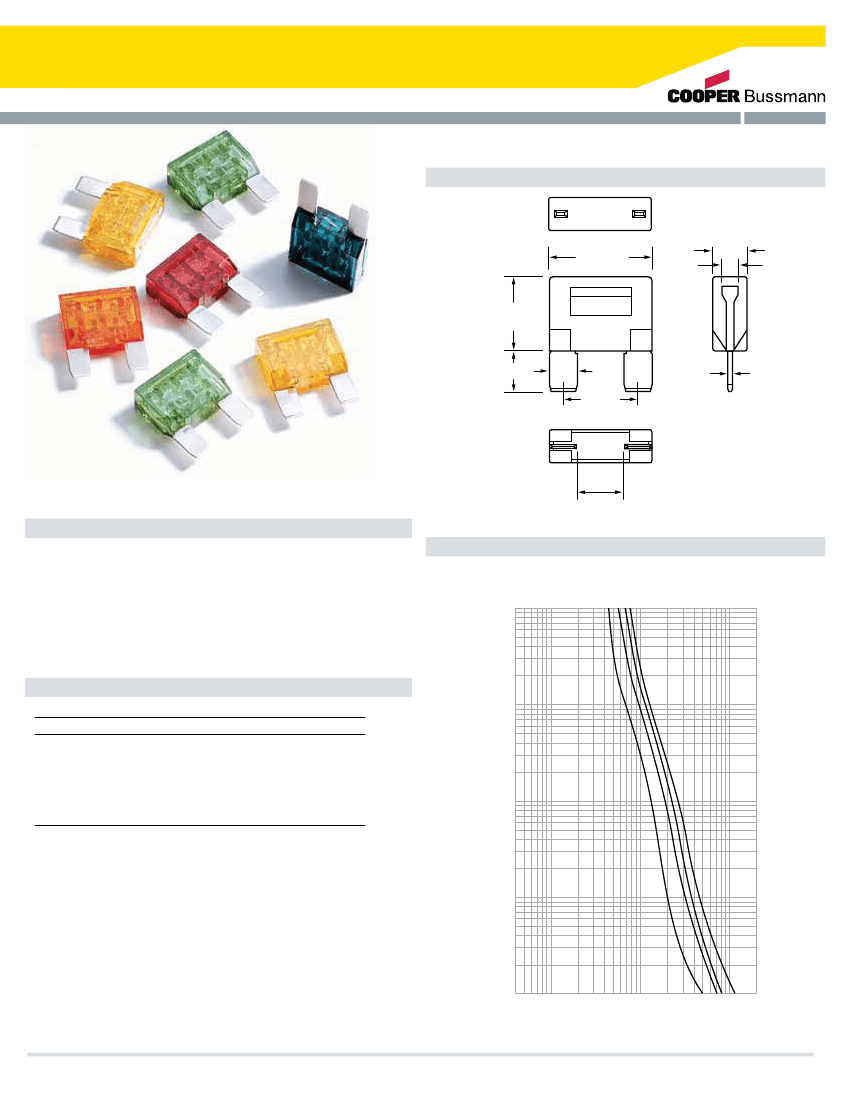

MAXI

®

Blade Fuses

Dimensions - mm(in)

(Dims. Shown are for reference only. Contact factory for latest prints)

60

32V

Z039

29.2

(1.14)

8.9

(.35)

4.57

(.18)

21.6

(.85)

BUSS

MAXI-FUSE

®

12.7(.50)

8.0

(.31)

21.21

(.83)

2.54

(.10)

MAXI

®

- Fuse

Fast Acting

17.02

(.67)

Speciﬁcations

Current Rating:

20-80A

Voltage Rating:

32Vdc

Interrupt Rating:

1000A @ 32Vdc

Housing Material:

UL-Rated 94V0 thermoplastic

Terminal Material:

Silver-plated zinc alloy

Marking:

Amperage marking is OCR compliant

Compliances:

SAE J1888, ISO 8820-3, SAE J1171 (ignition protected)

Time-Current Curves

AMP

RATING

100

Color Coding and Amp Ratings

10

Part No.

BK-MAX-20

BK-MAX-30

BK-MAX-40

BK-MAX-50

BK-MAX-60

BK-MAX-70

BK-MAX-80

Amp Rating

20

30

40

50

60

70

80

Color

Yellow

Green

Orange

Red

Blue

Tan

Neutral

TIME IN SECONDS

1

.1

.01

100

4

30

40

50

60

1000

CURRENT IN AMP

2000

10

Cooper Bussmann Transportation Products
