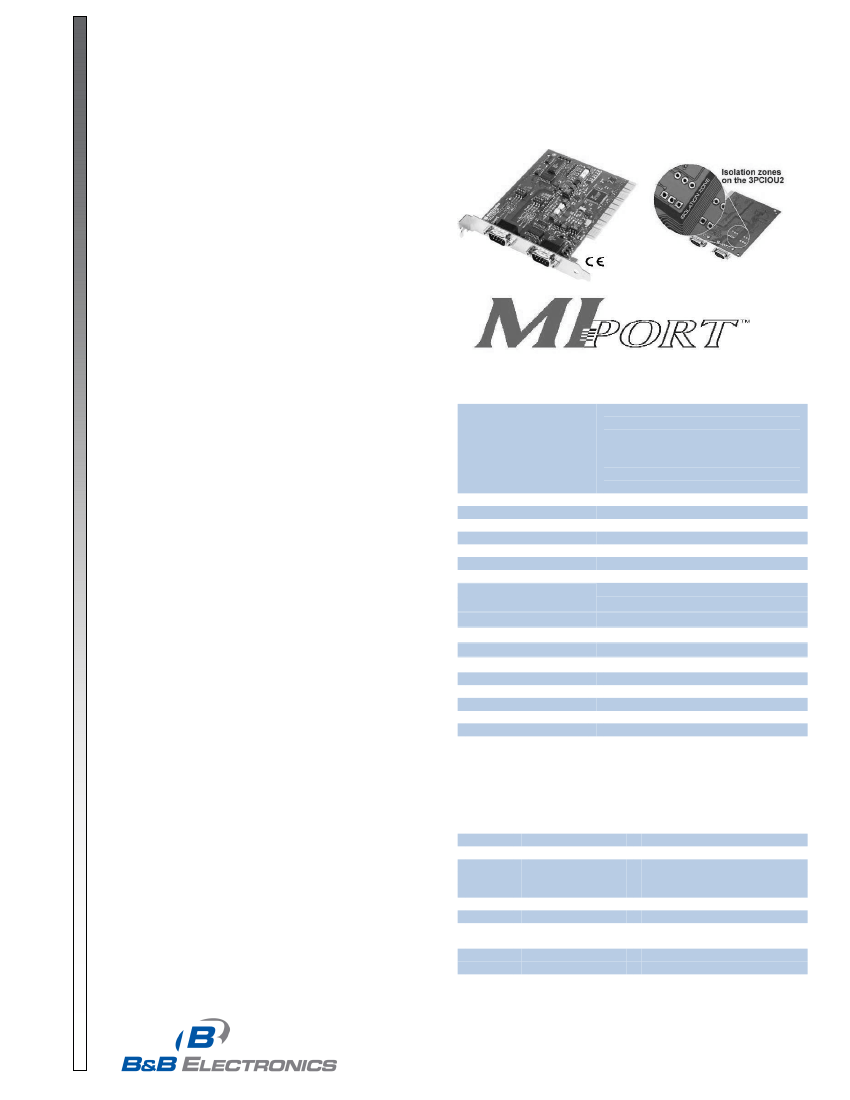

Universal PCI Cards
B&B ELECTRONICS
One to Eight Port RS-232/422/485 Cards
Standard and Optically Isolated
Models: 3PCIU2, 3PCIU4, 3PCIU8, 3PCIOU1, 3PCIOU2, and 3PCIOU4
Add 1, 2, 4 ,or 8 Serial Ports to your PC
Optical Isolation Available
RS-232/422/485 Selectable on Each Port
5 and 3.3 V PCI Bus Compatible
PCI-X Compatible
Data Rates up to 460.8 Kbps
Specifications
MIPort ™ Universal PCI Cards suit most any application.
Outputs are independently configurable for RS-232, RS-422,
or RS-485. Optically isolated cards offer 2000 VDC port-to-
port isolation. Compare B&B’s cards to others – B&B’s
premium Isolation Zone along with optical couplers and our
unique isolated DC-DC converter design protect your PC from
voltage surges and ground loops. DB9M connectors offer
positive thumbscrew locking, more robust than phone jack
connectors. Four and eight port models include fan-out
cables. The eight port model has four RS-232/422/485 and
four RS-232 ports. Four port isolated model 3PCIOU4 has two
RS-232/422/485 ports and two RS-422/485 ports. All models
support data rates up to 460.8 kbps. MIPort™ cards are plug-
and-play compatible and have adjustable FIFO trigger
**RS-232
Signals
RS-422 Signals:
RS-485 Signals:
Operating Temperature:
Operating Humidity:
Dimensions:
Mounting Bracket:
Approvals:
*Note:
**Note:
BUS:
Data Rate:
UARTs:
Buffer:
Character Length:
Parity
Stop Bits
*Isolation:
Operating Systems:
Windows XP, Windows 2008 Server
(32/64 bit), Windows Vista (32/64 Bit),
Windows 7 (32/64 Bit), Linux Kernel
2.6.x in the following distributions:
Ubuntu 10.04 Desktop Edition (32/64
Bit) and Ubuntu 10.04 Server Edition
(32/64 Bit).
PCI (33 MHz/32-bit)
Up to 460.8 kbps (RS-232/422/485)
XR17D15X (16C550 Compatible)
64 byte FIFO Buffer
5, 6, 7, or 8 bits
Even, Odd, None, Space or Mark
1, 1.5, or 2
2K V Optical. Ports are isolated
From PC Power, Ground, and other
ports on the same card
TD, RD, and all handshake signals
TDA(-), TDB(+), and GND
Data A(-), Data B(+), and GND
32 to 122 F (0 to 50 C)
0 to 95% Non-condensing
4.8 x 3.8 in (12.2 x 9.6 cm) Card Edge
0.5 x 4.8 x 0.4 in (1.2 x 12.1 x 0.9 )
FCC, CE
Isolated Models Only
Model 3PCIOU4 supports RS-232 TD,
RD, RTS, CTS, and Ground only
PRODUCT INFORMATION
thresholds for input and output. RS-485 operation supports
both 2-Wire and 4-Wire (full and half-duplex), and Automatic
Send Data Control. All models include a comprehensive
technical manual and CD ROM with drivers .
Whether your application is Industrial Monitoring and
control, SCADA, Point of Sale, Medical, or Security, MIPort™
Universal PCI Cards are your number one choice.
.
Isolated
Model
3PCIOU1
3PCIOU2
3PCIOU4
Ordering Information
Ports
1 RS-232/422/485
2 RS-232/422/485
2 RS-232/422/485
2 RS-422/485
Connectors
1 DB9 M
2 DB9 M
2 DB9 M on card, 2 DB9 M on
second exp slot (cable and
bracket included
DB9 M
DB37 F (DB37 to 4 x DB9 M
cable included)
DB78 F (DB78 to 8 x DB9 M
cable included)
Standard
3PCIU2
3PCIU4
3PCIU8
2 RS-232/422/485
4 RS-232/422/485
4 RS-232/422/485
4 RS-232
www.bb-elec.com
orders@bb-elec.com support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
