CWR11HK475MTA/PT

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 20% +Tol, 20% -Tol, 4.7uF, 1411
CategoryPassive components    capacitor
File Size445KB,17 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

CWR11HK475MTA/PT Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 20% +Tol, 20% -Tol, 4.7uF, 1411

CWR11HK475MTA/PT Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1316381631
package instruction, 1411
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL7.5
capacitance4.7 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR4000 mΩ
high1.9 mm
JESD-609 codee0
length3.5 mm
Manufacturer's serial numberCWR11
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)15 V
GuidelineMIL-PRF-55365/8
seriesCWR11
size code1411
Terminal surfaceTin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
width2.8 mm

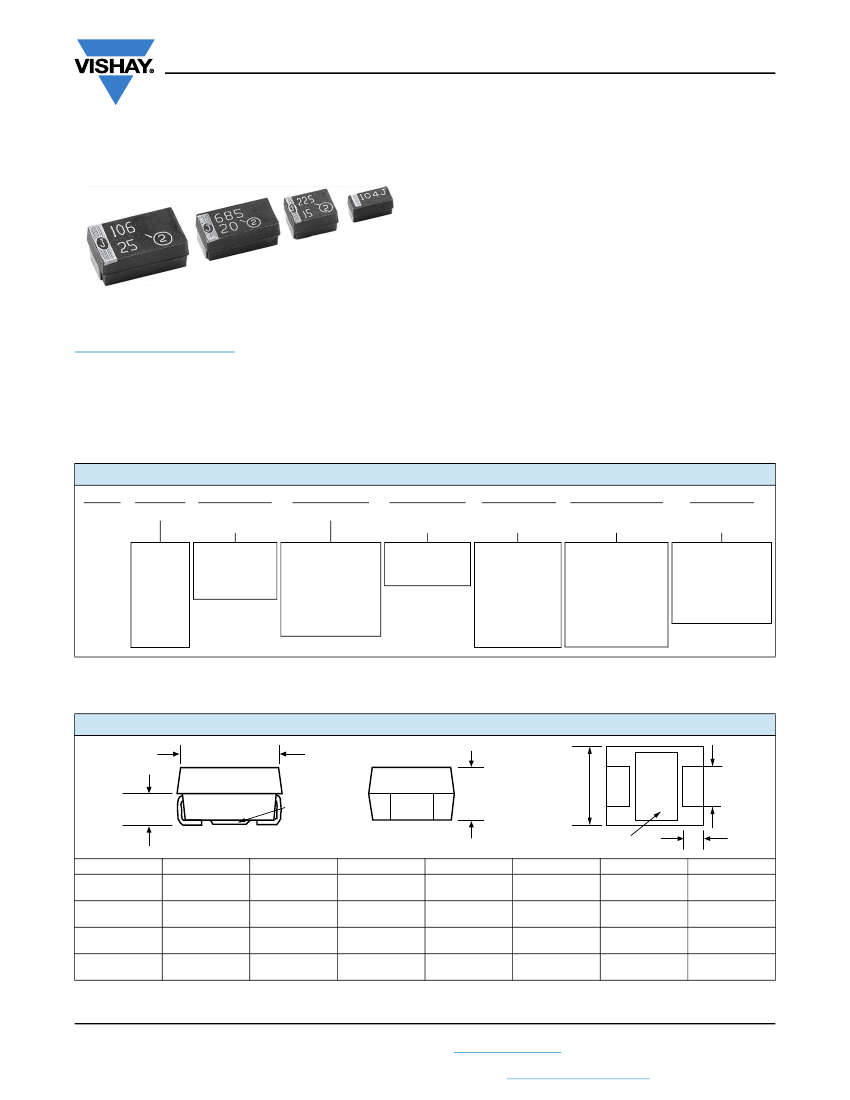

CWR11
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT®
Molded Case, Military MIL-PRF-55365/8 Qualified
FEATURES
Weibull failure rate codes B, C, D and T
Surge current options A, B and C
Termination: H = solder plated, K = solder fused
Molded case available in four case codes
Compatible with “High Volume” automatic pick and place
equipment
PERFORMANCE/ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.10 μF to 100 μF
Capacitance Tolerance:
± 5 %, ± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
APPLICATIONS
• Military / aerospace
• General purpose
• High reliability
ORDERING INFORMATION
CWR11
TYPE
D
VOLTAGE
H
TERMINATION
FINISH
H = solder
plated
K = solder
fused
155
CAPACITANCE
K
CAPACITANCE
TOLERANCE
J=±5%
K = ± 10 %
M = ± 20 %
B
FAILURE RATE
%/1000 h
M = 1.0
P = 0.1
R = 0.01
S = 0.001
B = 0.1
C = 0.01
D = 0.001
T = 0.01
(1)
A
SURGE CURRENT
(OPTIONAL)
A = 10 cycles
at +25 °C
B = 10 cycles
at -55 °C / +85 °C
C = 10 cycles
at -55 °C / +85 °C
(before Weibull
grading)
/HR

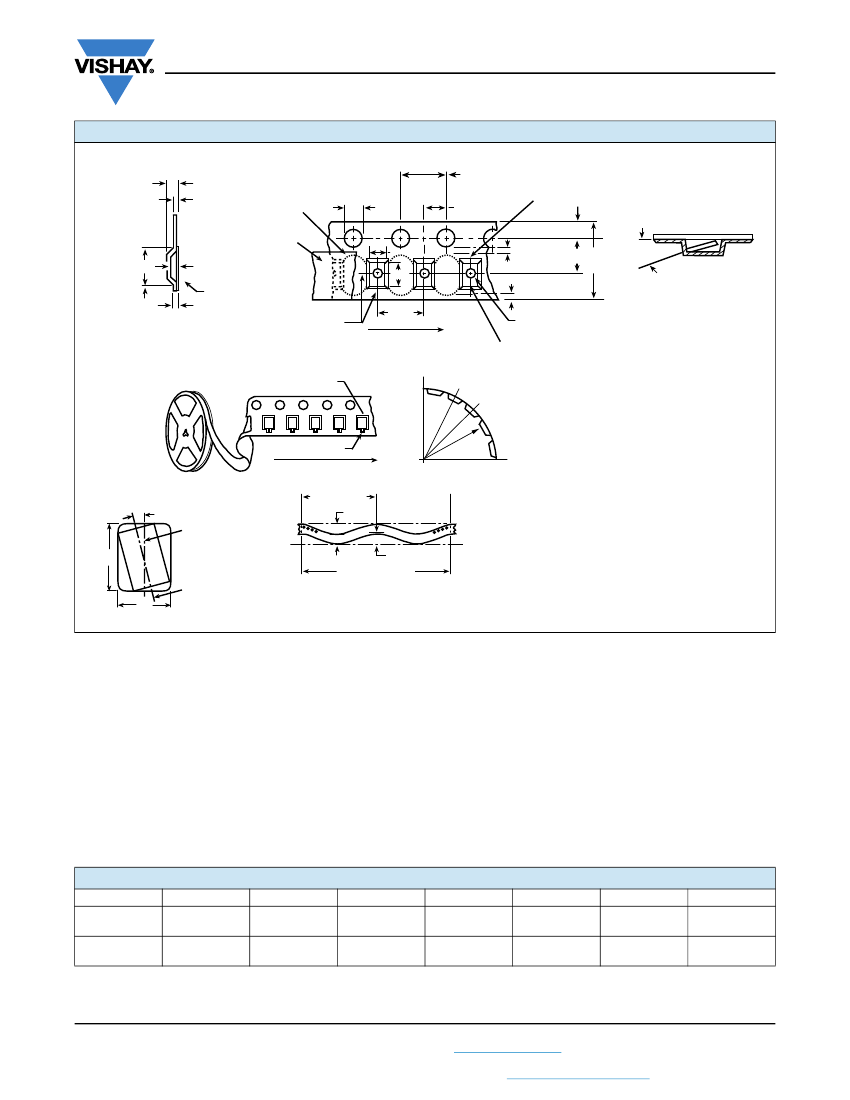

PACKAGING
OPTION
Blank = full reel
/PR = 100 pcs reel
/HR = half reel
/PT = bulk,
plastic tray
/FA = waffle pack
C=4V
D=6V
F = 10 V
H = 15 V
J = 20 V
K = 25 V
M = 35 V
N = 50 V
This is expressed
in picofarads.
The first two digits
are the significant
figures. The third
is the number of
zeros to follow.
Note
(1)
T level capacitors are recommended for “Space applications”. Shipped in tape and reel/or waffle packaging only.
DIMENSIONS
in inches [millimeters]
L
W
H
T
H
MIN.
Glue Pad
T
W
Glue Pad
P
CASE CODE
A
B
C
D
EIA SIZE
3216-18
3528-21
6032-28
7343-31
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
T
H
MIN.
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
Note
• Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option).
Revision: 12-Jun-14
Document Number: 40011
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
