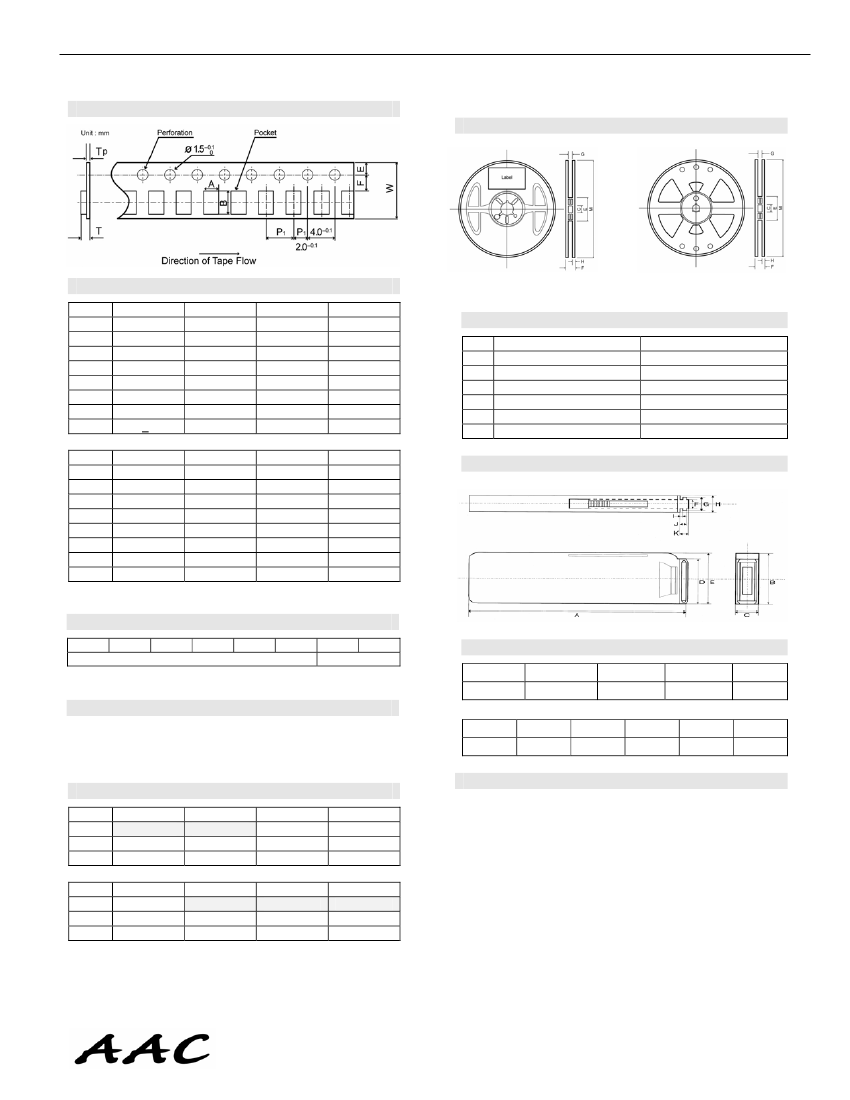

THICK FILM CHIP RESISTORS
TAPE SCHEMATIC
REEL DRAWINGS
05/16/05
TAPE DIMENSIONS (mm)
A
B
W
E
F
P
1
T
T
p
0201
0.41±0.1
0.71±0.1
8.0±0.2
1.75±0.10
3.5±0.05
2.0±0.05
0.5
max
0.4+0.05
1206
2.0±0.15
3.6±0.15
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.90±0.1
0.75±0.1
0402
0.65±0.1
1.15±0.1
8.0±0.2
1.75±0.10
3.5±0.05
2.0±0.05
0.55±0.1
0.40±0.05
1210
2.9±0.1
3.5±0.1
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.90±0.1
0.75±0.1
0603
1.1±0.2
1.9±0.2
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.70±0.1
0.60±0.1
2010
2.9±0.1
5.3±0.1
12.0±0.2
1.75±0.1
5.5±0.05
4.0±0.1
1.0±0.1
0.25±0.1
0805
1.65±0.2
2.4±0.2
8.0±0.2
1.75±0.1
3.5±0.05
4.0±0.1
0.90±0.1
0.75±0.1
2512
3.4±0.1
6.6±0.1
12.0±0.2
1.75±0.1
5.5±0.05
4.0±0.1
1.0±0.1
0.25±0.1
7” Reel (M)
13” Reel (V)
PACKAGE DIMENSIONS (mm)
M
H
C
G
E
F
7” Reel (M)
180
±
3.0
1.20
13.0
±
0.2
9.0
±
0.3
60
±
1.0
11.4
±
1.0
13” Reel (V)
330±2.5
2.3± 0.5
13.0
±
0.2
9.5
±
0.5
80.0
±
1.0
14.4
A
B
W
E
F
P
1
T
T
p
BULK CASE SCHEMATIC
TAPE TYPE
0201
0402
0603
0805
Paper Tape
1206
1210
2010
2512
Plastic Tape
BULK CASE DIMENSIONS (mm)
A
110. 0± 0.7
B
36.0
±
0.2
G
H
C
12.0
±
0.1
I
D
31.5
±0.2
J
2.0± 0.1
E
36.0
±0.2
K
4.7± 0.1
TAPE MATERIALS
A heat press sticks the transparent or half-transparent plastic
covered tape.
F
6.8
±0.1
8.8
±0.1
12.0
±
0.1 1.5
±
0.1
PACKAGE QUANTITY
Type
B
M
V
Type
B
M
V
0201
10,000
40,000
1206
5,000
5,000
20,000
0402
10,000
40,000
1210
4,000
20,000
0603
25,000
5,000
20,000
2010
4,000
20,000
0805
10,000
5,000
20,000
2512
4,000
20,000
LABEL DESCRIPTION
One side surface of a reel is marked with a label with the
following items of information.
1.
2.
3.
4.
5.
6.
Chip Resistor
Part Number
Tolerance
Quantity
Lot number for production month/year/suffix L*
Manufacturer’s name or symbol
* The suffix “L” indicates that this item is lead free. As of September
2004, all new production items of the series CR and CJ are no
longer containing tin/lead (SnPb) terminals; they are lead free and in
compliance with Lead Free/RoHS.
The content of this specification may change without notification
American Accurate Components, Inc.
188 Technology Drive Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889
3
THICK FILM CHIP RESISTORS
CR-KITS Series, Thick Film Chip Resistor Engineering Kits
05/16/05
This engineering and design kit is a great sales tool, allowing for application testing before ordering minimum
quantities. AAC offers a wide assortment of popular chip resistors sizes and tolerances, in addition to a large quantity
of each value. The kits are convenient with easy-to-use packaging.
PACKAGE CONSTRUCTION
3 Ring Binder Case Holder
Plastic pages with slip holders for each value
Each value is individually identified in a slip holder
Resistors are packaged on paper tape strips
E-24 KIT VALUES
2.2
2.7
3.9
4.7
6.8
8.2
10
18
22
27
33
39
47
68
75
100
120
150
180
220
270
330
390
470
560
680
850
1.0K
1.2K
1.5K
1.8K
2.2K
2.7K
3.3K
3.9K
4.7K
5.6K
6.8K
8.2K
10K
12K
15K
18K
22K
27K
33K
39K
47K
56K
82K
100K
120K
150K
220K
270K
390K
470K
560K
1.0M
2.2M
E-96 KIT VALUES
10.0
11.3
12.1
13.3
15.0
16.5
18.2
20.0
22.1
24.3
26.1
28.7
33.2
35.7
39.2
42.2
46.4
51.1
56.2
61.9
68.1
75.0
82.5
90.9
100
107
118
133
150
162
174
200
215
237
261
287
301
332
348
383
422
475
511
549
604
681
750
825
909
1.00K
1.10K
1.21K
1.33K
1.50K
1.62K
1.82K
2.00K
2.21K
2.37K
2.67K
3.01K
3.32K
3.92K
4.22K
4.75K
5.11K
5.62K
6.19K
6.81K
7.50K
8.25K
9.09K
10.0K
11.0K
12.1K
13.0K
15.0K
16.2K
18.2K
20.0K
22.1K
23.7K
27.4K
30.1K
33.2K
39.2K
41.2K
47.5K
49.9K
56.2K
60.4K
68.1K
75.0K
82.5K
90.9K
100K
110K
121K
130K
150K
162K
178K
200K
221K
237K
255K
274K
301K
332K
365K
392K
422K
464K
511K
536K
562K
619K
649K
681K
732K
750K
825K
866K
909K
953K
1.0M
Engineering Kits J Type
FEATURES
EIA Standard E-24 Values
Full range from 1
Ω
~ 1M
Ω
Resistance Tolerance of +5%
3,000 Pieces: 50 pieces of 60 different values
ISO 9002 Quality Certified products
Engineering Kits F Type
FEATURES
EIA Standard E-24 Values
Full range from 10
Ω
~ 1M
Ω
Resistance Tolerance of +1%
3,150 Pieces: 25 pieces of 126 different values
ISO 9002 Quality Certified products
Part Number for +5% Sample Kit
Part Number
CR05-J-KITS
Description
0402, 1/16w, 5%, E-24 values
(1Ω through 2.2M
Ω)
0603, 1/16w, 5%, E-24 values
(1Ω through 2.2M
Ω)
0805, 1/10w, 5%, E-24 values
(1Ω through 2.2M
Ω)
1206, 1/8w, 5%, E-24 values
(1Ω through 2.2M
Ω)
Part Number for +1% Sample Kit
Part Number
CR05-F-KITS
Description
0402, 1/16w, 1%, E-96 values
(10
Ω
through 1M
Ω)
0603, 1/16w, 1%, E-96 values
(10
Ω
through 1M
Ω)
0805, 1/10w, 1%, E-96 values
(10
Ω
through 1M
Ω)
1206, 1/8w, 1%, E-96 values
(10
Ω
through 1M
Ω)
CR16-J-KITS
CR16-F-KITS
CR10-J-KITS
CR10-F-KITS
CR18-J-KITS
CR18-F-KITS
American Accurate Components, Inc.
188 Technology Drive Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889
4
