FPR2-T22713R30G0.1% datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> FPR2-T22713R30G0.1%

FPR2-T22713R30G0.1%: DescriptionFixed Resistor, Metal Foil, 13.3ohm, 0.1% +/-Tol, -50,50ppm/Cel,; CategoryPassive components The resistor; File Size347KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

FPR2-T22713R30G0.1% Overview

Fixed Resistor, Metal Foil, 13.3ohm, 0.1% +/-Tol, -50,50ppm/Cel,

FPR2-T22713R30G0.1% Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	286230851
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
structure	Rectangular
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
Package height	10 mm
Package length	38 mm
Package shape	RECTANGULAR PACKAGE
Package form	Chassis Mount
Package width	26 mm
resistance	13.3 Ω
Resistor type	FIXED RESISTOR
series	FPR2-T227
technology	METAL FOIL
Temperature Coefficient	50 ppm/°C
Tolerance	0.1%

FPR2-T22713R30G0.1% Preview

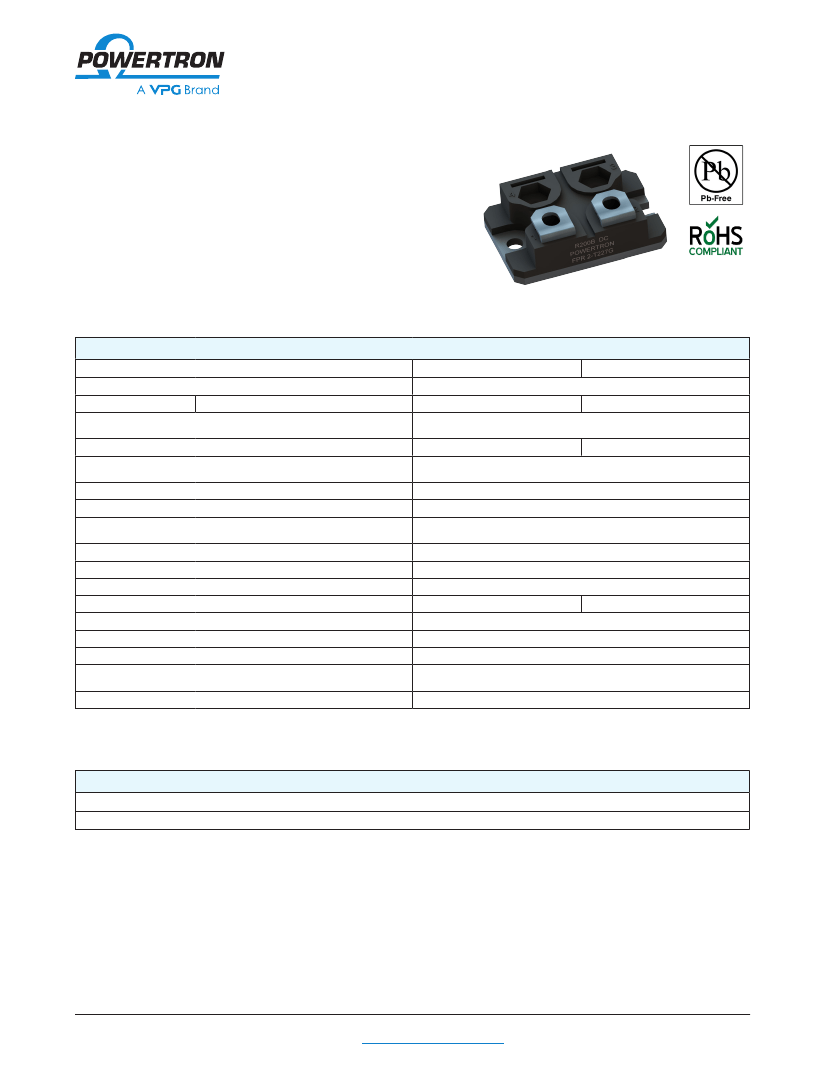

FPR FNR 2 - T227

FEATURES

•

Resistances from 0.001Ohm to 100Ohms

Power Rating to 80Watt

Resistance Tolerances to ±0.1%

TCR to ±50ppm/K

Load Stability to 0.1%

TABLE 1—SPECIFICATIONS

TYPE

Resistance Range

Power Rating

Tolerances

Thermal Resistance

Stability (1000h)

Temperature Coefficient

Voltage Proof

Maximum Current

Thermal EMF

Operating Temperature Range

Resistor Material

Substrate

Backplate

Housing

Connector Material

Max. Torque

Terminals

With heatsink

FPR 2-T227

0.01 to 100 Ohms

60W

0.1% / 0.5% / 1% / 2% / 5%

(others upon request)

1.3 K/W

0.1% / 0.2% / 0.5%

(depends on stress)

±50 ppm/K (20°C to 60°C)

1.5 kVDC

50 A contact G

85 A contact I

<0.1 μV/K

–40°C to 130°C

CuNiMn-Foil

Copper / Nickel-plated

Epoxy

Cu / tinned

backplate: 1.5 Nm

terminals: 1.3 Nm

2 (standard contact G - bended)

AlN

80W

FNR 2-T227

1.0 K/W

ORDERING INFORMATION

Part Number - Resistance - Contact - Tolerance

FPR 2-T227 0R010 G 1%

Document No.: 64207

Revision: 15-06-2016

For technical questions,

contact

powertron@vpgsensors.com

www.powertron.de

FPR FNR 2 - T227

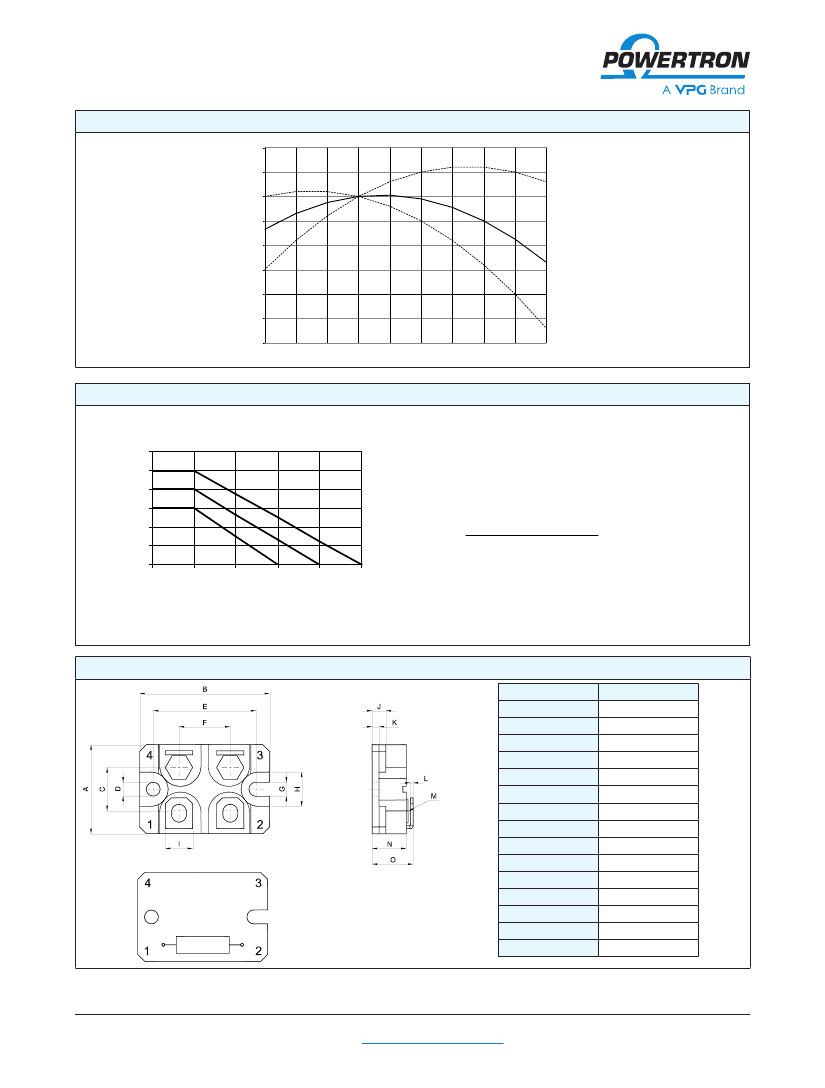

FIGURE 1—TEMPERATURE COEFFICIENT

4000

2000

Limit 2

-2000

∆R/R

(ppm)

-4000

Nominal

∆R/R

-6000

-8000

-10000

Limit 1

-12000

-40

-20

100

120

140

Temperature (°C)

FIGURE 2—DERATING

Power Rating Notes -

120

Power ( % from

nominal power)

0.5%

0.2%

0.1%

100

The FPR/FNR Series Foil Resistors must be attached to a suit-

able heatsink. The maximum internal resistor temperature is

130°C for a 0.5% stability part.

To specify an appropriate heatsink use the following formula :

θH

= T

MAX

- ( P x R

θR

) - T

100

115

130

Where:

Tem perature of the backplate (°C)

= Thermal Resistance of Heatsink ( K/W )

= Thermal Resistance of Resistor ( K/W )

MAX

= Maximum Temperature of Resistor

= Ambient Temperature of Heatsink ( °C )

P = Power Through Resistor ( W )

FIGURE 3—DIMENSIONS

in mm (inches)

Dimension

±0.5 (±0.02)

±0.2 (±0.008)

±0.1 (±0.004)

±0.2 (±0.008)

26 (1.02)

38 (1.50)

12.7 0.50)

4 (0.16)

30 (1.18)

15 (0.59)

4.1 (0.16)

10 (0.39)

8 (0.31)

4 (0.16)

2 (0.08)

0.8 (0.03)

10 (0.39)

11.9 (0.47)

www.powertron.de

For technical questions,

contact

powertron@vpgsensors.com

Document No.: 64207

Revision: 15-06-2016

Legal Disclaimer Notice

Vishay Precision Group, Inc.

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf

(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in

any other disclosure relating to any product.

The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but

not limited to, the warranty expressed therein.

VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.

To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the

application or use of any product, (ii) any and all liability, including without limitation special, consequential or

incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,

non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications and

performance may vary over time. Statements regarding the suitability of products for certain types of applications

are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s

responsibility to validate that a particular product with the properties described in the product specification is suitable for

use in a particular application. You should ensure you have the current version of the relevant information by contacting

VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any

conduct of VPG.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do

so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.

Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such

applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 15-Jul-2014

www.vpgsensors.com
