FCD120630TP: Descriptionfuse board mnt 630ma 50vdc 1206; CategoryCircuit protection Circuit protection; File Size52KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

FCD120630TP Overview

fuse board mnt 630ma 50vdc 1206

FCD120630TP Parametric

Parameter Name	Attribute value
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	FAST
body width	1.6 mm
body height	0.6 mm
Body length or diameter	3.2 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Manufacturer's serial number	FCD12
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	3.2mm x 1.6mm x 0.6mm
Rated breaking capacity	50 A
Rated current	0.63 A
Rated voltage (AC)	32 V
Rated voltage (DC)	64 V
Guideline	IEC; UL
surface mount	YES
Terminal surface	TIN
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

URFACE

S

URFACE

M

OUNT

F

USES

No. FCD12 / 1206

32V/50V,

UL 248-14, 32V/50V, F

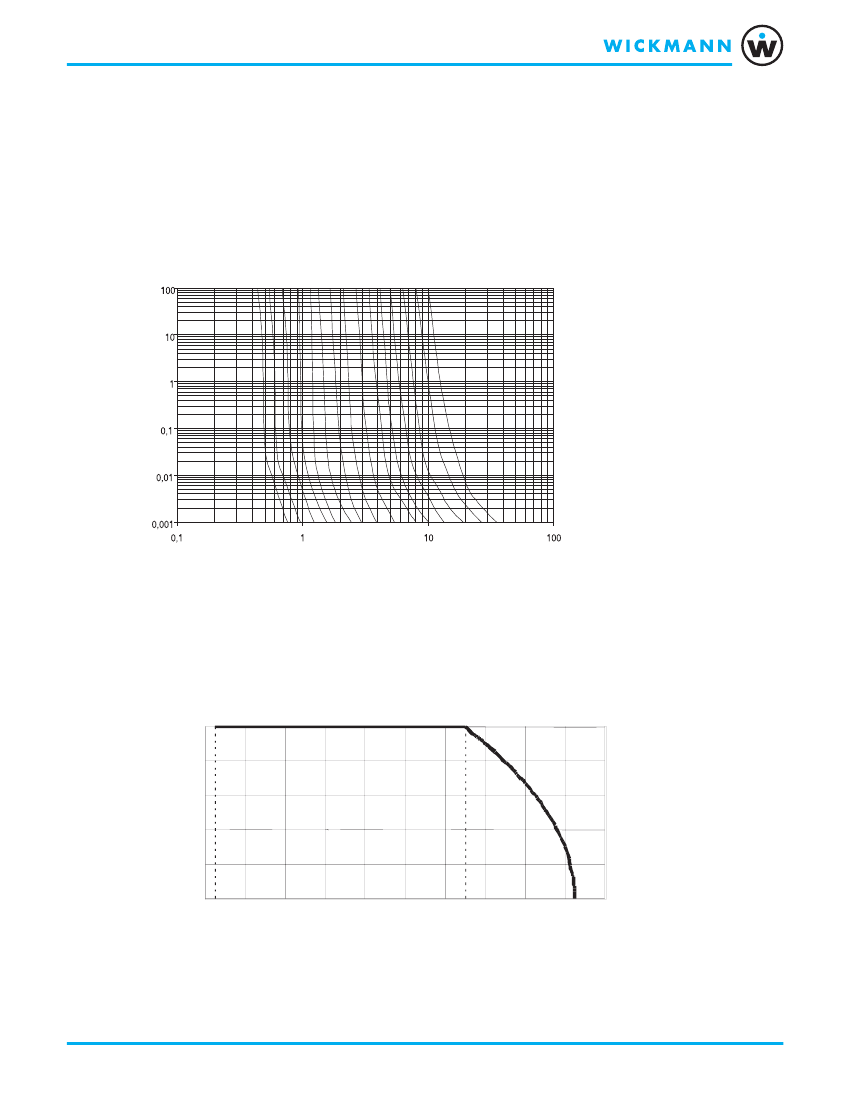

Time-Current Characteristic

Quick Acting (F)

Specifications

Packaging

TP:

Paper Tape (5000 pcs.)

Reel diameter 18 cm

Tape width

8 mm

Ceramic/Glass

Sn plated

Applicable Standards

IEC 60127-4

UL 248-14

Material

Housing:

Terminals:

-55 to +125°C

Dimensions

L

Approval

cULus Recognized

Operating Temperature

Temperature

Solderability

235°C, 2 sec.

At least 95% of the terminal surface must be

covered by new solder

Features

W

c

H

Excellent for overcurrent protection of

miniature portable equipment

very low internal resistance

Flame resistant ceramic substrate

Internationally approved

102

c

Soldering Heat Resistance

260°C, 10 sec. / 280°C, 5 sec.

No visible damage. Meet electrical requirement

d

2,2

d

W ebLinks

Further info see:

www.wickmanngroup.com

Further application info see Fuseology:

Reflow

www.wickmanngroup.com/download/

fuseology.pdf

1,6

Pad Layout (mm)

Marking

Code for rated current

Unit Weight

10 mg / 11 mg

0,85

2,2

0,85

1,6

1,05

Wave

Limits for Pre-arcing Time

Rated Current

200mA ... 5.0A

2.5 x I

N

< 5s

Dimensions (mm)

size

FCD12 200mA - 2.5A

1206

FCD12 3.15A - 5A

L

3.2±0.2

W

1.6±0.15

H

0.6±0.10

0.65±0.10

c

0.5±0.25

d

0.5±0.25

80%

Permissible continuous operating current is

≤

80% of rated current at ambient temperature of 23ºC (73.4ºF).

cURus

Rated

Current

200mA

250mA

315mA

400mA

500mA

630mA

800mA

1.00A

1.25A

1.60A

2.00A

2.50A

3.15A

4.00A

5.00A

Amp

Code

0200

0250

0315

0400

0500

0630

0800

1100

1125

1160

1200

1250

1315

1400

1500

Voltage

Rating

50V

32V

Breaking

Capacity

Voltage Drop

1.0 x I

N

typ. (mV)

380

270

240

150

113

125

113

102

106

108

98

103

78

76

73

Cold Resistance

0.1 x I

N

max. (mΩ)

1800

1000

750

350

295

200

140

110

85

75

65

45

26

19

14

Melting Integral

10 x I

N

typ. (A

2

s)

1.40x10

-4

2.30x10

-4

4.00x10

-4

5.40x10

-4

9.30x10

-4

1.80x10

-3

3.30x10

-3

5.60x10

-3

1.00x10

-2

2.70x10

-2

4.70x10

-2

7.80x10

-2

2.80x10

-1

5.00x10

-1

9.70x10

-1

Marking

Approvals

50A / 50VDC

50A / 32VDC

201

251

321

401

501

631

801

102

132

162

202

252

UD

XD

YD

p

•

p=pending

Order

Information

Qty.

Order-

Number

Type

FCD12

Amp Code

Packaging

Specifications are subject

to change without notice

Asia

Tel: +852 26 14-1108

E-mail: sales@wickmann.com.hk

China

Tel: +86 21 6432 5146

E-mail: sales@wickmann.cn

040329

WebSite

Europe

Tel: +49 2302 662-107

www.wickmanngroup.com E-mail: sales@wickmann.com

Americas

Tel: +1 404 699-7820

E-mail: service@wickmannusa.com
