BK/S505-1.6A: Descriptionfuse ceramic 1.6A 250vac 5x20mm; CategoryCircuit protection; File Size126KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/S505-1.6A Overview

fuse ceramic 1.6A 250vac 5x20mm

BK/S505-1.6A Parametric

Parameter Name	Attribute value
Datasheets
S505 Series
Product Photos
S505 cylindrical
PCN Obsolescence/ EOL
S50x Series Non-Rohs 01/Aug/2011
PCN Design/Specificati
S505 Series Select Ratings 5/Feb/2009
Standard Package	100
Category	Circuit Protecti
Family	Fuses
Packaging	Bulk
Fuse Type	Cartridge, Ceramic
Current Rating	1.6A
Voltage Rating - AC	250V
Voltage Rating - DC	-
Response Time	Slow
Package / Case	5mm x 20mm
Mounting Type	Holde
Breaking Capacity @ Rated Voltage	1.5kA
Melting I²	3.5
Approvals	BSI, CCC, CSA, IMQ, SEMKO, UL, VDE
Operating Temperature	-
Col	-
Size / Dimensi	0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance	0.06 Ohm
Other Names	BK-S505-1-6AS505-1.6A

Preview

Download Datasheet

View All

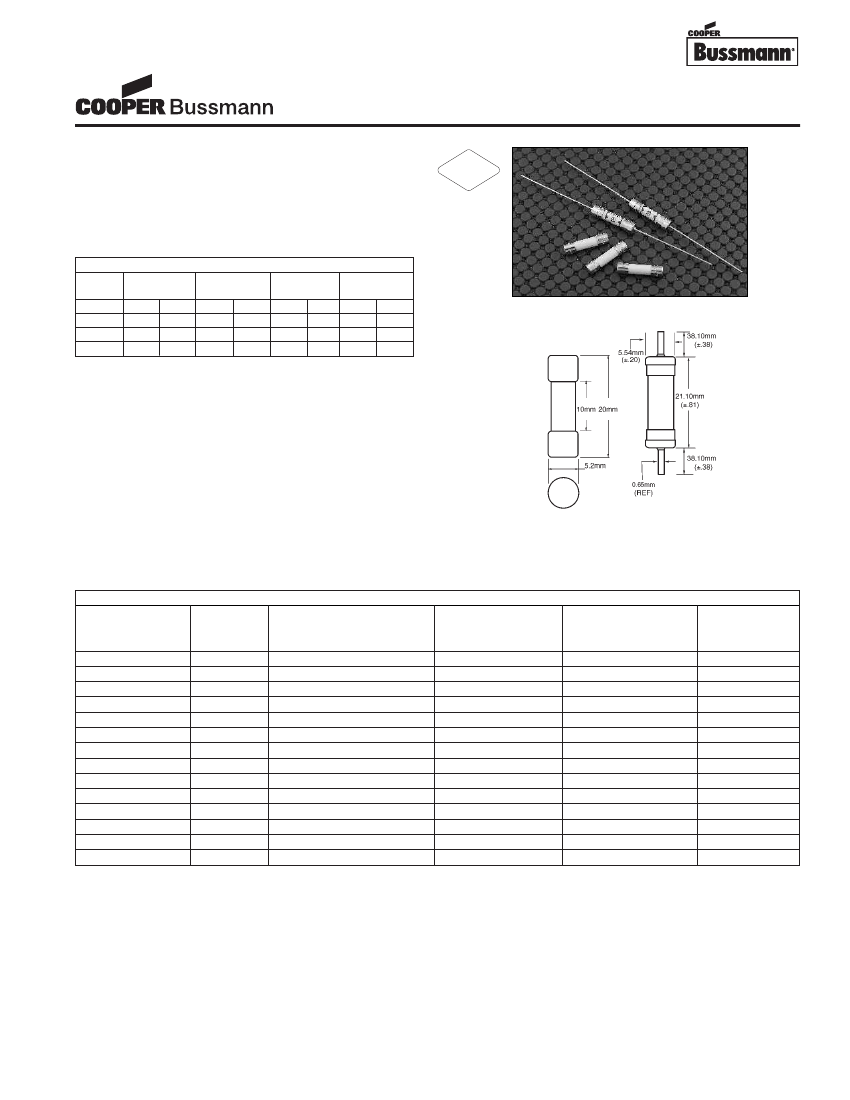

5mm x 20mm Fuses

S505 Series, Time Delay, Ceramic Tube

Description

• Time delay, high breaking capacity

• Optional axial leads available

• 5mm x 20mm physical size

• Ceramic tube, nickel plated brass endcap construction

• Designed to IEC 60127-2 (1A-12A)

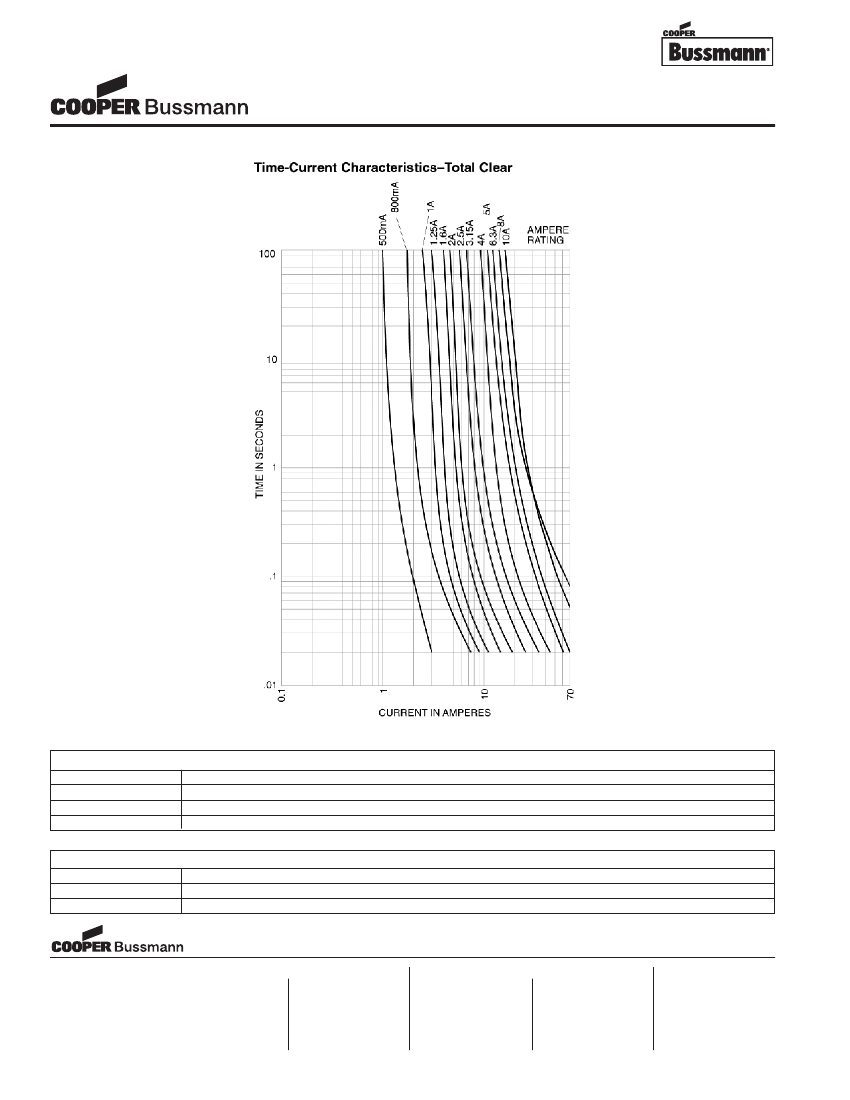

ELECTRICAL CHARACTERISTICS

1.5 In 2.1 In

2.75 In

4 In

10 In

min max

min

max min max min max

<1A

60 min 30 min 250 ms 80 sec 50 ms 5 sec 5 ms 55 ms

1A-3.15A 60 min 30 min 1 sec 80 sec 95 ms 5 sec 10 ms 100 ms

4A-10A 60 min 30 min 1 sec 80 sec 150 ms 5 sec 20 ms 100 ms

12.5A

30 min 1 sec 80 sec 150 ms 5 sec 20 ms 100 ms

RoHS

2002/95/EC

Dimensions

Drawing Not to Scale

Agency Information

• UL Recognized Card: (500mA-12A) Guide JDYX2,

File E19180

• CSA Component Acceptance: File 53787, 500mA-10A

• SEMKO Approval, 500mA-10A

• VDE Approval, 500mA-10A

• BSI Approval, 500mA-10A

• IMQ Approval, 500mA-10A

• CCC Approval, 500mA-6.3A

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. S505-3-R)

Voltage

Rating

250V

Interrupting Rating

at Rated Voltage (50Hz)

1500A

1000A

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

SPECIFICATIONS

Product Code

S505-500mA

S505-800mA

S505-1A

S505-1.25A

S505-1.6A

S505-2A

S505-2.5A

S505-3.15A

S505-4A

S505-5A

S505-6.3A

S505-8A

S505-10A

S505-12A

†

‡

Typical DC

Cold Resistance

(ohms)*

0.507

0.237

0.138

0.089

0.060

0.041

0.030

0.021

0.015

0.011

0.008

0.007

0.006

0.005

Typical

Melting I

t (A

Sec)

AC†

0.74

1.6

3.5

7.6

197

311

397

714

Typical

Voltage

Drop (mV)‡

295

189

170

150

130

110

100

DC Cold Resistance (Measured at <10% of rated current)

Typical Melting I

t (I

t was measured at listed interrupting rating and rated voltage)

Typical Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)

Typical Melting I2t was measured at 10 times the rated current under DC

BK/S505-1.6A Related Products

	BK/S505-1.6A	BK/S505-800MA	BK/S505-500MA	BK/S505-8A	BK/S505-10A	BK/S505-6.3A
Description	fuse ceramic 1.6A 250vac 5x20mm	fuse ceramic 800ma 250vac 5x20mm	fuse ceramic 500ma 250vac 5x20mm	fuse ceramic 8A 250vac 5x20mm	fuse ceramic 10a 250vac 5x20mm	FUSE CERAMIC 6.3A 250VAC 5X20MM
Standard Package	100	100	100	100	100	-
Category	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	-
Family	Fuses	Fuses	Fuses	Fuses	Fuses	-
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	-
Fuse Type	Cartridge, Ceramic	Cartridge, Ceramic	Cartridge, Ceramic	Cartridge, Ceramic	Cartridge, Ceramic	-
Current Rating	1.6A	800mA	500mA	8A	10A	-
Voltage Rating - AC	250V	250V	250V	250V	250V	-
Response Time	Slow	Slow	Slow	Slow	Slow	-
Package / Case	5mm x 20mm	5mm x 20mm	5mm x 20mm	5mm x 20mm	5mm x 20mm	-
Mounting Type	Holde	Holde	Holde	Holde	Holde	-
Breaking Capacity @ Rated Voltage	1.5kA	1.5kA	1.5kA	1.5kA	1.5kA	-
Approvals	BSI, CCC, CSA, IMQ, SEMKO, UL, VDE	BSI, CCC, CSA, IMQ, SEMKO, UL, VDE	BSI, CCC, CSA, IMQ, SEMKO, UL, VDE	BSI, CSA, IMQ, SEMKO, UL, VDE	BSI, CSA, IMQ, SEMKO, UL, VDE	-
Size / Dimensi	0.205" Dia x 0.787" L (5.20mm x 20.00mm)	0.205" Dia x 0.787" L (5.20mm x 20.00mm)	0.205" Dia x 0.787" L (5.20mm x 20.00mm)	0.205" Dia x 0.787" L (5.20mm x 20.00mm)	0.205" Dia x 0.787" L (5.20mm x 20.00mm)	-
DC Cold Resistance	0.06 Ohm	0.237 Ohm	0.507 Ohm	0.007 Ohm	0.006 Ohm	-
Other Names	BK-S505-1-6AS505-1.6A	BK-S505-800MAS505-800MA	BK-S505-500MAS505-500MA	BK-S505-8AS505-8A	BK-S505-10AS505-10A	-
