Leaded Varistors
StandarD series
Series/Type:
Ordering code:
Date:
Version:
SIOV-S05K60GS3
B72205S0600K311
2013-9-18
a
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
(header 1 + top left bar):
Identification/Classification 2
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (bottom right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
Version:
Prepared by:
Release signed by PE&PD&QS:
Modifications/Remarks:
PPD PD
2013-9-18
a
Wyatt Wang
Kimcy Zhu, Terry Tian, Mac Gao
New issue
Leaded Varistors
StandarD series
B72205S0600K311
SIOV-S05K60GS3
EPCOS AG 2013. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Leaded Varistors
StandarD series
B72205S0600K311
SIOV-S05K60GS3
Applications
Overvoltage protection
Features
•
UL approval to UL1449 (file number E321126), for use in type other SPD’s
SIOV nomenclature
S
05
K
60
G
S3
=
=
=
=
=
=
Disk type
Rated disk diameter
Tolerance of V
V
at 1mA :
±10%
Max. AC operating voltage

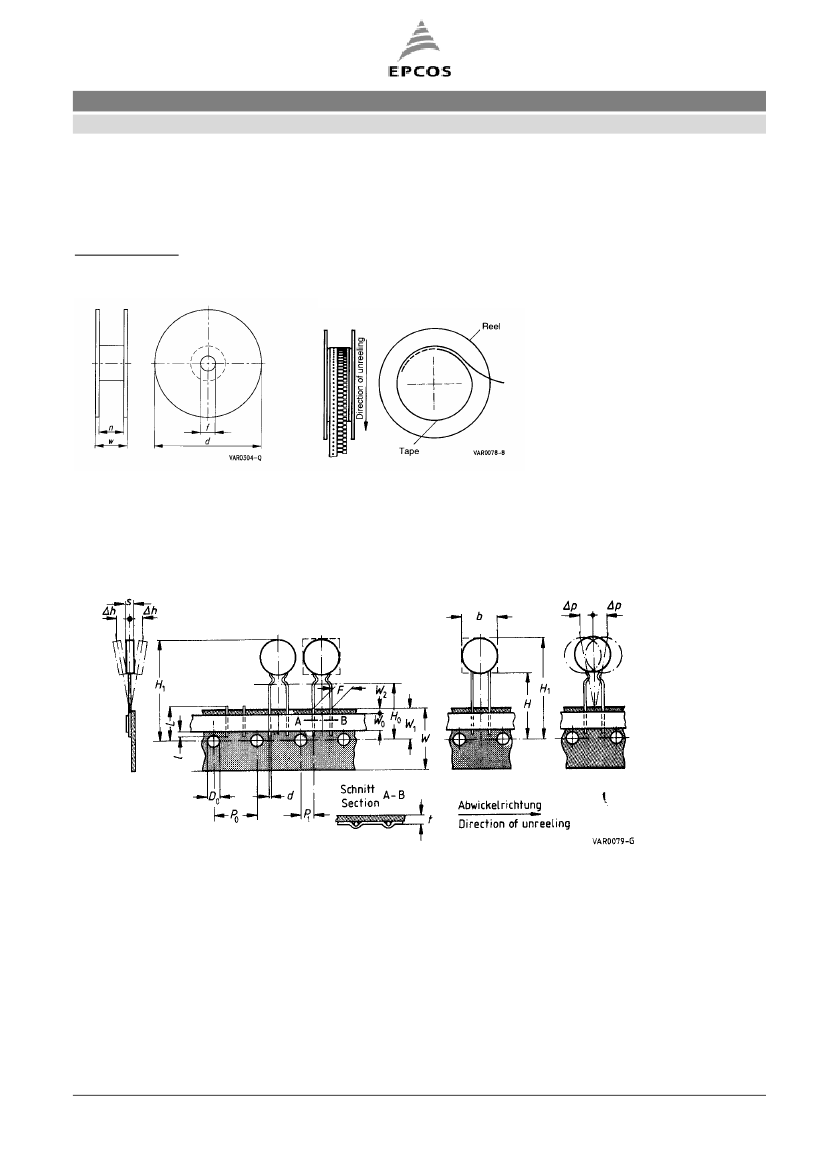

Taping style G
Crimp style S3
General technical data
Climatic category
Operating temperature
Storage temperature
Electric strength
Insulation resistance
Response time
to IEC 60068-1
to IEC 61051
to IEC 61051
to IEC 61051
40/85/56
-40…+85 °C
-40…+125 °C
≥2.5 kV
RMS
≥100 MΩ
<25 ns
PPD PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 13
2013-9-18
Leaded Varistors
StandarD series
B72205S0600K311
SIOV-S05K60GS3
Dimensional drawings in mm
1)
b
max
h
max
s
max
e
l
min
∅d
=
=
=
=
=
=
7.0
10.0
3.3
2)
5.0 +0.6/-0.1
n.a
0.6 ±0.05
1) seating plane in accordance with IEC
60717
2) measured above carrier tape
Electrical data
Maximum Ratings (85 °C):
Max. operating AC voltage
Max. operating DC voltage
Surge current (8/20
µs)
Energy absorption (2 ms)
Average power dissipation
Characteristics (25 °C):
Varistor voltage at 1 mA
Clamping voltage at 5 A (8/20
µs)
Typ. capacitance at 1 kHz
V
RMS
V
DC
I
max
W
max
P
max
=
=
=
=
=
60 V
85 V
400 A
2.2 J
0.10 W
1 time
1 time
V
V
V
C,max
C
=
=
=
100 V ±10%
165 V
250 pF
PPD PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 13
2013-9-18
