BK/ABC-V-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK/ABC-V-20

BK/ABC-V-20: Descriptionfuse cerm 20a 250vac 125vdc 3ab; CategoryCircuit protection; File Size78KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK/ABC-V-20 Overview

fuse cerm 20a 250vac 125vdc 3ab

BK/ABC-V-20 Parametric

Parameter Name	Attribute value
Datasheets
ABC Series
Product Photos
ABC Series Axial
Standard Package	100
Category	Circuit Protecti
Family	Fuses
Packaging	Bulk
Fuse Type	Cartridge, Ceramic
Current Rating	20A
Voltage Rating - AC	250V
Voltage Rating - DC	125V
Response Time	Fas
Package / Case	3AB, 3AG, 1/4" x 1-1/4" (Axial)
Mounting Type	Through Hole
Breaking Capacity @ Rated Voltage	400A AC, 10kA DC
Melting I²	550.8
Approvals	CSA, UL
Operating Temperature	-
Col	-
Size / Dimensi	0.266" Dia x 1.292" L (6.76mm x 32.82mm)
DC Cold Resistance	0.00366 Ohm
Other Names	ABC-V-20BK-ABC-V-20

Preview

Download Datasheet

View All

1/4" x 1-1/4" Fuses

ABC Series, Fast Acting, Ceramic Tube

Description

• Fast-acting, ceramic tube

• Optional leaded version available

• 1/4 x 1-1/4 (6.3mm x 32mm) physical size

• Ceramic tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

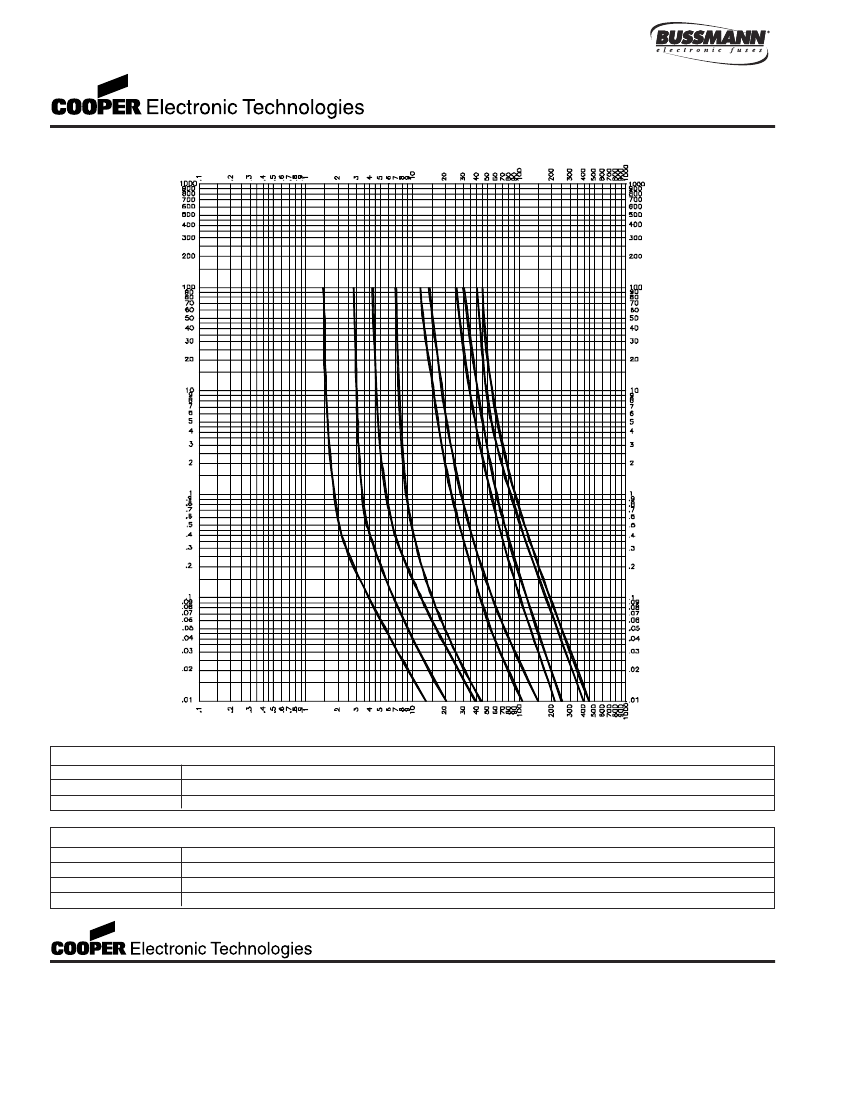

ELECTRICAL CHARACTERISTICS

% of Amp Rating

Opening Time

110%

4 Hours Minimum

135%

60 Minutes maximum

200%

120 Seconds Maximum

Approvals

• UL Listed Guide & File numbers (ABC 1/4 - 15A):

JDYX & E19180.

• UL Recognition Guide & File numbers (ABC 20 - 30A):

JDYX2 & E19180.

• CSA Certification Record No: 053787 C 000 &

Class No: 1422 01 & 1422 30.

Environmental Data

• Shock: 1/4A and 1/2A – MIL-STD-202,

Method 213, Test Condition I;

1A thru 30A – MIL-STD-202, Method 207,

(HI Shock)

• Vibration: 1/4A thru 30A – MIL-STD-202,

Method 204, Test Condition C (Except 5g, 500HZ)

Ordering

• Specify product code, option code and packaging code

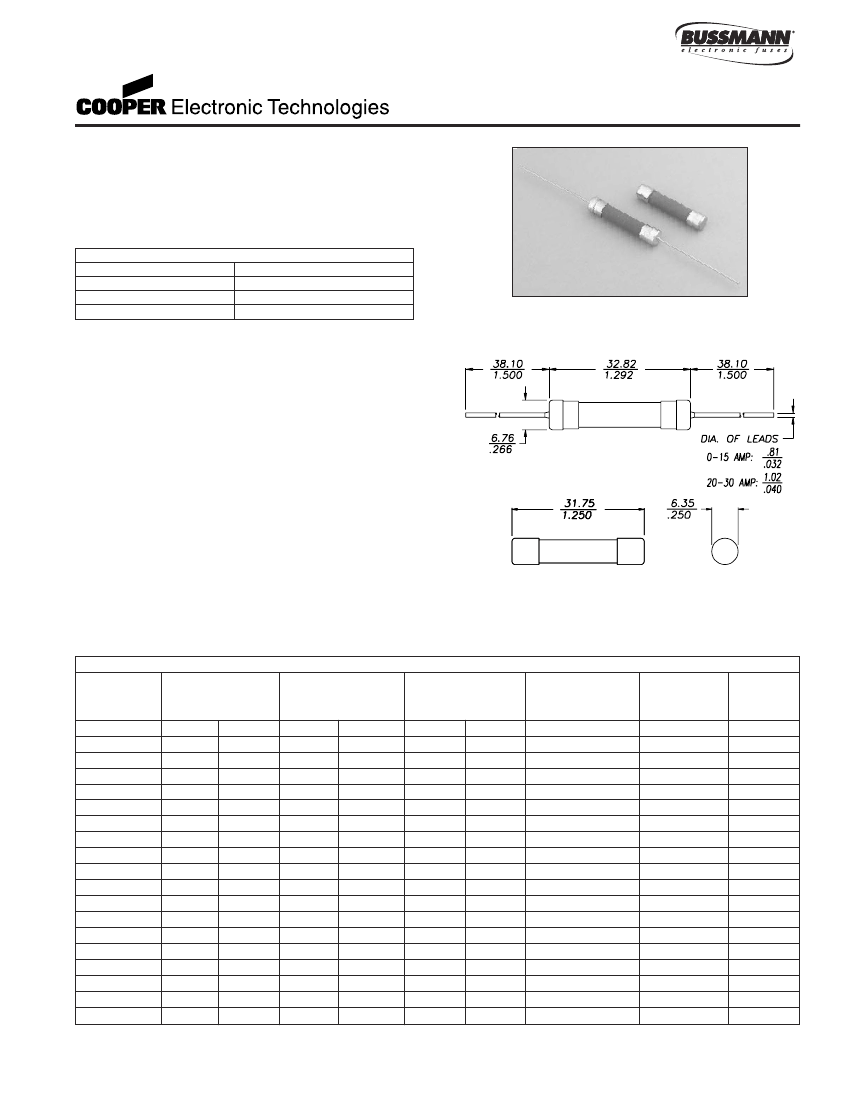

Dimensions

(

⁄

)

Drawing Not to Scale

SPECIFICATIONS

Product

Code

ABC-1/4

ABC-1/2

ABC-3/4

ABC-1

ABC-1-1/2

ABC-2

ABC-2-1/2

ABC-3

ABC-4

ABC-5

ABC-6

ABC-7

ABC-8

ABC-10

ABC-12

ABC-15

ABC-20

ABC-25

ABC-30

Voltage

Rating

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

AC Interrupting

Rating

250V

125V

35A

10000A

35A

10000A

35A

10000A

35A

10000A

100A

10000A

100A

10000A

100A

10000A

100A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

750A

10000A

750A

10000A

400A

1000A

DC Interrupting

Rating

125V

75V

10000A

400A

1000A

400A

1000A

Typical DC Cold

Resistance**

(ohms)

3.000

0.788

0.303

0.197

0.1175

0.0755

0.05875

0.0435

0.02975

0.0286

0.02315

0.0183

0.0146

0.01205

0.0068

0.005425

0.00366

0.00263

0.002225

Typical

Melting I

t†

0.02

0.19

0.8

1.4

2.9

4.2

8.53

19.5

29.1

16.4

31.6

73.2

111.9

215.6

129.6

200.2

550.8

839.3

1,429

Typical

Voltage

Drop‡

3.25

0.51

0.42

0.35

0.25

0.26

0.25

0.23

0.24

0.20

0.17

0.15

0.11

0.12

0.13

0.12

0.14

** DC Cold Resistance (Measured at

≤10%

of rated current)

† Typical Melting I

t (A

Sec) (I

t was measured at listed interrupting rating and rated voltage. Measured at 70% to 80% power factor on AC)

‡ Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)
