MJS 3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> MJS 3

MJS 3: Descriptionfuse glass 3A 250vac 2ag; CategoryCircuit protection; File Size85KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

MJS 3 Overview

fuse glass 3A 250vac 2ag

MJS 3 Parametric

Parameter Name	Attribute value
Datasheets
MJS Series
RoHS Informati
RoHS Compliance
Standard Package	500
Category	Circuit Protecti
Family	Fuses
Packaging	Bulk
Fuse Type	Cartridge, Glass
Current Rating	3A
Voltage Rating - AC	250V
Voltage Rating - DC	-
Response Time	Slow
Package / Case	2AG, 5mm x 15mm (Axial)
Mounting Type	Through Hole
Breaking Capacity @ Rated Voltage	200A
Melting I²	55
Approvals	CE, CSA, PSE, UL
Operating Temperature	-55°C ~ 125°C
Col	-
Size / Dimensi	0.217" Dia x 0.591" L (5.50mm x 15.00mm)
DC Cold Resistance	0.045 Ohm
Other Names	0653-3000-110653-3000-11-ND0653300011MJS3

Preview

Download Datasheet

View All

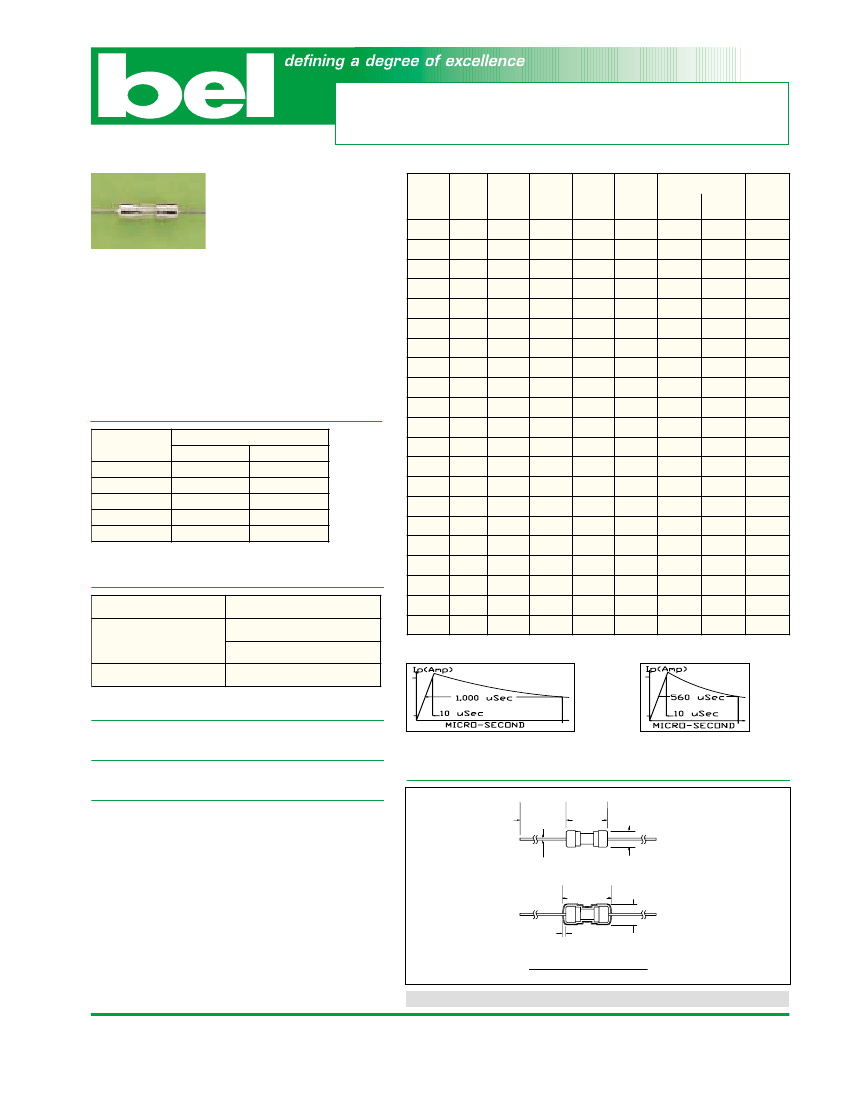

Type MJS

MJSD0903

5 x 15mm Glass Tube

Lightning Surge Withstand Fuse

Catalog

Number

Ampere

Rating

Typical

Volt-drop Melting I

T Melting I

T Peak Surge Current (Amp) Maximum

Power

Cold

@10

@100%

< 10 mSec

(fig B)

(Fig A)

Dissipation

Resistance

l es

5 P ses

Sec)

S x

000uS

1050 Pu5s60uS

(W)

(ohm)

(Volt) max. (A

Sec)

uS x

MJS

Fuses are primarily intended for

use in telecommunication circuit applica-

tions requiring low current protection with

high surge tolerance. They are typically

used to replace heat coil type devices.

They are designed to be placed between

the line input and the surge arresting components (mov, gas tube, zenor

diode, air gaps, etc.)

These fuses will withstand transient surge currents generated by

lightning in accordance with the attached table.

MJS

fuses guard protected circuitry against sustained overload or

short circuit conditions. Such sustained overloads may be generated by

accidental contact between utility cables and phone lines (power line

cross).

MJS

Fuses are used in circuits to obtain compliance with the test

requirements specified in UL 1950/60950 and Bellcore 1089.

MJS 100

MJS 125

MJS 150

MJS 200

MJS 250

MJS 350

MJS 400

MJS 500

MJS 700

MJS 750

MJS 1

MJS 1.25

MJS 1.5

MJS 2

MJS 2.5

MJS 3

MJS 3.5

MJS 4

MJS 5

MJS 6

MJS 7

100mA

125mA

150mA

200mA

250mA

350mA

400mA

500mA

700mA

750mA

1.25A

1.5A

2.5A

3.5A

11.00

7.62

5.28

3.66

2.54

1.46

1.22

0.84

0.525

0.487

0.281

0.195

0.135

0.094

0.065

0.045

0.037

0.031

0.022

0.015

0.012

1.55

1.35

1.17

1.02

0.89

0.72

0.67

0.59

0.49

0.48

0.39

0.34

0.29

0.26

0.22

0.19

0.18

0.17

0.15

0.13

0.12

0.068

0.11

0.17

0.26

0.41

0.80

0.99

135

211

263

0.088

0.14

0.22

0.34

0.53

1.03

1.29

114

179

279

350

4.5

5.6

6.8

120

150

195

225

255

330

428

488

6.0

7.5

9.0

100

125

160

200

260

300

340

440

570

650

0.22

0.24

0.27

0.30

0.34

0.40

0.42

0.47

0.54

0.55

0.64

0.71

0.80

0.89

0.99

1.10

1.16

1.22

1.40

1.50

1.60

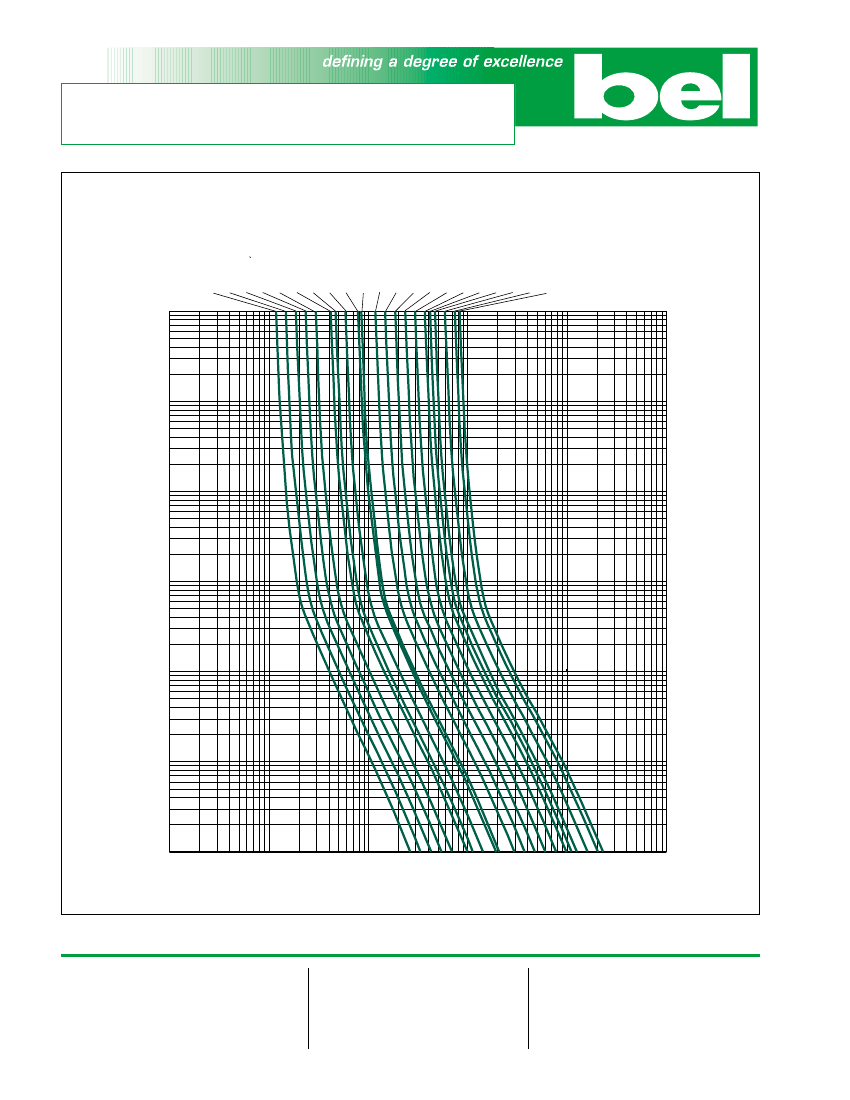

Electrical Characteristics

(UL/CSA STD.248-14)

Testing Current

100%

135%

200%

500%

1000%

Blow Time

Minimum

Maximum

4 Hrs.

N/A

1 Hr

3 sec

20 sec

100 msec

1.5 sec

30 msec

300 msec

Approvals

Safety Agency Approvals

Vßpc

Amp range / Volt @ I.R. ability

100mA

- 7A / 125V AC@ 10,000A

100mA

- 7A / 250V AC@ 200A

- 5A / 125V AC@ 500A

Listed File no. E20624

Certified File no. LR39772

File no. JET1037-31003-1003

Consult manufacturer for other ratings

FIG A

FIG B

Power Cross Rating

600V ac, 40A

Operating Temperature

-55ºC to +125ºC

See P.4 for explanation of Peak Surge Current Withstand

Mechanical Dimensions

0.59"±0.02"

1.50"±0.08

(38.1±2.0mm

)

(15.0±0.5mm)

0.217"±0.004"

(5.5±0.1mm)

Physical Specification

Specifications subject to change without notice

Materials

Glass body / Nickel Plated Brass Caps

Lead wire: Tin-lead plated Copper, Diameter 0.032"

Option

With Heat Shrink Tubing (VW-1) over body

Marking

On fuse: “bel”, “MJS”, “Current Rating”, “250V” &

“Appropriate Safety Logos”

On label: Above info plus “c” and interrupting rating

Packaging

1. In bulk: 500 pcs per box

2. On Axial Tape & Reel: 1,500 pcs per reel

3. Tape & Reel specification: per EIA-296-E & IEC 286-1

@ 10mm Pitch and 52.4mm inside Tape Spacing

MJS

SEE LEAD SIZE IN “MATERIAL”

0.710"±0.080"

(18.0±2.0mm)

0.590"±0.020"

(1.5±1.0mm)

0.244"±0.008"

(6.2±0.2mm)

WITH INSULATION SLEEVE

ORDERING INFORMATION SEE PAGES 67 & 68

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel: 201-432-0463 • Fax: 201-432-9542 • E-Mail: belfuse@belfuse.com

Website: www.belfuse.com
