Physical
Insulation:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Contact:
Material: N/A Pinless
Electrical
Current Rating: N/A
Insulation Resistance:
≥1,000
MΩ,100V
DC
Withstanding Voltage: 1,000 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to +125°C
Process Temperature Rating:
Maximum Insulator Temperature 191°C (solder wave process only)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

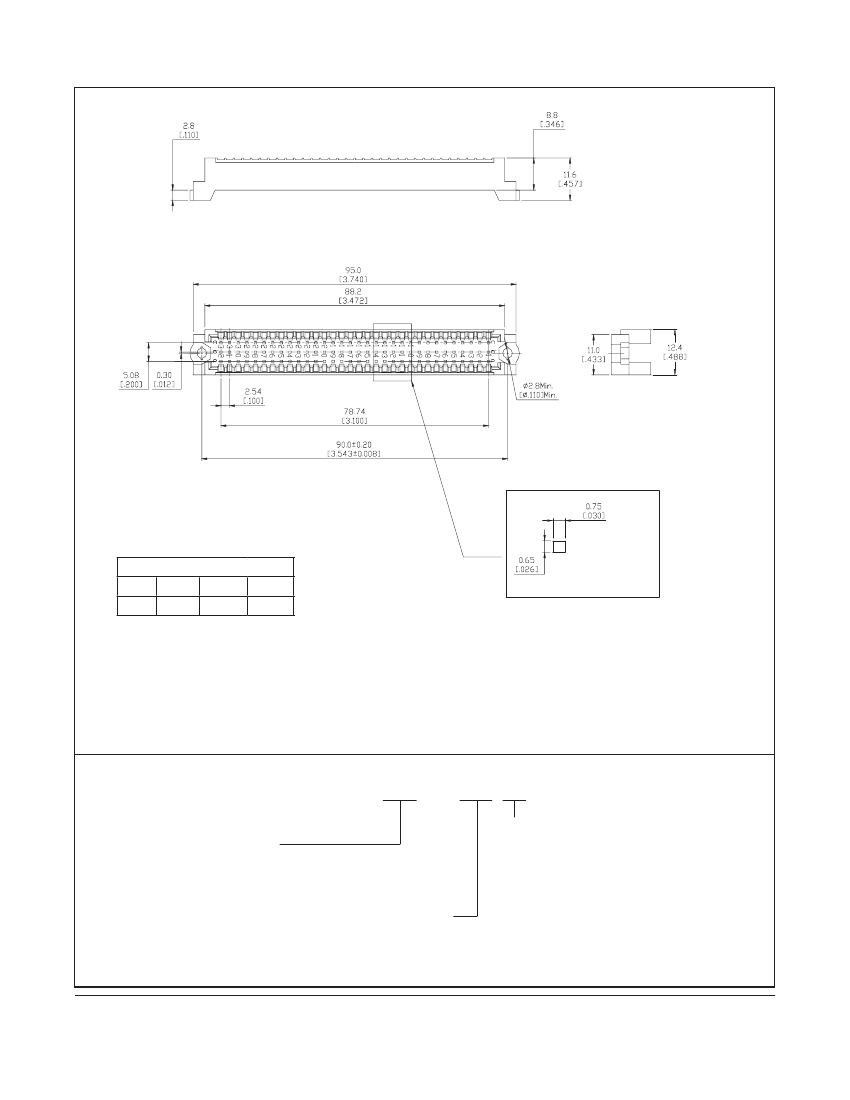

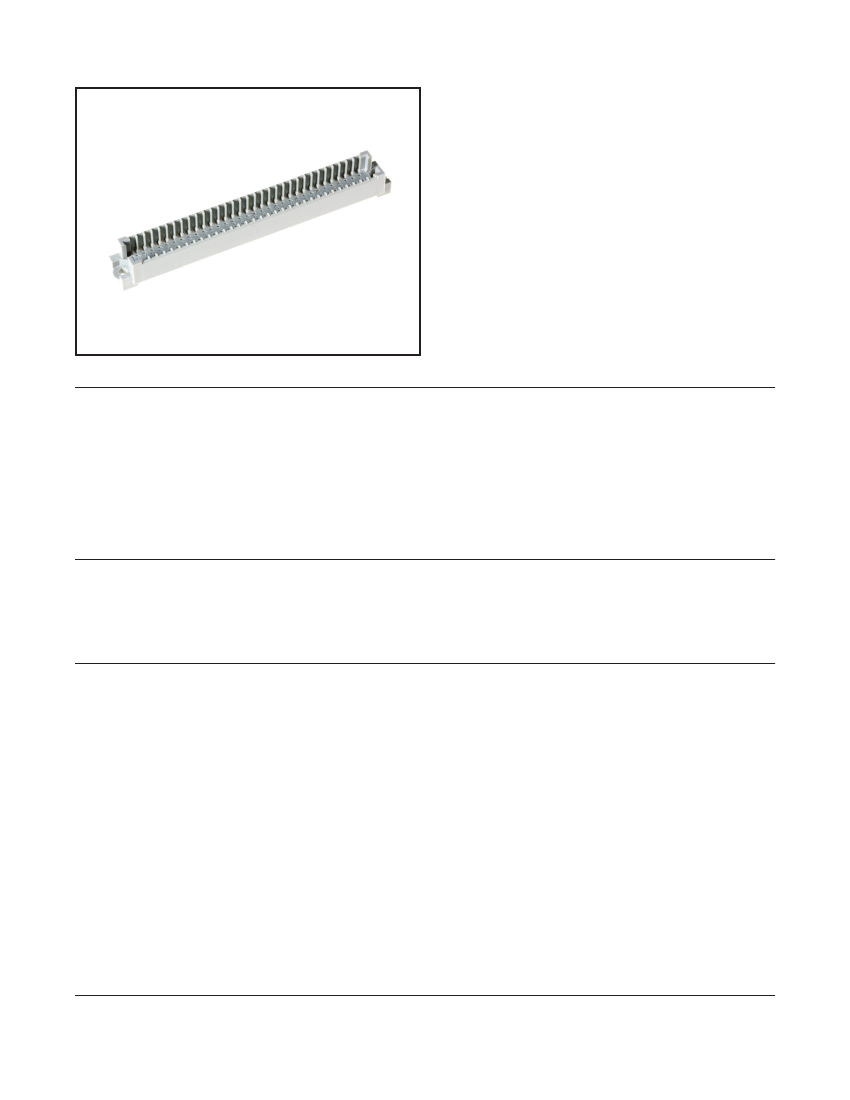

DIN C-Form and R-Form Shroud
.100” Backplane, Rear Plug
DIN 41612 Series
mm
[inch]
Tolerance Unless Noted
X.
mm
± 0.50
.X
± 0.25
.XX
± 0.15
HAND SLIP-ON OPTION
[ ] Dimension for Reference Only
Ordering Information
DIN - XXX SH - XXX - X
Contact Quantity
096 = 3*32
Pin Fit Option:
Q = Hand Press-Fit
Body Height:
457 = 11.6 [.457”]
This diagram serves only for Part Number descriptive definitions.
PLEASE CONTACT YOUR LOCAL SALES REPRESENTATIVE FOR CUSTOMER SPECIFIC PRODUCT CONFIGURATIONS.
TS-2318-B
Sheet 2 of 2
