1410140-1: Descriptionconn vert recept BP vita41/46; CategoryThe connector; File Size3MB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

1410140-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1410140-1	-	-	View	Buy Now

1410140-1 Overview

conn vert recept BP vita41/46

1410140-1 Parametric

Parameter Name	Attribute value
Datasheets
1410140-x Drawing
VITA 46 MULTIGIG RT Brochure
Product Photos
1410140-1
RoHS Informati
1410140-1 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
Vita 41 Series Switchboard
3D Model
1410140-1.pdf
Standard Package	17
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Backplane
Connector Type	Receptacle, Female Blade Sockets
Connector Style	VITA 46, Cente
Number of Positions	144
Number of Positions Loaded	All
Pitch	0.071" (1.80mm)
Number of Rows	9
Number of Columns	16
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 105°C
Voltage Rating	-
Dynamic Catalog	MultiGig RT Series
Mating Products	A99171-ND - CONN R/A PLUG DC VITA41
Other Names	14101401A99137

Preview

Download Datasheet

View All

8

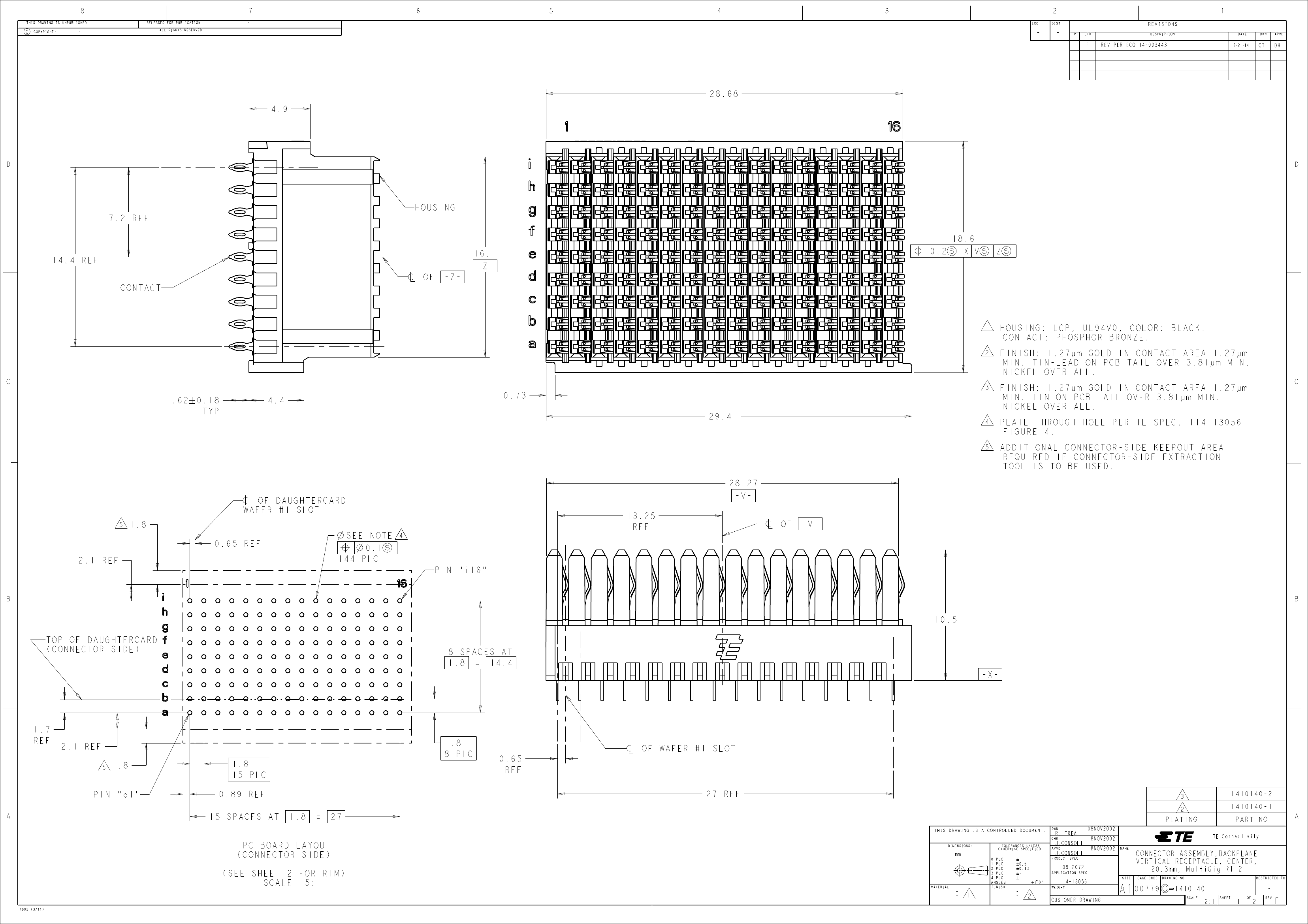

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

7

-

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

-

F

REV PER ECO 14-003443

3-21-14

CT

DH

28.68

4.9

D

7.2 REF

HOUSING

18.6

14.4

REF

CONTACT

-Z-

16.1

-Z-

1

2

HOUSING: LCP, UL94V0, COLOR: BLACK.

CONTACT: PHOSPHOR BRONZE.

FINISH: 1.27µm GOLD IN CONTACT AREA 1.27µm

MIN. TIN-LEAD ON PCB TAIL OVER 3.81µm MIN.

NICKEL OVER ALL.

FINISH: 1.27µm GOLD IN CONTACT AREA 1.27µm

MIN. TIN ON PCB TAIL OVER 3.81µm MIN.

NICKEL OVER ALL.

PLATE THROUGH HOLE PER TE SPEC. 114-13056

FIGURE 4.

ADDITIONAL CONNECTOR-SIDE KEEPOUT AREA

REQUIRED IF CONNECTOR-SIDE EXTRACTION

TOOL IS TO BE USED.

C

1.62

0.18

TYP

4.4

0.73

29.41

3

C

4

5

28.27

-V-

WAFER #1 SLOT

5

1.8

0.65

REF

SEE NOTE

144 PLC

4

13.25

REF

-V-

2.1 REF

PIN "i16"

B

10.5

TOP OF DAUGHTERCARD

(CONNECTOR SIDE)

8 SPACES AT

1.8 = 14.4

-X-

1.7

REF

2.1 REF

5

1.8

15 PLC

0.89

REF

1.8

=

27

1.8

8 PLC

0.65

REF

27 REF

3

PLATING

2

1410140-2

1410140-1

PART NO

TE Connectivity

NAME

PIN "a1"

A

15 SPACES AT

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

R. TREA

J.CONSOLI

108-2072

08NOV2002

18NOV2002

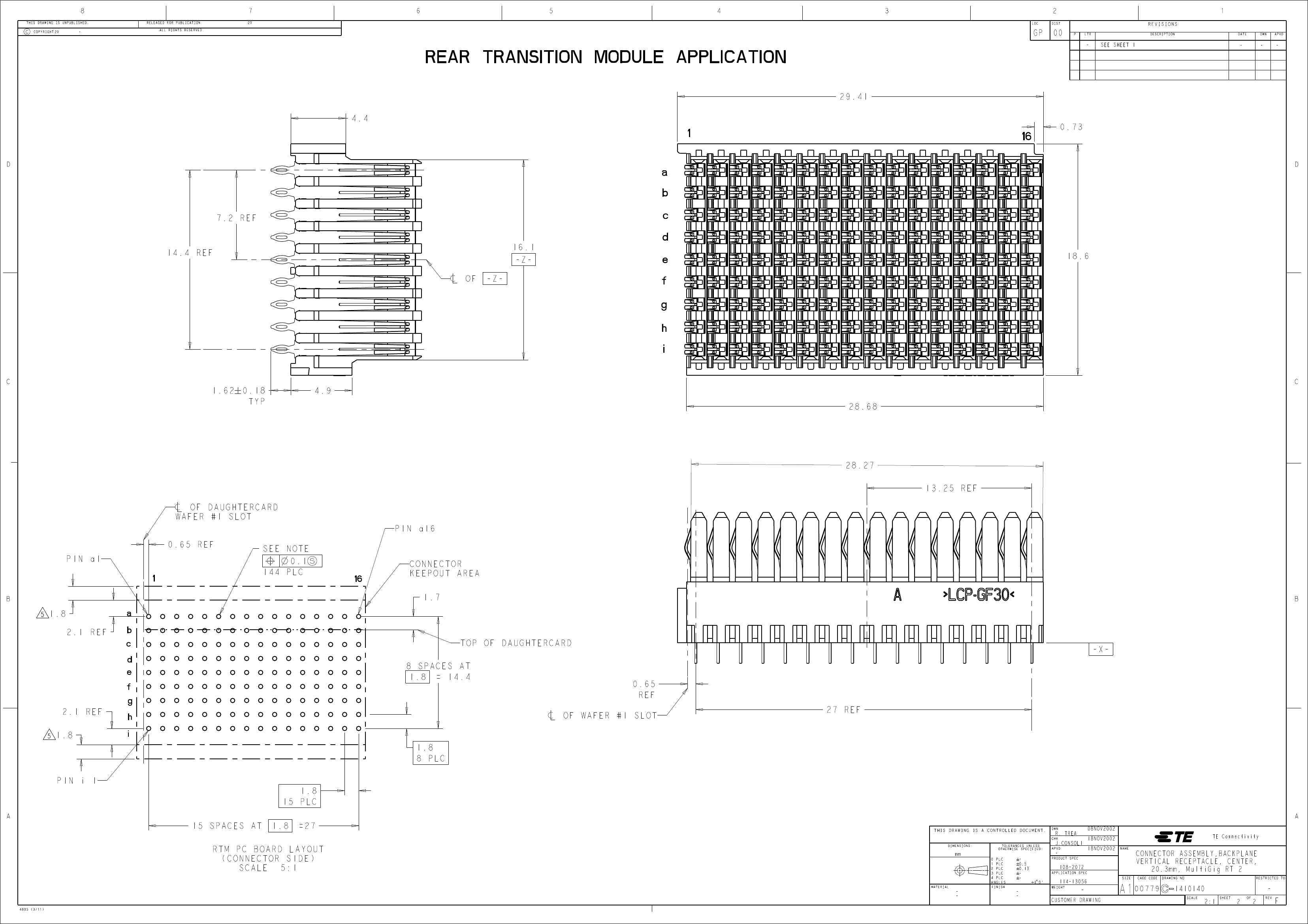

PC BOARD LAYOUT

(CONNECTOR SIDE)

(SEE SHEET 2 FOR RTM)

SCALE

5:1

4805 (3/11)

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.5

0.13

-

PRODUCT SPEC

APPLICATION SPEC

1 $ 0'

-

1

-

WEIGHT

114-13056

2

-

CUSTOMER DRAWING

A1

00779

SIZE

CONNECTOR ASSEMBLY,BACKPLANE

VERTICAL RECEPTACLE, CENTER,

20.3mm, MultiGig RT 2

CAGE CODE

DRAWING NO

RESTRICTED TO

1410140

SCALE

2:1

SHEET

1

OF

2

REV

-

F

1410140-1 Related Products

	1410140-1
Description	conn vert recept BP vita41/46
Standard Package	17
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Backplane
Connector Type	Receptacle, Female Blade Sockets
Connector Style	VITA 46, Cente
Number of Positions	144
Number of Positions Loaded	All
Pitch	0.071" (1.80mm)
Number of Rows	9
Number of Columns	16
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Col	Black
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 105°C
Dynamic Catalog	MultiGig RT Series
Mating Products	A99171-ND - CONN R/A PLUG DC VITA41
Other Names	14101401A99137
