High Density Card Edge
1.00 mm [.039”] Contact Centers, 15.49 mm [.610”] Insulator Height,
Dip Solder/Card Extender/SMT
SPECIFICATIONS
READOUT
High Density Card Edge
•
•
•
•
•
•
Accommodates 1.57 mm ± 0.20 mm [.062” ± .008”] PC board
PPS or PA9T insulator
Molded-in key available
1 Amp current rating per contact for contacts fully energized
Highly reliable high cycle hairpin bellow contacts
UL Flammability Rating: 94V-0
DUAL (D)
TERMINATION TYPE
3.18[.125”]
4.06[.160”]
2.54 ± 0.64
[.100” ± .025”]
3X 2.00[.079”]
ACCOMMODATES
1.57[.062”] PCB
STAGGERED DIP SOLDER
(HH)
CARD EXTENDER
(HR)
SURFACE MOUNT
(HF)

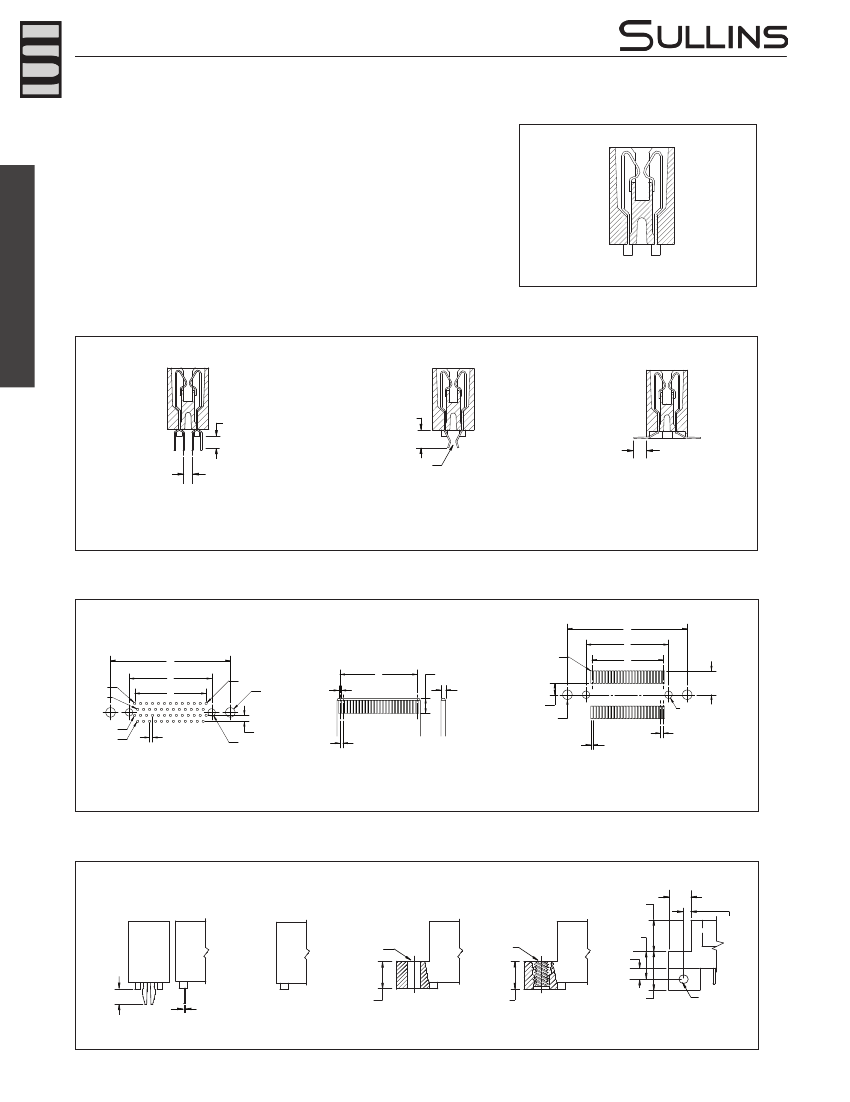

PCB LAYOUT
D
F
D
PIN A1
PIN A2
PIN B1
PIN B2
F
A
Ø 0.76[.030”] MIN.
2X Ø 3.18[.125”]
FOR 'D' OR 'T'
MOUNTING
3X 2.00 [.079”]
2X Ø 2.44[.096”]
FOR 'R' MOUNTING
A
0.76[.030”]
5.08 [.200”]
1.57 [.062”]
PCB
3.81 [.150”]
2X Ø 3.18[.125”]
FOR 'D' AND 'T'
MOUNTING
PIN 1
A
8.00[.315”]
2X Ø 2.44 [.096”]
FOR 'R' MOUNTING
1.00 [.039”] TYP.
0.76 [.030”] MAX.
1.00[.039”] TYP.
1.00[.039”] TYP.
STAGGERED DIP SOLDER
(HH)
CARD EXTENDER
(HR)
SURFACE MOUNT
(HF)
MOUNTING STYLE
9.14
[.360”]
8.08
[.318”]
3.25
[.128”]
11.18
[.440”]
4.77
[.188”]
1.57
[.062”]
Ø 3.18[.125”]
#4-40
3.40[.134”]
0.64[.025”]
6.35[.250”]
6.35[.250”]
Ø 1.98
[.078”]
BOARD LOCK (R)
(with no mounting ears)
NO MOUNTING EARS (N)
FLUSH MOUNTING (D)
THREADED INSERT (T)
STRADDLE MOUNT (Q)
8
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
High Density Card Edge
PART NUMBER OPTIONS
1.00 mm [.039”] Contact Centers, 15.49 mm [.610”] Insulator Height,
Dip Solder/Card Extender/SMT
G B E 50 D HH D - Sxxx
MODIFICATION CODE
(Consult Factory)
OMIT FOR STANDARD
MOUNTING STYLE (Opposite Page)
D =
Flush Mounting
N =
No Mounting
R
=
Metal Board Locks
(HH & HF Termination Only)
T
=
Flush Mounting, #4-40 Threaded Insert
Q =
Straddle Mount (HR Termination Only)*
TERMINATION TYPE (Opposite Page)
HH =
Staggered Dip Solder
HR
=
Card Extender
HF
=
Surface Mount
READOUT (Opposite Page)
D =
Dual
NUMBER OF CONTACT POSITIONS
See Chart Below
7.62 [.300] INSERTION DEPTH
C
6.35[.250]
MATERIALS (INSULATOR/CONTACT)
G
=
PA9T/Phosphor Bronze
R
=
PPS/Phosphor Bronze
J =
PA9T/Beryllium Copper
A =
PPS/Beryllium Copper
Refer to Page 7 for Operating/Processing Temperatures
CONTACT FINISH - RoHS Compliant
Contact Surface
B
=
.000010” Gold
C
=
.000030” Gold
CONTACT CENTERS
E =
1.00 mm [.039”]
All platings are Lead Free and have .000050” Nickel underplate
High Density Card Edge
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
DIMENSIONS
Dimensions in [ ] are in inches, all others are in millimeters.
FIRST POSITION
INDICATOR
9.40 [.370]
PIN B1
PIN B2
A
B
D
E
(D) MOUNTING SHOWN
2X Ø 3.18 [.125]
PIN A1
PIN A2
15.49[.610]
1.52 [.060]
0.46 X 0.30 [.018 X .012] POST
REFER TO TERMINATION
1.00[.039] TYP.
POSITIONS/
CONTACTS A±0.13
02/04*
03/06*
04/08*
05/10
06/12*
07/14*
08/16*
09/18*
10/20
11/22*
12/24
13/26*
14/28*
15/30
16/32
17/34*
18/36*
19/38*
20/40
21/42*
22/44*
23/46*
24/48*
25/50
26/52*
27/54*
28/56*
29/58*
30/60
31/62*
32/64*
33/66*
34/68*
35/70
36/72*
37/74*
38/76*
39/78*
40/80
41/82*
42/84*
43/86*
44/88*
45/90
46/92*
47/94*
48/96*
49/98*
50/100
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
24.00
25.00
26.00
27.00
28.00
29.00
30.00
31.00
32.00
33.00
34.00
35.00
36.00
37.00
38.00
39.00
40.00
41.00
42.00
43.00
44.00
45.00
46.00
47.00
48.00
49.00
MILLIMETERS
B±0.13
4.32
5.32
6.32
7.32
8.32
9.32
10.32
11.32
12.32
13.32
14.32
15.32
16.32
17.32
18.32
19.32
20.32
21.32
22.32
23.32
24.32
25.32
26.32
27.32
28.32
29.32
30.32
31.32
32.32
33.32
34.32
35.32
36.32
37.32
38.32
39.32
40.32
41.32
42.32
43.32
44.32
45.32
46.32
47.32
48.32
49.32
50.32
51.32
52.32
INCHES
E±0.51
25.13
26.13
27.13
28.13
29.13
30.13
31.13
32.13
33.13
34.13
35.13
36.13
37.13
38.13
39.13
40.13
41.13
42.13
43.13
44.13
45.13
46.13
47.13
48.13
49.13
50.13
51.13
52.13
53.13
54.13
55.13
56.13
57.13
58.13
59.13
60.13
61.13
62.13
63.13
64.13
65.13
66.13
67.13
68.13
69.13
70.13
71.13
72.13
73.13
C±0.38
9.89
10.89
11.89
12.89
13.89
14.89
15.89
16.89
17.89
18.89
19.89
20.89
21.89
22.89
23.89
24.89
25.89
26.89
27.89
28.89
29.89
30.89
31.89
32.89
33.89
34.89
35.89
36.89
37.89
38.89
39.89
40.89
41.89
42.89
43.89
44.89
45.89
46.89
47.89
48.89
49.89
50.89
51.89
52.89
53.89
54.89
55.89
56.89
57.89
D±0.25
17.15
18.15
19.15
20.15
21.15
22.15
23.15
24.15
25.15
26.15
27.15
28.15
29.15
30.15
31.15
32.15
33.15
34.15
35.15
36.15
37.15
38.15
39.15
40.15
41.15
42.15
43.15
44.15
45.15
46.15
47.15
48.15
49.15
50.15
51.15
52.15
53.15
54.15
55.15
56.15
57.15
58.15
59.15
60.15
61.15
62.15
63.15
64.15
65.15
F±0.25
4.66
5.66
6.66
7.66
8.66
9.66
10.66
11.66
12.66
13.66
14.66
15.66
16.66
17.66
18.66
19.66
20.66
21.66
22.66
23.66
24.66
25.66
26.66
27.66
28.66
29.66
30.66
31.66
32.66
33.66
34.66
35.66
36.66
37.66
38.66
39.66
40.66
41.66
42.66
43.66
44.66
45.66
46.66
47.66
48.66
49.66
50.66
51.66
52.66
A±.005
0.039
0.079
0.118
0.157
0.197
0.236
0.276
0.315
0.354
0.394
0.433
0.472
0.512
0.551
0.591
0.630
0.669
0.709
0.748
0.787
0.827
0.866
0.906
0.945
0.984
1.024
1.063
1.102
1.142
1.181
1.220
1.260
1.299
1.339
1.378
1.417
1.457
1.496
1.535
1.575
1.614
1.654
1.693
1.732
1.772
1.811
1.850
1.890
1.929
B±.005
0.170
0.210
0.249
0.288
0.328
0.367
0.407
0.446
0.485
0.525
0.564
0.603
0.643
0.682
0.722
0.761
0.800
0.840
0.879
0.918
0.958
0.997
1.037
1.076
1.115
1.155
1.194
1.233
1.273
1.312
1.351
1.391
1.430
1.470
1.509
1.548
1.588
1.627
1.666
1.706
1.745
1.785
1.824
1.863
1.903
1.942
1.981
2.021
2.060
C±.015
0.389
0.429
0.468
0.507
0.547
0.586
0.626
0.665
0.704
0.744
0.783
0.822
0.862
0.901
0.941
0.980
1.019
1.059
1.098
1.137
1.177
1.216
1.256
1.295
1.334
1.374
1.413
1.452
1.492
1.531
1.570
1.610
1.649
1.689
1.728
1.767
1.807
1.846
1.885
1.925
1.964
2.004
2.043
2.082
2.122
2.161
2.200
2.240
2.279
D±.010
0.675
0.715
0.754
0.793
0.833
0.872
0.912
0.951
0.990
1.030
1.069
1.108
1.148
1.187
1.227
1.266
1.305
1.345
1.384
1.423
1.463
1.502
1.542
1.581
1.620
1.660
1.699
1.738
1.778
1.817
1.856
1.896
1.935
1.975
2.014
2.053
2.093
2.132
2.171
2.211
2.250
2.290
2.329
2.368
2.408
2.447
2.486
2.526
2.565
E±.020
0.989
1.029
1.068
1.107
1.147
1.186
1.226
1.265
1.304
1.344
1.383
1.422
1.462
1.501
1.541
1.580
1.619
1.659
1.698
1.737
1.777
1.816
1.856
1.895
1.934
1.974
2.013
2.052
2.092
2.131
2.170
2.210
2.249
2.289
2.328
2.367
2.407
2.446
2.485
2.525
2.564
2.604
2.643
2.682
2.722
2.761
2.800
2.840
2.879
F±.010
0.183
0.223
0.262
0.301
0.341
0.380
0.420
0.459
0.498
0.538
0.577
0.616
0.656
0.695
0.735
0.774
0.813
0.853
0.892
0.931
0.971
1.010
1.050
1.089
1.128
1.168
1.207
1.246
1.286
1.325
1.364
1.404
1.443
1.483
1.522
1.561
1.601
1.640
1.679
1.719
1.758
1.798
1.837
1.876
1.916
1.955
1.994
2.034
2.073
* Consult factory for availability.
