5TT 500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 5TT 500

5TT 500: Descriptionfuse glass 500ma 250vac 5x20mm; CategoryCircuit protection; File Size85KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

5TT 500 Overview

fuse glass 500ma 250vac 5x20mm

5TT 500 Parametric

Parameter Name	Attribute value
Datasheets
5TT, 5TTP Series
Product Photos
5TT Series
RoHS Informati
RoHS Compliance
Standard Package	1,000
Category	Circuit Protecti
Family	Fuses
Packaging	Bulk
Fuse Type	Cartridge, Glass
Current Rating	500mA
Voltage Rating - AC	250V
Voltage Rating - DC	-
Response Time	Slow
Package / Case	5mm x 20mm
Mounting Type	Holde
Breaking Capacity @ Rated Voltage	100A
Melting I²	2.5
Approvals	CE, CSA, UL
Operating Temperature	-55°C ~ 125°C
Col	-
Size / Dimensi	0.201" Dia x 0.787" L (5.10mm x 20.00mm)
DC Cold Resistance	1 Ohm
Other Names	0654-0500-310654-0500-31-ND06540500315TT500

Preview

Download Datasheet

View All

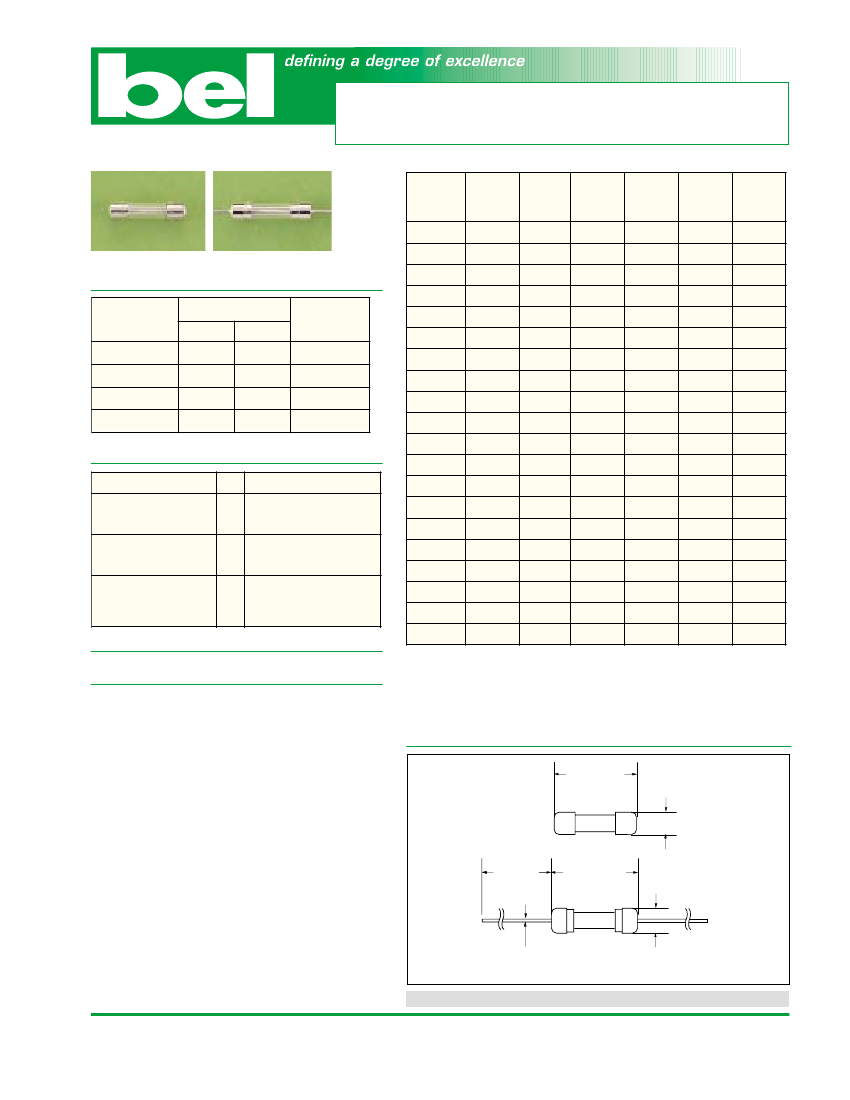

Type 5TT / 5TTP

5TTD0903

5 x 20mm Glass Tube

Slow Blow Fuse Series

Catalog

Number

Ampere

Rating

Typical

Volt-drop Melting I

T Melting I

T Maximum

Cold

@100%

< 10 mSec

@10

Power

Resistance

Dissipation

(ohm)

(Volt) max. (A

Sec)

(W)

5TT (P) 100

5TT (P) 125

5TT (P) 160

5TT (P) 200

Testing current

100%

135%

200%

Blow Time

Minimum

Maximum

100mA

125mA

160mA

200mA

250mA

300mA

400mA

500mA

750mA

1.25A

1.6A

2.5A

10A

4.7

3.2

2.1

1.4

1.0

0.5

0.3

0.2

0.14

0.09

0.06

0.04

0.03

0.02

0.015

0.010

0.007

2.8

2.3

2.0

1.7

1.4

1.2

1.0

0.86

0.64

0.52

0.44

0.37

0.32

0.27

0.23

0.19

0.16

0.12

0.10

0.09

0.14

0.21

0.31

0.48

0.72

1.09

1.6

2.5

5.2

8.6

13.1

19.7

103

157

218

319

467

0.15

0.22

0.34

0.51

0.78

1.18

1.8

2.7

5.8

9.6

14.6

22.2

119

180

317

472

703

0.45

0.48

0.51

0.55

0.58

0.62

0.66

0.70

0.79

0.85

0.91

0.97

1.03

1.1

1.17

1.25

1.33

1.23

1.31

1.40

Electrical Characteristics

(UL/CSA STD. 248-14)

Amp range

100mA - 10A

100mA - 3A

3.1A - 10A

5TT (P) 250

5TT (P) 300

5TT (P) 400

5TT (P) 500

5TT (P) 750

5TT (P) 1

5TT (P) 1.25

5TT (P) 1.6

5TT (P) 2

5TT (P) 2.5

5TT (P) 3

5TT (P) 4

5TT (P) 5

5TT (P) 6

5TT (P) 8

5TT (P) 10

4 Hrs.

N/A

5 sec

3 sec

N/A

1 Hr

30 sec

Approvals

Safety Agency Approvals

ßSpc

Type Amp range / Volt @ I.R. ability

5TT /

5TTP

5TT /

5TTP

100mA

- 3A / 250V AC@ 100A

100mA

- 8A / 125V AC@ 10,000A

10A/125V AC@ 1,000A

5A / 125V AC@ 500A

>5A

- 15A /125V AC@ 300A

Listed File No. E20624

Certified File No. LR39772

Recognized File No. E20624

Acceptance File No. LR39772

File No. JET1037-31003-1001, 5TT /

JET1037-31003-1003

5TTP

File No. JET1037-31003-1002

5TT

Operating Temperature

-55ºC to +125ºC

Consult manufacturer for other ratings

Physical Specification

Materials

5A and less:

Glass body / Nickel Plated Brass Caps

Lead wire: Tin-lead plated Copper, Diameter 0.032"

6A and above:

Ceramic body / Nickel Plated Brass Caps

Lead wire: Tin-lead plated Copper, Diameter 0.040"

Marking

On fuse:

“bel”, “5TT”, “Current Rating”, “Voltage Rating”,

and “Appropriate Safety Logos”

On label:

Above info plus “c” and interrupting rating

Voltage on fuse:

250V for 100mA to 3A; 125V for rating above 3A

Packaging

1. In bulk:

5TT

- 1,000 pcs per box;

5TTP

- 500 pcs per box

2. On Axial Tape & Reel:

1,500 pcs per reel

3.Tape & Reel specification:

per EIA-296-E & IEC 286-1

@ 10mm Pitch and 63.5mm inside Tape Spacing

Mechanical Dimensions

0.787"

0.02"

(20

0.5mm)

0.20"

0.004"

(5.1

0.1mm)

5TT

1.5"

0.08"

(38.1

2mm)

0.827"

0.02"

(21.0

0.5mm)

0.217"

0.004"

(5.5

0.1mm)

5TTP

SEE LEAD SIZE LISTED IN “ MATERIAL”

ORDERING INFORMATION SEE PAGES 67 & 68

Bel Fuse Inc.

206 Van Vorst Street, Jersey City, NJ 07302 • Tel: 201-432-0463 • Fax: 201-432-9542 • E-Mail: belfuse@belfuse.com

Website: www.belfuse.com

Specifications subject to change without notice
