AZ880P2-1ABE-5D datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ880P2-1ABE-5D

AZ880P2-1ABE-5D: DescriptionElectromechanical Relay, Latched, 8.2VDC (Coil), 8A (Contact), 150VDC (Contact), Random, AC/DC Output,; CategoryMechanical and electronic products relay; File Size352KB，3 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ880P2-1ABE-5D Overview

Electromechanical Relay, Latched, 8.2VDC (Coil), 8A (Contact), 150VDC (Contact), Random, AC/DC Output,

AZ880P2-1ABE-5D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	406068300
Reach Compliance Code	compliant
ECCN code	EAR99
body width	15 mm
body height	10.2 mm
Body length or diameter	20 mm
Coil operating voltage (DC)	3.5 V
Coil resistance	89.3 Ω
Maximum coil voltage (DC)	8.2 V
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	2000VA@380VAC
Contact (AC) maximum rated R load	8A@380VAC
Maximum contact current (AC)	8 A
Maximum contact current (DC)	8 A
Contact (DC) maximum rated power R load	240W@150VDC
Contact (DC) maximum rated R load	8A@150VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	380 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	1000000 Cycle(s)
End contact material	Silver Tin Oxide
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Number of terminals	6
operating hours	5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB hole count	6
physical size	20mm x 15mm x 10.2mm
Guideline	UL
Relay action	LATCHED
Relay style	1 FORM A,B
release time	3 ms
Terminal surface	Tin (Sn)
Terminal length	0.0036 inch
Termination type	SOLDER
weight	6 g

Preview

Download Datasheet

View All

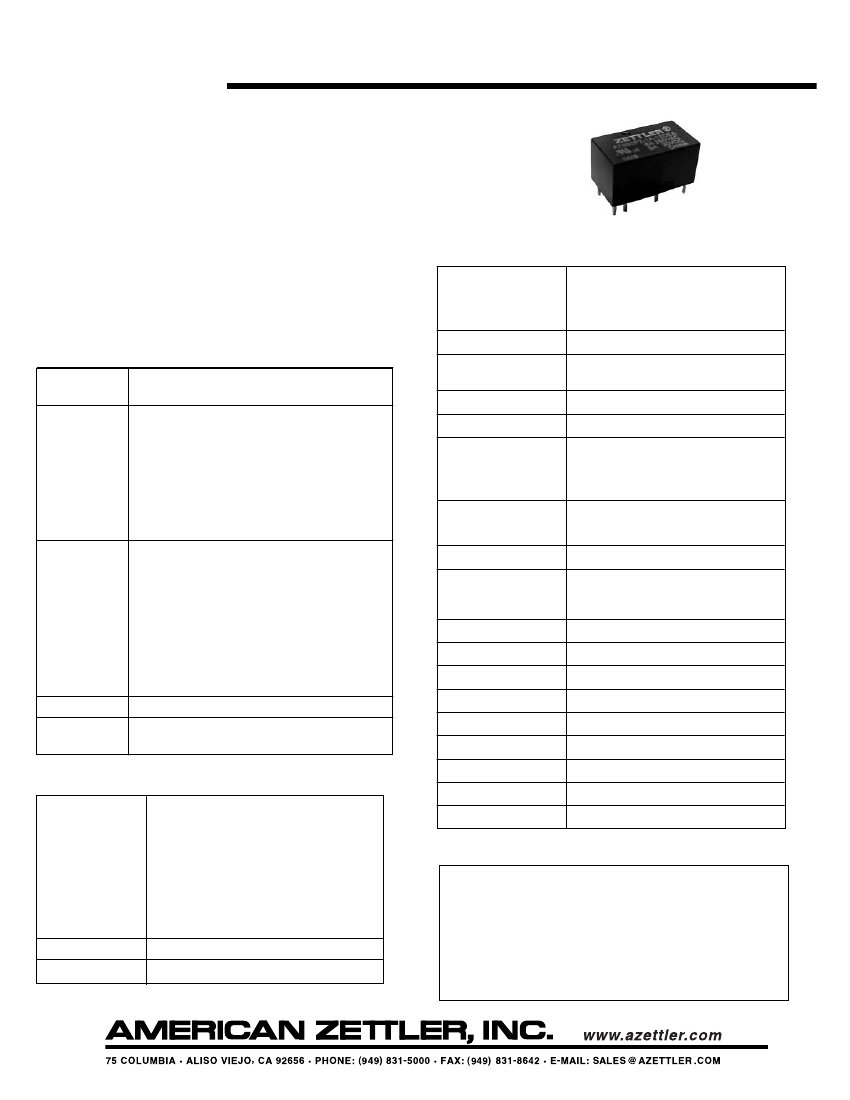

AZ880

10 A SPST / 8 A DPST POLARIZED

SUBMINIATURE POWER RELAY

SINGLE SIDE STABLE (NON-LATCHING)

AND BISTABLE (LATCHING)

FEATURES

•

Dielectric strength 4000 Vrms

Single and dual coil latching versions available

Epoxy sealed version available

10 Amp switching

UL, CUR file E44211

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Minimum operations

1 x 10

at 10 A 250 VAC resistive (SPST)

5 ms at nominal coil voltage

3 ms at nominal coil voltage

(with no coil suppression)

5 ms at nominal coil voltage

4 ms at nominal coil voltage

4000

3000

1000

2000

Vrms

coil to contact (-1A, -1AB)

coil to contact (-2A)

between contacts

between contact sets

CONTACTS

Release Time (typical)

Arrangement

Ratings

SPST (1 Form A), DPST (2 Form A)

DPST (1 Form A and 1 Form B)

Resistive load:

Max. switched power: 300 W or 2500 VA (SPST)

240 W or 2000 VA (DPST)

Max. switched current: 10 A (SPST)

8 A (DPST)

Max. switched voltage: 150 VDC or 380 VAC*

*Note: If switching voltage is greater than 30 VDC,

special precautions must be taken. Please contact

the factory.

Rated Load

UL, CUR

SPST

10 A at 250 VAC general use, 30k cycles

8 A at 30 VDC resistive, 30k cycles

1/3 HP at 250 VAC

B300 Pilot Duty

DPST

8 A at 250 VAC general use, 30k cycles

8 A at 30 VDC resistive, 30k cycles

1/3 HP at 250 VAC

1/4 HP at 125 VAC

Material

Resistance

Silver nickel, silver tin oxide, gold plating optional

< 50 milliohms initially (6 V 1 A voltage drop

method)

Set Time (typical)

Reset Time (typical)

Dielectric Strength

(at sea level)

Insulation Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

1000 megohms min. at 20°C

500 Vdc 50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 70°C (158°F)

-40°C (-40°F) to 105°C (221°F)

0.062” DA at 10 to 55 Hz

10 g functional

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

6 grams

COIL

Max. Immersion Time

Power

At Pickup Voltage

(typical)

137 mW ( 2A single side stable, 2 coil

latching)

98 mW (1 coil latching or 1A or 1AB single

side stable)

Weight

NOTES

All values at 20°C (68°F).

Relay may pull in with less than “Must Operate” value.

Relay has fixed coil polarity.

For complete isolation between the relay’s magnetic fields, it is

recommended that a .197" (5.0 mm) space be provided between

adjacent relays.

5. Relay adjustment may be affected if undue pressure is exerted

on relay case.

6. Specifications subject to change without notice.

Max. Continuous

Dissipation

Temperature Rise

Max. Temperature

0.75 W at 20°C (68°F) ambient

30°C (54°F) at nominal coil voltage

105°C (221°F)

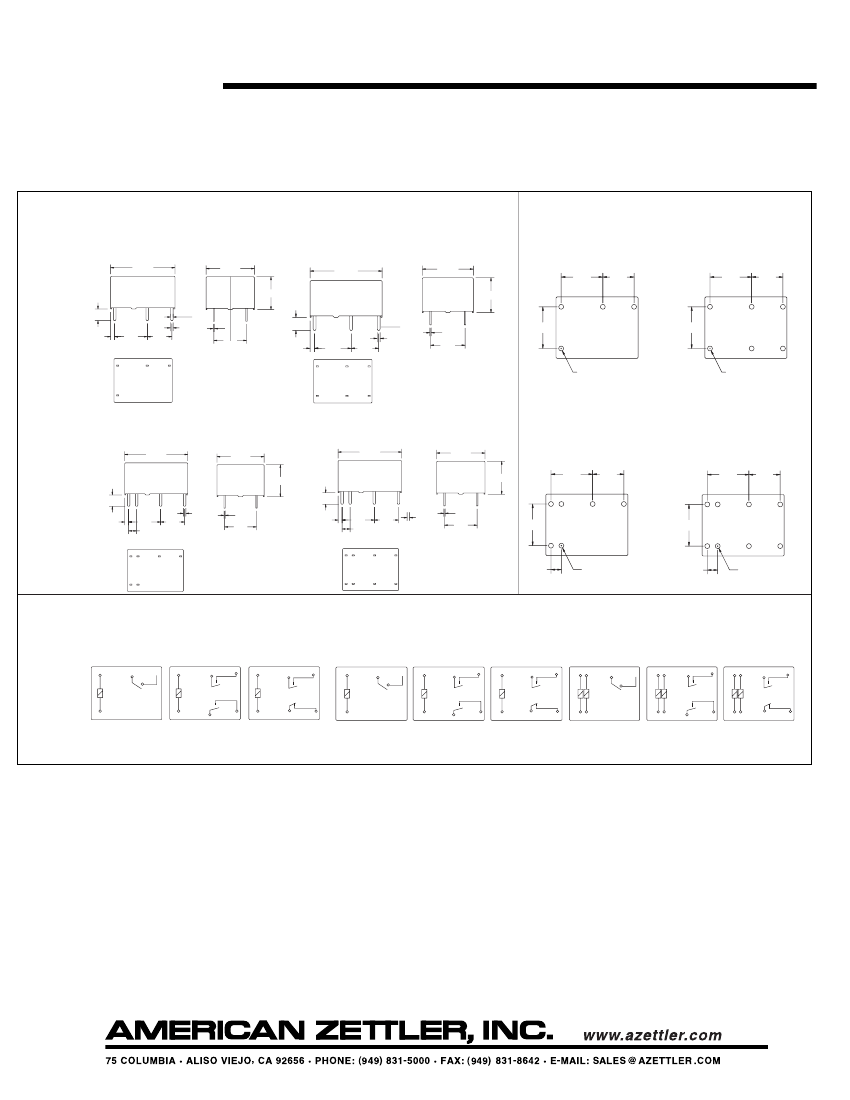

12/07/09
