2-530655-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-530655-5

2-530655-5: Descriptionconn hsng cardedge 18dl pos .156; CategoryThe connector; File Size176KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

2-530655-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-530655-5	-	-	View	Buy Now

2-530655-5 Overview

conn hsng cardedge 18dl pos .156

2-530655-5 Parametric

Parameter Name	Attribute value
Datasheets
530655
RoHS Informati
2-530655-5 Statement of Compliance
Standard Package	360
Category	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk
Card Type	Non Specified - Dual Edge
Gende	Female
Number of Positions/Bay/Row	-
Number of Positions	36
Card Thickness	0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Number of Rows	2
Pitch	0.156" (3.96mm)
Features	-
Mounting Type	Through Hole
Terminati	Solde
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Contact Type	Hairpin Bellows
Col	Gree
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Di
Material - Insulati	Polyester, Glass Filled
Operating Temperature	-55°C ~ 105°C
Read Ou	Dual

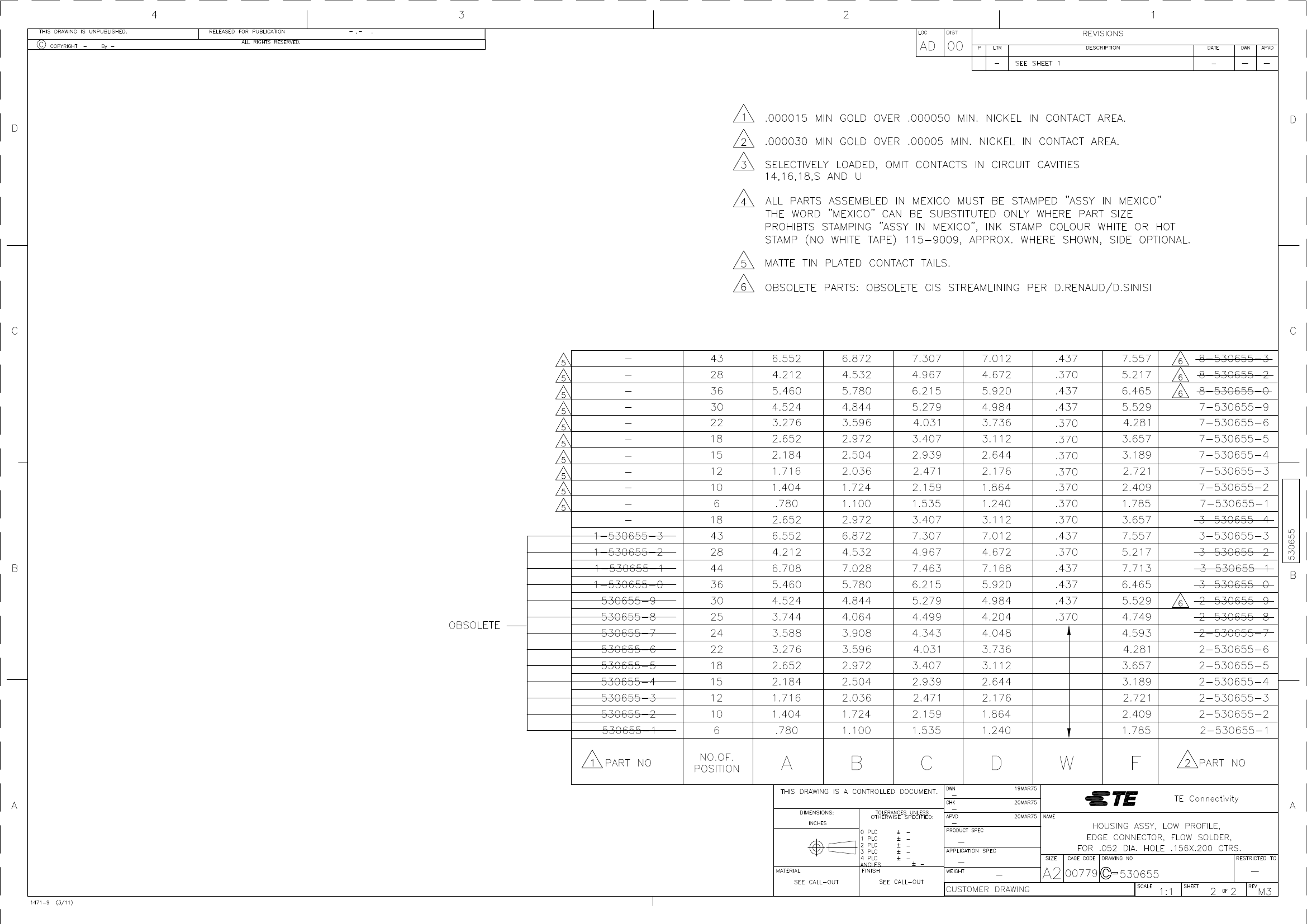

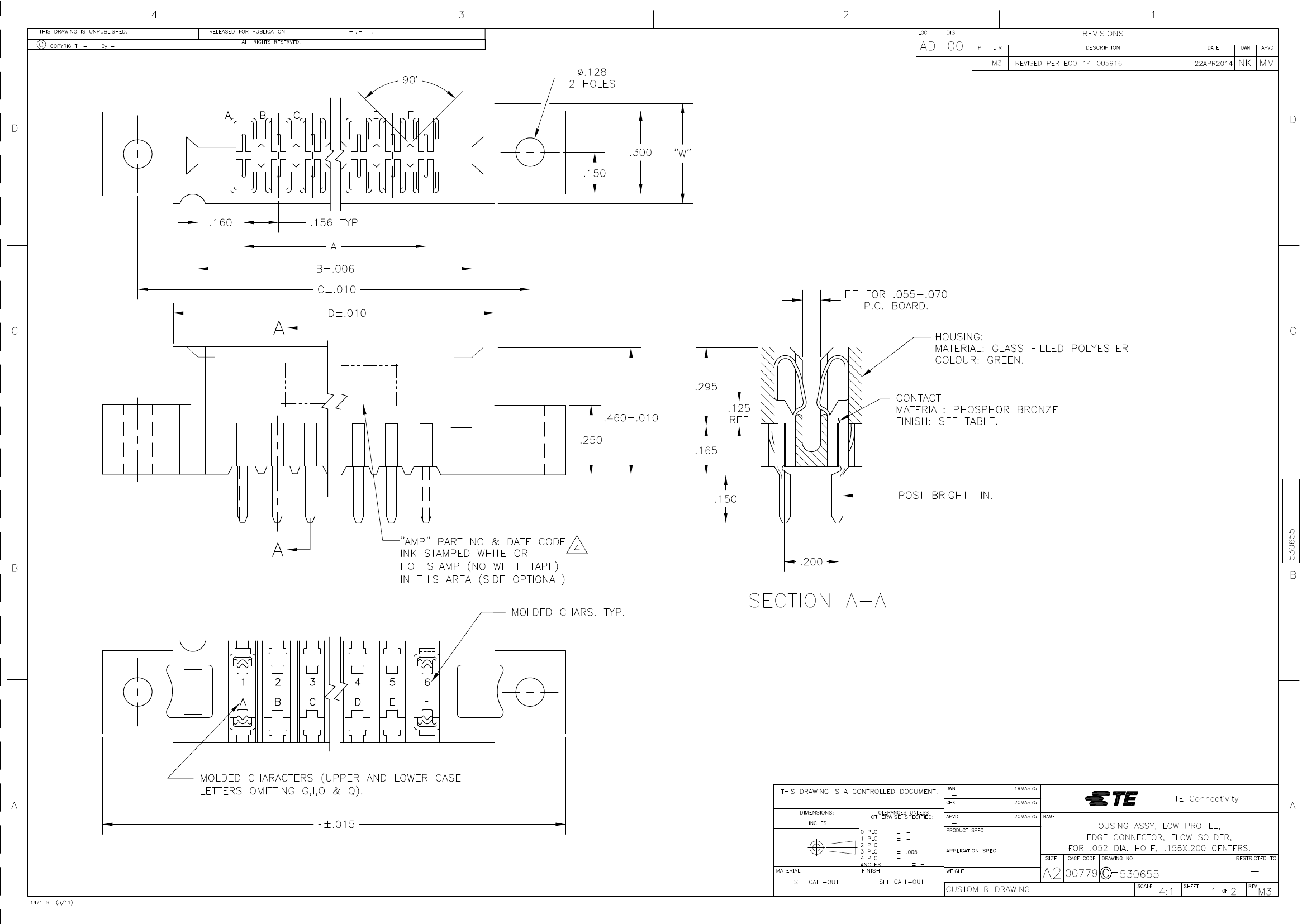

Preview

Download Datasheet

View All

2-530655-5 Related Products

	2-530655-5	7-530655-5	7-530655-6	7-530655-3	2-530655-1
Description	conn hsng cardedge 18dl pos .156	conn low pro 18 pos 156x200c/L	conn low pro 22pos .156 solder	conn low pro 12 pos 156x200c/L	conn hsng cardedge 6 DL pos .156
Standard Package	360	360	4,320	480	840
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors	Card Edge Connectors - Edgeboard Connectors
Packaging	Bulk	Bulk	Bulk	Tray	Tray
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge	Non Specified - Dual Edge
Gende	Female	Female	Female	Female	Female
Number of Positions	36	36	44	24	12
Card Thickness	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Number of Rows	2	2	2	2	2
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde	Solde
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Contact Type	Hairpin Bellows	Hairpin Bellows	Hairpin Bellows	Hairpin Bellows	Hairpin Bellows
Col	Gree	Gree	Gree	Gree	Gree
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Di	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Di	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Di	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Di	Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Di
Material - Insulati	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Read Ou	Dual	Dual	Dual	Dual	Dual
