Datasheet> All Categories > The connector> 5536511-4

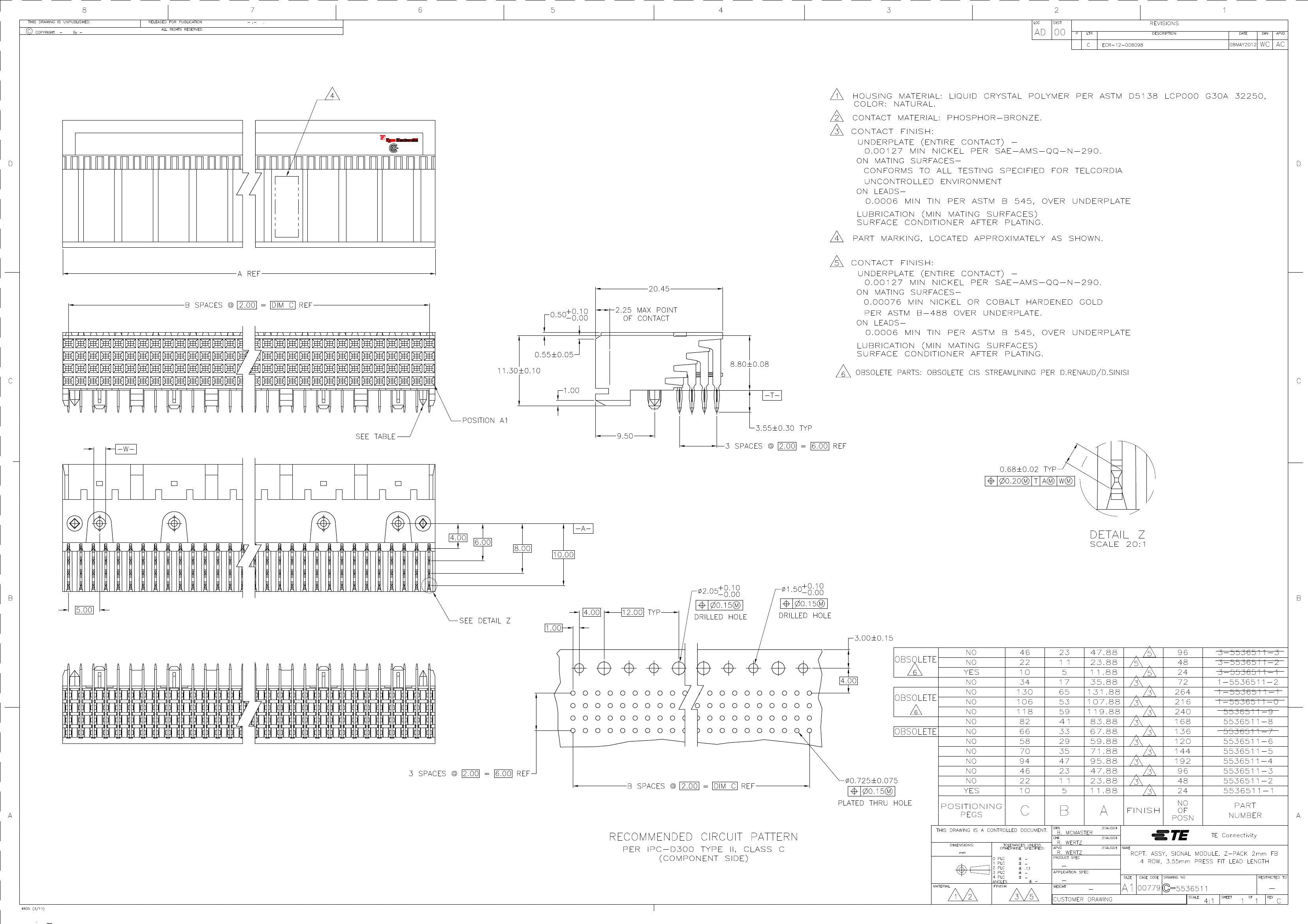

Preview

5536511-4: Descriptionconn recept RT/A 2mm 192pos 30au; CategoryThe connector; File Size196KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5536511-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5536511-4	-	-	View	Buy Now

5536511-4 Overview

conn recept RT/A 2mm 192pos 30au

5536511-4 Parametric

Parameter Name	Attribute value
Datasheets
5536511-1
Product Photos
5536511-4
RoHS Informati
5536511-4 Statement of Compliance
RoHS 2 Stateme
3D Model
5536511-4.pdf
Standard Package	6
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Receptacle, Female Sockets
Connector Style	Futurebus
Number of Positions	192
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Press-Fi
Contact Layout, Typical	-
Features	Space
Contact Finish	Gold
Contact Finish Thickness	-
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Dynamic Catalog	Z-Pack Series
Mating Products	A115448-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A99411-ND - CONN HEADER VERT 2MM 192POS5536513-4-ND - CONN HDR SIGNAL 192PS QUAD VERTA31558-ND - CONN HEADER VERT 2MM 192POS 30AU536513-4-ND - CONN HEADER 192POS 4ROW STR GOLD536514-4-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A3269-ND - CONN HEADER VERT 2MM 192POS 30AUA3265-ND - CONN HEADER VERT 2MM 192POS 30AU
Other Names	55365114A31574

Preview

Download Datasheet

View All

5536511-4 Related Products

	5536511-4	5536511-3	5536511-6	5536511-5
Description	conn recept RT/A 2mm 192pos 30au	conn recept RT/A 2mm 96pos 30au	2mm FB,asy,120,sig,rec,EN,3.55	2mm FB,asy,144,sig,rec,EN,3.55
Standard Package	6	12	8,460	640
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Connector Style	Futurebus	Futurebus	Futurebus	Futurebus
Number of Positions	192	96	120	144
Number of Positions Loaded	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	4	4	4	4
Mounting Type	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle
Terminati	Press-Fi	Press-Fi	Press-Fi	Press-Fi
Features	Space	Space	Space	Space
Contact Finish	Gold	Gold	Gold	Gold
Col	Natural	Natural	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Voltage Rating	30V	30V	30V	30V
Mating Products	A115448-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A99411-ND - CONN HEADER VERT 2MM 192POS5536513-4-ND - CONN HDR SIGNAL 192PS QUAD VERTA31558-ND - CONN HEADER VERT 2MM 192POS 30AU536513-4-ND - CONN HEADER 192POS 4ROW STR GOLD536514-4-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A3269-ND - CONN HEADER VERT 2MM 192POS 30AUA3265-ND - CONN HEADER VERT 2MM 192POS 30AU	5536536-3-ND - 2MMFB,ASY,096,SIG,HDR,SL,3.205536514-3-ND - 2MMFB,ASY,096,SIG,HDR,EN,4.25A115446-ND - 2MM FB,SIG,PIN,ASY,096,4.255223514-3-ND - 2MM FB,IS,ASY,096,SIG,HDR,SL5223513-3-ND - 2MMFB,IS,ASY,096,SIG,HDR,SLA31561-ND - CONN HEADER VERT 2MM 96POSA31557-ND - CONN HEADER VERT 2MM 96POS 30AU536514-3-ND - HDR PIN VERT 96 POS 30AU 2MMA3264-ND - CONN HEADER VERT 2MM 96POS 30AUA3268-ND - CONN HEADER VERT 2MM 96POS 30AU	5536524-6-ND - 2MMFB,ASY,120,SIG,HDR,EN,5.755223513-6-ND - 2MMFB,IS,ASY,120,SIG,HDR,SL536504-6-ND - 2MM FB,ASY,120,SIG,HDR,EN,6.505536501-6-ND - CONN HEADER 120POS 4ROW 2MM GOLD	536507-7-ND - CONN 2MM FB RCPT 144POS R/A GOLD5536513-5-ND - CONN HEADER 144POS 4ROW 2MM GOLD
