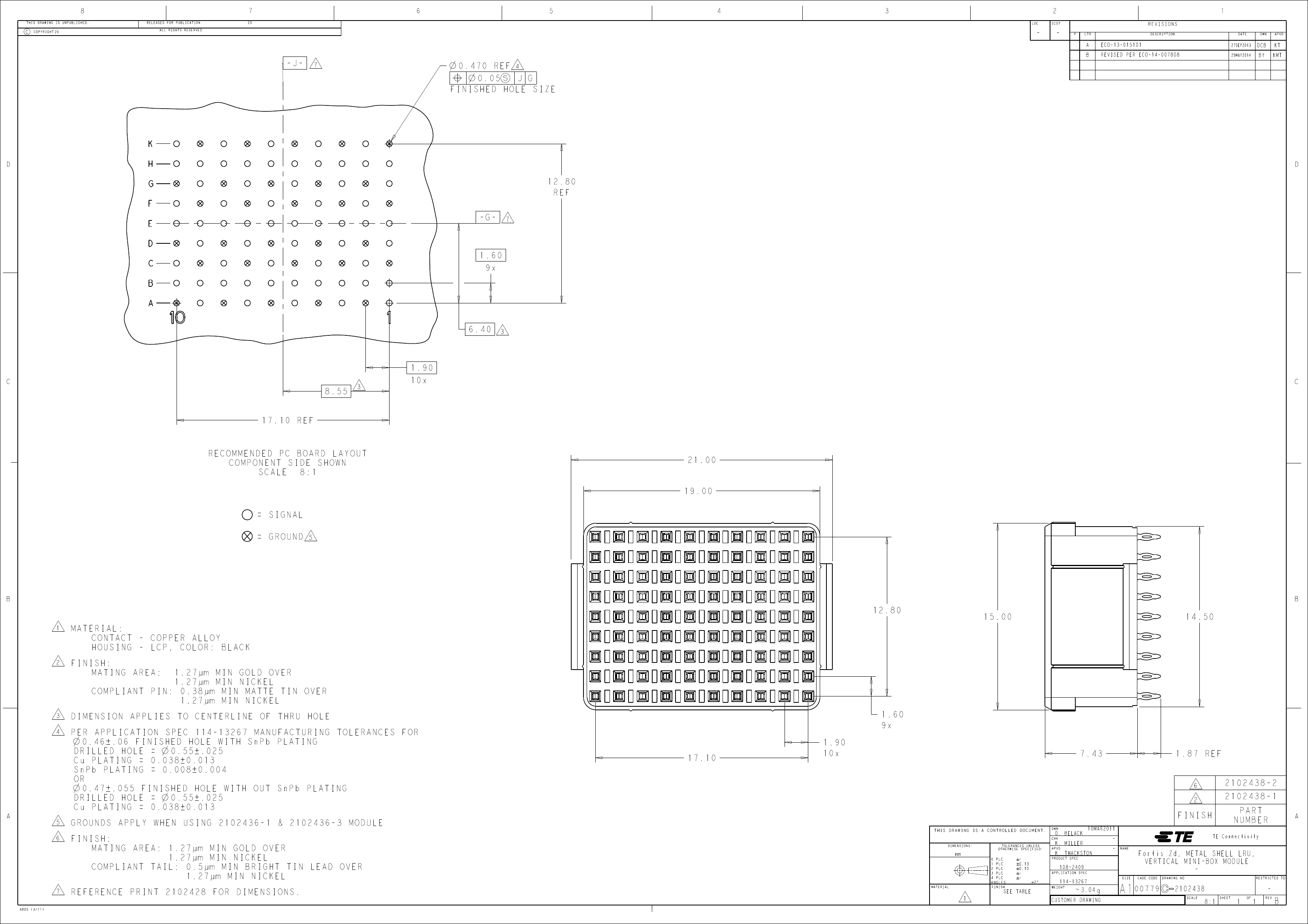

RECOMMENDED PC BOARD LAYOUT
COMPONENT SIDE SHOWN
SCALE
8:1
21.00
19.00
= SIGNAL
= GROUND
5
B
12.80
1
B
MATERIAL:
CONTACT - COPPER ALLOY
HOUSING - LCP, COLOR: BLACK
FINISH:
MATING AREA:
1.27µm MIN GOLD OVER
1.27µm MIN NICKEL
COMPLIANT PIN: 0.38µm MIN MATTE TIN OVER
1.27µm MIN NICKEL
1.60
9x
17.10
1.90
10x
15.00
14.50
2
3
4
DIMENSION APPLIES TO CENTERLINE OF THRU HOLE
PER APPLICATION SPEC 114-13267 MANUFACTURING TOLERANCES FOR
n 0.46±.06 FINISHED HOLE WITH SnPb PLATING
DRILLED HOLE = n 0.55±.025
Cu PLATING = 0.038±0.013
SnPb PLATING = 0.008±0.004
OR
n 0.47±.055 FINISHED HOLE WITH OUT SnPb PLATING
DRILLED HOLE = n 0.55±.025
Cu PLATING = 0.038±0.013
GROUNDS APPLY WHEN USING 2102436-1
& 2102436-3 MODULE
FINISH:
MATING AREA: 1.27µm MIN GOLD OVER
1.27µm MIN NICKEL
COMPLIANT TAIL: 0.5µm MIN BRIGHT TIN LEAD OVER
1.27µm MIN NICKEL
REFERENCE PRINT 2102428 FOR DIMENSIONS.
7.43
1.87
6
2
REF
2102438-2
PART
NUMBER
TE Connectivity
2102438-1
A
5
6
FINISH
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
D. BELACK
K. MILLER
K. THACKSTON
108-2409
10MAR2011
-
-
NAME
mm
APVD
7
4805 (3/11)
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.13
0.10
-
-
PRODUCT SPEC
APPLICATION SPEC
2°
1
SEE TABLE
WEIGHT
114-13267
CUSTOMER DRAWING
~
3.04
g
A1
00779
SIZE
CAGE CODE
Fortis Zd, METAL SHELL LRU,
VERTICAL MINI-BOX MODULE
-
DRAWING NO
