Datasheet> All Categories > The connector> 536507-3

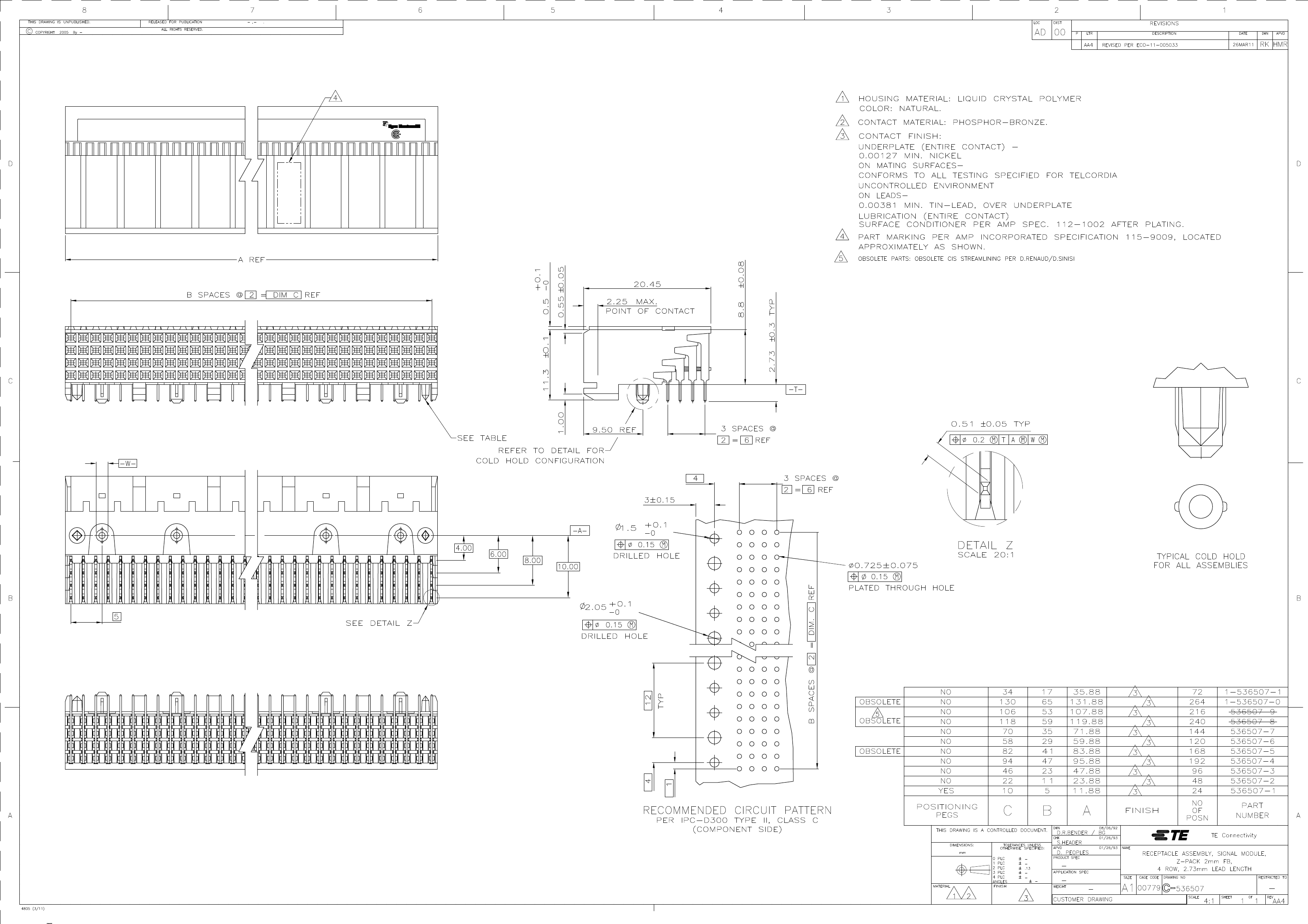

Preview

536507-3: Descriptionconn recept rtang 2mm 96pos 30au; CategoryThe connector; File Size180KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

536507-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	536507-3	-	-	View	Buy Now

536507-3 Overview

conn recept rtang 2mm 96pos 30au

536507-3 Parametric

Parameter Name	Attribute value
Datasheets
536507
Product Photos
536507-3, 5536507-3
RoHS Informati
536507-3 Statement of Compliance
3D Model
536507-3.pdf
Standard Package	12
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Receptacle, Female Sockets
Connector Style	Futurebus
Number of Positions	96
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Solde
Contact Layout, Typical	-
Features	Board Guide, Space
Contact Finish	Gold
Contact Finish Thickness	-
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Mating Products	A108459-ND - 2MMFB SIG PIN ASY 096 4.25536514-3-ND - HDR PIN VERT 96 POS 30AU 2MMA3264-ND - CONN HEADER VERT 2MM 96POS 30AUA3268-ND - CONN HEADER VERT 2MM 96POS 30AU
Other Names	650-1166-01A3272

Preview

Download Datasheet

View All

536507-3 Related Products

	536507-3	1-536507-0	536507-1	536507-2	536507-6	536507-7
Description	conn recept rtang 2mm 96pos 30au	conn 2mm FB rcpt 264pos R/A gold	conn recept 24pos 2mm rtang 30au	conn recept 48pos 2mm rtang 30au	conn rcpt 120pos 2mm R/A 30gold	conn 2mm FB rcpt 144pos R/A gold
Standard Package	12	4	48	480	1,800	1,600
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Connector Style	Futurebus	Futurebus	Futurebus	Futurebus	Futurebus	Futurebus
Number of Positions	96	264	24	48	120	144
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	4	4	4	4	4	4
Mounting Type	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Features	Board Guide, Space	Board Guide, Space	Board Guide, Space	Board Guide, Space	Board Guide, Space	Board Guide, Space
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Col	Natural	Natural	Natural	Natural	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Voltage Rating	30V	30V	30V	30V	30V	30V
Mating Products	A108459-ND - 2MMFB SIG PIN ASY 096 4.25536514-3-ND - HDR PIN VERT 96 POS 30AU 2MMA3264-ND - CONN HEADER VERT 2MM 96POS 30AUA3268-ND - CONN HEADER VERT 2MM 96POS 30AU	-	A3262-ND - CONN HEADER VERT 2MM 24POS 30AU536514-1-ND - CONN HEADER PIN 24POS VERT GOLD223513-1-ND - CONN 2MM FB PLUG 24POS R/A GOLDA3262-ND - CONN HEADER VERT 2MM 24POS 30AUA3266-ND - CONN HEADER VERT 2MM 24POS 30AU	223513-2-ND - CONN 2MM FB PLUG 48POS R/A GOLD536514-2-ND - 2MMFB,ASY,048,SIG,HDR,EN,4.25536526-2-ND - HDR PIN VERT 48 POS AU FLASH 2MM536514-4-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A3263-ND - CONN HEADER VERT 2MM 48POS 30AUA3267-ND - CONN HEADER VERT 2MM 48POS 30AU	536504-6-ND - 2MM FB,ASY,120,SIG,HDR,EN,6.50	5536511-5-ND - 2MM FB,ASY,144,SIG,REC,EN,3.555223650-6-ND - 2MM FB,4RV,REC,ASY,144,PF,4.255536507-7-ND - CONN 2MM FB RCPT 144PS 4ROW R/A536511-5-ND - CONN 2MM FB RCPT 144POS R/A GOLD536510-5-ND - CONN RECEPT RT/A 144POS 2MM PCB
Other Names	650-1166-01A3272	-	2-42936-9591A3270	A3271	536507-6-NDA29101	-
