1934305-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1934305-1

1934305-1: Descriptionconn header Z-pack R/A 4x8open; CategoryThe connector; File Size334KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1934305-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1934305-1	-	-	View	Buy Now

1934305-1 Overview

conn header Z-pack R/A 4x8open

1934305-1 Parametric

Parameter Name	Attribute value
Datasheets

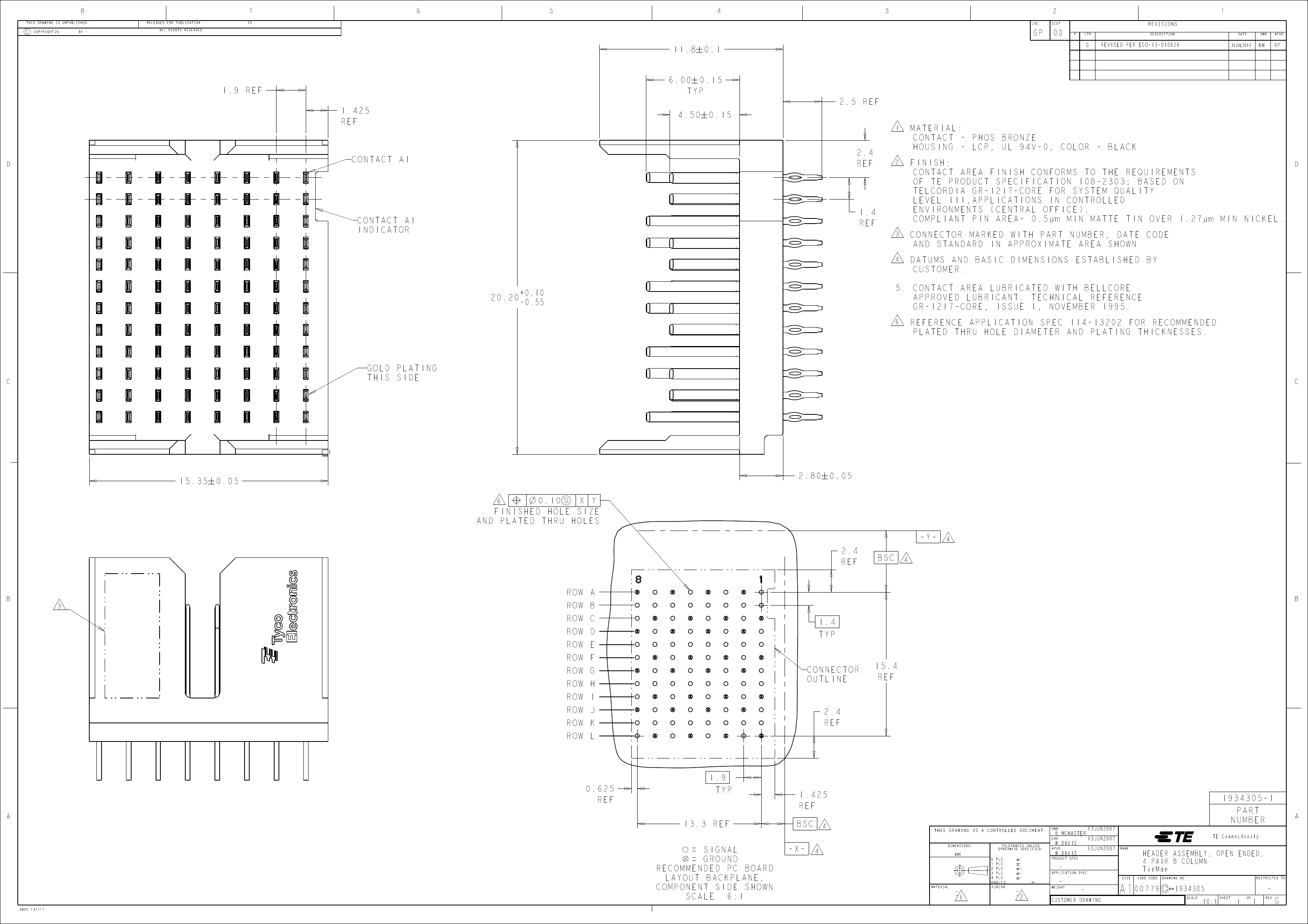

1934305-1 Drawing
Product Photos
1934305-1
Other Related Documents
Backplane Roadm
Standard Package	33
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Backplane
Connector Type	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)
Number of Positions	96
Number of Positions Loaded	All
Pitch	0.075" (1.91mm)
Number of Rows	12
Number of Columns	8
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	0.5A
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 90°C
Voltage Rating	250V
Other Names	1934305-1-ND19343051A115012

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

11.8

0.1

REVISED PER ECO-13-010626

31JUL2013

1.9 REF

1.425

REF

6.00 0.15

TYP

4.50

0.15

2.5 REF

CONTACT A1

2.4

REF

MATERIAL:

CONTACT - PHOS BRONZE

HOUSING - LCP, UL 94V-0, COLOR - BLACK

FINISH:

CONTACT AREA FINISH CONFORMS TO THE REQUIREMENTS

OF TE PRODUCT SPECIFICATION 108-2303; BASED ON

TELCORDIA GR-1217-CORE FOR SYSTEM QUALITY

LEVEL III,APPLICATIONS IN CONTROLLED

ENVIRONMENTS (CENTRAL OFFICE).

COMPLIANT PIN AREA- 0.5µm MIN MATTE TIN OVER 1.27µm MIN NICKEL.

CONNECTOR MARKED WITH PART NUMBER, DATE CODE

AND STANDARD IN APPROXIMATE AREA SHOWN

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY

CUSTOMER.

CONTACT A1

INDICATOR

1.4

REF

+0.10

20.20

-0.55

5. CONTACT AREA LUBRICATED WITH BELLCORE

APPROVED LUBRICANT. TECHNICAL REFERENCE

GR-1217-CORE, ISSUE 1, NOVEMBER 1995.

REFERENCE APPLICATION SPEC 114-13202 FOR RECOMMENDED

PLATED THRU HOLE DIAMETER AND PLATING THICKNESSES.

GOLD PLATING

THIS SIDE

15.35

0.05

X Y

FINISHED HOLE SIZE

AND PLATED THRU HOLES

2.80

0.05

-Y-

2.4

REF

ROW A

BSC

ROW B

ROW C

ROW D

ROW E

ROW F

ROW G

ROW H

ROW I

ROW J

ROW K

ROW L

2.4

REF

1.4

TYP

15.4

REF

CONNECTOR

OUTLINE

0.625

REF

1.9

TYP

1.425

REF

BSC

-X-

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

1934305-1

13JUN2007

NAME

13.3

REF

PART

NUMBER

B.MCMASTER

W.DAVIS

TE Connectivity

= SIGNAL

= GROUND

RECOMMENDED PC BOARD

LAYOUT BACKPLANE,

COMPONENT SIDE SHOWN

SCALE

6:1

4805 (3/11)

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

HEADER ASSEMBLY, OPEN ENDED,

4 PAIR 8 COLUMN

TinMan

DRAWING NO

RESTRICTED TO

1934305

SCALE

10:1

SHEET

REV

1934305-1 Related Products

	1934305-1
Description	conn header Z-pack R/A 4x8open
Standard Package	33
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Backplane
Connector Type	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)
Number of Positions	96
Number of Positions Loaded	All
Pitch	0.075" (1.91mm)
Number of Rows	12
Number of Columns	8
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	0.5A
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 90°C
Voltage Rating	250V
Other Names	1934305-1-ND19343051A115012
