5-6450120-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-6450120-5

5-6450120-5: Descriptionmbxlr/ahdr4p+24s+2P; CategoryThe connector; File Size3MB，24 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

5-6450120-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6450120-5	-	-	View	Buy Now

5-6450120-5 Overview

mbxlr/ahdr4p+24s+2P

5-6450120-5 Parametric

Parameter Name	Attribute value
Datasheets
6450120
Product Photos
5-6450120-5
Standard Package	1
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tray
Connector Usage	-
Connector Type	Header, Male Pins and Blades
Connector Style	Multi-Beam
Number of Positions	30
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Contact Layout, Typical	24 Signal, 6 Powe
Features	Board Lock, Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	-
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-20°C ~ 105°C
Voltage Rating	-
Other Names	A119716

Preview

Download Datasheet

View All

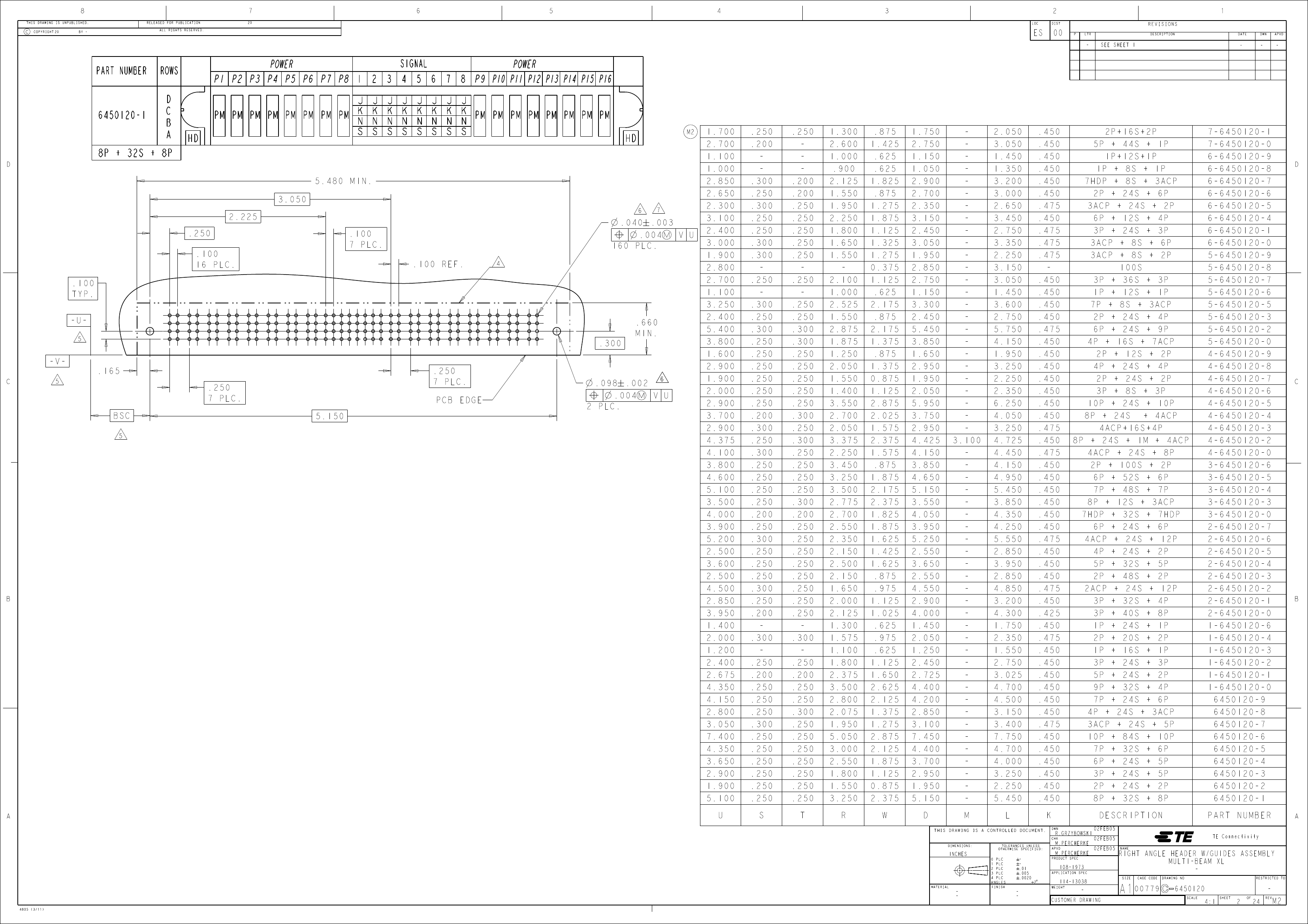

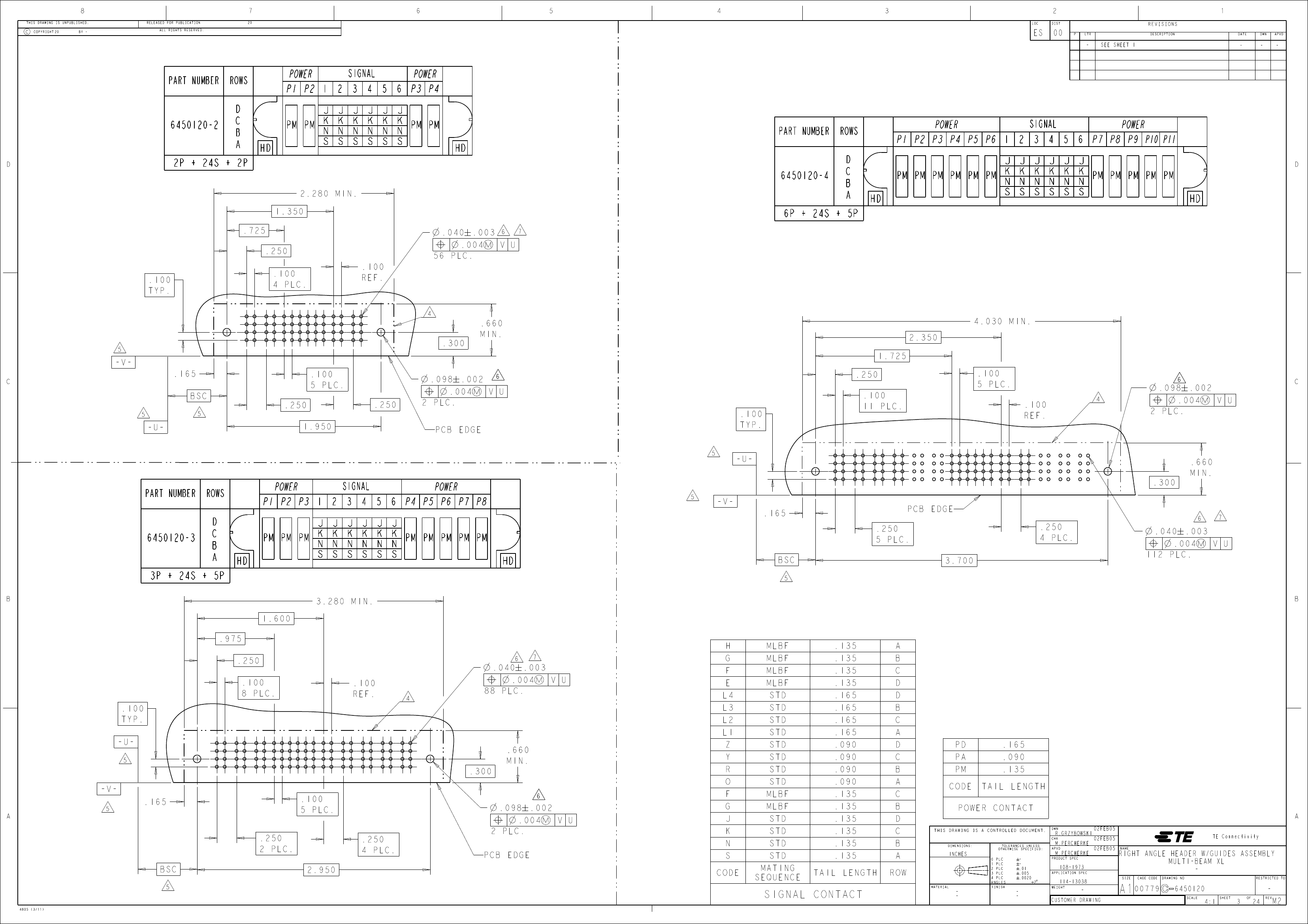

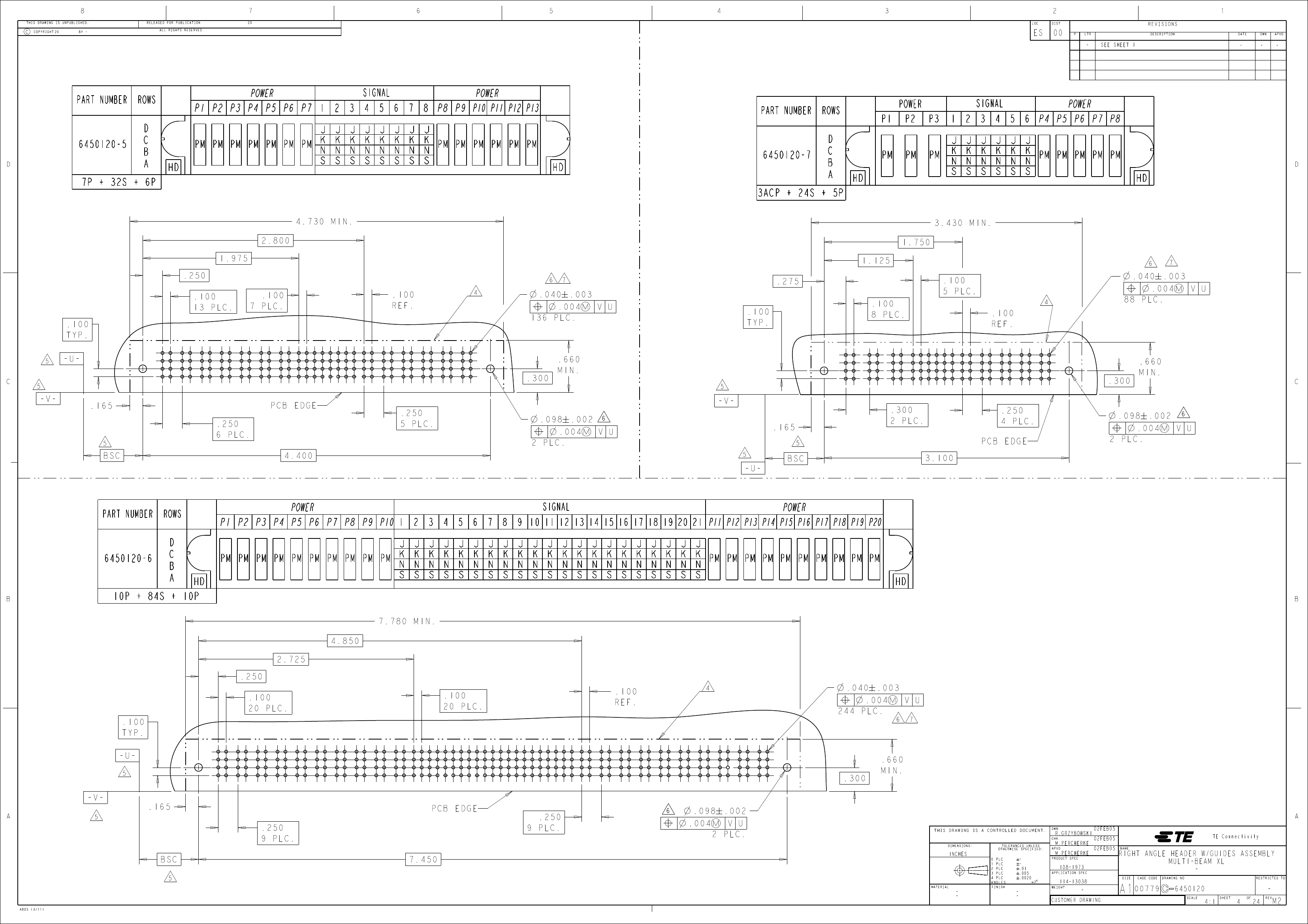

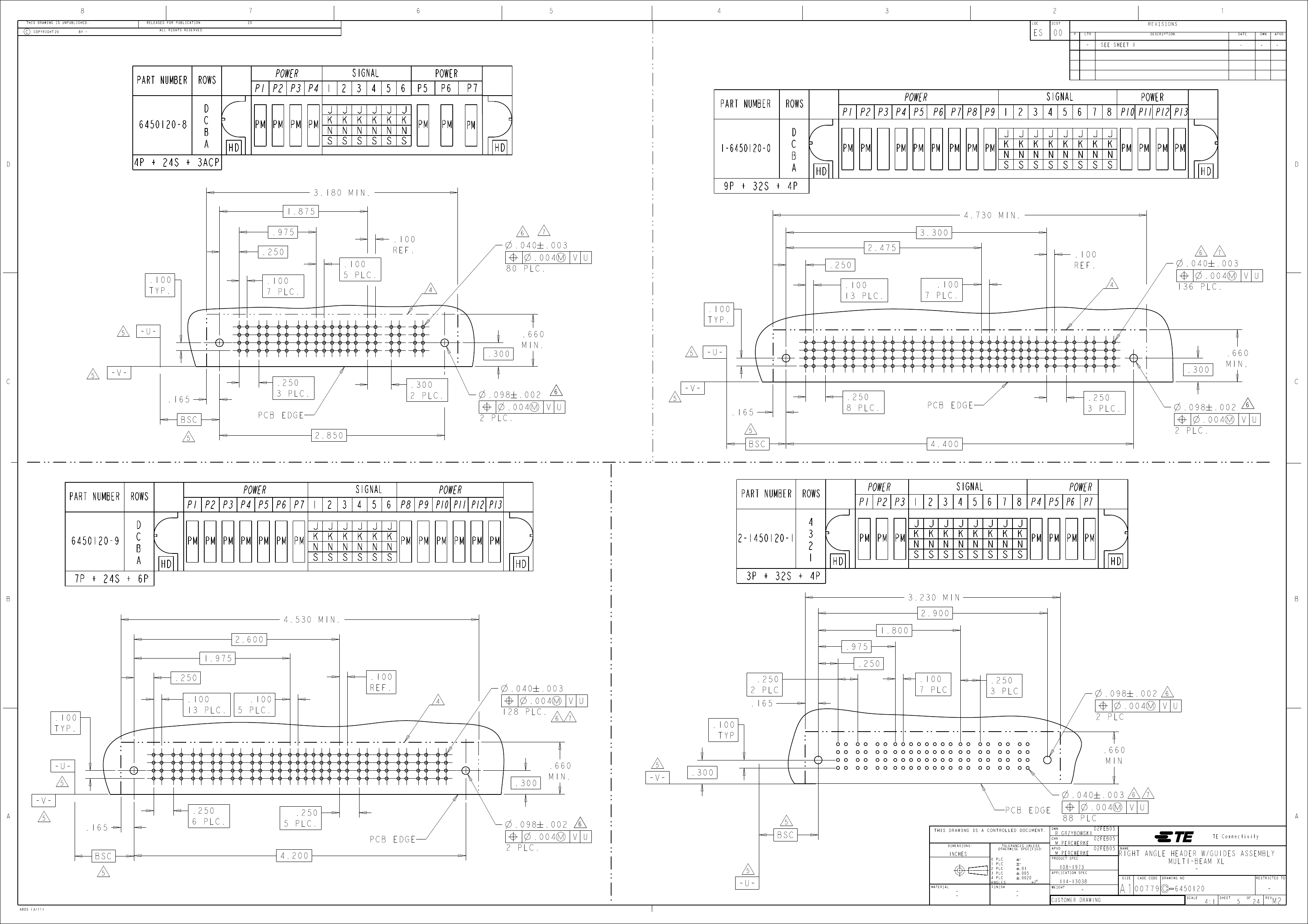

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ADD NEW DASH NUMBER 7-0

ADD NEW DASH NUMBER

08FEB2014

21MAR2014

DIM L

# .010

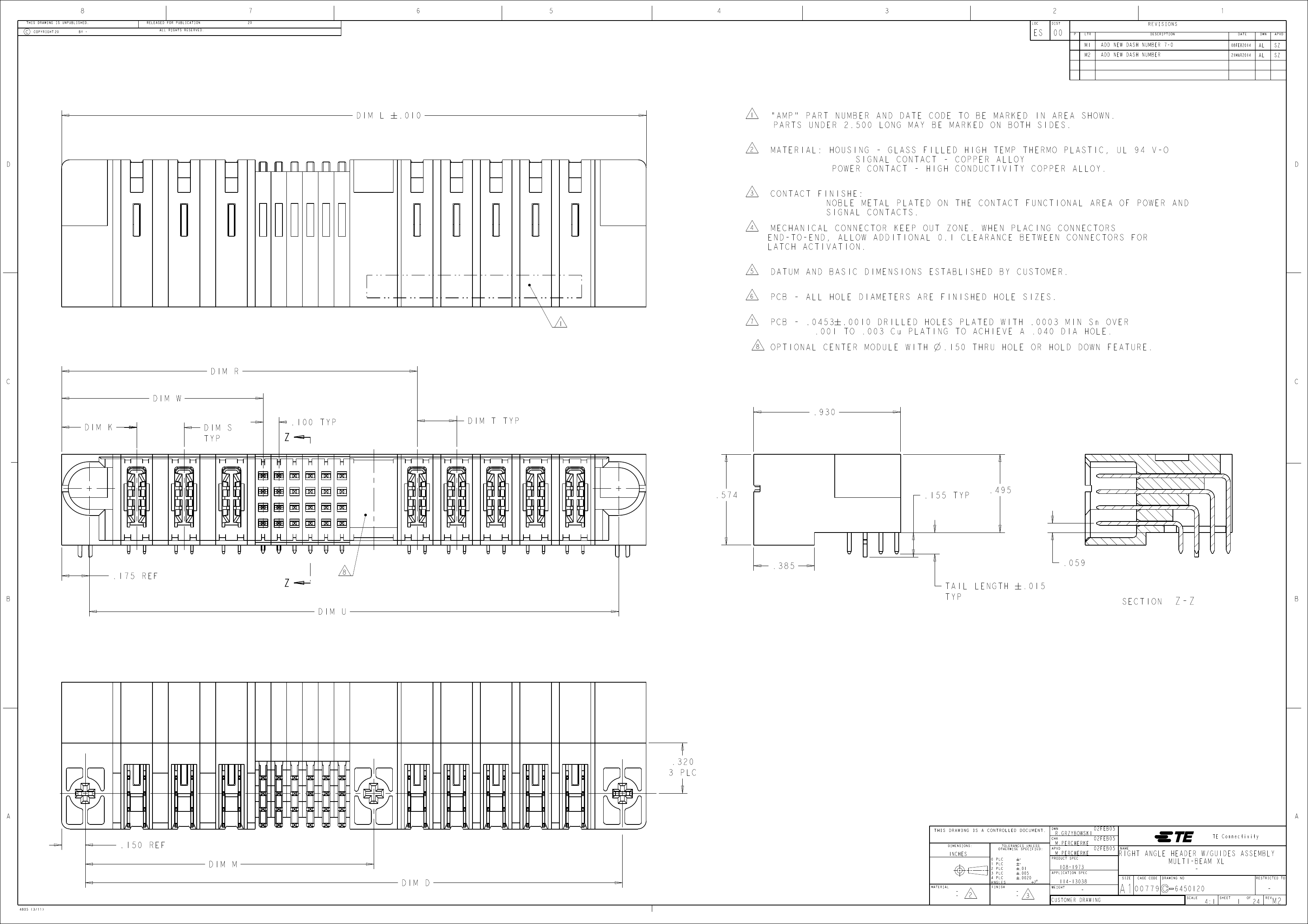

"AMP" PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN.

PARTS UNDER 2.500 LONG MAY BE MARKED ON BOTH SIDES.

MATERIAL: HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL 94 V-O

SIGNAL CONTACT - COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY.

CONTACT FINISHE:

NOBLE METAL PLATED ON THE CONTACT FUNCTIONAL AREA OF POWER AND

SIGNAL CONTACTS.

MECHANICAL CONNECTOR KEEP OUT ZONE. WHEN PLACING CONNECTORS

END-TO-END, ALLOW ADDITIONAL 0.1 CLEARANCE BETWEEN CONNECTORS FOR

LATCH ACTIVATION.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES.

PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn OVER

.001 TO .003 Cu PLATING TO ACHIEVE A .040 DIA HOLE.

OPTIONAL CENTER MODULE WITH

n .150 THRU HOLE OR HOLD DOWN FEATURE.

DIM R

DIM W

DIM K

DIM S

TYP

.100

TYP

DIM T TYP

.930

.574

.155

TYP

.495

.175

REF

.385

TAIL LENGTH

TYP

# .015

.059

DIM U

SECTION

Z-Z

.320

3 PLC

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

R.GRZYBOWSKI

M.PERCHERKE

108-1973

02FEB05

NAME

.150

REF

DIM M

DIM D

MATERIAL

TE Connectivity

INCHES

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

RIGHT ANGLE HEADER W/GUIDES ASSEMBLY

MULTI-BEAM XL

2 $

WEIGHT

114-13038

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

6450120

SCALE

4805 (3/11)

4:1

SHEET

REV
