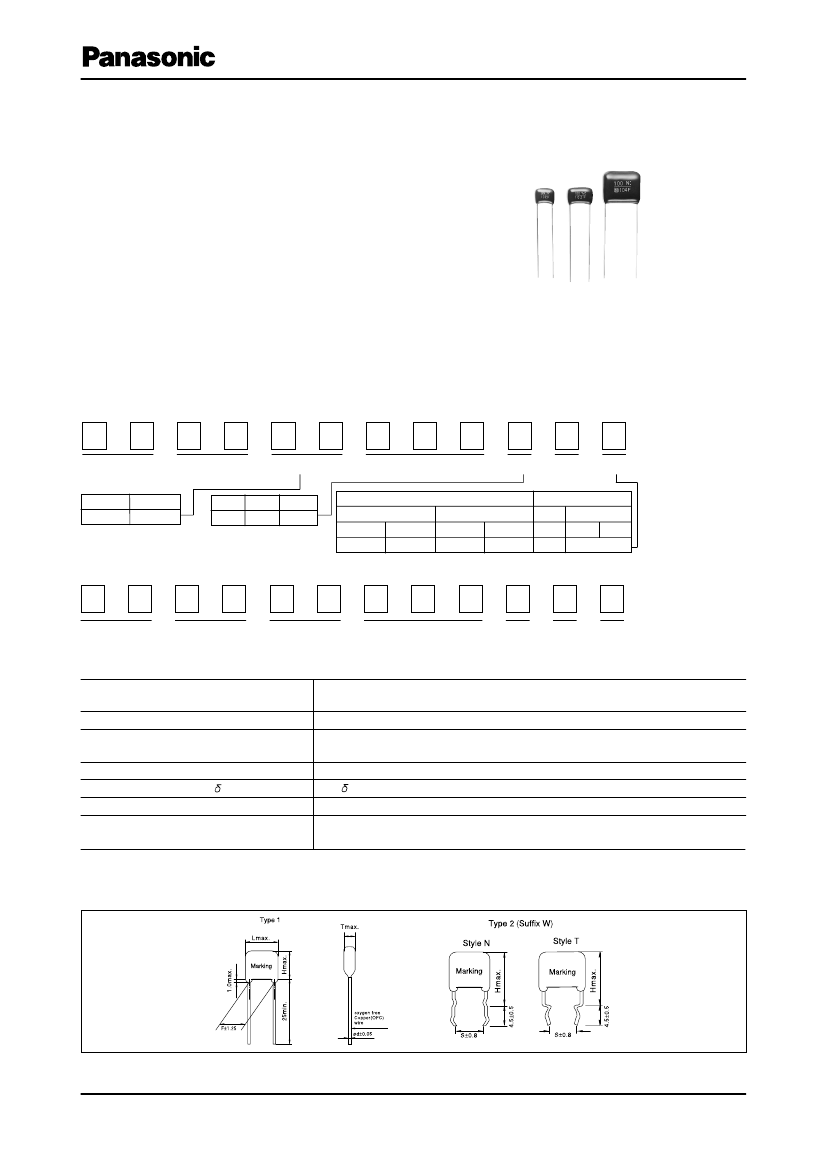

Plastic Film Capacitors
PPS Film Capacitor
Type:
ECHS(Z)
Non-inductive construction with PPS film designed for high
heat resistance and high frequency applications
IFeatures
•
Wide operating temperature range – 40 ˚C to + 125 ˚C
•
Excellent temperature coefficient – 100 ppm/˚C
•
Excellent frequency characteristics
•
RoHS directive compliant
IRecommended
Applications
•
Automotive components
•
Oscillation circuits
IExplanation
of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
H
S
Rated voltage
Capacitance
Taping
Z
Cap. Tol. Suffix
Suffix
Product code
50 VDC 100 VDC
1H
1
Dielectric &
construction
F
G
±
1 %
±
2 %
±
5 %
J
Crimped lead
Ammo
Reel
Type 1
Type 2
Straight Crimped Straight Crimped
Style N Style T
2
3
5
9
Blank
W
G
Explanation of Part Number for Odd Size Taping
E
C
H
S
Rated voltage
Capacitance
R
Z
Product code
Dielectric &
construction
7.5 mm Cap. Tol. Suffix
Crimped lead
ISpecifications
Category temp. range
(Including temperature-rise on unit surface)
Rated voltage
Capacitance range
Capacitance tolerance
Dissipation factor (tan )
Withstand voltage
Insulation resistance (IR)
– 40 ˚C to + 125 ˚C
50 VDC, 100 VDC
50 V : 0.0010 µF to 0.47 µF
100 V : 0.00010 µF to 0.47 µF
± 1 %(F), ± 2 %(G) , ± 5 %(J)
tan
<
0.3 % (20 ˚C, 1 kHz)
=
Between terminals : Rated volt.(VDC)
✕
250 % 1 s to 5 s
>
C < 0.33 µF : IR
=
45000 MΩ
=
(20 ˚C, 100 VDC, 60 s)
>
C > 0.33 µF : IR
=
15000 MΩ . µF
❈
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please
refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
IDimensions
in mm (not to scale)
IPackaging
Specifications for Bulk Package
I
Packing quantity:100 pcs./bag
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Mar.
2006
Plastic Film Capacitors
GTaping
style
ITaping
Specifications for Automatic Insertion
..
.
✕
Refer to the page of taping specifications.
.
GPackaging
Specifications
Type
Rated volt.
Cap. range
(µF)
0.0010 to 0.056
0.0010 to 0.056
0.0010 to 0.012
0.0010 to 0.012
0.068 to 0.47
0.15 to 0.47
0.068 to 0.12
0.00010 to 0.027
0.00010 to 0.027
0.00010 to 0.0047
0.00010 to 0.0047
0.033 to 0.12
0.033 to 0.056
0.068 to 0.47
Taping style
AD AS
O
O
O
O
B
C
D
E
Ammo
Reel
Ammo
Reel
Ammo
Ammo
Ammo
Ammo
Reel
Ammo
Reel
Ammo
Ammo
Ammo
Packing
GLead
Spacing
Style
AD
AS
C
D
E
❈
Lead Spacing
5.0 mm
5.0 mm
5.0 mm
7.5 mm
7.5 mm
50 VDC
O
O
O
O
O
O
O
O
O
O
ECHS
100 VDC
See the column
“Rating, Dimensions &
Quantity Box” for
packing quantity.
GRated
voltage : 50 VDC, Capacitance tolerance : ±1 %(F), ±2 %(G), ±5 %(J)
Part No.
ECHS1H102
ECHS1H122
ECHS1H152
ECHS1H182
ECHS1H222
ECHS1H272
ECHS1H332
ECHS1H392
ECHS1H472
ECHS1H562
ECHS1H682
ECHS1H822
ECHS1H103
ECHS1H123
ECHS1H153
ECHS1H183
ECHS1H223
ECHS1H273
ECHS1H333
ECHS1H393
ECHS1H473
ECHS1H563
ECHS1H683
ECHS1H823
ECHS1H104
ECHS1H124
ECHS1H154
ECHS1H184
ECHS1H224
ECHS1H274
ECHS1H334
ECHS1H394
ECHS1H474
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
MZ(
L
IRating,
Dimensions & Quantity/Ammo Box or Reel
Cap.
(µF)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
L
max.
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
14.5
14.5
14.5
14.5
17.0
17.0
17.0
17.0
17.0
17.0
17.0
T
max.
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.5
4.5
4.5
4.5
4.5
5.0
5.0
5.5
5.0
5.5
6.0
6.5
6.5
6.5
7.0
7.5
8.5
9.0
10.0
Dimensions (mm)
F
S
H
max.
Type 1 Type 2
Type 1 Type 2
7.6
7.8
7.6
7.6
7.8
7.8
8.0
7.8
8.0
8.2
7.6
7.6
7.8
8.0
7.8
8.0
8.2
10.4
10.6
10.4
10.8
11.0
11.2
11.6
12.0
12.4
12.4
14.0
14.4
15.2
15.8
16.4
17.2
12.6
12.8
12.6
12.6
12.8
12.8
13.0
12.8
13.0
13.2
12.6
12.6
12.8
13.0
12.8
13.0
13.2
15.4
15.6
15.4
15.8
16.0
16.2
16.6
17.0
18.4
18.4
19.0
19.4
20.2
20.8
21.4
22.2
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
5.00
7.50
7.50
7.50
7.50
7.50
7.50
7.50
7.50
10.00
10.00
10.00
10.00
12.50
12.50
12.50
12.50
12.50
12.50
12.50
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Quantity
ød
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.80
0.80
0.80
0.80
Ammo
Reel
1000
1000
—
500
400
L
Suffix for lead crimped or taped type
Cap. tol. code
Style N: 0.0010 µF to 0.012 µF
Style T: 0.015 µF to 0.47 µF
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Mar.
2006
Plastic Film Capacitors
IRating,
Dimensions & Quantity/Ammo Box or Reel
GRated
voltage:100 VDC, Capacitance tolerance : ± 1 %(F), ± 2 %(G), ± 5 %(J)
Cap.
(µF)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
L
Part No.
ECHS1101
MZ(
ECHS1121
MZ(
ECHS1151
MZ(
ECHS1181
MZ(
ECHS1221
MZ(
ECHS1271
MZ(
ECHS1331
MZ(
ECHS1391
MZ(
ECHS1471
MZ(
ECHS1561
MZ(
ECHS1681
MZ(
ECHS1821
MZ(
ECHS1102
MZ(
ECHS1122
MZ(
ECHS1152
MZ(
ECHS1182
MZ(
ECHS1222
MZ(
ECHS1272
MZ(
ECHS1332
MZ(
ECHS1392
MZ(
ECHS1472
MZ(
ECHS1562
MZ(
ECHS1682
MZ(
ECHS1822
MZ(
ECHS1103
MZ(
ECHS1123
MZ(
ECHS1153
MZ(
ECHS1183
MZ(
ECHS1223
MZ(
ECHS1273
MZ(
ECHS1333
MZ(
ECHS1393
MZ(
ECHS1473
MZ(
ECHS1563
MZ(
ECHS1683
MZ(
ECHS1823
MZ(
ECHS1104
MZ(
ECHS1124
MZ(
ECHS1154
MZ(
ECHS1184
MZ(
ECHS1224
MZ(
ECHS1274
MZ(
ECHS1334
MZ(
ECHS1394
MZ(
ECHS1474
MZ(
L
L
max.
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
12.0
14.5
14.5
14.5
14.5
17.0
17.0
17.0
17.0
20.5
20.5
20.5
20.5
20.5
20.5
20.5
T
max.
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
5.0
4.5
4.5
4.5
4.5
5.0
5.0
5.5
5.0
5.5
5.5
6.0
6.0
6.5
6.5
6.5
7.0
7.5
7.5
7.5
8.5
9.0
10.0
10.5
11.5
0.00010
0.00012
0.00015
0.00018
0.00022
0.00027
0.00033
0.00039
0.00047
0.00056
0.00068
0.00082
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
Cap. tol. code
Dimensions (mm)
F
S
H
max.
Type 1 Type 2
Type 1 Type 2
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
6.5
11.5
5.00
5.0
7.0
12.0
5.00
5.0
7.0
12.0
5.00
5.0
7.0
12.0
5.00
5.0
7.0
12.0
5.00
5.0
7.5
12.5
5.00
5.0
7.0
12.0
5.00
5.0
7.5
12.5
5.00
5.0
7.0
12.0
5.00
5.0
7.5
12.5
5.00
5.0
8.0
13.0
7.50
5.0
7.8
12.8
7.50
5.0
8.0
13.0
7.50
5.0
8.0
13.0
7.50
5.0
8.2
13.2
7.50
5.0
8.4
13.4
7.50
5.0
8.8
13.8
7.50
5.0
10.8
15.8
7.50
5.0
11.2
16.2
7.50
5.0
11.2
16.2 10.00
5.0
11.6
16.6 10.00
5.0
11.8
16.8 10.00
5.0
12.2
17.2 10.00
5.0
12.2
17.2 12.50
5.0
13.8
18.8 12.50
5.0
14.2
19.2 12.50
5.0
14.8
19.8 12.50
5.0
15.0
20.0 15.00
5.0
15.6
20.6 15.00
5.0
16.2
21.2 15.00
5.0
17.6
22.6 15.00
5.0
18.4
23.4 15.00
5.0
19.2
24.2 15.00
5.0
20.2
25.2 15.00
5.0
Quantity
ød
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.80
0.80
0.80
0.80
0.80
0.80
0.80
Ammo
Reel
1000
1000
500
—
400
300
Suffix for lead crimped or taped type
Style N: 0.00010 µF to 0.0047 µF
Style T: 0.0056 µF to 0.47 µF
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Mar.
2006
