4201350000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 4201350000

4201350000: Descriptionfuse board mnt 3.5A 125vac 80vdc; CategoryCircuit protection; File Size59KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

4201350000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4201350000	-	-	View	Buy Now

4201350000 Overview

fuse board mnt 3.5A 125vac 80vdc

4201350000 Parametric

Parameter Name	Attribute value
Datasheets
420 SM Series
Standard Package	1,000
Category	Circuit Protecti
Family	Fuses
Packaging	Tape & Reel (TR)
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating	3.5A
Voltage Rating - AC	125V
Voltage Rating - DC	80V
Response Time	Slow
Package / Case	2410 (6125 Metric)
Mounting Type	Surface Mou
Breaking Capacity @ Rated Voltage	35A AC, 50A DC
Melting I²	21
Approvals	CCC, cULus
Operating Temperature	-55°C ~ 125°C
Col	-
Size / Dimensi	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)
DC Cold Resistance	-
Other Names	42013500000

Preview

Download Datasheet

View All

URFACE

OUNT

USES

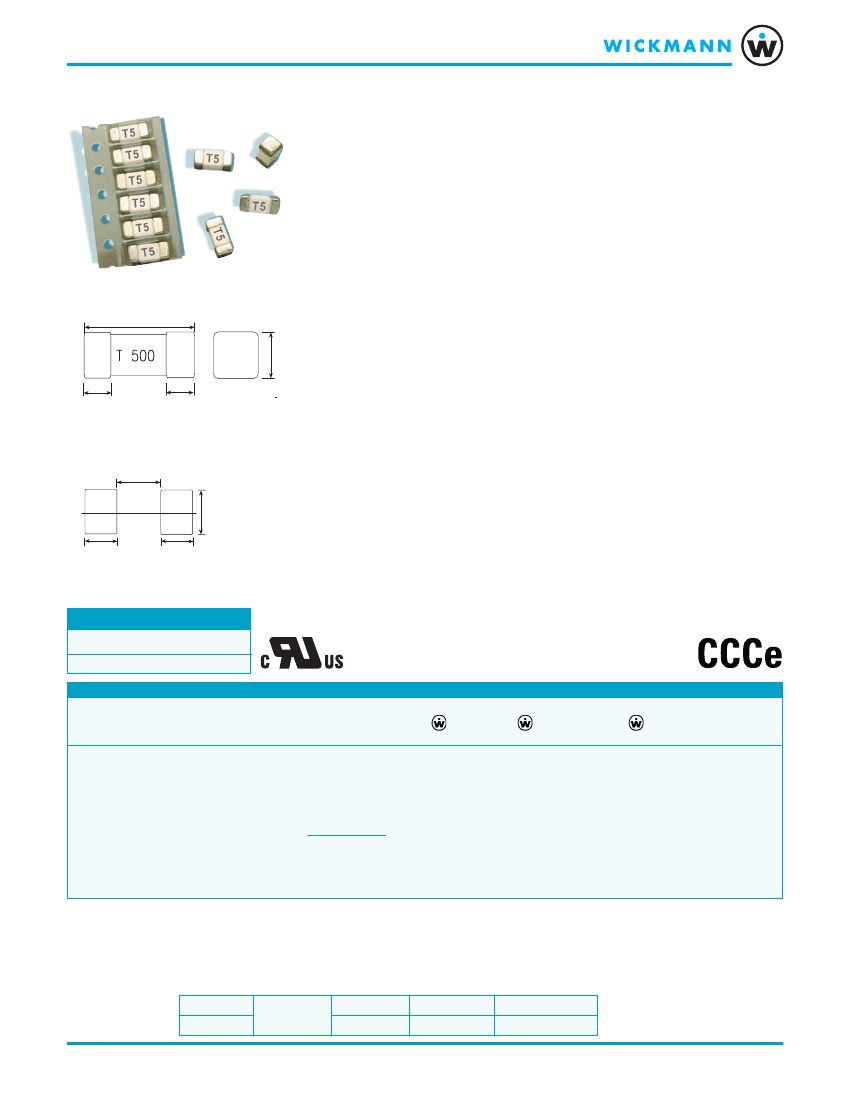

No. 420 SM

UL 248-14, 125 V, T

Time-Current Characteristic

Time Lag (T)

Specifications

Packaging

000: Blister tape 18 cm reel (1000 pcs.)

001: Blister tape 33 cm reel (5000 pcs.)

Tape width 12 mm

Standard

UL 248-14

CSA C22.2 No. 248.14

Materials

Housing:

Element:

Terminals:

Ceramic

Wire

Copper alloy, silver plated

Approvals

cULus Recognized

Features

Heat resistant ceramic housing

For line or low voltage applications

Low voltage drop

Internationally approved

High pulse resistance

Also available as holder system 425 with

mounted fuse 420

CCCexemption for China Import

Temperature

Operating Temperature

-55 ºC to +125 ºC (consider de-rating)

Climatic Category

-55 ºC/+125 ºC/21 days (IEC 60068-1,-2-1,-2-2,-2-78)

Dimensions (mm)

6,1 –0,2

max. 2,77

Stock Conditions

+10ºC to +60ºC

relative humidity

≤

75 % yearly average,

without dew, maximum value for 30 days-95 %

WebLinks

Further infos see:

www.wickmanngroup.com

V ibration Resistance

24 cycles at 15 min each (IEC 60068-2-6)

10 - 60 Hz at 0.75 mm amplitude

60 - 2000 Hz at 10 g acceleration

1,45 -0,2

Further application infos see Fuseology:

Solderability

235 ºC, 3 s (IEC 60068-2-58)

Pad Layout

3,0

3,15 +0,05

www.wickmanngroup.com/download/

fuseology.pdf

Soldering Heat Resistance

260 ºC, 10 s (IEC 60068-2-58)

Minimum Cross Section, Copper

Conducting path - 0.175 mm

Thickness - 0.035 mm

Mounting

Avoid circuit traces below the fuse

1,96 +0,05

Marking

T, Current Rating

Weight

Unit Weight

Limits for Pre-arcing Time

Rated Current

500 mA ... 5.00 A

0.23g (approx.)

2.0 x I

1 s ... 60 s

cURus

500mA

750mA

1.00A

1.50A

2.00A

2.50A

3.00A

3.50A

4.00A

5.00A

0500

0750

1100

1150

1200

1250

1300

1350

1400

1500

125V

50 A / 125 V AC

50-60Hz

cos

= 1.0

50 A / 80 V DC

35 A / 125 V AC

50-60 Hz; cos

= 1.0

50 A / 80 V DC

430

300

270

150

165

130

125

112

110

100

230

270

435

270

380

400

450

512

560

620

0.22

0.75

1.60

3.20

5.50

8.50

11.0

21.0

30.0

50.0

0.29

1.0

2.2

5.0

6.8

11.0

14.5

28.0

40.0

74.0

•

Order

Information

040518

Qty.

Order-

Number

Series

420

Amp Code

Packaging

Specifications are subject

to change without notice

China

Tel: +86 21 6432 5146

E-mail: sales@wickmann.cn

WebSite

Europe

Tel: +49 2302 662-107

www.wickmanngroup.com E-mail: sales@wickmann.com

Americas

Tel: +1 404 699-7820

E-mail: service@wickmannusa.com

Asia

Tel: +852 26 14-1108

E-mail: sales@wickmann.com.hk

CCCe

Permissible continuous operating current is

≤

70% at ambient temperature of 23ºC (73.4ºF).

Rated

Amp

Voltage

Breaking Voltage Drop Power Dissipation

Current

code

Rating

Capacity

1.0 x I

typ. (mV)

typ. (mW)

Melting Integral

10 x I

min. (A

s) typ.

Approvals

•

4201350000 Related Products

	4201350000	42014000000	42011500000	42007500000	42012000000	42011000000	42012500000	42013000000	42015000000	42005000000
Description	fuse board mnt 3.5A 125vac 80vdc	fuse board mount 4A 125vac 80vdc	fuse board mnt 1.5A 125vac 80vdc	fuse brd mnt 750ma 125vac 80vdc	fuse board mnt 2A 125vac 80vdc	fuse board mount 1A 125vac 80vdc	fuse board mnt 2.5A 125vac 80vdc	fuse board mount 3A 125vac 80vdc	fuse board mount 5A 125vac 80vdc	fuse brd mnt 500ma 125vac 80vdc
Standard Package	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Category	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti	Circuit Protecti
Family	Fuses	Fuses	Fuses	Fuses	Fuses	Fuses	Fuses	Fuses	Fuses	Fuses
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Fuse Type	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)	Board Mount (Cartridge Style Excluded)
Current Rating	3.5A	4A	1.5A	750mA	2A	1A	2.5A	3A	5A	500mA
Voltage Rating - AC	125V	125V	125V	125V	125V	125V	125V	125V	125V	125V
Voltage Rating - DC	80V	80V	80V	80V	80V	80V	80V	80V	80V	80V
Response Time	Slow	Slow	Slow	Slow	Slow	Slow	Slow	Slow	Slow	Slow
Package / Case	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)	2410 (6125 Metric)
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Breaking Capacity @ Rated Voltage	35A AC, 50A DC	35A AC, 50A DC	50A	50A	50A	50A	50A	35A AC, 50A DC	35A AC, 50A DC	50A
Melting I²	21	30	3.2	0.75	5.5	1.6	8.5	11	50	0.22
Approvals	CCC, cULus	CCC, cULus	CCC, cULus	CCC, cULus	CCC, cULus	CCC, cULus	CCC, cULus	CCC, cULus	CCC, cULus	CCC, cULus
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Size / Dimensi	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)	0.240" L x 0.109" W x 0.109" H (6.10mm x 2.77mm x 2.77mm)
Other Names	42013500000	42014000004201400000-ND	42011500004201150000-ND	42007500004200750000-ND	42012000004201200000-ND	42011000004201100000-ND	42012500004201250000-ND	42013000004201300000-ND	42015000004201500000-ND	42005000004200500000-ND
