1-6450142-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-6450142-3

1-6450142-3: Descriptionmbxl vert rcpt 6P+20s; CategoryThe connector; File Size950KB，8 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-6450142-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-6450142-3	-	-	View	Buy Now

1-6450142-3 Overview

mbxl vert rcpt 6P+20s

1-6450142-3 Parametric

Parameter Name	Attribute value
Datasheets
6450142 Drawing
Product Photos
1-6450142-3
Standard Package	33
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tray
Connector Usage	-
Connector Type	Receptacle, Female Sockets and Blade Sockets
Connector Style	Multi-Beam
Number of Positions	26
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole
Terminati	Solde
Contact Layout, Typical	20 Signal, 6 Powe
Features	Board Lock, Guide Pi
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	-
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-20°C ~ 105°C
Voltage Rating	-
Other Names	A108894

Preview

Download Datasheet

View All

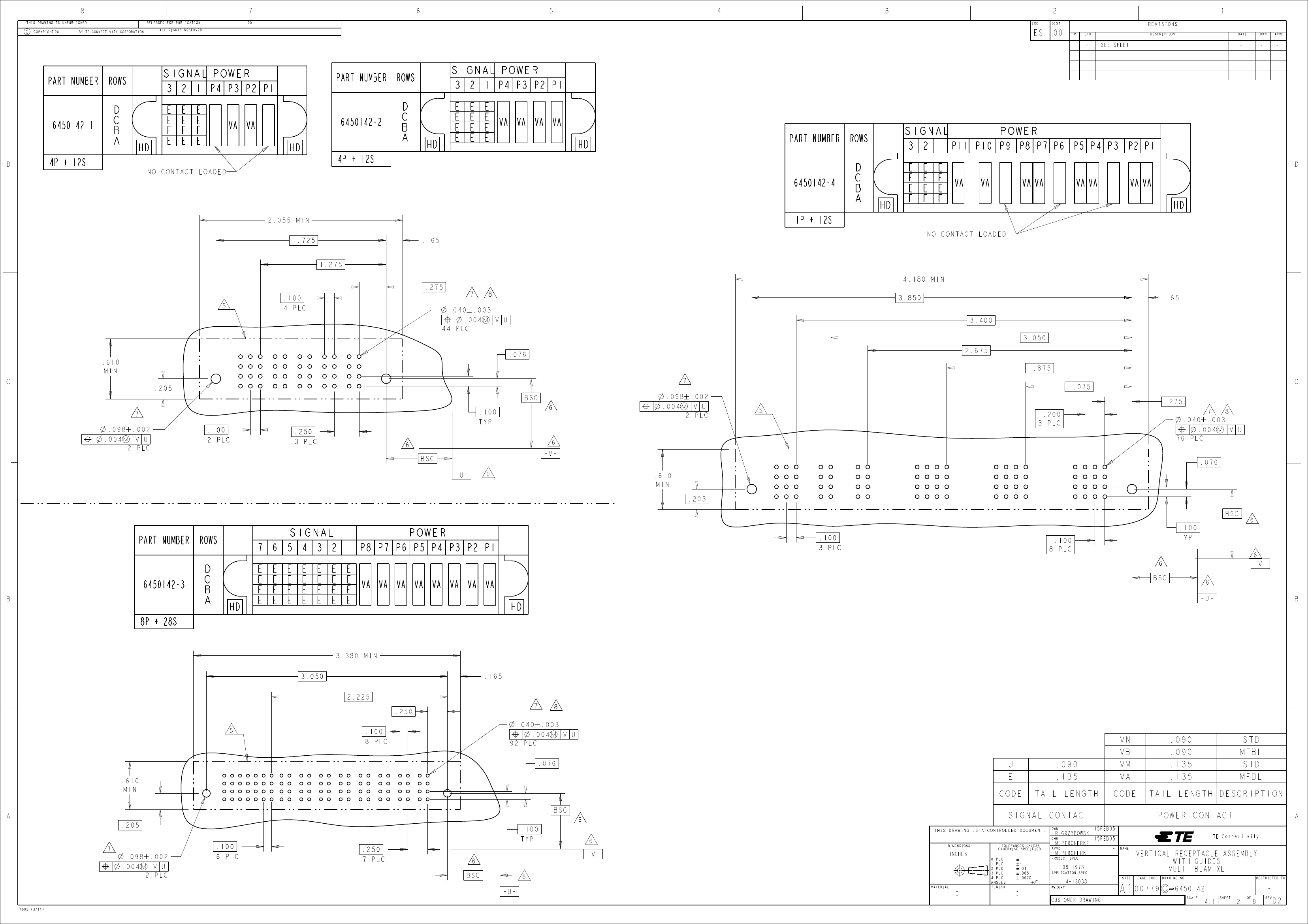

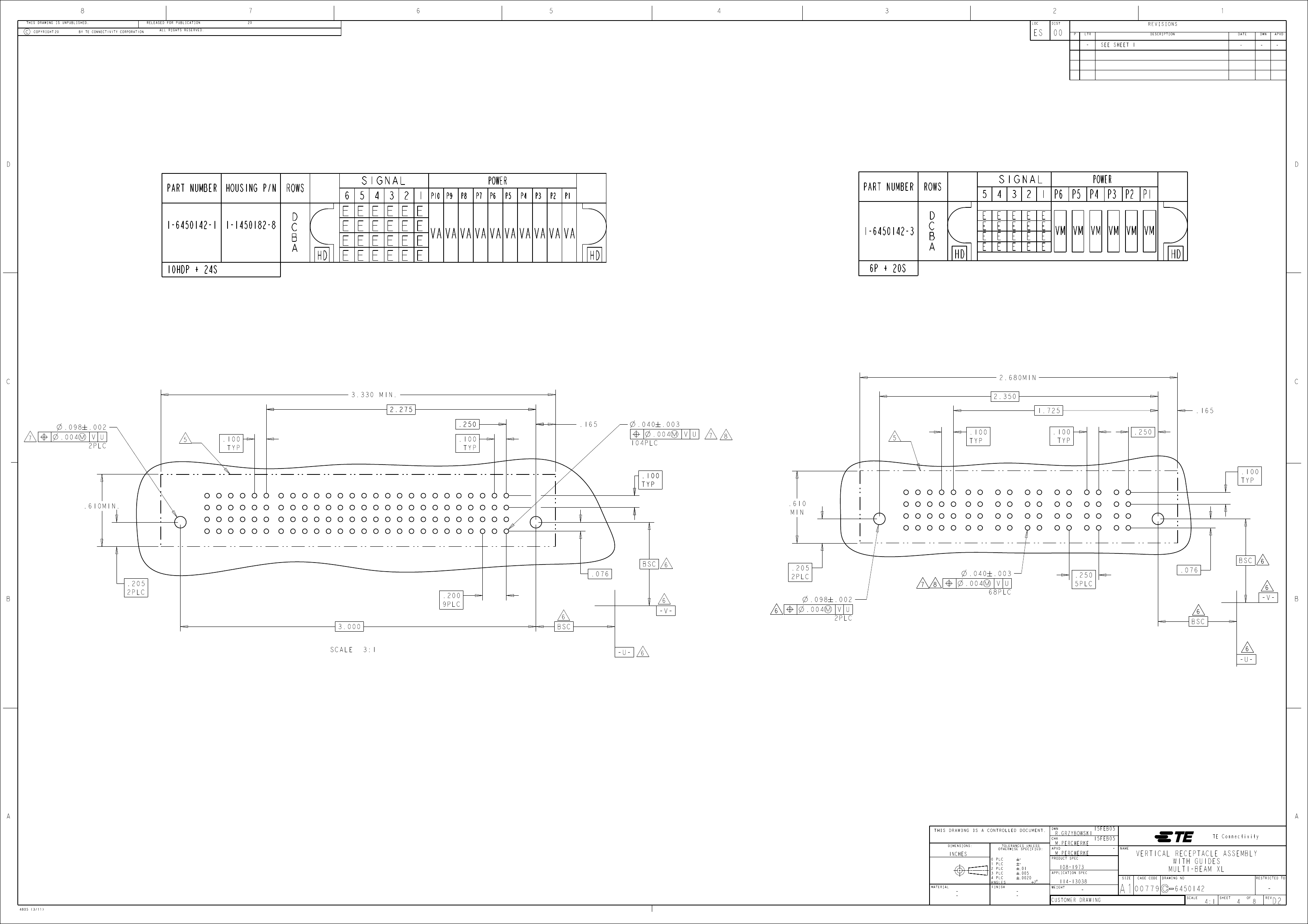

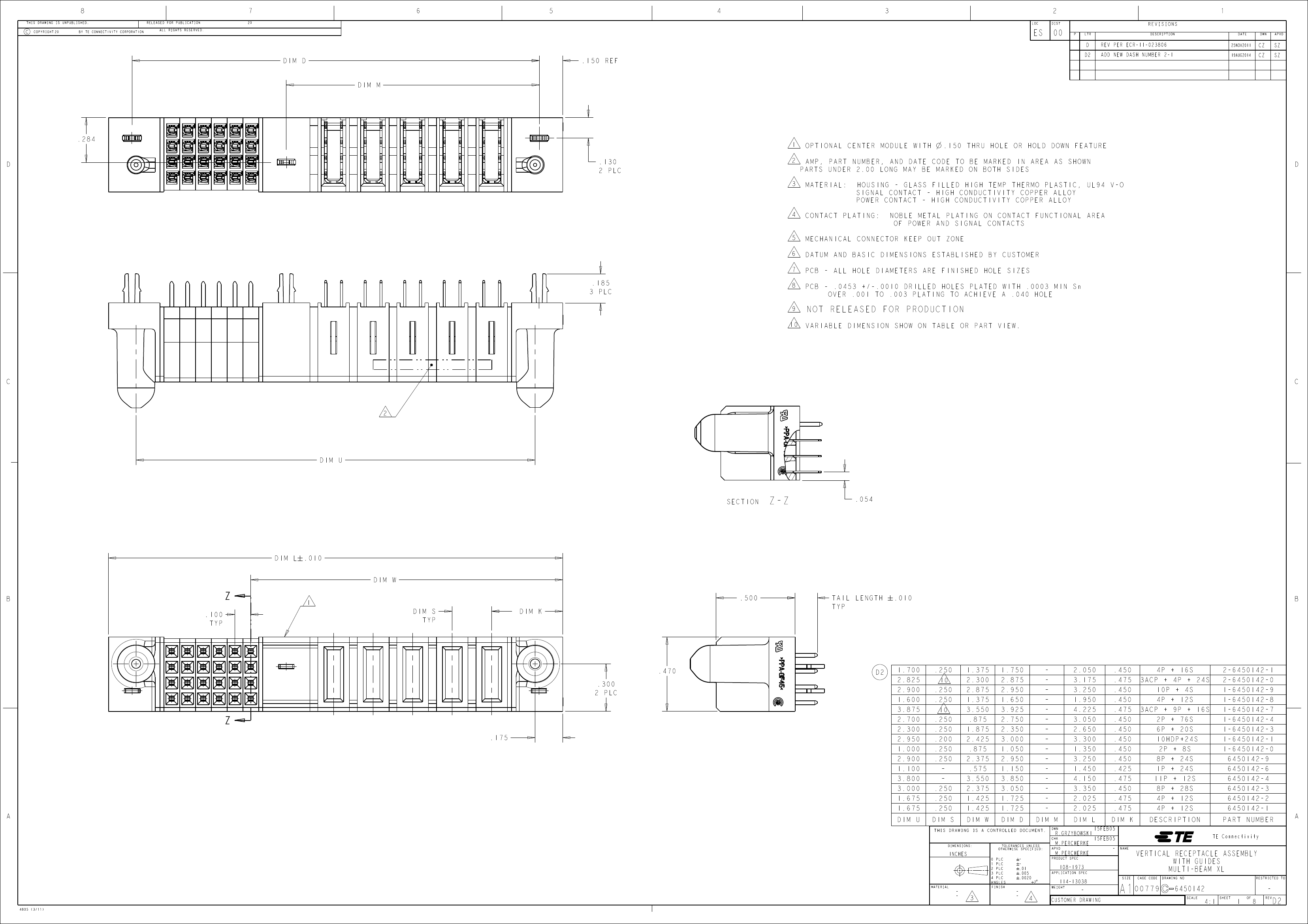

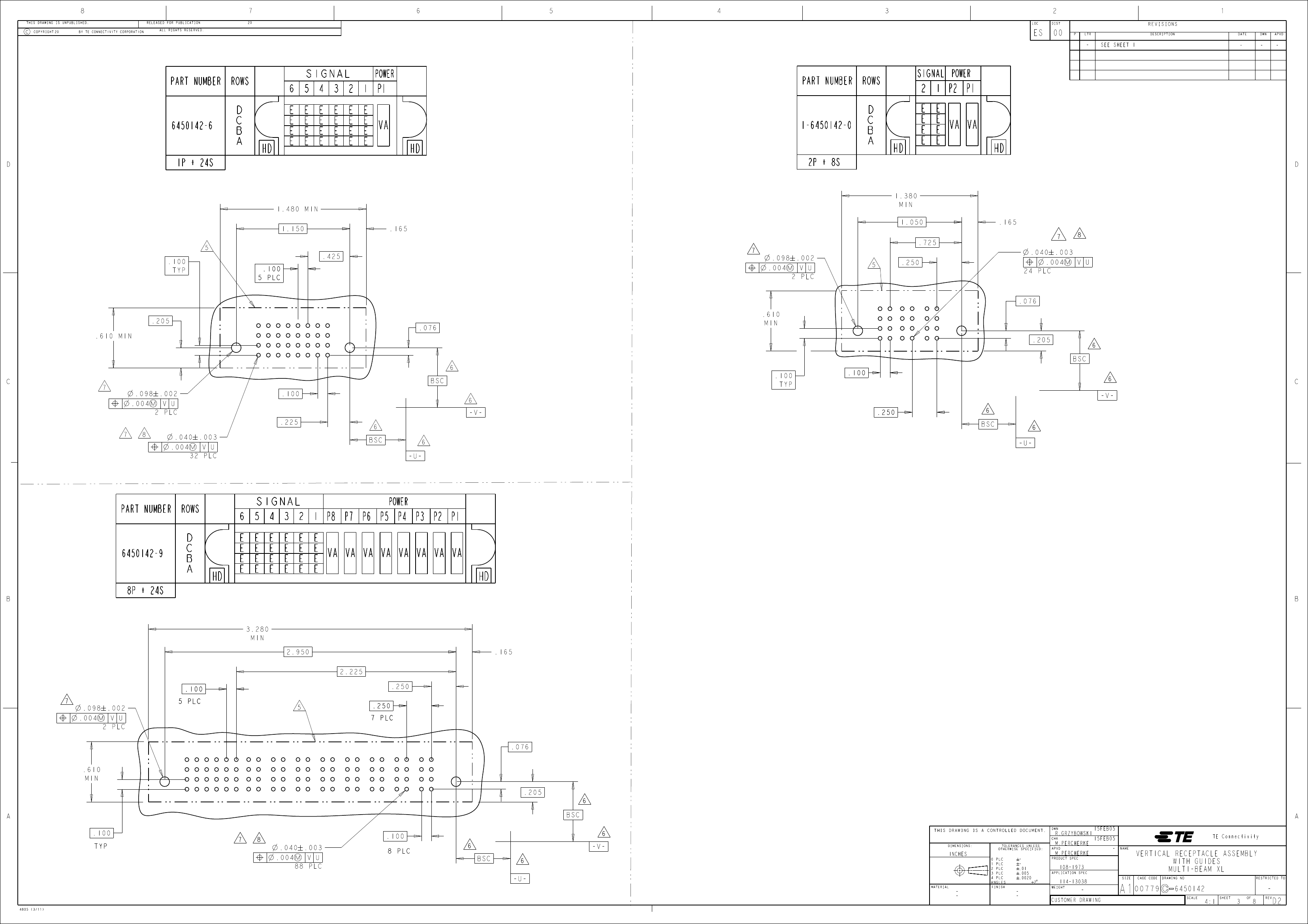

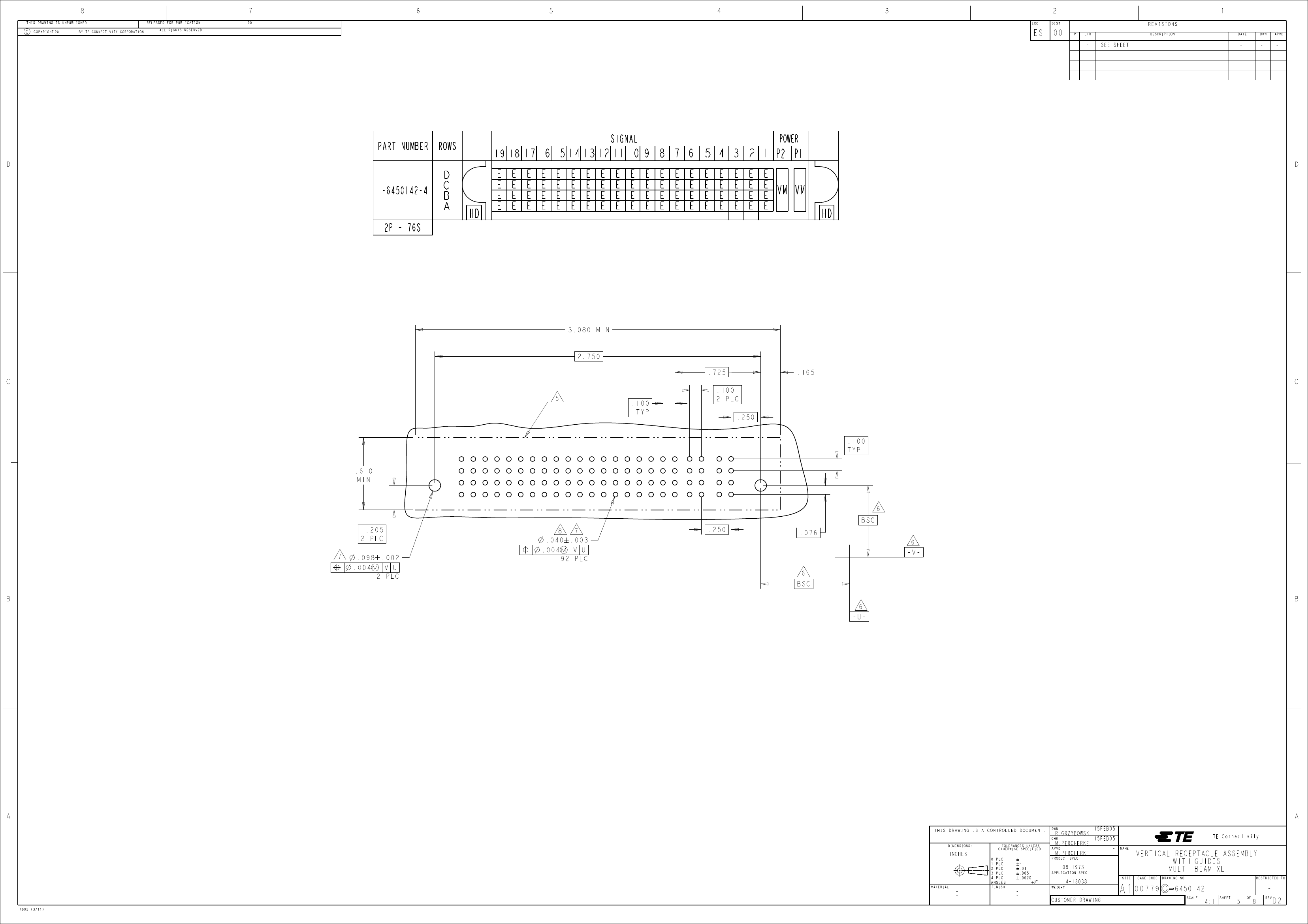

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY TE CONNECTIVITY CORPORATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

DIM D

DIM M

.150 REF

REV PER ECR-11-023806

ADD NEW DASH NUMBER 2-1

25NOV2011

19AUG2014

.284

.130

2 PLC

OPTIONAL CENTER MODULE WITH

n .150 THRU HOLE OR HOLD DOWN FEATURE

AMP, PART NUMBER, AND DATE CODE TO BE MARKED IN AREA AS SHOWN

PARTS UNDER 2.00 LONG MAY BE MARKED ON BOTH SIDES

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS

CONTACT PLATING:

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES

PCB - .0453 +/-.0010 DRILLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 PLATING TO ACHIEVE A .040 HOLE

.185

3 PLC

NOT RELEASED FOR PRODUCTION

VARIABLE DIMENSION SHOW ON TABLE OR PART VIEW.

DIM U

SECTION

Z-Z

.054

DIM L # .010

DIM W

.100

TYP

.500

DIM S

TYP

DIM K

TAIL LENGTH

TYP

.470

.300

2 PLC

1.700

2.825

2.900

1.600

.250

.200

.250

1.375

2.300

2.875

1.375

.875

1.750

2.875

2.950

1.650

3.925

2.750

2.350

3.000

1.050

2.950

1.150

3.850

3.875

2.700

.175

2.950

1.000

2.900

3.550

DIM M

DWN

CHK

2.050

3.250

1.950

3.175

.450

.475

3ACP + 4P + 24S

10P + 4S

4P + 12S

2P + 76S

6P + 20S

2P + 8S

4P + 16S

2-6450142-1

1-6450142-9

1-6450142-8

1-6450142-4

1-6450142-3

2-6450142-0

4.225

3.050

3.300

1.350

3.250

4.150

.475

.450

.475

.450

.475

3ACP + 9P + 16S

1-6450142-7

2.300

.250

2.425

2.375

.875

1.875

2.650

.450

10HDP+24S

8P + 24S

1-6450142-1

1-6450142-0

6450142-6

6450142-9

6450142-4

6450142-3

6450142-2

6450142-1

1.100

3.800

3.000

1.675

DIM U

.250

DIM S

3.550

2.375

1.425

DIM W

.575

1.450

.425

3.050

1.725

DIM D

3.350

2.025

DIM L

R.GRZYBOWSKI

M.PERCHERKE

108-1973

11P + 12S

8P + 28S

4P + 12S

DESCRIPTION

1P + 24S

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

15FEB05

DIM K

PART NUMBER

TE Connectivity

INCHES

APVD

NAME

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

2 $

WEIGHT

114-13038

CUSTOMER DRAWING

00779

SIZE

VERTICAL RECEPTACLE ASSEMBLY

WITH GUIDES

MULTI-BEAM XL

CAGE CODE

DRAWING NO

RESTRICTED TO

6450142

SCALE

4805 (3/11)

4:1

SHEET

REV

1-6450142-3 Related Products

	1-6450142-3	1-6450142-7
Description	mbxl vert rcpt 6P+20s	mbxl vert rcpt 3acp+9P+16s
Standard Package	33	22
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tray	Tray
Connector Type	Receptacle, Female Sockets and Blade Sockets	Receptacle, Female Sockets and Blade Sockets
Connector Style	Multi-Beam	Multi-Beam
Number of Positions	26	28
Number of Positions Loaded	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	4	4
Mounting Type	Through Hole	Through Hole
Terminati	Solde	Solde
Contact Layout, Typical	20 Signal, 6 Powe	16 Signal, 9 Powe
Features	Board Lock, Guide Pi	Guide Pi
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature	-20°C ~ 105°C	-20°C ~ 105°C
Other Names	A108894	A108895
