160WA6820CA16X16 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 160WA6820CA16X16

160WA6820CA16X16: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 68uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size73KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

160WA6820CA16X16 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 68uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

160WA6820CA16X16 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1767968116
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.5352 mA
Manufacturer's serial number	WA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	160 V
ripple current	353 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

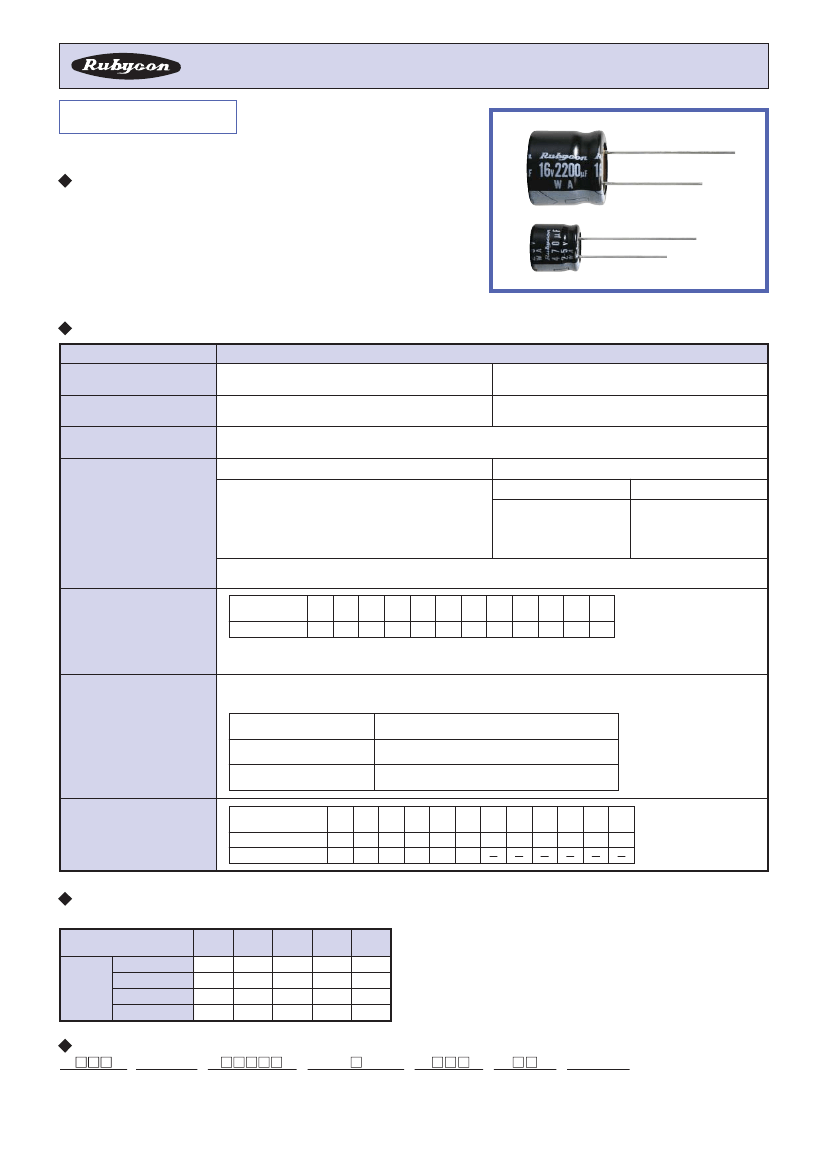

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

SERIES

C Miniaturized low profile.

FEATURES

•

9∼25mm height.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-40

∼

+85

6.3∼250V.DC

20%(20

C,120Hz)

-25

∼

+85

350∼450V.DC

6.3∼50V.DC

0.01CV or 3

A whichever is greater.

Leakage Current(MAX)

(After 2 minutes application of rated voltage)

160∼450V.DC

CV < 1000

0.1CV

A (1minute)

CV > 1000

I=0.04CV

100

A (1minute)

0.03CV

A (5minutes)

I=0.02CV

A (5minutes)

Leakage Current

(µA)

Rated Capacitance

(µF)

Rated Voltage

(V)

(20

C,120Hz)

Dissipation Factor(MAX)

(tan

)

Rated Voltage

6.3 10 16 25 35 50 160 200 250 350 400 450

(V)

tanδ

0.26 0.22 0.18 0.16 0.14 0.12 0.20 0.20 0.20 0.20 0.20 0.20

When rated capacitance is over 1000

F, tanδ shall be added 0.02 to the listed value with increase of every 1000

After applying rated voltage with rated ripple current for 2000hrs at 85

C, the capacitors shall meet the following requirements.

Within - 25% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

(V)

C)/Z(20

Z(-40

C)/Z(20

Low Temperature Stability

Impedance Ratio(MAX)

6.3

160 200 250 350 400 450

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

60(50)

(Hz)

1.5∼ 6.8µF

0.65

10∼ 68µF

0.8

Coefficient

0.8

100∼ 1000µF

2200∼ 10000µF 0.8

Frequency

120

1.0

500

1.20

1.10

1.05

1.30

1.15

1.10

10k <

1.50

1.20

1.15

PART NUMBER

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

Case Size

Recommended Resources
