200KXF560MEOESN35X20 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 200KXF560MEOESN35X20

Preview

200KXF560MEOESN35X20: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 560uF, THROUGH HOLE MOUNT, ROHS COMPLIANT; CategoryPassive components capacitor; File Size68KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

200KXF560MEOESN35X20 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200V, 560uF, THROUGH HOLE MOUNT, ROHS COMPLIANT

200KXF560MEOESN35X20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1695409843
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	560 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.0039 mA
Manufacturer's serial number	KXF
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	1430 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

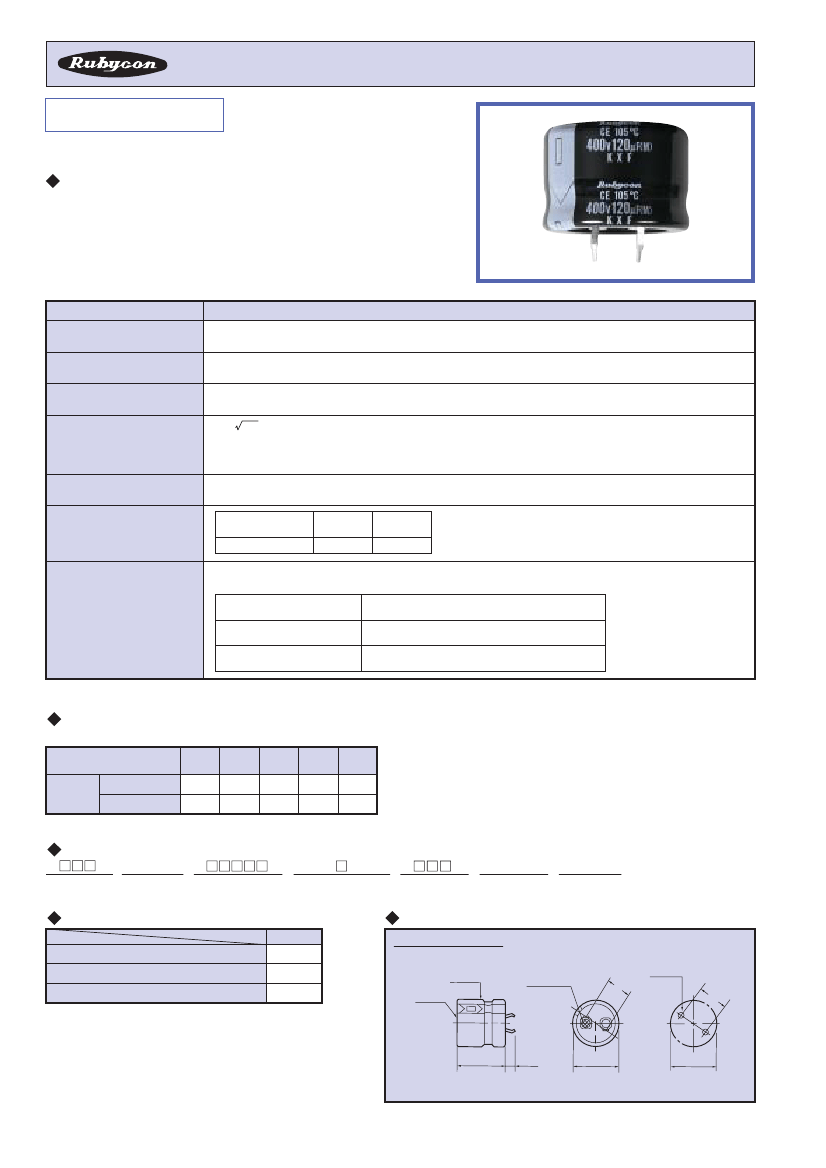

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

KXF

SERIES

105

o

C Low profile, Snap-in Terminal Type

FEATURES

•

Load Life : 105

°

C

3000 hours, with 20mm height.

•

Smaller size with higher ripple current endurance than AXF series.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

I

=

3 CV

Leakage Current(MAX)

Characteristics

-25∼

+105

°

C

160∼450V.DC

+

-

20%(20

°

C,120Hz)

(After 5 minutes application of rated voltage)

I=

Leakage Current

(µA)

V=

Rated Voltage

(V)

C=

Rated Capacitance(

µF)

Dissipation Factor(MAX)

(tan

δ

)

Impedance Ratio(MAX)

Rated Voltage

(V)

°

C

)/Z(20

°

C

)

Z(

-

25

160

∼

250

3

400

∼

450

8

0.20(20

°

C,120Hz)

(120Hz)

After applying rated voltage with rated ripple current for 3000hrs at 105

°

C

, the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

+

Within -20% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

MULTIPLIER FOR RIPPLE CURRENT0

Frequency coefficient

Frequency

Coefficient

60(50) 120

(Hz)

160∼250WV 0.80 1.00

400∼450WV

0.80

1.00

500

1.20

1k

1.30

1.25

10k <

=

1.50

1.40

PART NUMBER

KXF

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

SN

Terminal Code

D

×

L

Case Size

Option

Code

PET Sleeve without plate

PVC Sleeve without plate

PVC Sleeve with plate

DIMENSIONS

●

SN

［4(3.5)mm½terminal type

(mm)

EFC

OOE

Blank

VENT

SLEEVE

2-

φ

2

NEGATIVE

10

-

0.1

+

L

-

2

∗

4

-

0.5

+

∗

For

φ

35, 3.5

-

0.5

+

φ

D

-

1

+

φ

D

-

1

MOUNTING HOLES

Recommended Resources

Interface circuit between CMOS and NMOS a

High performance regulated power supply circuit diagram

Using diodes and voltage regulator tubes to stabilize the three-terminal voltage integrated circuit_1

Low noise crystal oscillator

Single button bistable touch switch

555 long delay timer circuit diagram 1
