Features
■
RoHS compliant* versions available (see
How to Order “Termination” option)
■
Compatible with automatic insertion
equipment
■
Superior package integrity
■
Now available with improved tolerance
to ±0.5 %
For information on specific applications,
download Bourns’ application notes:
■
DRAM Applications
■
Dual Terminator Resistor Networks
■
R/2R Ladder Networks
■
SCSI Applications
Product Characteristics
Resistance Range
.................... 10 ohms to 10 megohms
Maximum Operating Voltage .........100 V
Temperature Coefficient of Resistance
50
Ω
to 2.2 MΩ...............±100 ppm/°C
below 50
Ω
.....................±250 ppm/°C
above 2.2 MΩ.................±250 ppm/°C
TCR Tracking.........................50 ppm/°C
maximum; equal values
Resistor Tolerance ............... See circuits
Operating Temperature
................................-55 °C to +125 °C
Insulation Resistance
................ 10,000 megohms minimum
Dielectric Withstanding Voltage
...........................................200 VRMS
Lead Solderability .....Meet requirements
of MIL-STD-202 Method 208
Environmental Characteristics
TESTS PER MIL-STD-202 ...... ∆R MAX.
Short Time Overload..................±0.25 %
Load Life ....................................±1.00 %
Moisture Resistance ..................±0.50 %
Resistance to Soldering Heat
...............................................±0.25 %
Terminal Strength ......................±0.25 %
Thermal Shock ..........................±0.25 %
Physical Characteristics
Flammability ........ Conforms to UL94V-0
Lead Frame Material
.........................Copper, solder coated
Body Material.................. Novolac epoxy
How To Order
WATTS
41 14 R - 1 - 152 __ __
Model
(41 = Molded DIP)
Number of Pins
Physical Configuration
(R = Thick Film Low Profile)
Electrical Configuration
• 1 = Isolated
• 2 = Bussed
• 3 = Dual Terminator
Resistance Code
• First 2 digits are significant
• Third digit represents the
number of zeros to follow.
Resistance Tolerance
• Blank = ±2 % (see “Resistance Tolerance”
on next page for resistance range)
• F = ±1 % (100 ohms - 1 megohm)
• D = ±0.5 % (100 ohms - 1 megohm)
Terminations
• LF = Tin-plated (RoHS compliant version)
• Blank = Tin/Lead-plated
Consult factory for other available options.
1
R–
16 40
41 120 C11
–

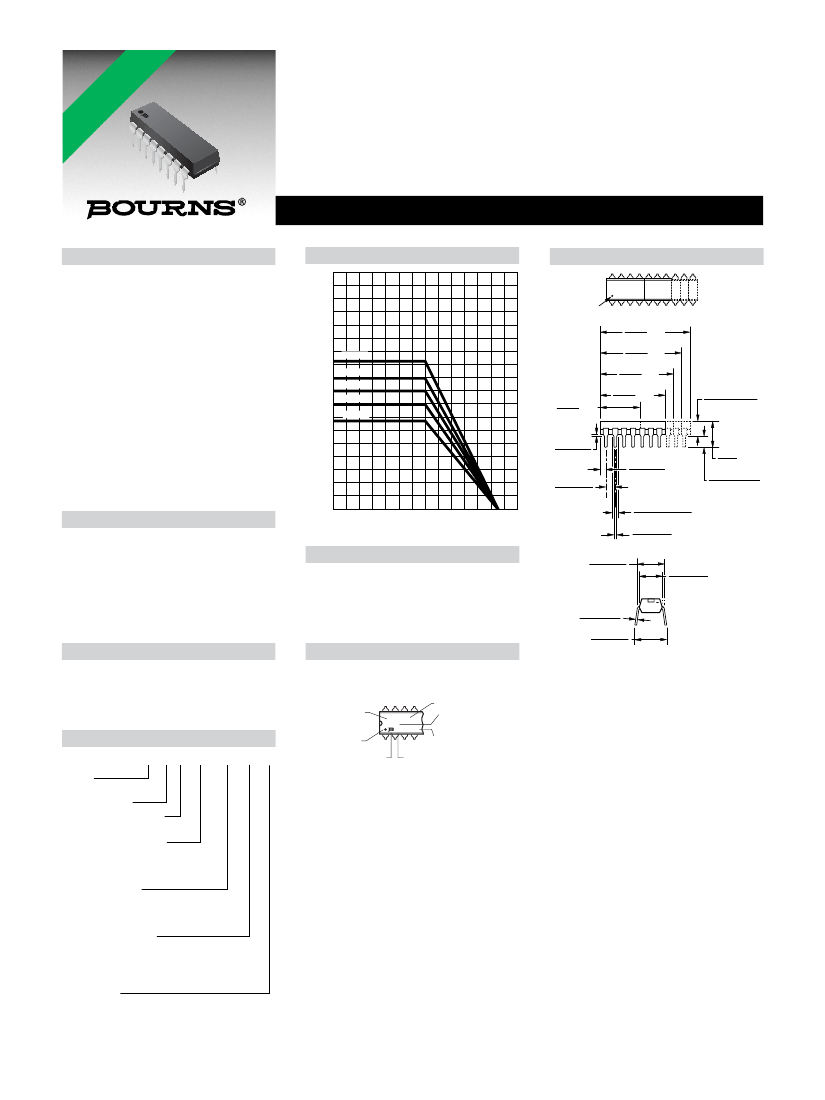

4100R Series - Thick Film Molded DIPs
Package Power Temp. Derating Curve
Product Dimensions
4.00
PIN #1 REF.
3.50
3.00
2.50
2.00
1.50
1.00
.50
.89 .25
(.035 .010)
TYP.
2.54 .25
(.100 .010*)
TYP.
NON-ACCUM.
8.40
MAX.
(.331)
3.43 + .38/ - .25.
(135 + .015/ - .010)
27.05
MAX.
(1.065)
24.51
MAX.
(.965)
21.97
MAX.
(.865)
19.43
MAX.
(.765)
4120R
4118R
4116R
4114R
4108R
11.81
MAX.
(.465)
4.57 + .12/ - .28
(.180 + .005/ - .007)
2.03 .12
(.080 .005)
0
25
70
125
AMBIENT TEMPERATURE (
°
C )
1.65 + .12/ - .07
(.065 + .005/ - .003)
.438
(.019
.050
TYP.
.002)
Package Power Rating at 70 °C
4108R .....................................1.69 watts
4114R .....................................2.00 watts
4116R .....................................2.25 watts
4118R .....................................2.50 watts
4120R .....................................2.80 watts
Typical Part Marking
Represents total content. Layout may
vary.
PART
NUMBER
PIN ONE
INDICATOR
MANUFACTURER'S
TRADEMARK
4116R-1-
120
CYYWW
7.87 .25
(.310 .010)
TO OUTSIDE
WHEN PINS
ARE PARALLEL
.254 .050
(.010 .002)
8.64 .50
(.340 .020)
6.71 .10
(.260 + .005)
(.260
- .000)
Governing dimensions are in metric. Dimensions in parentheses
are inches and are approximate.
*Terminal centerline to centerline measurements made at point of
emergence of the lead from the body.
CIRCUIT
RESISTANCE
CODE
DATE CODE
COUNTRY OF MANUFACTURE
(C = COSTA RICA)
For Standard Values Used in
Capacitors, Inductors, and Resistors,
click here.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
4100R Series - Thick Film Molded DIPs
Isolated Resistors (1 Circuit)
Model 4108R-1-RC
(4 Isolated Resistors)
Model 4114R-1-RC
(7 Isolated Resistors)
Model 4116R-1-RC
(8 Isolated Resistors)
Model 4118R-1-RC
(9 Isolated Resistors)
Model 4120R-1-RC
(10 Isolated Resistors)
Bussed Resistors (2 Circuit)
Model 4108R-2-RC
(7 Resistors, Pin 8 Common)
Model 4114R-2-RC
(13 Resistors, Pin 14 Common)
Model 4116R-2-RC
(15 Resistors, Pin 16 Common)
Model 4118R-2-RC
(17 Resistors, Pin 18 Common)
Model 4120R-2-RC
(19 Resistors, Pin 20 Common)
16
14
8
R2
R2
R1
R2
R2
R1
R2
R2
R1
R2
R2
R1
R2
R2
R1
R2
R2
R1
R2
8
R2
Dual Resistors (3 Circuit)
Model 4108R-3-R1/R2
Model 4114R-3-R1/R2
Model 4116R-3-R1/R2 (shown)
Model 4118R-3-R1/R2
Model 4120R-3-R1/R2
16
9
R1
R1
R1
R1
R1
R1
R1
9
R
R
R
R
R
R
R
R
R
1
7
1
R
R
R
R
R
R
R
R1
R
R
R
R
R
R
8
1
Resistance Tolerance
10 ohms to 49 ohms ................... ±1 ohm
50 ohms to 5 megohms ................ ±2 %*
Above 5 megohms..........................±5 %
Power Rating per Resistor
At 70 °C ................................ 0.250 watt
Power Temperature Derating Curve
Resistance Tolerance
10 ohms to 49 ohms ................... ±1 ohm
50 ohms to 5 megohms ................ ±2 %*
Above 5 megohms..........................±5 %
Power Rating per Resistor
At 70 °C ................................ 0.125 watt
Power Temperature Derating Curve
Resistance Tolerance
Below 100 ohms ....................... ±2 ohms
100 ohms to 5 megohms .............. ±2 %*
Above 5 megohms..........................±5 %
Power Rating per Resistor
At 70 °C ................................ 0.125 watt
Power Temperature Derating Curve
.350
WATTS
WATTS
.350
.250
.150
.050
70
125
25
AMBIENT TEMPERATURE (
°
C )
0
70
125
25
AMBIENT TEMPERATURE (
°
C )
WATTS
.350
.250
.150
.050
0
70
125
25
AMBIENT TEMPERATURE (
°
C )
.250
.150
.050
0
Popular Resistance Values (1, 2 Circuits)**
Ohms
10
22
27
33
39
47
56
68
82
100
120
150
Code
100
220
270
330
390
470
560
680
820
101
121
151
Ohms
180
220
270
330
390
470
560
680
820
1,000
1,200
1,500
Code
181
221
271
331
391
471
561
681
821
102
122
152
Ohms
1,800
2,000
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
12,000
Code
182
202
222
272
332
392
472
562
682
822
103
123
Ohms
15,000
18,000
20,000
22,000
27,000
33,000
39,000
47,000
56,000
68,000
82,000
100,000
Code
153
183
203
223
273
333
393
473
563
683
823
104
Ohms
120,000
150,000
180,000
220,000
270,000
330,000
390,000
470,000
560,000
680,000
820,000
1,000,000
Code
124
154
184
224
274
334
394
474
564
684
824
105
Popular Resistance Values (3 Circuit)**
Resistance
Ohms
R1
160
180
220
220
330
330
3,000
R2
240
390
270
330
390
470
6,200
R1
161
181
221
221
331
331
302
Code
R2
241
391
271
331
391
471
622
* Add “F” after resistance code for ±1 % tolerance available from 100 Ω through 1M Ω, or add “D”
after resistance code for ±0.5 % tolerance available from 100 Ω through 1M Ω.
Part number suffix examples: -103 = 10K Ω, ±2 %; -103F = 10K Ω, ±1 %; -103D = 10K Ω, ±0.5 %
** Non-standard values available, within resistance range.
REV. 05/12
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
