187LMX400M2CF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 187LMX400M2CF

187LMX400M2CF: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, LEAD FREE; CategoryPassive components capacitor; File Size863KB，6 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

187LMX400M2CF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 180uF, Through Hole Mount, LEAD FREE

187LMX400M2CF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4000905018
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.28
capacitance	180 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	25 mm
dielectric materials	ALUMINUM (WET)
ESR	1842.1 mΩ
JESD-609 code	e3
leakage current	0.805 mA
length	40 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	1060 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Matte Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

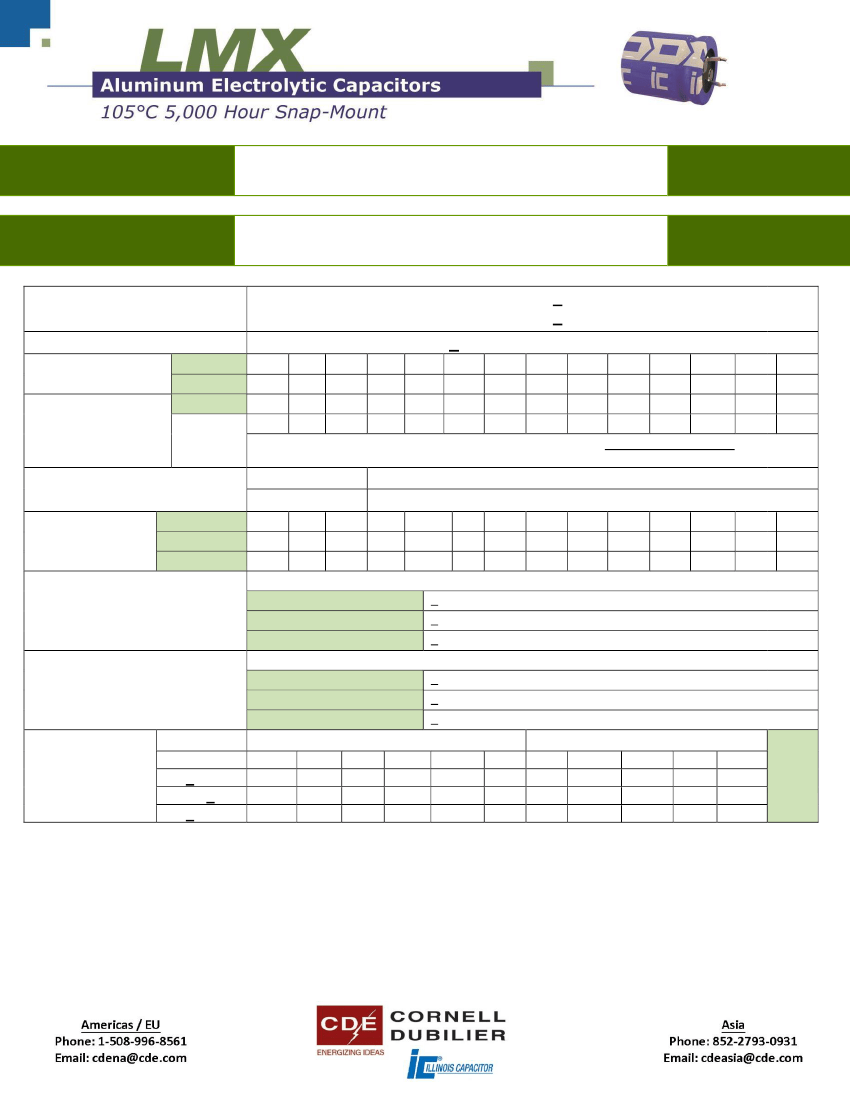

FEATURES

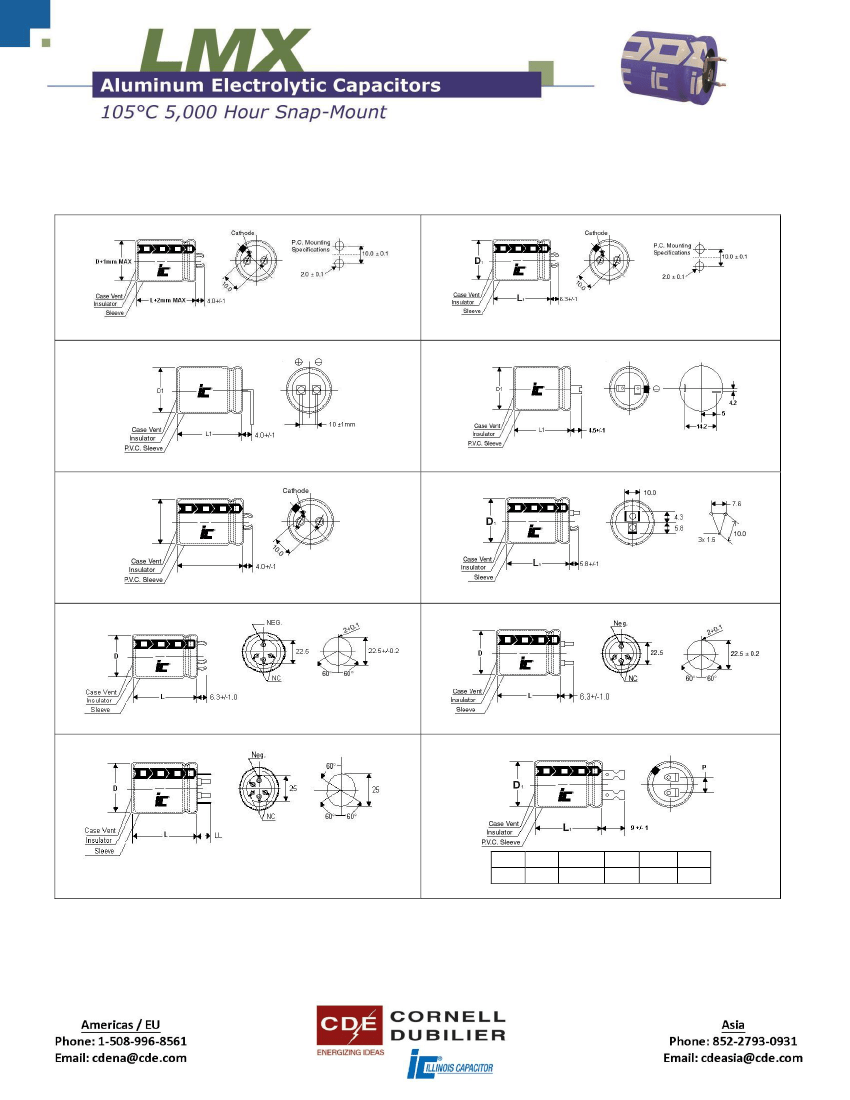

Multiple Case Sizes

High Voltage

–

High Current

APPLICATIONS

Bulk Filtering

–

Switching Power Supplies

-40°C to +105°C (<100WVDC)

-25°C to +105°C (>160WVDC)

+20% at 120 Hz, 20°C

100 160 200 250 350

400

100 120 200 250 300 400

450

100 160 200 250 350

400

.45

.25

.15

For capacitances above 33000uF, add to DF value (Capacitance-33000) *0.1

10000

450

500

450

Operating Temperature Range

Capacitance Tolerance

Surge Voltage

Dissipation

Factor

tan δ

(120 Hz)

WVDC

SVDC

WVDC

Leakage Current @20°C,

Rated WVDC applied

WVDC

Time

5 Minutes

3√CV

450

Impedance Ratio

(120 Hz)

-25°C/+20°C

-40°C/+20°C

100 160 200 250 350 400

5000 hours at 105°C with rated WVDC and ripple current applied

<20% of initial measured value

<200% of maximum specified value

<100% of maximum specified value

Load Life

Capacitance change

Dissipation factor

Leakage current

Capacitance Change

Dissipation Factor

Leakage Current

1000 hours at 105°C with no voltage applied

Shelf Life

<20% of initial measured value

<200% of maximum specified value

<100% of maximum specified value

Frequency (Hz)

Ripple Current

Multipliers

WVDC

<100

160<V<250

>350

0.9

0.8

120

1.0

400

1.0

1.15

1.25

1.3

10k

1.25

1.47

50k

1.25

1.47

2.4

Temperature (°C)

2.1

1.9

1.7

105

Sep-21
