361R220M400FK0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 361R220M400FK0

361R220M400FK0: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size149KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

361R220M400FK0 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

361R220M400FK0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2123738201
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM (WET)
ESR	7500 mΩ
JESD-609 code	e3
leakage current	0.176 mA
length	25 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	100 mA
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

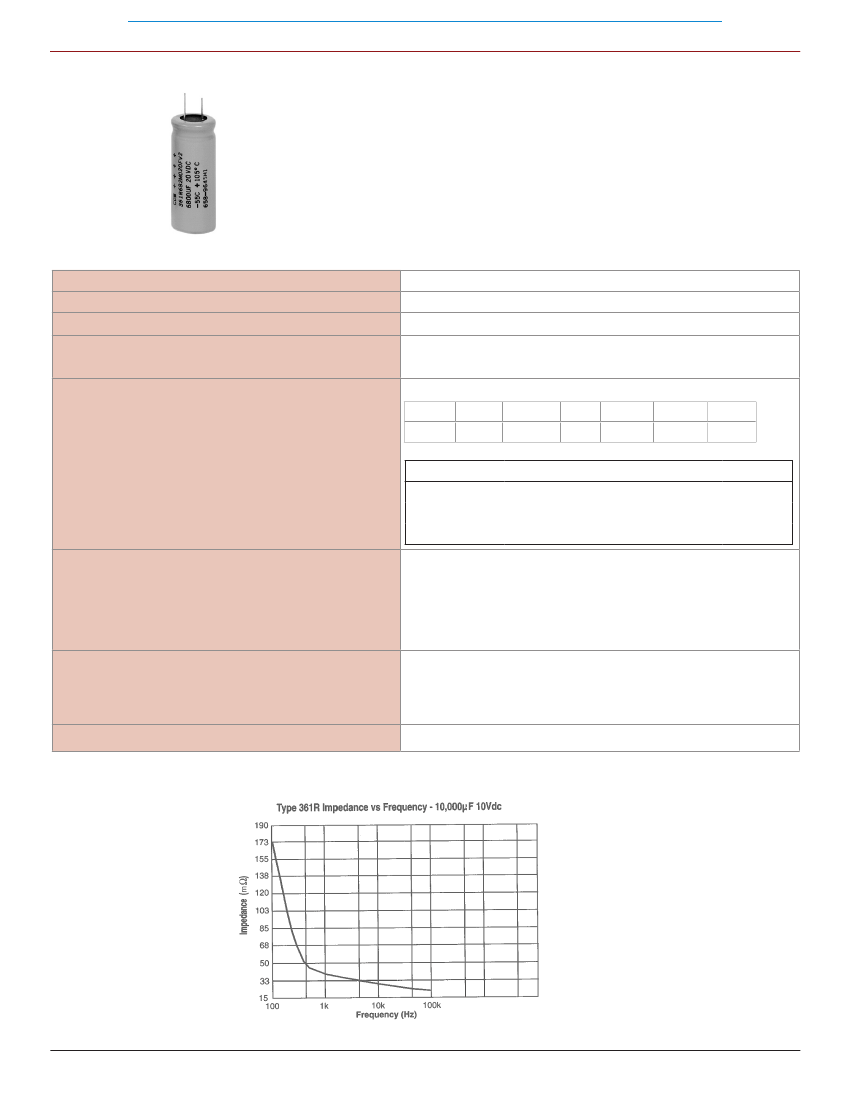

Type 361R 105 °C, Miniature, Industrial Grade, Radial Leaded

High-value, High Ripple, Low ESR & ESL

Please click here to see notice regarding “Longer life non RoHS parts”

Type 361R capacitors are for industrial applications from –40 °C to

+105 °C. They deliver excellent ripple capability and low ESR and

ESL. Also available with three mounting leads. For three leads,

change Type designation from 361R to 366R.

Highlights

- Excellent Ripple Capability

- Low ESR and ESL

- High Valuers

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Leakage Current

Ripple Current Multipliers

–40 °C to +105 °C

6.3 to 450 Vdc

7 to 18,000 µF ± 20%

≤0.002 CV µF +25 °C, 6.3 to 160 Vdc

≤0.02 CV µF +25 °C, 200 to 450 Vdc

Ambient Temperature

45 ºC

2.00

Frequency

50 Hz 60 Hz 120 Hz 360 Hz 1 kHz

6.3 & 10 V

16 to 25 V

35 V & up

Load Life

RoHS

Non-RoHS

0.91

0.85

0.77

0.93

0.88

0.82

1.00

1.06

1.12

1.21

1.08

1.18

1.32

5 kHz 10 kHz & up

1.09

1.21

1.37

1.09

1.22

1.38

55 ºC

1.60

65 ºC

1.40

75 ºC

1.25

85 ºC

1.00

95 ºC

0.79

105 ºC

0.5

2000 h at full load at 105 °C

4000 h at full load at 1055 °C

∆ Capacitance ±15%

ESR 175% of limit

DCL 100% of limit

1,000 h @ 105 °C

∆ Capacitance ±15%

ESR 150% of limit

DCL 200% of limit

10 to 55 Hz, 0.06” and 10 g, 2 h ea of 3 planes

Shelf Life Test

Vibration

Typical Curve

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800
