A3012-330-030-00-Z: DescriptionTelecom and Datacom Connector, 24 Contact(s), Male, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size901KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A3012-330-030-00-Z Overview

Telecom and Datacom Connector, 24 Contact(s), Male, Straight, Solder Terminal, Receptacle

A3012-330-030-00-Z Parametric

Parameter Name	Attribute value
Objectid	304388405
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.512 inch
subject depth	0.809 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	A3012
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

HOW TO ORDER:

A

3

0

1

2

-

3

X

0

-

X

-

X

-

Z

RoHS

COMPLIANT

ELECTRICAL:

CURRENT RATING: 1.5A

NUMBER OF POSITIONS:

CONTACT RESISTANCE: < 20m

Ω

3 - 8 POS

INSULATOR RESISTANCE: > 500M

Ω

NUMBER OF CONTACTS:

DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC FOR 1 MIN.

2 - 4 CON

4 - 8 CON

OPERATING TEMPERATURE: -25° C TO +85° C

3 - 6 CON

SHIELD:

0 - NON SHIELDED

PLATING OVERALL:

0 - FULL Au

1 - 10u" Au

2 - 15u" Au

3 - 30u" Au

FLANGE:

0 - NO FLANGE

1 - FLANGE

MATERIAL:

CONTACT: PHOSPHOR BRONZE

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

NUMBER OF PORTS:

02 thru 12

KEYING OPTION:

0 - W/ OUT KEY

1 - W/ KEY

E195981

Rev

0 Issued

A Revised for RoHS Compliance

Drawn

S.E.

B.S.

Checked

S.M.

Approved

S.M.

Date

10/01/97

08/25/08

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

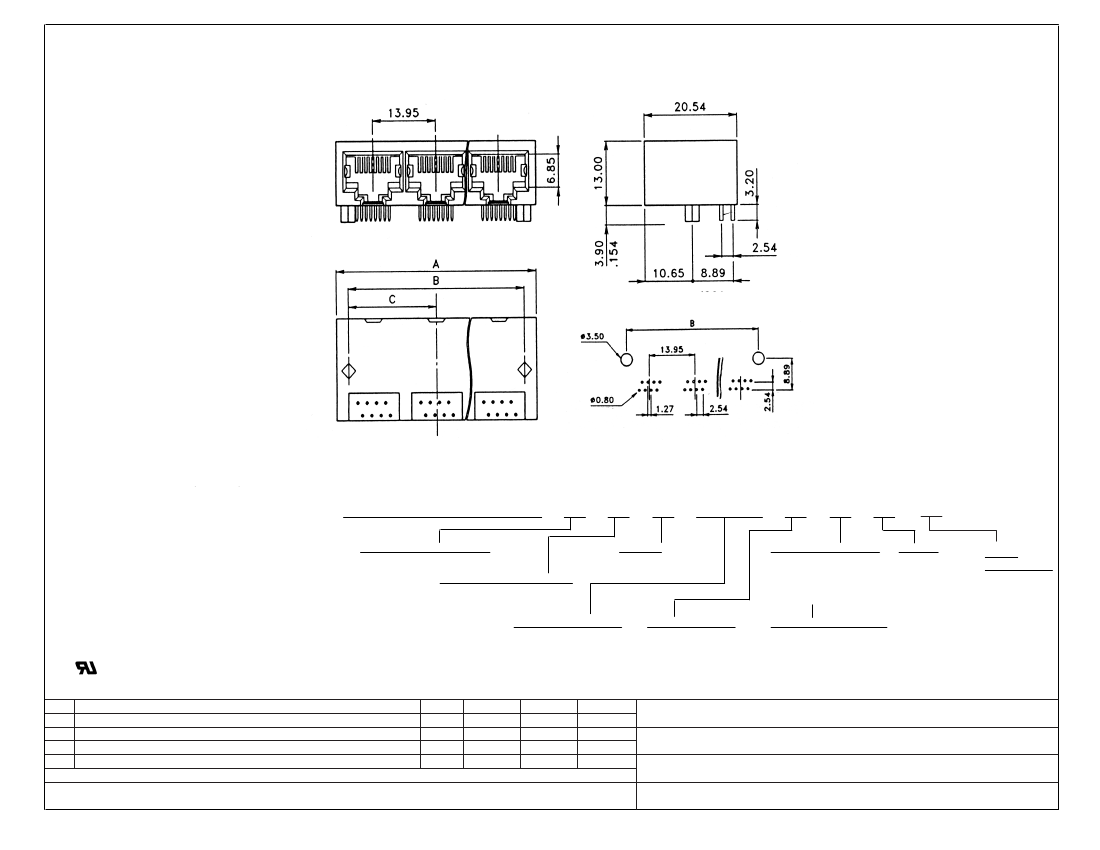

SMP TECHNOLOGY, INC.

MULTI-PORT PCB JACK, RIGHT ANGLE, NON-SHIELDED

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-0.15

ANGLE +/-

UNIT: mm

SERIES: A3012

Pg: 1
