B014-1030-206-Z datasheet, PDF

Datasheet> All Categories > The connector> socket> B014-1030-206-Z

B014-1030-206-Z: DescriptionIC Socket, DIP10, 10 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size616KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B014-1030-206-Z Overview

IC Socket, DIP10, 10 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

B014-1030-206-Z Parametric

Parameter Name	Attribute value
Objectid	304390123
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.398 inch
subject depth	0.167 inch
body length	0.5 inch
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP10
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYESTER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	B014
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	10
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

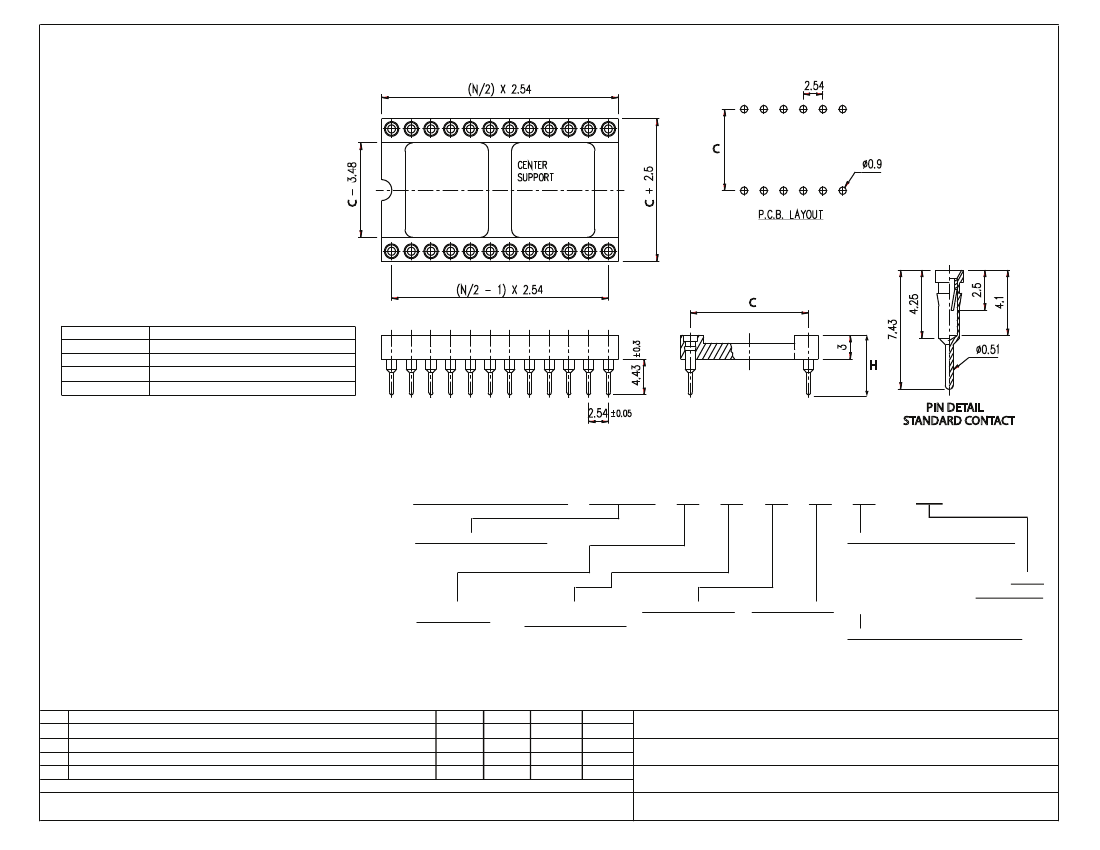

DIP SPACING

7.62 (0.300")

10.16 (0.400")

15.24 (0.600")

22.86 (0.900")

NO. OF CONTACTS AVAILABLE

06, 08, 10, 14, 16, 18, 20, 22, 24, 28

20, 22, 24, 28, 32

24, 28, 32, 36, 40, 42, 48, 50, 52

50, 52, 64

PIN DETAIL

STANDARD CONTACT

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: < 4m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

OPERATING VOLTAGE: 60V AC/DC

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN.

HOW TO ORDER:

NUMBER OF CONTACTS:

06 thru 64

MATERIAL:

CONTACT OUTER SLEEVE:

COPPER ALLOY

CLIP (4 FINGER CONTACT): BERYLLIUM COPPER

CONTACT PLATING:

CLIP: A Gold

BODY: 200 TIN

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

MECHANICAL:

OPERATING TEMPERATURE : -55° C TO +105° C

SOLDER TEMPERATURE: 260° C FOR 10 SEC. (MAX.)

Rev

Issued

Revised for RoHS Compliance

SCALE

N/A

.X +/- 0.3

.XX +/- 0.15

.XXX +/-

"C" DIMENSION

DIP SPACING:

3 - 7.62 (0.300")

4 - 10.16 (0.400")

6 - 15.24 (0.600")

9 - 22.86 (0.900")

"H" DIMENSION

FRAME VERSION:

CONTACT HEIGHT:

1 - W/ BAR

0 - 7.46mm (0.294")

2 - W/OUT BAR

1 - 5.84mm (0.230")

2 - 8.89mm (0.350")

3 - 11.30mm (0.445")

* OPTION "0" STANDARD

CLIP PLATING:

0 - Au FLASH

1 - 10u" Au

2 - 30u" Au

CONTACT PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

RoHS

3 - 10u" Au

COMPLIANT

4 - 15u" Au

5 - 30u" Au

CONTACT SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved

Date

S.E.

6/15/98

S.M.

8/15/06

WHS

S.M.

SMP TECHNOLOGY, INC.

DIP Socket, 2.54mm Pitch, Machine Pin

ANGLE +/-

10°

UNIT: mm

TOL. DEC.

SERIES:

B 0 1 4 - X X X X - X X X - Z

Pg: 1
