RHD5928 Analog Multiplexer
8-Channel
www.aeroflex.com/RHDseries
August 31, 2011
FEATURES
❑
❑
❑
❑
❑
❑
❑
❑
Single power supply operation at 3.3V to 5V
Radiation performance
- Total dose:
>1Mrad(Si); Dose rate = 50 - 300 rads(Si)/s
- ELDRS Immune
- SEL Immune
>100 MeV-cm
2
/mg
- Neutron Displacement Damage >10
14
neutrons/cm
2
Full military temperature range
Rail to Rail operation
Low power consumption < 1.0mW
One address bus (A
0-2
), and one enable line
Designed for aerospace and high reliability space applications
Packaging – Hermetic ceramic
- 16-pin, 0.3"W x 0.4"L x 0.12"Ht SOIC
- Typical Weight 1.2 grams
GENERAL DESCRIPTION

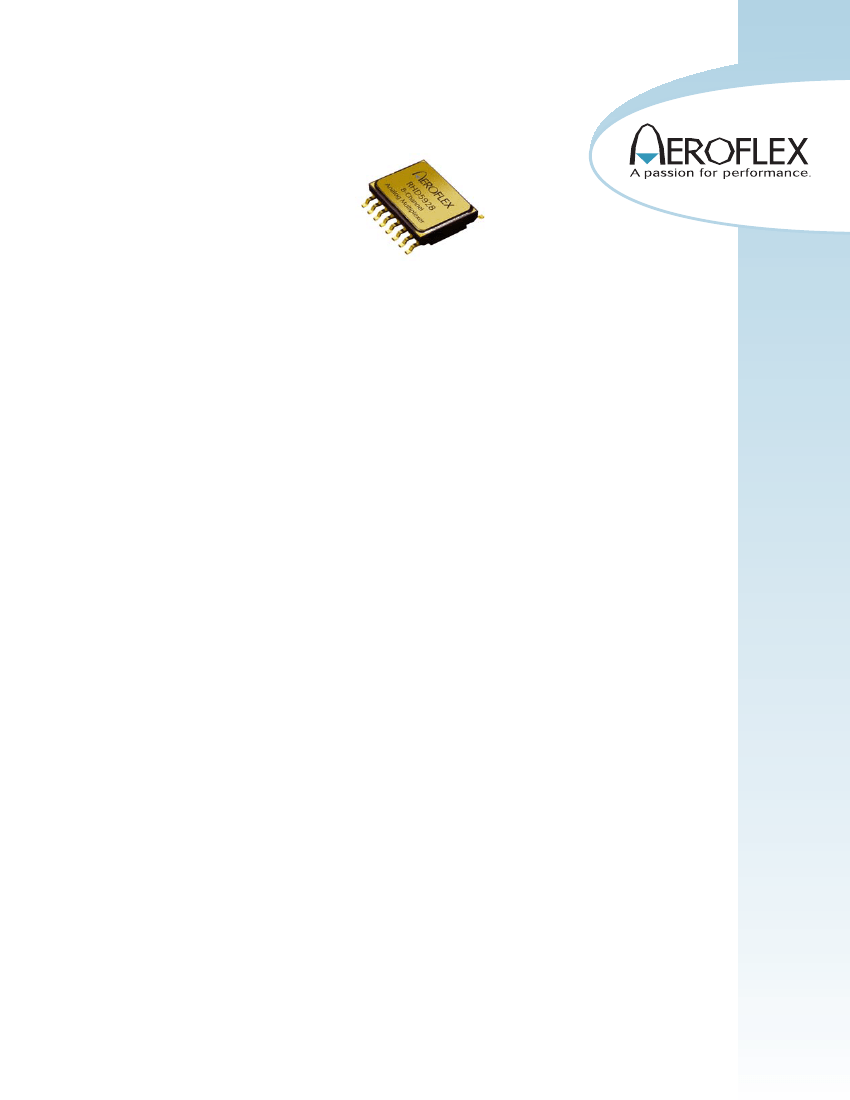

Aeroflex’s RHD5928 is a radiation hardened, single supply, 8 Channel Multiplexer in a 16-pin SOIC
package. The RHD5928 design uses specific circuit topology and layout methods to mitigate total ionizing
dose effects and single event latchup. These characteristics make the RHD5928 especially suited for the
harsh environment encountered in Deep Space missions. It is guaranteed operational from -55°C to
+125°C. Available screened in accordance with MIL-PRF-38534 Class K, the RHD5928 is ideal for
demanding military and space applications.
ORGANIZATION AND APPLICATION
The RHD5928 is an 8 to 1 CMOS multiplexer. Channel selection is controlled by 3 bit binary addressing
and an active low enable. All inputs and outputs are diode protected.
The devices will not latch with SEU events to above 100 MeV-cm
2
/mg. Total dose degradation is minimal
to above 1Mrad(Si). Displacement damage environments to neutron fluence equivalents in the mid 10
14
neutrons per cm
2
range are readily tolerated. There is no sensitivity to low-dose rate (ELDRS) effects. SEU
effects are application dependant.
SCD5928 Rev A
ABSOLUTE MAXIMUM RATINGS
Parameter
Case Operating Temperature Range
Storage Temperature Range
Supply Voltage
(+V
CC
)
Digital Input Overvoltage
(V
EN
, V
A
)
Analog Input Over Voltage
(CH0-CH7)
Range
-55 to +125
-65 to +150
+6.0
< V
CC
+0.4
> GND -0.4
< V
CC
+0.4
> GND -0.4
Units
°C
°C
V
V
V
V
NOTICE: Stresses above those listed under "Absolute Maximums Rating" may cause permanent damage to the device. These are stress rating
only; functional operation beyond the "Operation Conditions" is not recommended and extended exposure beyond the "Operation Conditions" may
affect device reliability.
RECOMMENDED OPERATING CONDITIONS
Symbol
+V
CC
V
EN
, V
A
V
EN
, V
A
Power Supply Voltage
Logic Low Level
Logic High Level
Parameter
Typical
3.3 to 5.0
30% V
CC
70% V
CC
Units
V
V
V
ELECTRICAL PERFORMANCE CHARACTERISTICS
(T
C
= -55°C
TO
+125°C, +V
CC
= +5V -- U
NLESS OTHERWISE SPECIFIED
)
Parameter
Supply Current
(+V
CC
)
Symbol
+I
CC
+I
SBY
I
AL
Address Input Current
(A0-A2)
I
AH
V
A
= 70% V
CC
+125°C
+25°C
I
ENL
Enable Input Current
(EN)
I
ENH
High Input
Leakage Current
(CH0-CH7)
Low Input
Leakage Current
(CH0-CH7)
Output Leakage Current
(V
OUT
)
V
EN
= 70%V
CC
+125°C
I
INLK5
V
IN
= +5V, V
EN
=70% V
CC
,
Output and all unused MUX inputs under test =
0V
V
IN
= 0V, V
EN
=70% V
CC
Output and all unused MUX inputs under test =
+5V
V
OUT
= +5V, V
EN
= 70% V
CC
,
All inputs grounded except channel being tested
+25°C
+125°C
+25°C
+125°C
+25°C
+125°C
-55°C
Switch ON Resistance
R
DSON
V
IN
= 0V, V
IN
= +2.5V, V
IN
= +5V
V
EN
= 30% V
CC
I
OUT
= -1mA
+25°C
+125°C
SCD5928 Rev A
Preliminary
8/31/11
Conditions
EN = 30% V
CC
EN = 70% V
CC
+25°C
V
A
= 30% V
CC
+125°C
+25°C
Min
-
-
-5
-50
-5
-50
-5
-50
-5
-50
-5
-50
-5
-50
-5
-50
-
-
-
Max
10
10
5
50
5
50
5
50
5
50
5
50
5
50
5
50
500
750
1000
Units
A
A
nA
nA
nA
nA
nA
nA
nA
nA
nA
nA
nA
nA
nA
nA
V
EN
= 30% V
CC
+125°C
+25°C
I
INLK0
I
OUTLK
3
